€4,299.00
On order, delivery date unknown

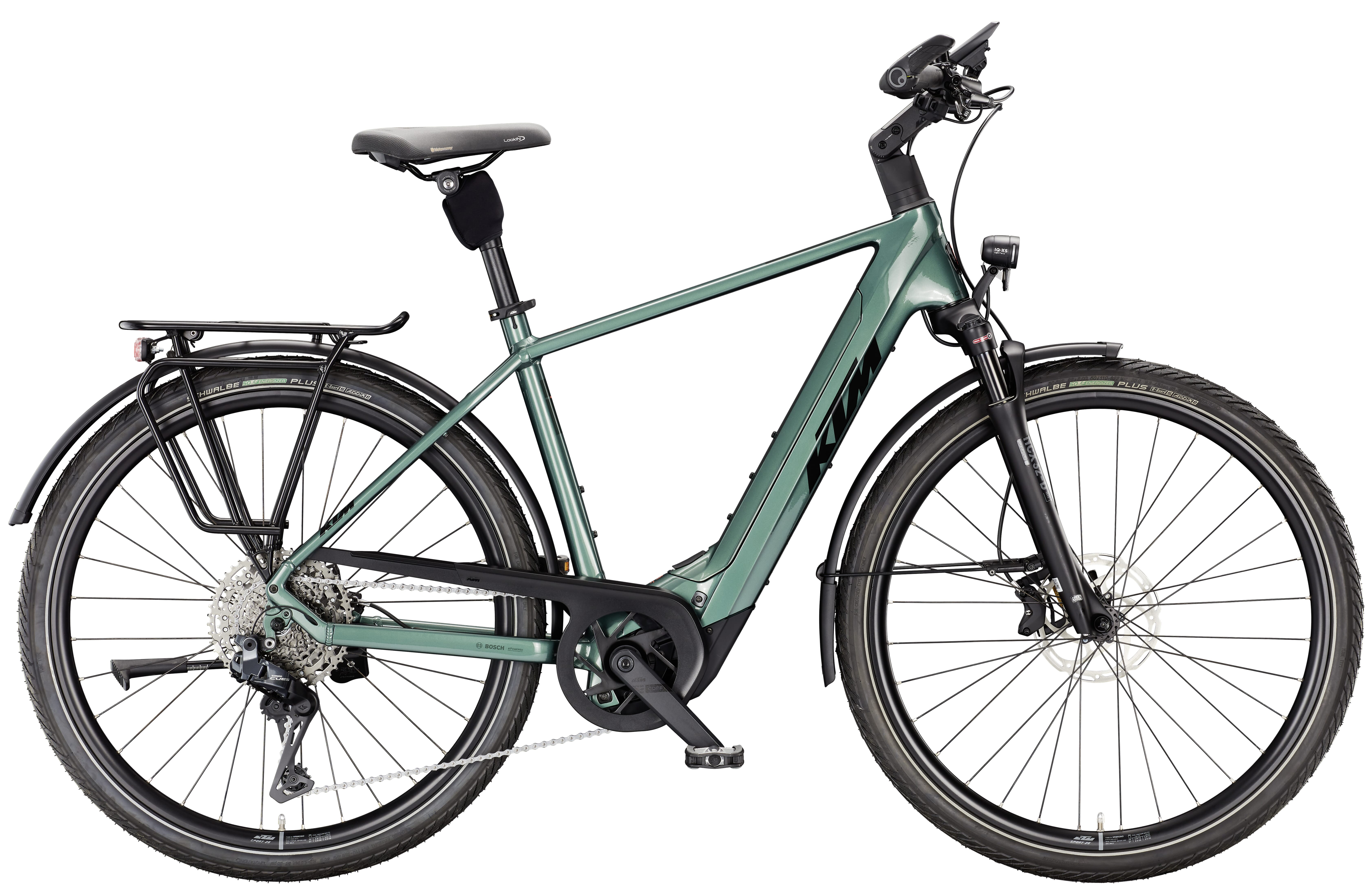

With its Bosch Performance Line CX motor and removable Bosch PowerTube 800 Wh battery, the KTM Macina Style 820 Di2 is ideally suited to trekking tours. Whether it’s long weekend rides out into the countryside or short journeys around town – you’ll always be powered by up to 100 Nm of torque, whilst enjoying plenty of range and a natural riding experience. Perfect for trekking, the bike is fitted with the KTM Tour Snap-it 2.0 luggage rack. You can attach your panniers to it in a flash, making it easy to carry your essentials with you. The gearshift with Di2 technology offers even greater convenience. This is because the Shimano CUES Di2 U8050-11LG Shadow rear derailleur fitted to the Macina Style 820 Di2 can be controlled wirelessly via the Shimano CUES Di2 EN605-R controller and also ensures reliable and precise gear changes.
eBike24 recommends: The KTM Macina Style 820 Di2 is the perfect companion for all e-bike riders who are frequently on the move, whether for everyday use or leisure. It offers high-quality features, plenty of comfort and a powerful drive system – a complete package that promises plenty of riding enjoyment.
Features of the KTM Macina Style 820 Di2 – 2027
- Trekking e-bike with Bosch Smart System
- Bosch Performance Line CX motor (BDU3840)
- Bosch PowerTube 800 Wh battery (horizontal)
- Bosch Kiox 500 TFT display
- Suntour NCX32-D SPORT Air 29" suspension fork
- Busch & Müller Briq-M headlight
- Shimano CUES Di2 U8050-11LG Shadow rear derailleur
- Shimano LG400-11 Linkglide cassette
| Battery: | Bosch PowerTUBE 800Wh (horizontal) |
|---|---|
| Battery capacity: | 800 Wh - 899 Wh |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line CX from 2025 Smart System |
| Brakes: | Shimano MT402 (3-F) / MT420 4-piston |
| Carrier: | KTM Tour Snap-It 2.0/Monkeyload child seat + rack clip |
| Cassette: | Shimano LG400-11 / 11-50 LinkGLIDE |
| Chain: | Shimano LG500-9/10/11 |
| Chainguard: | KTM type 9 for Bosch BDU38 |
| Chainring: | FSA steel 42T Direct Mount |
| Charger: | Bosch STANDARD 4A Charger |
| Colour: | EMERALD BLACK (SILVER+GREEN) | FLASH STONE MATT (BLACK+WHITE) |
| Crank set: | KTM E-COMP2 ISIS 170mm Q8 |
| Disc brakes: | Front: Shimano RT64 CL 180 | Rear: Shimano EM600 CL 160 |
| Display: | Bosch KIOX 500 TFT display |
| Drive system: | Bosch drive |
| E-Bike Types: | Cross E-Bike, Trekking E-Bike |
| Frame: | Macina Trekking Onroad 6061 Alloy PT800 Bosch BDU38/T5940 |
| Frame type: | Ladies / Trapeze, Mens, Step-through |
| Front hub: | Shimano TC500 CL 32H 100-15TA |
| Front light: | B&M Briq-M 150Lux |
| Gearshift stages: | 11-speed |
| Grips: | GRIP ERGON GP10 |
| Handlebar: | KTM Line Rizer20 640mm |
| Headset: | Acros AICR internal 1.5"-1.5" |
| Item: | KTM Macina Style 820 Di2 |
| Item weight: | 27,6 kg |
| Manufacturer: | KTM |
| Model year: | 2027 |
| Motor: | Bosch PERFORMANCE CX BDU3840 |
| Mudguard: | SKS A62K PET Trek 28" rear |
| Pedal: | VP-616 alloy trekking pedal with rubber tread |
| Permissible total weight: | 146 kg (e-bike + rider + luggage) |
| Rear derailleur: | Shimano CUES Di2 U8050-11LG Shadow |
| Rear hub: | Shimano Deore M5100 CL 32H 135-5QR |
| Rear light: | B&M Toplight 2C |
| Rims: | Front: Ambrosio Challenger 32H 622x28TC | Rear: Ambrosio Challenger 32H 622x28TC |
| Saddle: | Selle Royal Lookin |
| Saddle clamp: | KTM Line JD-SC99 – 34.9 mm |
| Seat post: | Suntour SP25-NCX suspension 30.9/350 |
| Shift lever: | Shimano CUES Di2 EN605-R Controller |
| Side stand: | KTM 28" adjustable MY2025 |
| Spokes: | Front: DT Champion 2.0 black | Rear: DT Alpine II 2.34 black |
| Stem: | KTM Integration ICR 0–60° adjustment |
| Suspension fork: | Suntour NCX32-D SPORT Air 29" LO 80mm 15x100 |
| Tyres: | Front: Schwalbe Green Marathon Perf. GreenGuard 55-622 | Rear: Schwalbe Green Marathon Perf. GreenGuard 55-622 |
