KTM Macina Style 820 XL 2025, CX Gen5 800Wh Kiox 500, up to XXL

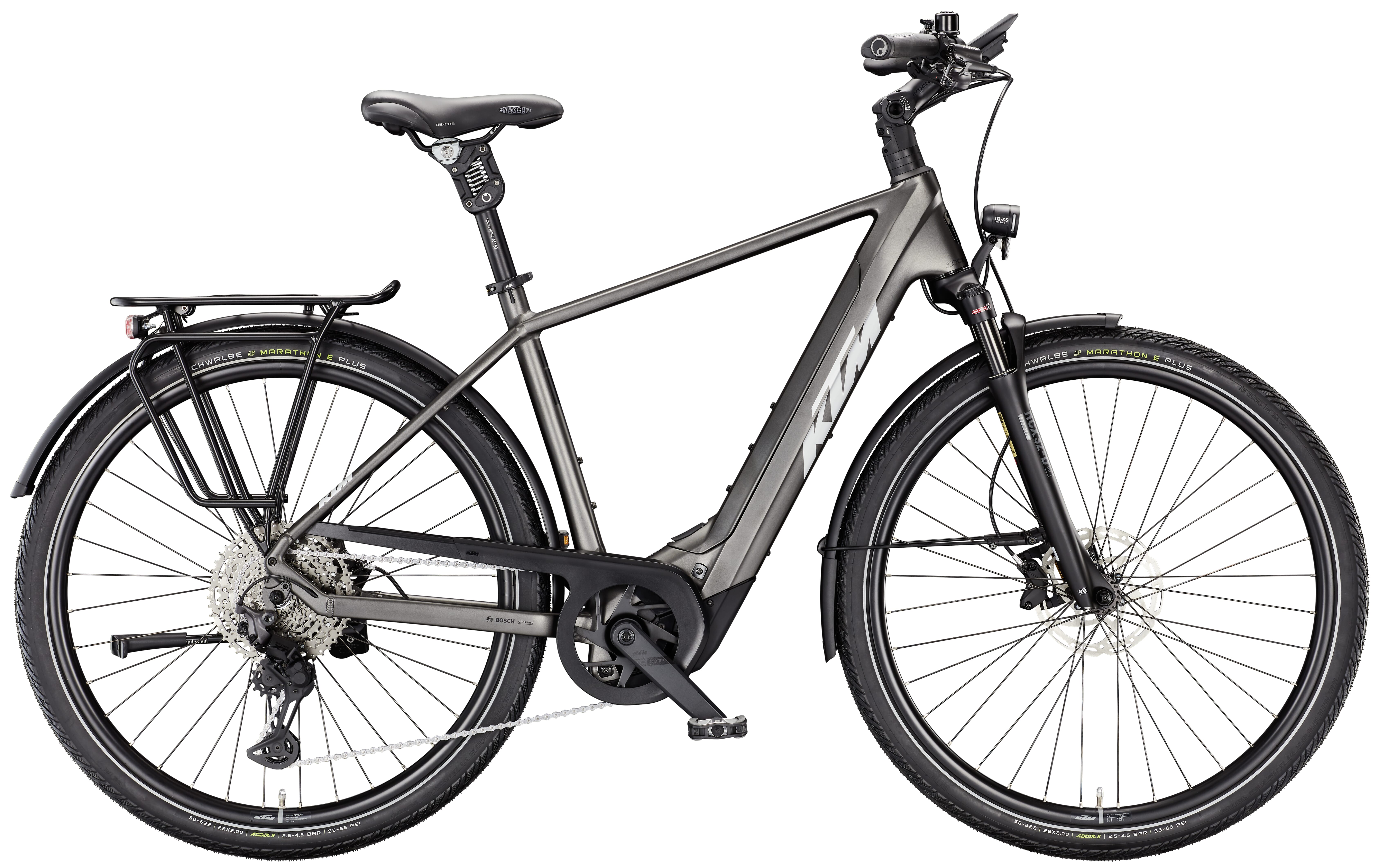

Preview: KTM Macina Style 820 XL - 2025 - Men

Preview: KTM Macina Style 820 XL - 2025 - Ladies

4,499.00€

Item number: 10955-001
Manufacturer Part Number: 1250157106

The KTM Macina Style 820 XL 2025 is the ideal trekking eBike for tall people. It is available up to a frame size of 63cm (XXL) and can carry a total load of up to 167kg, which is made up of the eBike, rider and luggage. The centrepiece is the Bosch Performance Line CX Gen5 motor. This provides powerful and reliable support on all your tours. At the same time, the eBike is supplied with the necessary power by the Bosch PowerTube 800Wh battery. The Bosch Smart System on the Macina Style 820 XL is controlled via the Bosch LED Remote. This is used to operate the Busch and Müller lights, select the support level and activate the push assist. You can also use the remote to operate the Bosch Kiox 500 display and change the view of the ride screens, for example.

E-Bike Types:	Urban & City e-Bikes
Model year:	2025
Battery capacity:	800 Wh - 899 Wh
Drive system:	Bosch drive
Manufacturer:	KTM
Frame type:	Ladies / Trapeze, Low-entry / Wave, Mens
Derailleur/drive type:	Derailleur - chain drive
Battery position:	Intube battery / frame integrated
Bosch System:	Bosch Performance Line CX from 2025 Smart System
Frame:	Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38 / T-5940
Fork:	Suntour NCX32-D coil LO 63mm (Heavy Duty) 1 1/8
Battery:	Bosch PowerTUBE 800Wh horizontal
Tyres:	Schwalbe Marathon E-Plus Perf. DualGuard 50-622 Reflex
Saddle:	Selle Royal Viaggio
Seat post:	bySchulz G.2 ST suspension 30.9/350
Carrier:	KTM tour (snap-it 2.0 + monkeyload) childseat+rack clip
Item:	KTM Macina Style 820 XL - 2025
Colour:	MACHINE GREY MATT (SILVER+BLACK)
Stem:	Ergotec Swell RE70i adjust. 0-60°
Display:	Bosch KIOX 500 TFT display
Side stand:	KTM 28" adjustable MY2025
Wheels:	KTM Line - Shimano Deore M5100 CL 36H 100-5QR Ryde Andra29 36H 622x29C DT Alpine II 2.34 black
Spring travel:	63 mm
Grips:	Ergon GP1 Evo
Motor:	Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm
Rear light:	B&M Toplight 2C
Front light:	B&M IQ-XS 80Lux
Pedal:	Trekking pedal VP-616 anti-slip
Wheel size:	28"
Handlebar:	Ergotec Lady Town 31.8 690mm
Crank:	KTM E-COMP2 ISIS 170mm Q8
Cassette:	Shimano LG400-11 / 11-50
Rear derailleur:	Shimano CUES U6000-11/10 LG shadow+
Chain:	KMC e11 Sport EPT eBike
Shift lever:	Shimano CUES U6000-11 display
Charger:	Bosch STANDARD Charger 4A
Disc brakes:	Tektro TR-45 2.3mm CL 180 / TR-45 2.3mm CL 180
Control unit:	Bosch LED Remote
Brake:	Tektro TKD-139 / HD-E730 4-Piston
Bosch E-Bike System:	Bosch Smart System

Features of the KTM Macina Style 820 XL - 2025
