€4,499.00
On order, delivery date unknown
Description

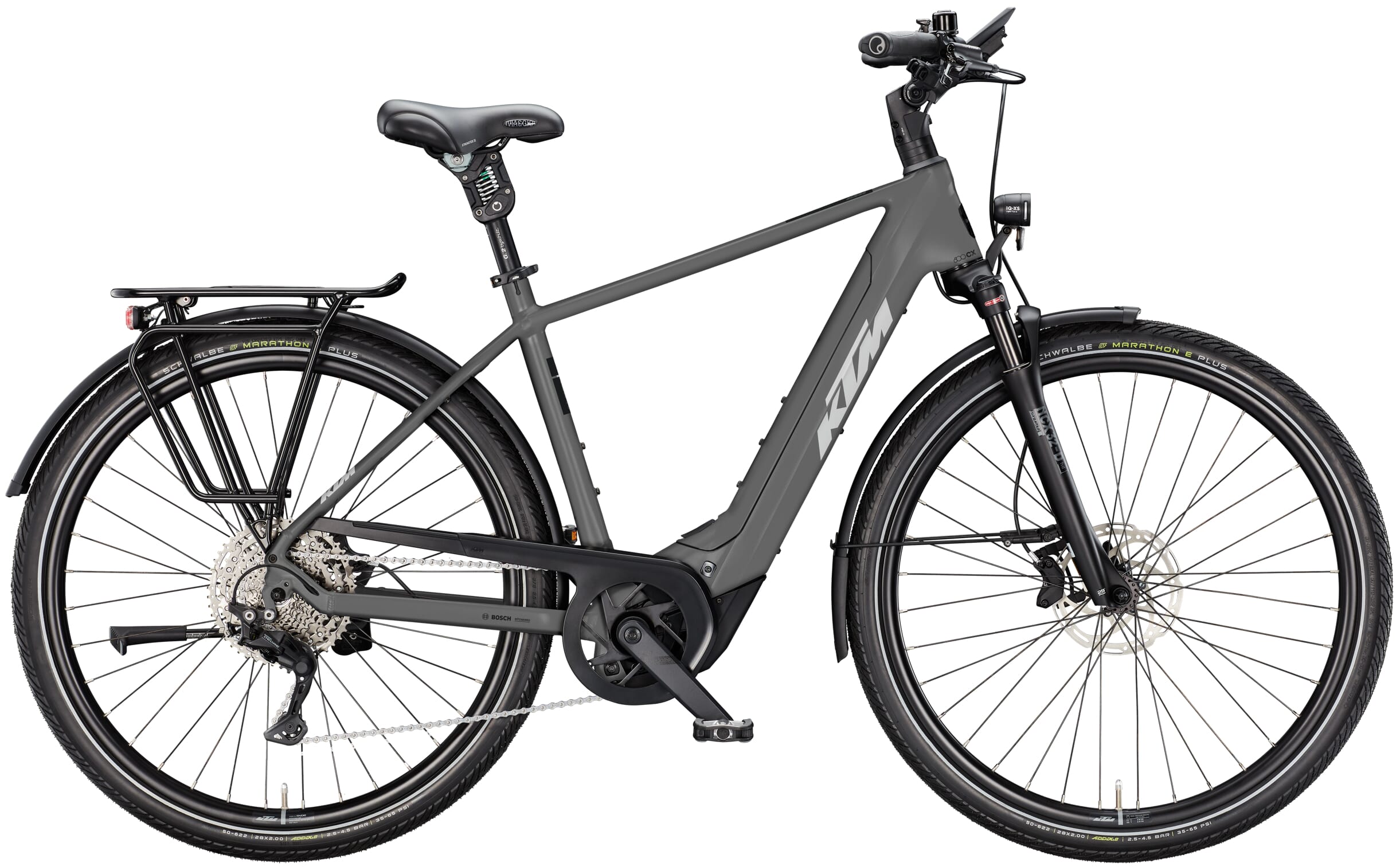

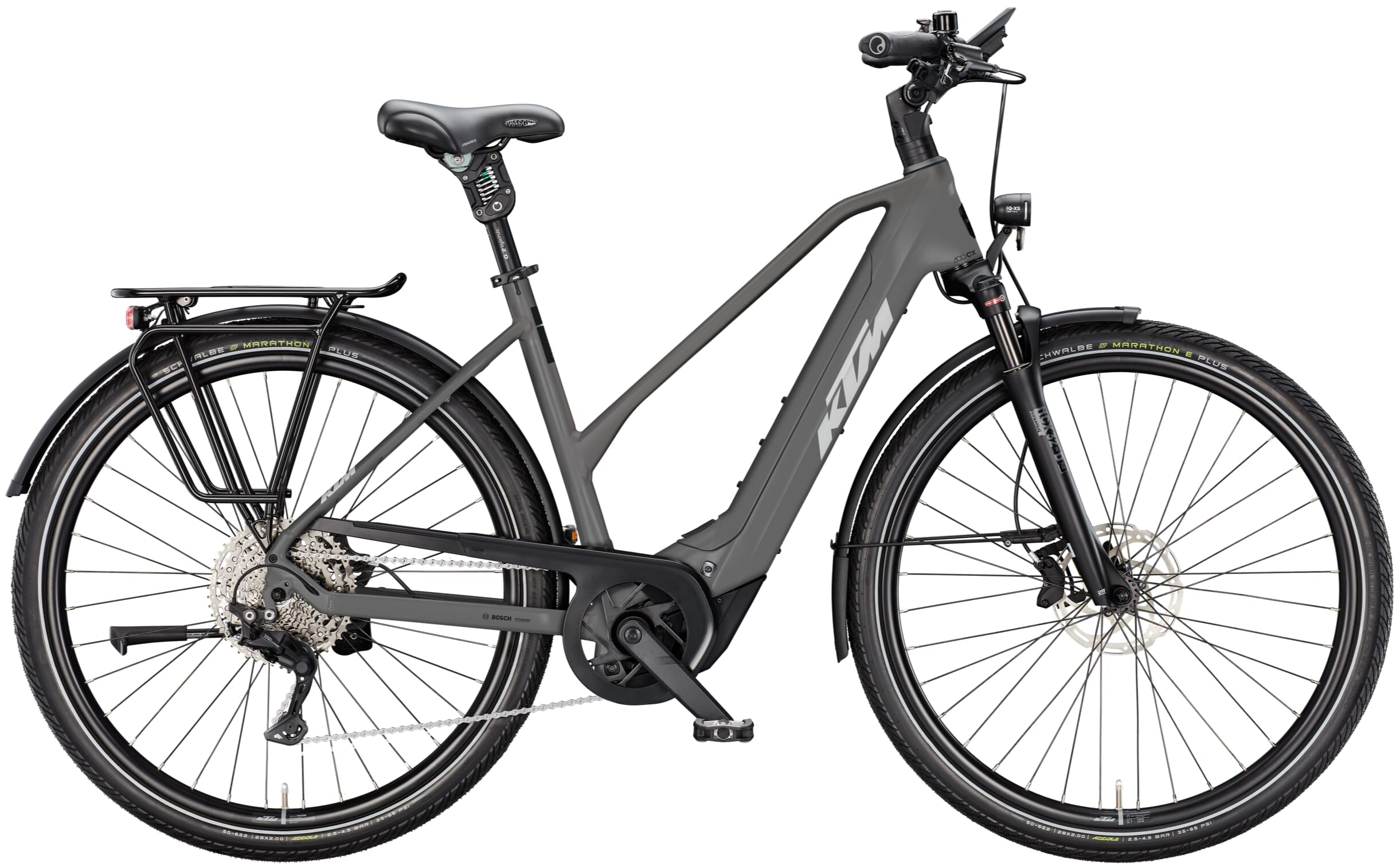

The KTM Macina Style 820 XL 2025 is the ideal trekking eBike for tall people. It is available up to a frame size of 63cm (XXL) and can carry a total load of up to 167kg, which is made up of the eBike, rider and luggage. The centrepiece is the Bosch Performance Line CX Gen5 motor. This provides powerful and reliable support on all your tours. At the same time, the eBike is supplied with the necessary power by the Bosch PowerTube 800Wh battery. The Bosch Smart System on the Macina Style 820 XL is controlled via the Bosch LED Remote. This is used to operate the Busch and Müller lights, select the support level and activate the push assist. You can also use the remote to operate the Bosch Kiox 500 display and change the view of the ride screens, for example.
Features of the KTM Macina Style 820 XL - 2025
- Trekking eBike with eBike Smart System
- Large frame size up to 63cm (XXL)
- Bosch Performance Line CX Gen5 motor
- Bosch PowerTube 800Wh battery
- Bosch Kiox 500 & LED Remote
- Suntour NCX32-D Coil LO suspension fork
- 167kg total load (rider + eBike + luggage)
Properties
| Battery: | Bosch PowerTUBE 800Wh horizontal |
|---|---|
| Battery capacity: | 800 Wh - 899 Wh |
| Battery position: | Intube battery / frame integrated |
| Bosch E-Bike System: | Bosch Smart System |
| Bosch System: | Bosch Performance Line CX from 2025 Smart System |
| Brake: | Tektro TKD-139 / HD-E730 4-Piston |
| Carrier: | KTM tour (snap-it 2.0 + monkeyload) childseat+rack clip |
| Cassette: | Shimano LG400-11 / 11-50 |
| Chain: | KMC e11 Sport EPT eBike |
| Charger: | Bosch STANDARD Charger 4A |
| Colour: | MACHINE GREY MATT (SILVER+BLACK) |
| Control unit: | Bosch LED Remote |
| Crank: | KTM E-COMP2 ISIS 170mm Q8 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Tektro TR-45 2.3mm CL 180 / TR-45 2.3mm CL 180 |
| Display: | Bosch KIOX 500 TFT display |
| Drive system: | Bosch drive |
| E-Bike Types: | Urban & City E-Bike |
| Fork: | Suntour NCX32-D coil LO 63mm (Heavy Duty) 1 1/8 |
| Frame: | Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38 / T-5940 |
| Frame type: | Ladies / Trapeze, Mens, Step-through |
| Front light: | B&M IQ-XS 80Lux |
| Grips: | Ergon GP1 Evo |
| Handlebar: | Ergotec Lady Town 31.8 690mm |
| Item: | KTM Macina Style 820 XL - 2025 |
| Manufacturer: | KTM |
| Model year: | 2025 |
| Motor: | Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm |
| Pedal: | Trekking pedal VP-616 anti-slip |
| Rear derailleur: | Shimano CUES U6000-11/10 LG shadow+ |
| Rear light: | B&M Toplight 2C |
| Saddle: | Selle Royal Viaggio |
| Seat post: | bySchulz G.2 ST suspension 30.9/350 |
| Shift lever: | Shimano CUES U6000-11 display |
| Side stand: | KTM 28" adjustable MY2025 |
| Spring travel: | 63 mm |
| Stem: | Ergotec Swell RE70i adjust. 0-60° |
| Tyres: | Schwalbe Marathon E-Plus Perf. DualGuard 50-622 Reflex |
| Wheel size: | 28" |
| Wheels: | KTM Line - Shimano Deore M5100 CL 36H 100-5QR Ryde Andra29 36H 622x29C DT Alpine II 2.34 black |
