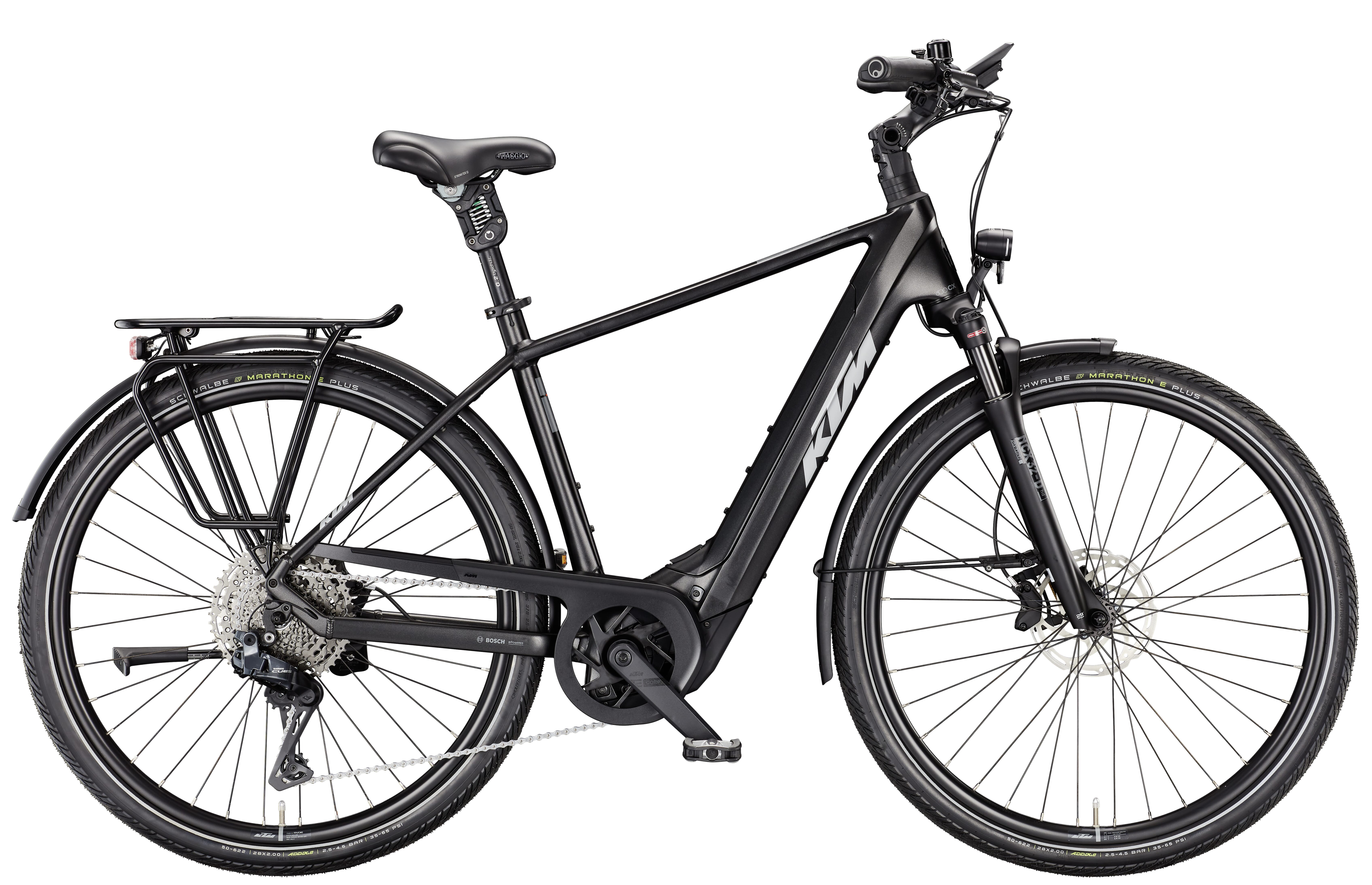

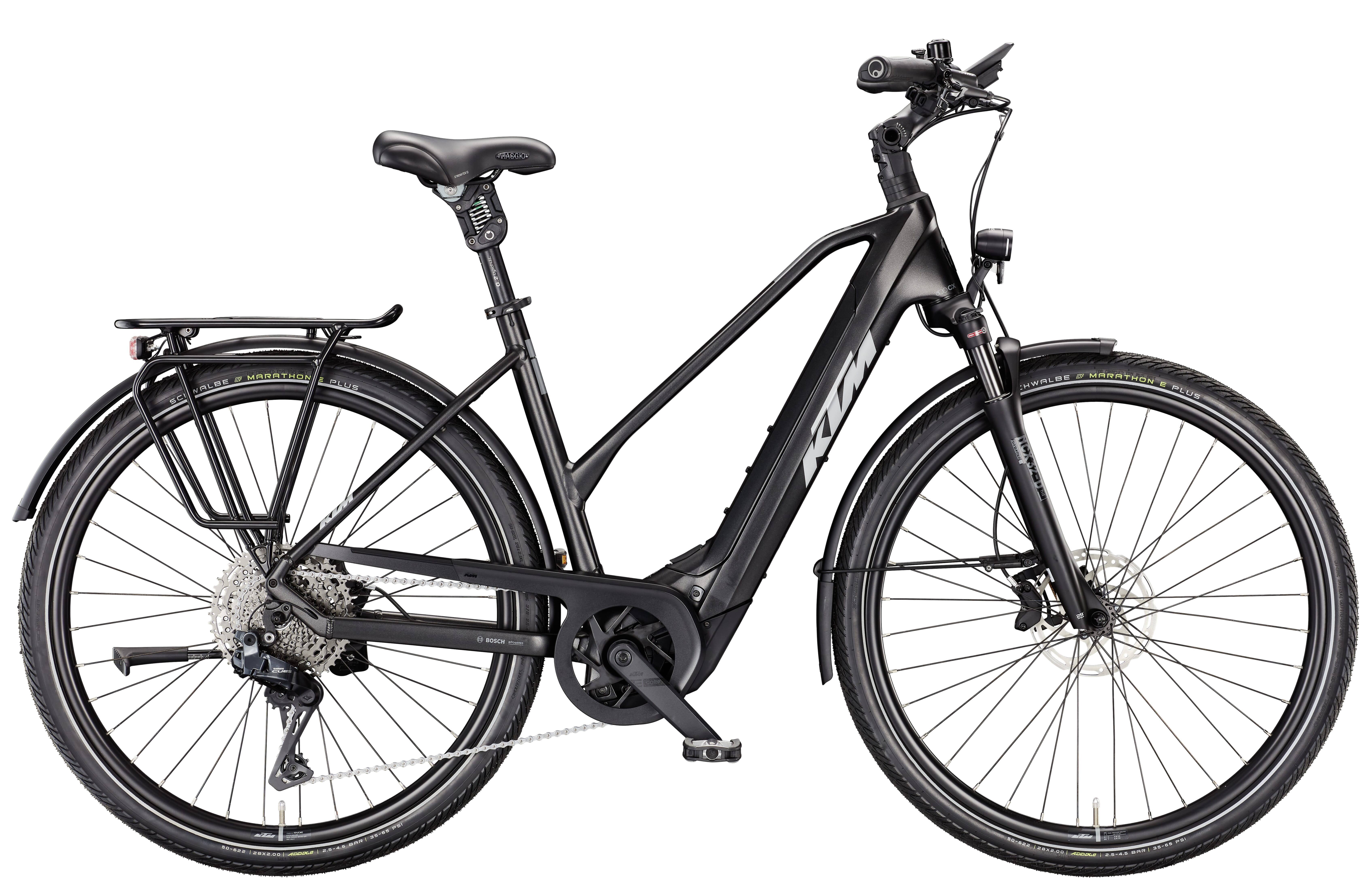

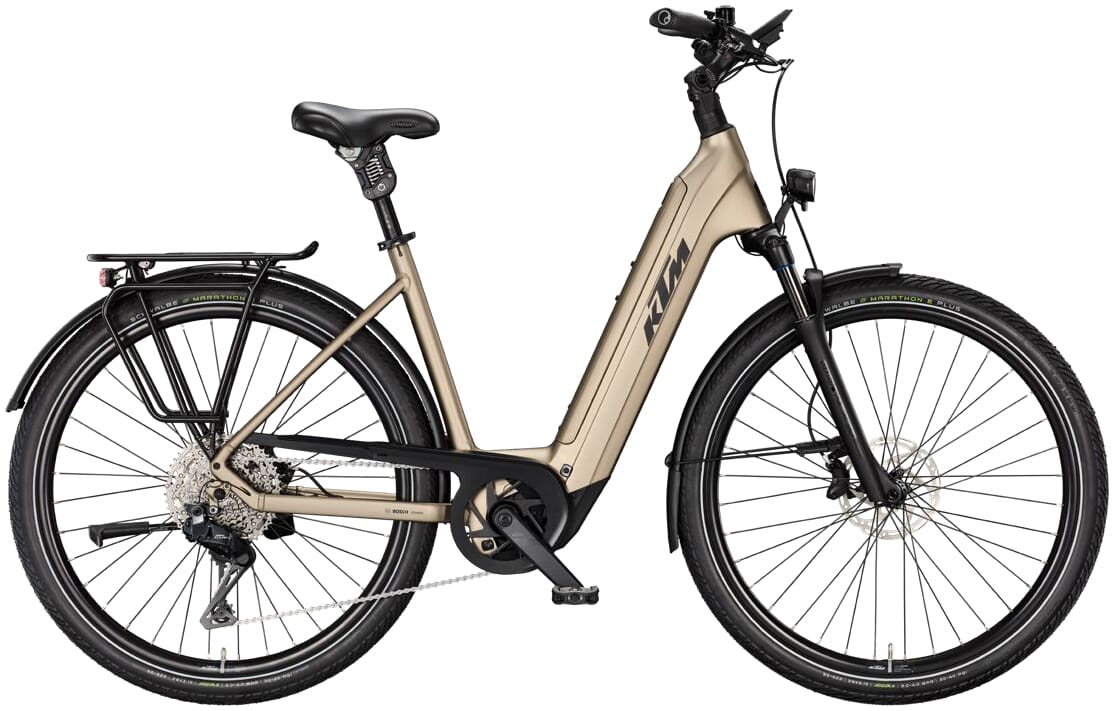

The KTM Macina Style 820 XL Di2 offers maximum riding enjoyment and a high level of comfort thanks to its high-quality components, and is perfectly designed for trekking tours. You’ll be supported while riding by the powerful Bosch Performance Line CX motor, which delivers up to 100 Nm to ensure a natural riding experience. At the same time, the removable Bosch PowerTube 800Wh battery supplies the bike with the necessary power and offers a long range. Another standout feature of this XL trekking e-bike is the frame. It has a higher approved total weight and offers a wider choice of Frame Sizes – perfect for taller e-bike Fahrers. Another highlight is the Shimano gearshift with Di2 technology. Equipped with the Shimano CUES Di2 U8050-11LG rear derailleur, the Macina Style 820 XL Di2 offers lightning-fast and reliable gear-changing performance with wireless control via the Shimano CUES Di2 EN605-R controller, and ensures smooth gear changes thanks to the Linkglide technology of the Shimano LG400-11 cassette.
Elekrofahrrad24 recommends: The KTM Macina Style 820 XL is ideal for riders of larger sizes and the perfect companion for frequent trekking rides through the city or in the countryside. It provides reliable assistance and ensures a natural, comfortable riding experience.
Features of the KTM Macina Style 820 XL Di2 – 2027
- Trekking e-bike with Bosch Smart System
- Bosch Performance Line CX motor (BDU3840)
- Bosch PowerTube 800Wh battery (horizontal)
- Bosch Kiox 500 display
- Shimano CUES Di2 U8050-11LG Shadow rear derailleur
- Suntour NCX32-D SPORT Air 29" suspension fork
- Busch & Müller front and rear lights
- SKS A62K PET Trek 28" mudguard
- Permissible total weight: 179 kg
| Battery: | Bosch PowerTUBE 800Wh (horizontal) |
|---|---|
| Battery capacity: | 800 Wh - 899 Wh |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line CX from 2025 Smart System |
| Brakes: | Tektro TKD-139 / E730 4-piston |
| Carrier: | KTM Tour Snap-It 2.0/Monkeyload child seat + rack clip |
| Cassette: | Shimano LG400-11 / 11-50 LinkGLIDE |
| Chain: | KMC e11 Sport EPT e-bike |
| Chainguard: | KTM type 9 for Bosch BDU38 |
| Chainring: | FSA steel 42T Direct Mount |
| Charger: | Bosch STANDARD 4A Charger |
| Colour: | MATT PLATINUM BRONZE (BLACK+ORANGE) |
| Crank set: | KTM E-COMP2 ISIS 170mm Q8 |
| Derailleur/drive type: | electr. derailleur - chain drive |
| Disc brakes: | Front: Tektro TR-45 2.3mm CL 180 | Rear: Tektro TR-45 2.3mm CL 180 |
| Display: | Bosch KIOX 500 TFT display |
| Drive system: | Bosch drive |
| E-Bike Types: | Cross E-Bike, Trekking E-Bike |
| Frame: | Macina Trekking Onroad 6061 Alloy PT800 Bosch BDU38/T5940 |
| Frame type: | Ladies / Trapeze, Mens, Step-through |
| Front hub: | Shimano TC500 CL 36H 100-15TA |
| Front light: | B&M Briq-M 150Lux |
| Gearshift stages: | 11-speed |
| Grips: | GRIP ERGON GP10 |
| Handlebar: | Ergotec Lady Town 31.8 690 mm |
| Headset: | Acros AICR internal 1.1/8"–1.5" angle limiter |
| Item: | KTM Macina Style 820 XL Di2 |
| Item weight: | 29,1 kg |
| Manufacturer: | KTM |
| Model year: | 2027 |
| Motor: | Bosch PERFORMANCE CX BDU3840 |
| Mudguard: | SKS A62K PET Trek 28" rear |
| Pedal: | VP-616 alloy trekking pedal with rubber tread |
| Permissible total weight: | 179 kg (e-bike + rider + luggage) |
| Rear derailleur: | Shimano CUES Di2 U8050-11LG Shadow |
| Rear hub: | Shimano Deore M5100 CL 36H 135-5QR |
| Rear light: | B&M Toplight 2C |
| Rims: | Front: Ryde Andra29 36H 622x29C | Rear: Ryde Andra29 36H 622x29C |
| Saddle: | Selle Royal Viaggio |
| Saddle clamp: | KTM Line JD-SC99 – 34.9 mm |
| Seat post: | by Schulz G. 2 ST suspension 30.9/350 |
| Shift lever: | Shimano CUES Di2 EN605-R Controller |
| Side stand: | KTM 28" adjustable MY2025 |
| Spokes: | Front: DT Champion 2.0 black | Rear: DT Alpine II 2.34 black |
| Stem: | Ergotec Swell RE70i, adjustable 0–60° |
| Suspension fork: | Suntour NCX32-D SPORT Air 29" LO 80mm 15x100 |
| Tyres: | Front: Schwalbe Marathon E-Plus 55-622 Reflex | Rear: Schwalbe Marathon E-Plus 55-622 Reflex |
| e-bike load capacity: | more than 150 kg |
