€3,999.00
On order, delivery date unknown
Description

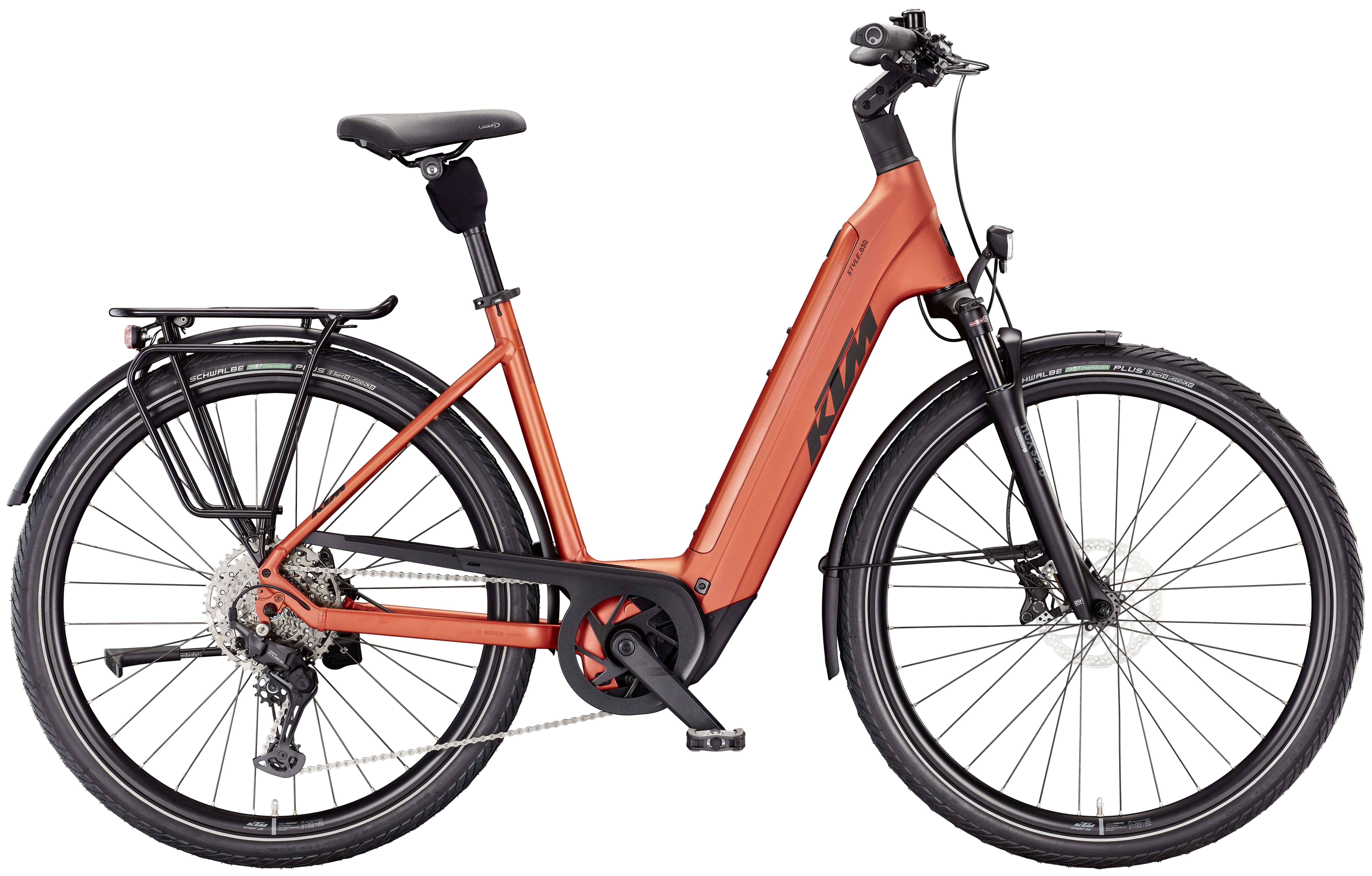

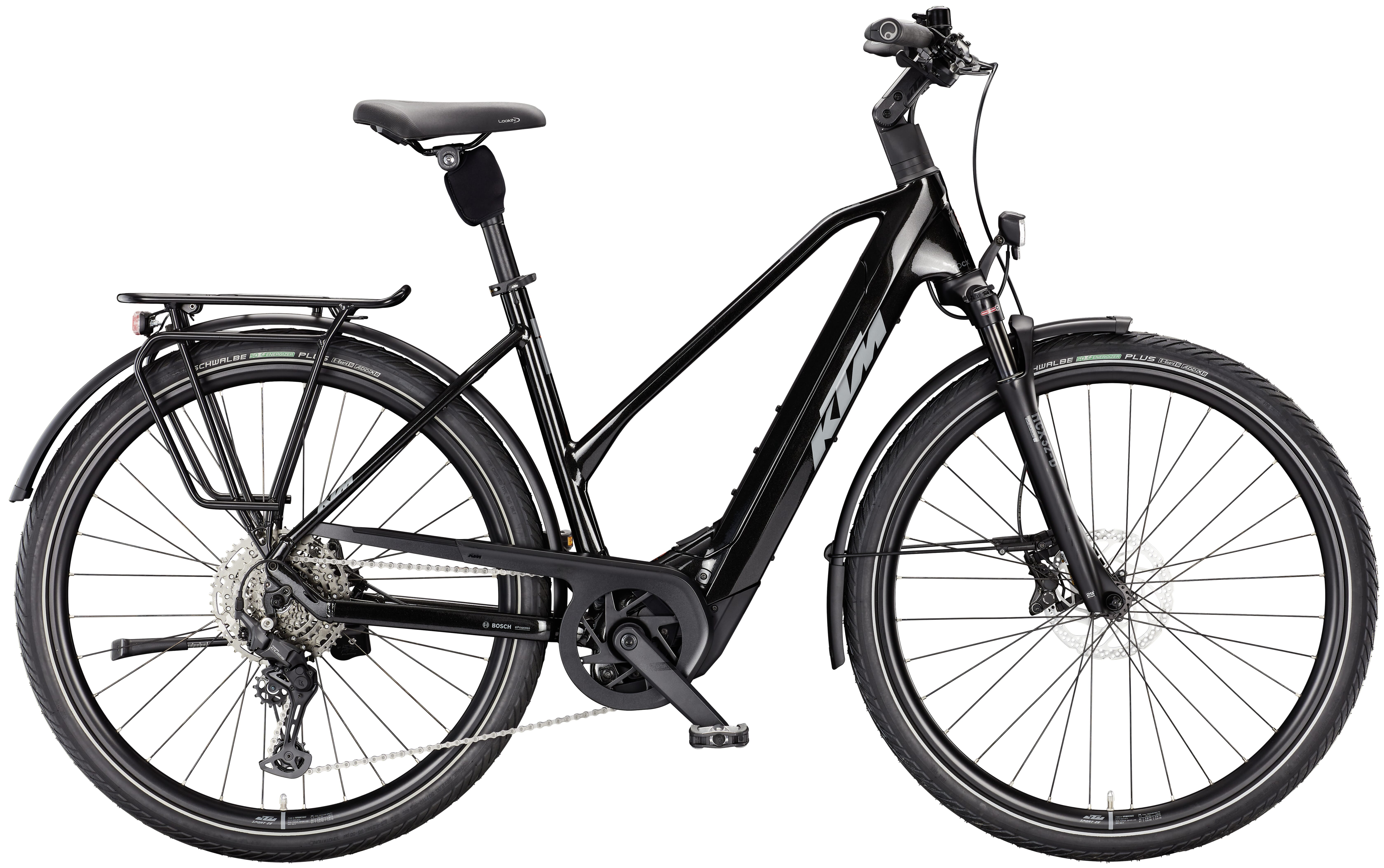

The KTM Macina Style 830 - 2026 impresses as a high-quality trekking e-bike with powerful equipment, well thought-out ergonomics and maximum range. The robust Macina Trekking Onroad aluminium frame is specially designed for the powerful Bosch Performance CX motor and, with the Bosch PowerTube 800 Wh battery, offers ideal conditions for long tours, commutes or daily rides through the city. The system is complemented by the compact Bosch Purion 200 display with integrated remote, which clearly displays all relevant information at a glance. The Suntour NCX32-D Coil suspension fork with 63 mm travel, together with the suspension seat post, ensures a high level of riding comfort - even on uneven paths. The bright B&M Briq-S front light with 60 lux luminosity, supplemented by the B&M Toplight 2C rear light, provides the necessary visibility in the dark.
Features of the KTM Macina Style 830 - 2026
- High-quality trekking e-bike
- Macina Trekking Onroad aluminium frame
- Bosch Performance CX motor with 100 Nm
- Bosch PowerTube 800 Wh battery
- Bosch Purion 200 display
- B&M Briq-S front light
- Suntour NCX32-D Coil suspension fork
eBike24 recommends: The KTM Macina Style 830 is the perfect choice for anyone looking for an enduring, comfortable and reliable electric bike for everyday use and leisure - whether on the way to work or on a weekend tour through the countryside.
Properties
| : | Front: Ambrosio Sport 25 32H 622x25TC | Rear: Ambrosio Sport 25 32H 622x25TC |
|---|---|
| Battery: | Bosch PowerTUBE 800Wh horizontal |
| Battery capacity: | 800 Wh - 899 Wh |
| Battery option: | Dual Battery compatible |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line CX from 2025 Smart System |
| Brake: | Shimano MT402 (3-F) / MT420 4-Piston |
| Carrier: | KTM tour snap-it 1.0 |
| Cassette: | Shimano LG400-10 / 11-48 |
| Chain: | Shimano LG500 |
| Chainguard: | KTM type 9 for Bosch BDU38 |
| Chainring: | FSA steel 42T Direct Mount |
| Charger: | Bosch STANDARD Charger 4A |
| Colour: | Diamond Black Matt (Grey + Orange), Burnt Orange Matt (Black), Oak Matt (Black + Orange) |
| Crank: | KTM E-COMP2 ISIS 170mm 08 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Front: Shimano RT30 CL 180 | Rear: Shimano EM300 CL 160 magnet |
| Display: | Bosch PURION 200 Display & Remote |
| Drive system: | Bosch drive |
| E-Bike Types: | Cross E-Bike, Trekking E-Bike |
| Fork: | Suntour NCX32-D coil LO 63mm 1 1/8 |
| Frame: | Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38/T5940 |
| Frame type: | Ladies / Trapeze, Mens, Step-through |
| Front hub: | Shimano Deore M6000 CL 32H 100-5QR |
| Front light: | B&M Briq-S 60Lux |
| Gearshift stages: | 11-speed |
| Grips: | GRIP ERGON GP10 |
| Handlebar: | KTM Line rizer 20 640mm |
| Headset: | Acros AICR internal 1.5"-1.5" |
| Item: | KTM Macina Style 830 - 2026 |
| Manufacturer: | KTM |
| Model year: | 2026 |
| Motor: | Bosch PERFORMANCE CX BDU3840 |
| Mudguard: | SKS A55K PET Trek 28" rear |
| Pedal: | Trekking pedal VP-616 anti-slip |
| Permissible total weight: | 146 kg |
| Rear derailleur: | Shimano CUES U6000-11/10 LG shadow+ |
| Rear hub: | Shimano Deore M6000 CL 32H 135-5QR |
| Rear light: | B&M Toplight 2C |
| Saddle: | Selle Royal Lookin |
| Saddle clamp: | KTM Line JD-SC99 - 34.9mm |
| Seat post: | Suntour SP25-NCX suspension 30.9/350 |
| Shift lever: | Shimano CUES U6000-10 display |
| Side stand: | KTM 28" adjustable MY2025 |
| Spokes: | Front: DT Champion 2.0 black | Rear: DT Alpine II 2.34 black |
| Stem: | KTM Line adjust. 0-60° ICR |
| Tyres: | Front: Schwalbe Energizer Plus Perf. GreenGuard 50-622 Reflex | Rear: Schwalbe Energizer Plus Perf. GreenGuard 50-622 Reflex |
