- Item number: 10956-001
- Manufacturer Part Number: 1250155106

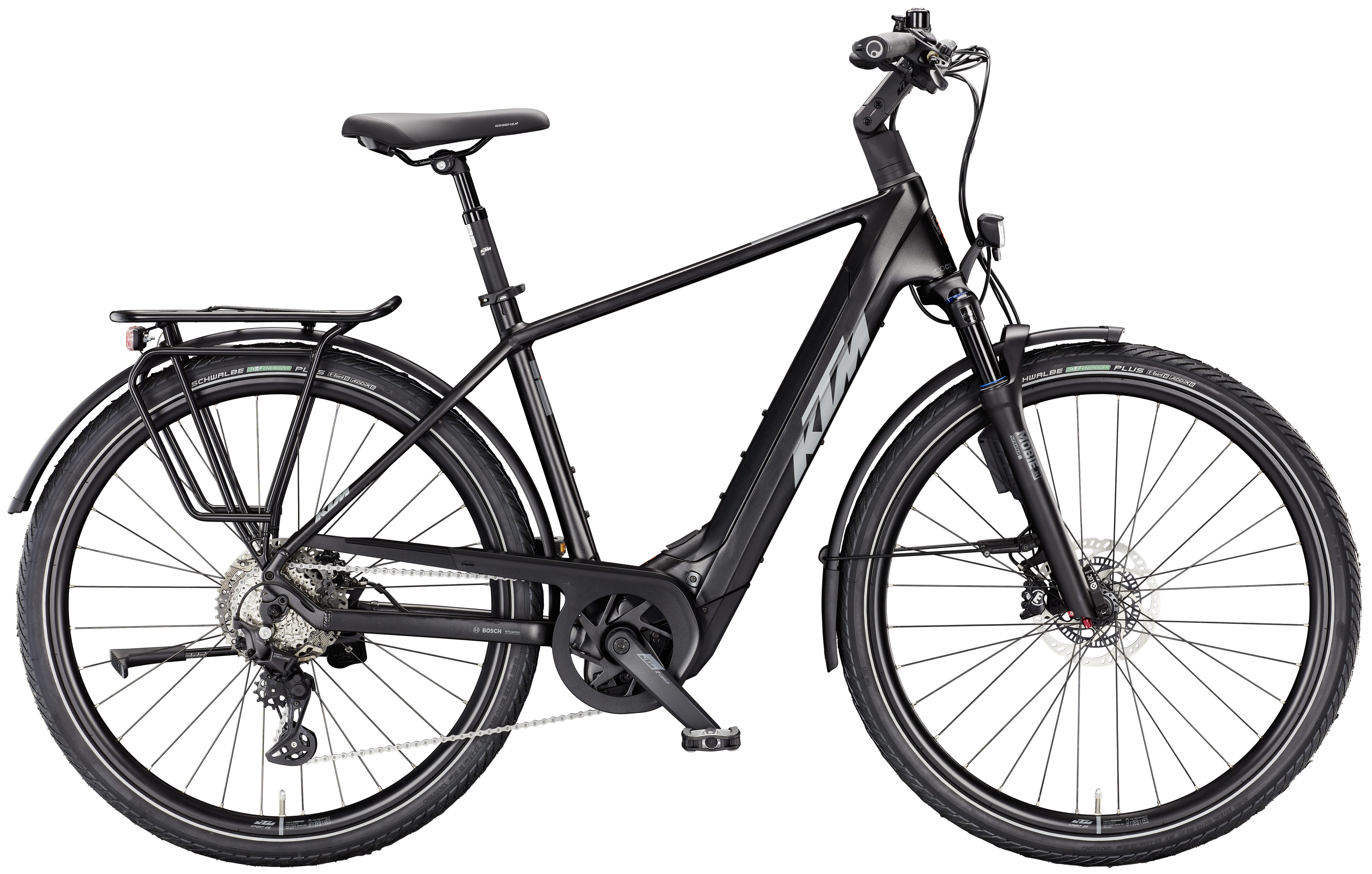

The KTM Macina Style 830 ABS 2025 is your reliable companion on relaxed trekking tours. Whether in the countryside or in the city, the built-in Bosch Performance Line CX Gen5 motor provides powerful support on all your excursions. The necessary power comes from the Bosch PowerTube 800Wh battery, which is integrated in the down tube. Thanks to its large capacity, longer tours are also possible. The Smart System is controlled via the Bosch LED Remote. This also controls the Bosch Intuvia 100 display mounted on the handlebars. You always have an overview of all the important ride data while riding. The Macina Style 830 ABS is an on-road bike. It is therefore primarily designed for even terrain. However, should you encounter any bumps, the Suntour Mobie34 Air 29" suspension fork absorbs them well.
Features of the KTM Macina Style 830 ABS - 2025
- City eBike with Bosch Smart System
- Bosch Performance Line CX Gen5 motor
- Bosch PowerTube 800Wh battery
- Bosch Intuvia 100 & LED Remote
- Magura MTC brakes with Bosch eBike ABS
- Suntour Mobie34 Air 29" suspension fork
- Busch and Müller lights
Safety on the KTM Macina Style 830 ABS - 2025
The built-in Riese & Müller lighting ensures the necessary safety and visibility. The Busch & Müller Briq-S E headlight brightly illuminates your route to the front. At the rear, the Busch & Müller Toplight 2C-E rear light makes you easily recognisable to other road users. Another safety factor is the anti-lock braking system of the Magura MTC ABS brakes. This ensures stability and comfortable braking by preventing the front wheel from locking. This allows you to brake quickly and safely in any situation.
E-Bike Types: | Urban & City e-Bikes |
Model year: | 2025 |
Battery capacity: | 800 Wh - 899 Wh |
Drive system: | Bosch drive |
Manufacturer: | KTM |
Frame type: | Mens |
Derailleur/drive type: | Derailleur - chain drive |
Battery position: | Intube battery / frame integrated |
Bosch System: | Bosch Performance Line CX from 2025 Smart System |
Frame: | Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38 / T-5940 |
Fork: | Suntour Mobie34 Air 29" 2CR 80mm 15QLC taper |
Battery: | Bosch PowerTUBE 800Wh horizontal |
Tyres: | Schwalbe Energizer Plus Perf. GreenGuard 50-622 Reflex |
Saddle: | Selle Royal Essenza |
Seat post: | KTM Line Elegance suspension 30.9/300 |
Carrier: | KTM tour (snap-it 1.0) |
Weight: | approx. 27.9 kg |
Item: | KTM Macina Style 830 ABS - 2025 |
Colour: | DIAMOND BLACK MATT (GREY+ORANGE) |
Stem: | KTM Line adjust. 0-60° ICR |
Display: | Bosch Intuvia 100 display |
Side stand: | KTM 28" adjustable MY2025 |
Wheels: | front: KTM Line - Shimano TC500 CL 32H 100-15TA Ambrosio Sport 25 32H 622x25TC DT Champion 2.0 black | rear: KTM Line - Shimano Deore M5100 CL 32H 135-5QR Ambrosio Sport 25 32H 622x25TC DT Alpine II 2.34 black Schwalbe Energizer Plus Perf. |
Spring travel: | 80 mm |
Grips: | Ergon GP1 SD |
Motor: | Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm |
Rear light: | B&M Toplight 2C |
Front light: | B&M Briq-S 60Lux |
Pedal: | Trekking pedal VP-616 anti-slip |
Wheel size: | 28" |
Handlebar: | KTM Line rizer20 640mm |
Crank: | KTM E-COMP ISIS 170mm Q16 |
Cassette: | Shimano LG600-10 / 11-43 |
Rear derailleur: | Shimano Deore M5130-10 LG shadow+ |
Chain: | Shimano LG500 |
Shift lever: | Shimano Deore M5130-10 LG display |
Charger: | Bosch STANDARD Charger 4A |
Disc brakes: | Magura MDR-C CL 180 / MDR-C CL 180 |
Control unit: | Bosch LED Remote |
Brake: | Magura MTC ABS 4-piston |
Bosch E-Bike System: | Bosch Smart System |
