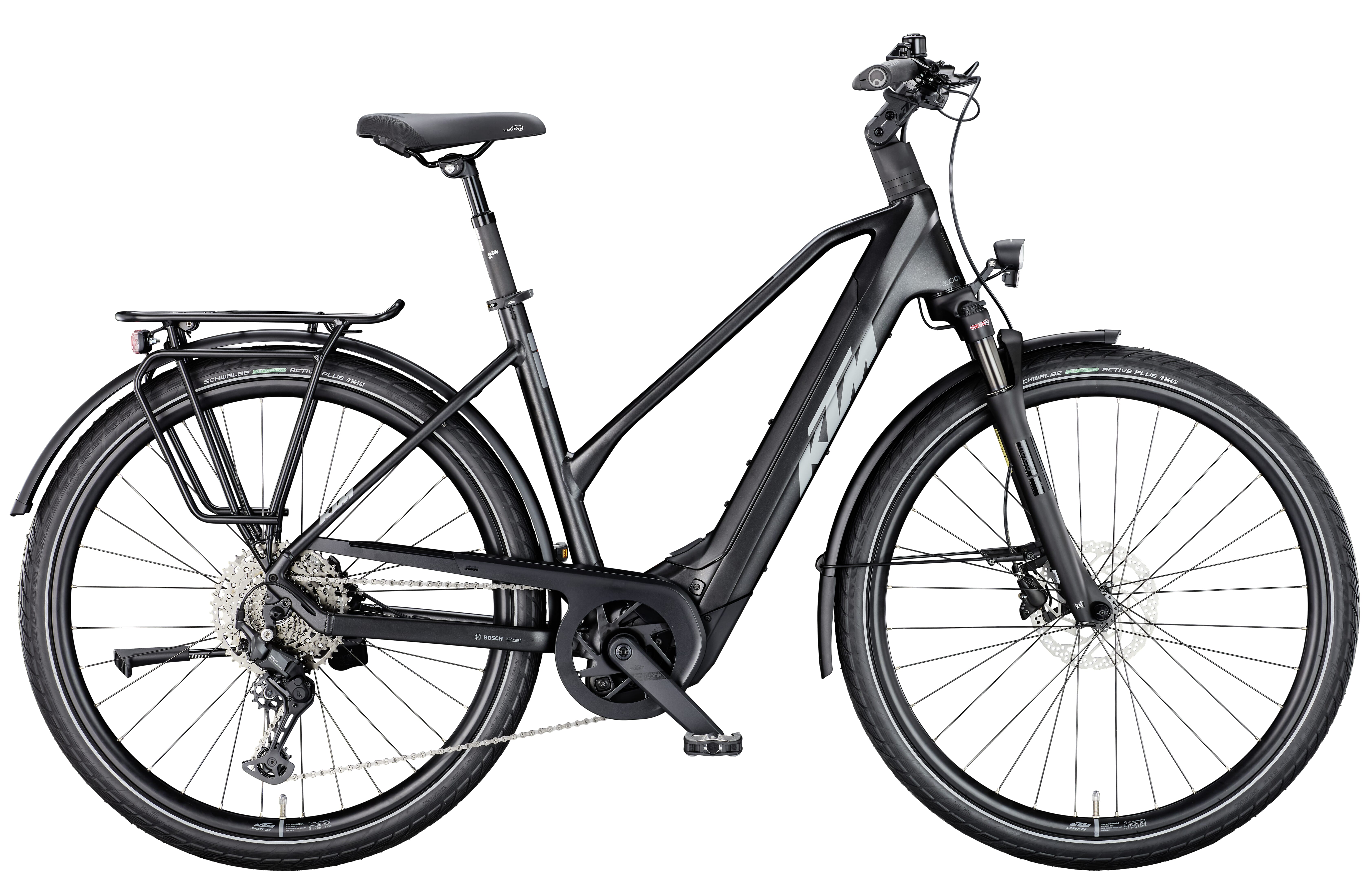

KTM Macina Style 840 - 2026

3,799.00€

Item number: 11536-001
Manufacturer Part Number: 1260158106

The KTM Macina Style 840 - 2026 combines state-of-the-art Bosch e-bike technology, comfortable equipment and well thought-out trekking functionality to create a reliable companion for everyday use, leisure and longer tours. The high-quality Macina Trekking Onroad aluminium frame is matched to the powerful Bosch Performance CX motor and accommodates the powerful Bosch PowerTube battery with 800 Wh horizontally integrated - ideal for extended stages with long-lasting support. The entire system is controlled via the intuitive Bosch Purion 200 display with remote - compact, clear and functional. The bright Litemove RLX-100 front light with 100 lux luminosity and the B&M Toplight 2C rear light ensure excellent visibility in the dark.

Features of the KTM Macina Style 840 - 2026

High-quality trekking e-bike
Macina Trekking Onroad aluminium frame
Bosch Performance CX motor with 85 Nm
Bosch PowerTube 800 Wh battery
Bosch Purion 200 display with remote
Suntour NCX32-D coil LO 63mm 1 1/8 fork

eBike24 recommends: The KTM Macina Style 840 is the ideal choice for anyone looking for a comfortable, long-distance and technically sophisticated electric bike for urban mobility and touring pleasure.

Model year:	2026
Battery capacity:	800 Wh - 899 Wh
Drive system:	Bosch drive
Manufacturer:	KTM
Frame type:	Ladies / Trapeze, Low-entry / Wave, Mens
Derailleur/drive type:	Derailleur - chain drive
Gearshift stages:	11-speed
Battery position:	Intube battery / frame integrated
Bosch System:	Bosch Performance Line CX from 2025 Smart System
Frame:	Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38/T5940
Fork:	Suntour NCX32-D coil LO 63mm 1 1/8
Battery:	Bosch PowerTUBE 800Wh horizontal
Tyres:	Front: Schwalbe Energizer Active Plus 50-622 Reflex \| Rear: Schwalbe Energizer Active Plus 50-622 Reflex
Saddle:	Selle Royal Lookin
Seat post:	KTM Line Elegance suspension 30.9/300
Carrier:	KTM tour snap-it 2.0/monkeyload childseat + rack clip
Item:	KTM Macina Style 840 - 2026
Colour:	Diamond Black Matt (Silver + Blue)
Stem:	KTM Line adjust. 0-60° ICR
Display:	Bosch PURION 200 Display & Remote
Side stand:	KTM 28" adjustable MY2025
Mudguard:	SKS A55K PET Trek 28" rear
Chainring:	FSA steel 42T Direct Mount
Saddle clamp:	KTM Line JD-SC99 - 34.9mm
Grips:	GRIP ERGON GP10
Motor:	Bosch PERFORMANCE CX BDU3840
Headset:	Acros AICR internal 1.5"-1.5"
Rear light:	B&M Toplight 2C
Front light:	Litemove RLX-100 100Lux down
Pedal:	Trekking pedal VP-616 anti-slip
Front hub:	Shimano Deore M6000 CL 32H 100-5QR
Rear hub:	Shimano Deore M6000 CL 32H 135-5QR
Handlebar:	KTM Line rizer20 640mm
Permissible total weight:	146 kg
Crank:	KTM E-COMP2 ISIS 170mm 08
Cassette:	Shimano LG400-10 / 11-48
Rear derailleur:	Shimano CUES U6000-11/10 LG shadow+
Chain:	Shimano LG500
Shift lever:	Shimano CUES U6000-10 display
Chainguard:	KTM type 9 for Bosch BDU38
