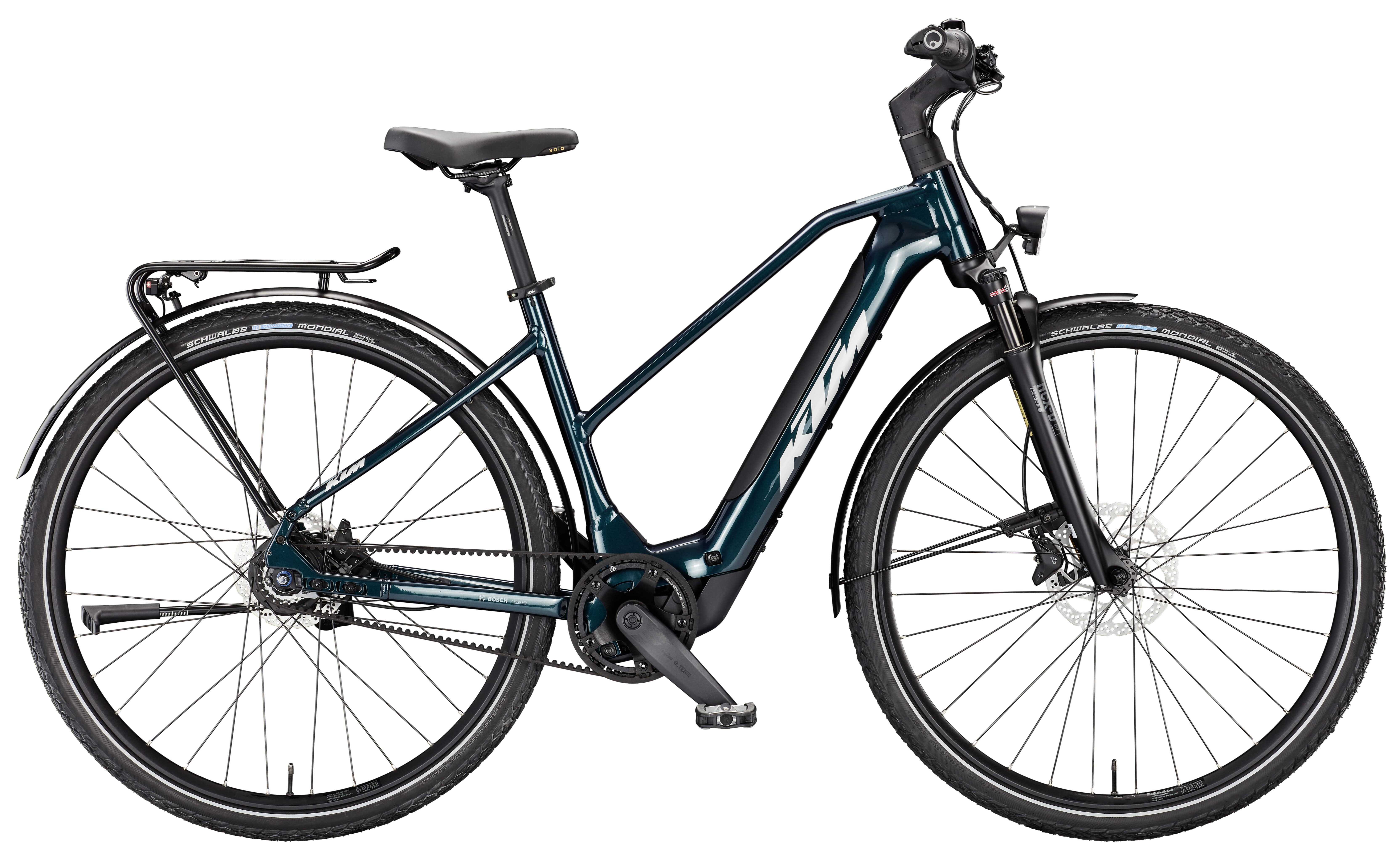

KTM Macina Superbelt SX - 2026

Preview: KTM Macina Superbelt SX - 2026 Step-through bike

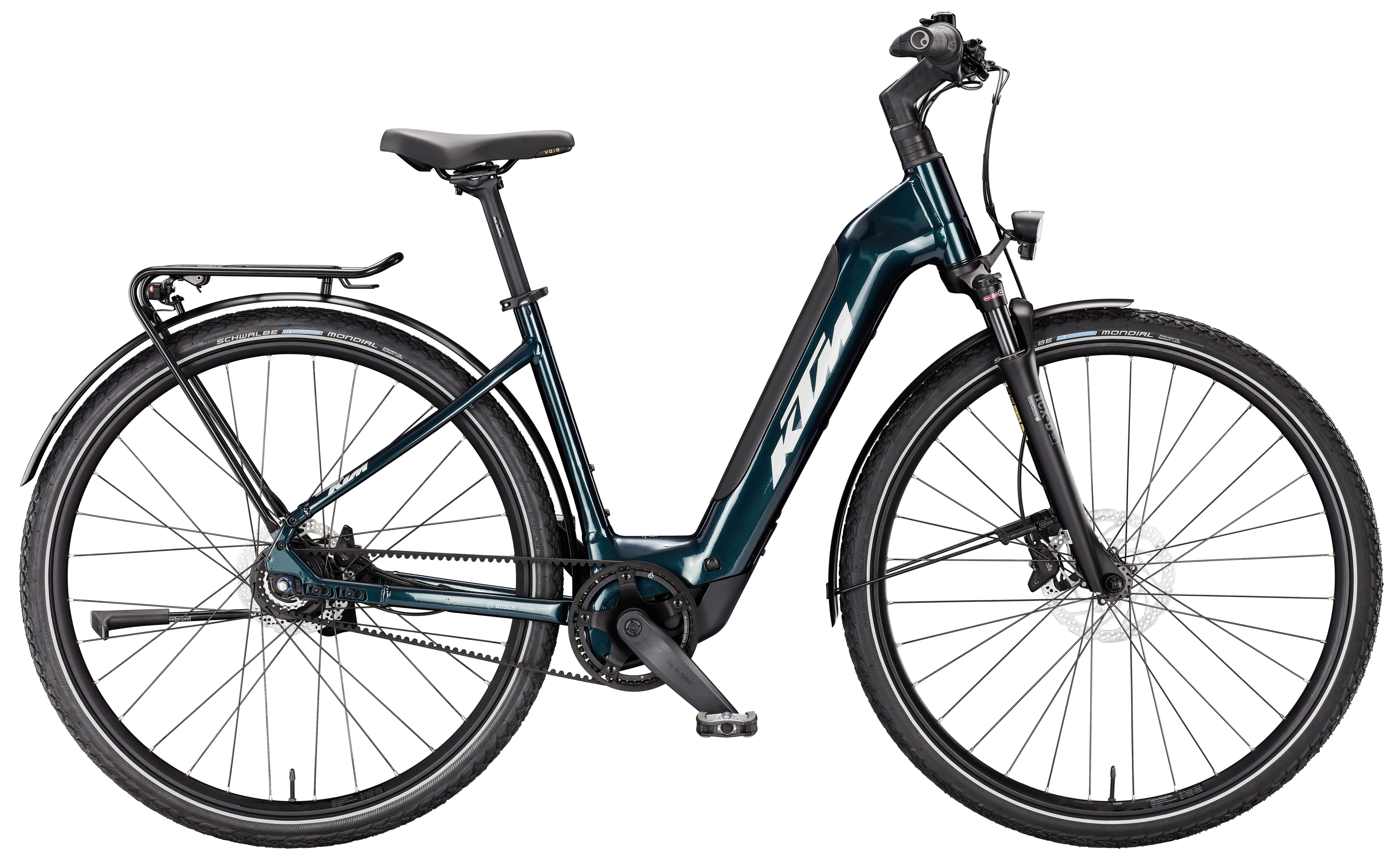

KTM Macina Superbelt SX - 2026 Step-through bike

3,699.00€

Prices incl. VAT plus shipping costs

Item number: 11469-001
Manufacturer Part Number: 1260242106

Close menu

With the KTM Macina Superbelt SX - 2026, you are choosing an everyday-ready electric bike with high-quality components and a virtually maintenance-free hub gear. Equipped with the powerful Bosch Performance SX motor, this trekking e-bike impresses with a dynamic yet efficient drive unit that reliably supports you on longer rides and uphill climbs. The Bosch CompactTube 400Wh battery is discreetly integrated into the frame design and offers a well-balanced ratio of weight and range. Operation is via the Bosch Purion 200 display, which is both intuitive and comfortable to use.

Features of the KTM Macina Superbelt SX - 2026

Trekking e-bike with Bosch Smart System
Bosch Performance SX motor with 60 Nm torque
Bosch CompactTube 400 Wh battery (removable)
Bosch Purion 200 display and control unit
Gates CDC hub gear system
Litemove RLX-100 front light

Hub Gear System & Everyday Usability of the KTM Macina Superbelt SX

Thanks to the combination of the Gates CDC drive belt hub gear system and a CDC Fin Line Spider chainring, the KTM Macina Superbelt SX offers an exceptionally quiet, clean, and durable riding experience - with no need for traditional chain maintenance. In terms of everyday practicality, this trekking e-bike leaves nothing to be desired: the bright Litemove RLX-100 front light with 100 lux ensures excellent visibility in the dark, while the compact AXA Juno rear light enhances your safety in road traffic.

eBike24 recommends: The KTM Macina Superbelt SX is ideal for daily commutes and countryside tours. It offers everything you need in a modern trekking bike.

E-Bike Types:	Cross E-Bike, Trekking E-Bike
Model year:	2026
Battery capacity:	400 Wh - 499 Wh
Drive system:	Bosch drive
Manufacturer:	KTM
Frame type:	Ladies / Trapeze, Low-entry / Wave, Mens
Derailleur/drive type:	Hub gear - belt drive
Battery option:	Dual Battery compatible, Range Extender ready
Gearshift stages:	8-speed
Bosch System:	Bosch Performance Line SX from 2024 Smart System
Battery position:	Intube battery / frame integrated
Frame:	Macina Trekking Onroad Alloy 6061 CPT400 Bosch BDU31/T6120
Fork:	Suntour NCX-D Air LO 63mm 1 1/8
Battery:	Bosch CompactTUBE 400Wh
Tyres:	Front: Schwalbe Marathon Mondial Perf. RaceGuard 47-622 Reflex \| Rear: Schwalbe Marathon Mondial Perf. RaceGuard 47-622 Reflex
Saddle:	Selle Royal Vaia Gel
Seat post:	KTM TEAM II 27.2/350
Carrier:	KTM Alumee snap-it 2.0/monkeyload rack clip
Item:	KTM Macina Superbelt SX - 2026
Colour:	DARK SEA (SILVER)
Stem:	KTM Line +20° ICR
Display:	Bosch PURION 200 Display & Remote
Side stand:	Hebie 28" adjustable MY2025
Chainring:	Gates CDC Fin Line Spider 46T
Saddle clamp:	KTM Line JD-SC99 - 31.8mm
Grips:	Ergon GP1 short
Motor:	Bosch PERFORMANCE SX BDU3144
Headset:	Acros AICR internal 1.1/8"-1.5" angle lim
Rear light:	AXA Juno
Front light:	Litemove RLX-100 100Lux down
Pedal:	Trekking pedal VP-616 anti-slip
Front hub:	Shimano Deore M5100 CL 32H 100-5QR
Rear hub:	Shimano Alfine SG-S7001-8 CL 32H 135-10
Handlebar:	KTM TEAM II low rizer 640mm
Permissible total weight:	140 kg
Crank:	KTM E-TEAM2 ISIS 170mm Q8
Cassette:	Gates CDC CentreTrack Sprocket 22T
Chain:	Gates CDC Drive-belt 118T
Shift lever:	Shimano Nexus 8 Revoshifter
Charger:	Bosch COMPACT Charger 2A
