€3,799.00
Currently not available, we will be happy to request the item for you.

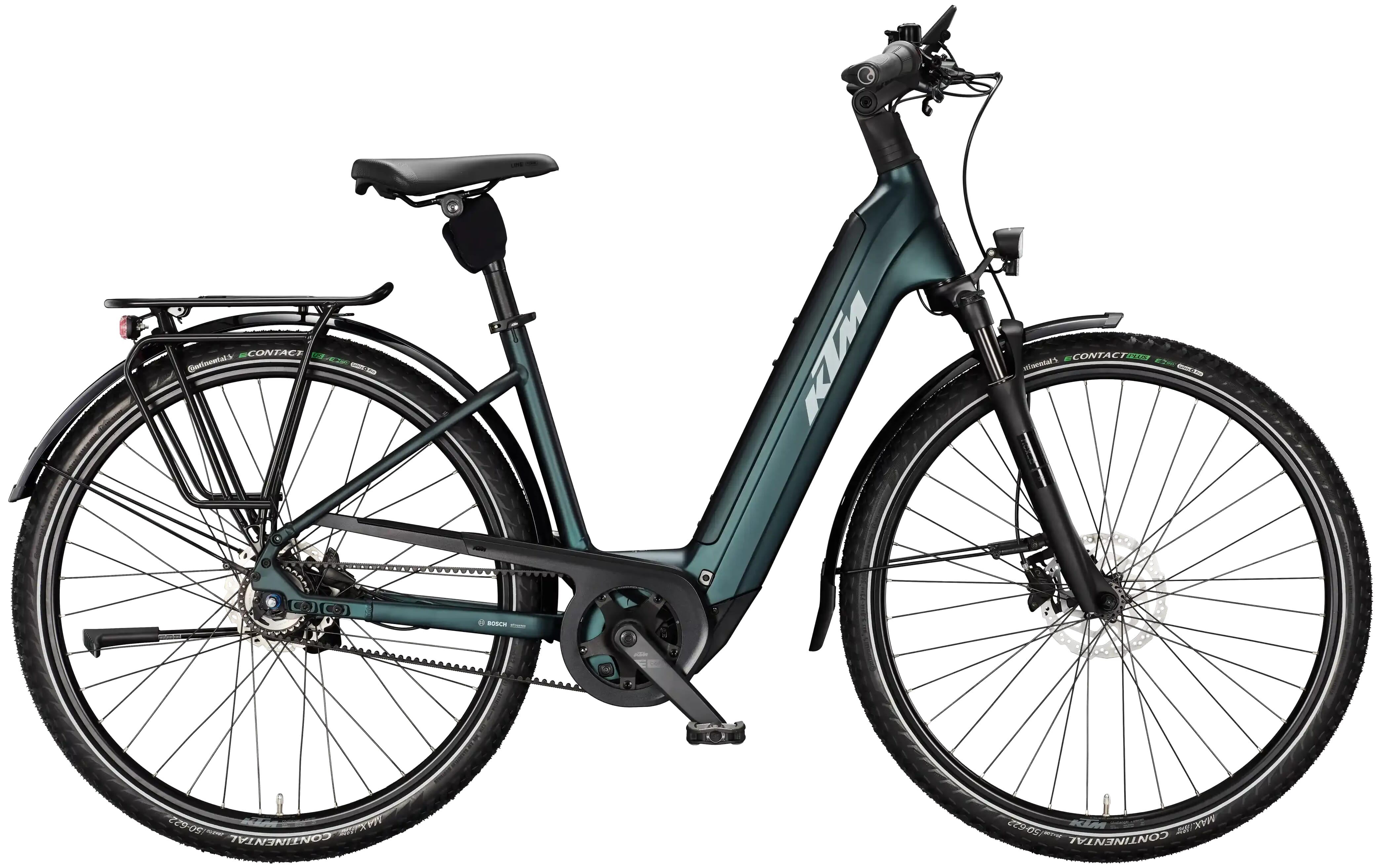

The KTM Macina Superbelt SX 10 Di2 – 2027 is a lightweight, agile city and trekking e-bike designed for Fahrers seeking maximum reliability with minimal maintenance. The lightweight Bosch Performance Line SX motor provides a sporty yet natural tailwind. Power is supplied by the seamlessly integrated and removable Bosch CompactTube 400 Wh battery. The clever 2-in-1 design of the Bosch Purion 200 combines the control unit and a high-resolution colour display directly on the handlebar grip. At the heart of this model is the Gates Carbon-Drive belt drive. The belt is combined with an electronic Shimano Alfine Di2 8-speed hub gear system. Thanks to the integrated e-Shift AUTO technology, you no longer need to worry about changing gears. The suspension features an adjustable Suntour air suspension fork, which smoothly absorbs bumps.
Features of the KTM Macina Superbelt SX 10 Di2 – 2027
- Trekking e-bike with Bosch Smart System
- Bosch Performance SX motor with up to 60 Nm
- Bosch CompactTube 400Wh (removable)
- Bosch Purion 200 display & control unit
- Shimano Alfine Di2 in-hub gear system
- Litemove SC-160 160 lux front light
eBike24 recommends: The KTM Macina Superbelt SX 10 Di2 is the perfect choice for anyone who simply wants to hop on and ride off. The sleek carbon belt drive and smart automatic gearshift make this e-bike the lowest-maintenance and most comfortable companion for your daily commute to work.
| : | Black Jack Ready 25 32H 622x25TC |
|---|---|
| Battery: | Bosch CompactTube 400Wh |
| Battery capacity: | 400 Wh - 499 Wh |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line SX from 2024 Smart System |
| Brake: | Shimano MT420-3A/MT410 2-piston |
| Carrier: | KTM light 42 snap-it 2.0/monkeyload rack clip |
| Cassette: | GATES CDC 22T sprocket |
| Chain: | GATES Carbon-Drive CDC Belt 118T |
| Chainring: | Gates CDC Fin Line Spider 46T |
| Charger: | Bosch Compact Charger 2A |
| Colour: | Green Purple Flip Matt |
| Crank: | KTME-TEAM2 ISIS 170mm Q8 |
| Derailleur/drive type: | Hub gear - belt drive |
| Disc brakes: | Shimano CL300 CL 180 |
| Display: | Bosch Purion 200 Display & Remote |
| Drive system: | Bosch drive |
| E-Bike Types: | Cross E-Bike, Trekking E-Bike |
| Fork: | Suntour NCX32-D SPORT Air LO 63mm 15x100 |
| Frame: | Macina Trekking 6061 Alloy Belt CPT400 Bosch BDU31/T7120 |
| Frame type: | Ladies / Trapeze, Mens, Step-through |
| Front hub: | Shimano TC500 CL 32H 100-15TA |
| Front light: | Litemove SC-160 160Lux |
| Gearshift stages: | 8-speed |
| Grips: | ERGON GS1 |
| Handlebar: | KTM TEAM II low-riser 640mm |
| Headset: | Acros AICR internal 1.5"-1.5" |
| Item: | KTM Macina Superbelt SX 10 Di2 – 2027 |
| Item weight: | 22 kg |
| Manufacturer: | KTM |
| Model year: | 2027 |
| Motor: | Bosch Performance SX |
| Mudguard: | SKS EVO AL 55mm 28" rear |
| Pedal: | VP-616 alloy trekking pedal with rubber tread |
| Permissible total weight: | 140 kg (e-bike + rider + luggage) |
| Rear hub: | Shimano Alfine Di2 SG-S7051-8 CL 32H 135-10 |
| Rear light: | AXA Juno |
| Saddle: | Selle Roy al Vaia Gel |
| Saddle clamp: | KTM Line JD-SC99 – 31.8 mm |
| Seat post: | KTM Line 27.2/350 |
| Shift lever: | Shimano CUES Di2 EN605-R Controller |
| Side stand: | KTM 28" adjustable MY2025 |
| Spokes: | Front: DT Champion 2.0 black | Rear: DT Alpine II 2.34 black |
| Stem: | KTM Line ICR 0–90° adjustment |
| Tyres: | Schwalbe Efficiency Performance 45-622 Reflex |
