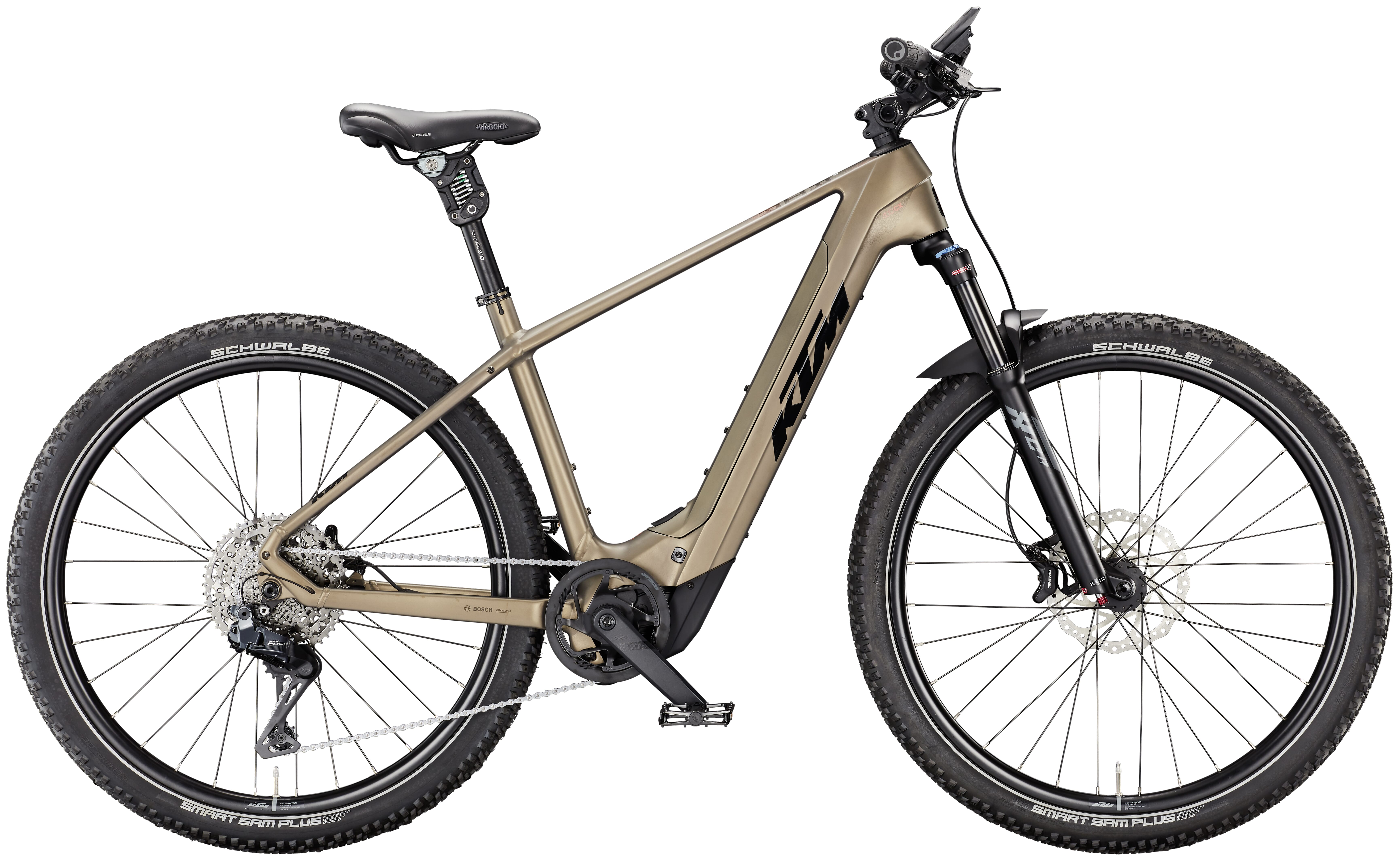

KTM Macina Team 892 XL- 2026

KTM Macina Team 892 XL- 2026
4,999.00€

Prices incl. VAT plus shipping costs

  • 11499-001
  • 1260051103

Frame Size:

The KTM Macina Team 892 XL-2026 is a first-class electric bike that has been specially developed for demanding mountain bikers and impresses with its state-of-the-art technology and high level of robustness. At the heart of the model is the powerful Bosch Perfomance CX motor, which, in combination with the Bosch PowerTube 800Wh battery, guarantees an impressive range and powerful support. The Bosch Kiox 500 display provides you with a clear overview of all important riding data and makes it easier to operate the bike on the go. Equipped with a Suntour XCR 34 Air 29" LOR suspension fork with 120 mm travel, the bike offers excellent damping and control on demanding terrain.

Features of the KTM Macina Team 892 XL-2026

  • E-MTB hardtail for larger people
  • Bosch Perfomance CX motor with 100 Nm
  • Bosch PowerTube 800Wh battery
  • Bosch Kiox 500 display
  • Suntour XCR 34 Air 29" LOR suspension fork
  • Shimano Deore Di2 M6260-11 rear derailleur

Shimano Deore Di2 M6260-11 rear derailleur

Particularly noteworthy is the electronic Shimano Deore Di2 M6260-11 rear derailleur, which impresses with its precise and reliable shifting performance. This rear derailleur from the Shimano Deore series is characterised by fast, automatic gear changes and a long service life, which is specially tailored to the requirements of e-mountainbikes. The 11-speed drivetrain with Shimano LG400-11 cassette and KMC e500 chain ensures a wide gear ratio and optimum power transmission.

eBike24 recommends: The KTM Macina Team 892 XL - 2026 is the ideal choice for demanding mountain bike tours, challenging trails and sporty off-road use where control, endurance and riding enjoyment are paramount.

Specifications
E-Bike Types: E-Mountainbike (E-MTB), Hardtail E-MTB
Model year: 2026
Battery capacity: 800 Wh - 899 Wh
Drive system: Bosch drive
Manufacturer: KTM
Derailleur/drive type: Derailleur - chain drive
Battery option: Dual Battery compatible
Battery position: Intube battery / frame integrated
Bosch System: Bosch Performance Line CX from 2025 Smart System
Frame: Macina MTB 29" Alloy 6061 UDHPT800 Bosch BDU38/M5700
Fork: Suntour XCR 34 Air 29" LOR 120mm 15x110
Battery: Bosch PowerTUBE 800Wh horizontal
Tyres: Front: Schwalbe Smart Sam Plus Perf. GreenGuard 60-622 | Rear: Schwalbe Smart Sam Plus Perf. GreenGuard 60-622
Saddle: Selle Royal Viaggio
Seat post: bySchulz G.2 ST suspension 30.9/350
Item: KTM Macina Team 892 XL- 2026
Colour: Olive Pearl Matt (Black + Orange)
Stem: Ergotec Swell RE adjust. 0-60°
Display: Bosch KIOX 500 TFT display
Chainring: FSA steel 38T with chainguard Direct Mount
Saddle clamp: KTM TEAM Light CL-FJ21 - 34.9mm
Grips: Ergon GE10
Motor: Bosch PERFORMANCE CX BDU3840
Headset: Acros AICR internal 1.1/8"-1.5" angle lim
Pedal: MTB pedal flat VPE-527 alloy
Front hub: DT Swiss 370 6B 32H 110/15TA
Rear hub: DT Swiss 370 6B 32H 148/12TA
Handlebar: Ergotec low rizer 740mm
Crank: KTM E-COMP2 ISIS 170mm 08
Cassette: Shimano LG400-11 / 11-50
Rear derailleur: Shimano Deore Di2 M6260-11 LG SGS shad+
Chain: KMC e500 LG eBike
Shift lever: Shimano Deore Di2 M6250
Charger: Bosch STANDARD Charger 4A
Spokes: Front: DT Alpine II 2.34 black | Rear: DT Alpine II 2.34 black
Front wheel: Ryde Andra29 32H 622x29C
Rear wheel: Ryde Andra29 32H 622x29C
Disc brakes: Front: Tektro TR-54 2.3mm 6bolt 203 | Rear: Tektro TR-54 2.3mm 6bolt 180
Brake: Tektro HD-M750 / E730 4-Piston
GPS: Bosch ConnectModule
