€4,999.00
On order, delivery date unknown
Description

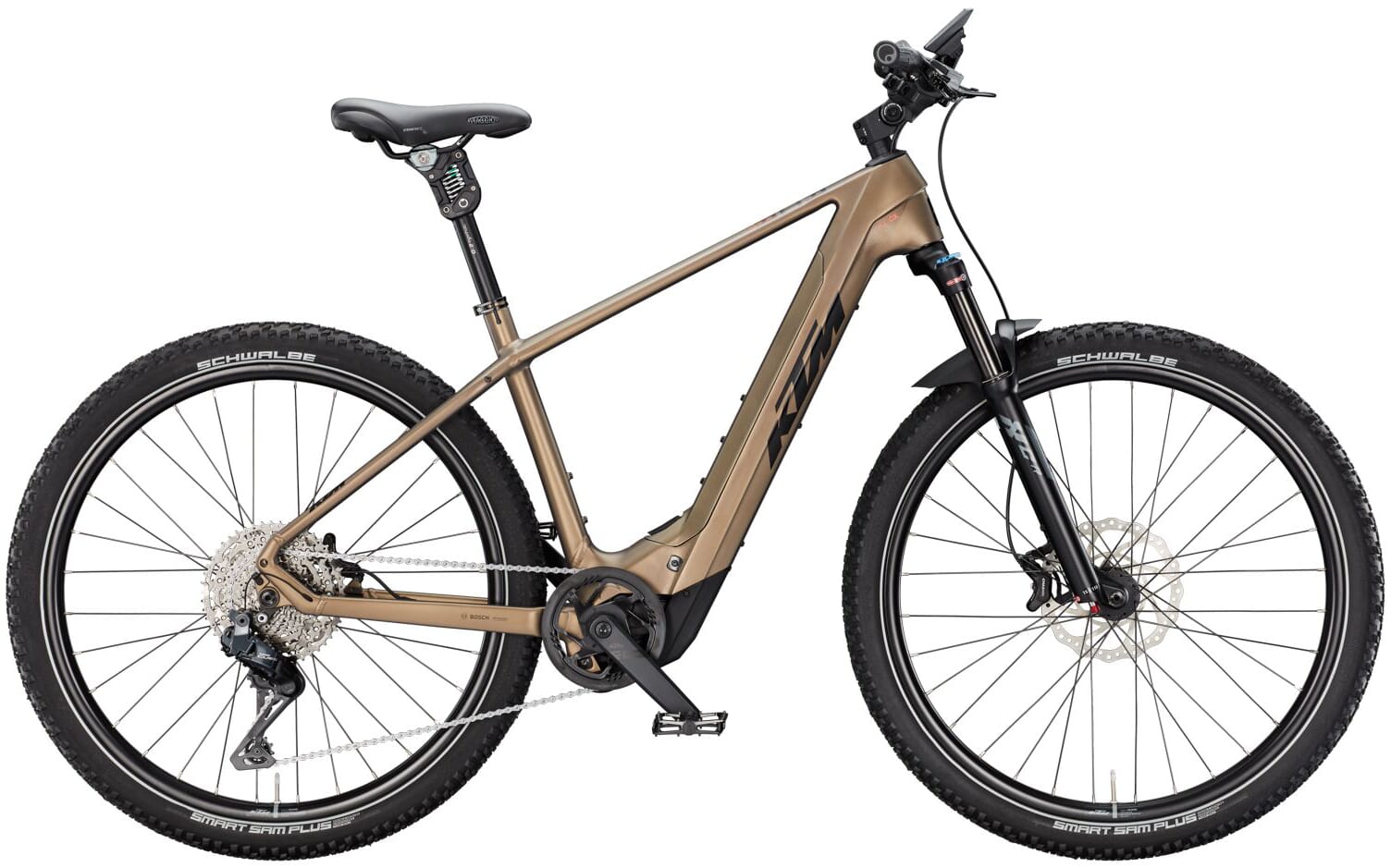

The KTM Macina Team XL is not only available in XXL frame size, but is also extra stable. Reinforced wheels ensure a maximum total weight of up to 178 kg. Thanks to the powerful 5th generation Bosch Performance Line CX motor, the KTM Team XL still rides like a real E-MTB. The huge 800 Wh PowerTube battery is just as big as the bike itself. The Kiox 500 display is also large, providing an optimum overview while riding. The Shimano Cues Di2 11-speed derailleur ensures perfect shifting even under load and with minimal wear. Thanks to the electronic control, the system relieves the chain during shifting and thus reduces wear.
Features of the KTM Macina Team XL 2025
- E-MTB hardtail for larger people
- System weight approved up to 178 kilos
- Extra reinforced wheels
- Bosch Performance Line CX Gen.5 - 85 Nm
- Bosch PowerTube 800 Wh battery - removable
- Bosch Led Remote with Kiox 500 display
- Bosch ConnectModule pre-installed
- electric Shimano Cues Di2 gears with Auto-Shift
eBike24 recommends: The KTM Macina Team XL E-MTB is the first choice for anyone with extra size - stable, safe and with smart features for less wear and tear.
Properties
| Battery: | Bosch PowerTUBE 800Wh horizontal |
|---|---|
| Battery capacity: | 800 Wh - 899 Wh, Dual Battery compatible |
| Battery option: | Dual Battery compatible |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line CX from 2025 Smart System |
| Brake: | Tektro HD-M535 4-piston |
| Cassette: | Shimano LG400-11 / 11-50 |
| Chain: | KMC e11 Sport EPT eBike |
| Charger: | Bosch Standard Charger 4A |
| Colour: | OLIVE PEARL MATT |
| Control unit: | Bosch LED Remote |
| Crank: | KTM E-Comp2 ISIS 170mm Q8 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Tektro TR-17 2.3mm 6bolt 203 / TR-17 2.3mm 6bolt 180 |
| Display: | Bosch KIOX 500 TFT display |
| Drive system: | Bosch drive |
| E-Bike Types: | E-Mountainbike (E-MTB), Hardtail E-MTB |
| Fork: | Suntour XCR 34 Air 29" LOR 120mm 15x110 taper |
| Frame: | Macina MTB 29" Alloy 6061 |
| Frame type: | Mens |
| GPS: | Bosch ConnectModule |
| Grips: | Ergon GE10 |
| Handlebar: | Ergotec low rizer 740mm |
| Item: | KTM Macina Team 892 XL - 2025 |
| Manufacturer: | KTM |
| Model year: | 2025 |
| Motor: | Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm |
| Pedal: | MTB pedal flat VPE-527 alloy |
| Rear derailleur: | Shimano CUES Di2 U8050-11 SGS shadow |
| Saddle: | Selle Royal Viaggio HRC |
| Seat post: | bySchulz G.2 ST Suspension 30.9/350 |
| Shift lever: | Shimano Di2 EN605 wireless |
| Spring travel: | Front: 120mm |
| Stem: | Ergotec Sepia XL 100mm |
| Tyres: | Schwalbe Smart Sam Plus Perf. GreenGuard 60-622 |
| Weight: | 26.5 kg |
| Wheel size: | 29" |
| Wheels: | KTM Line - DT Swiss 370 |
| e-bike load capacity: | more than 150 kg |
