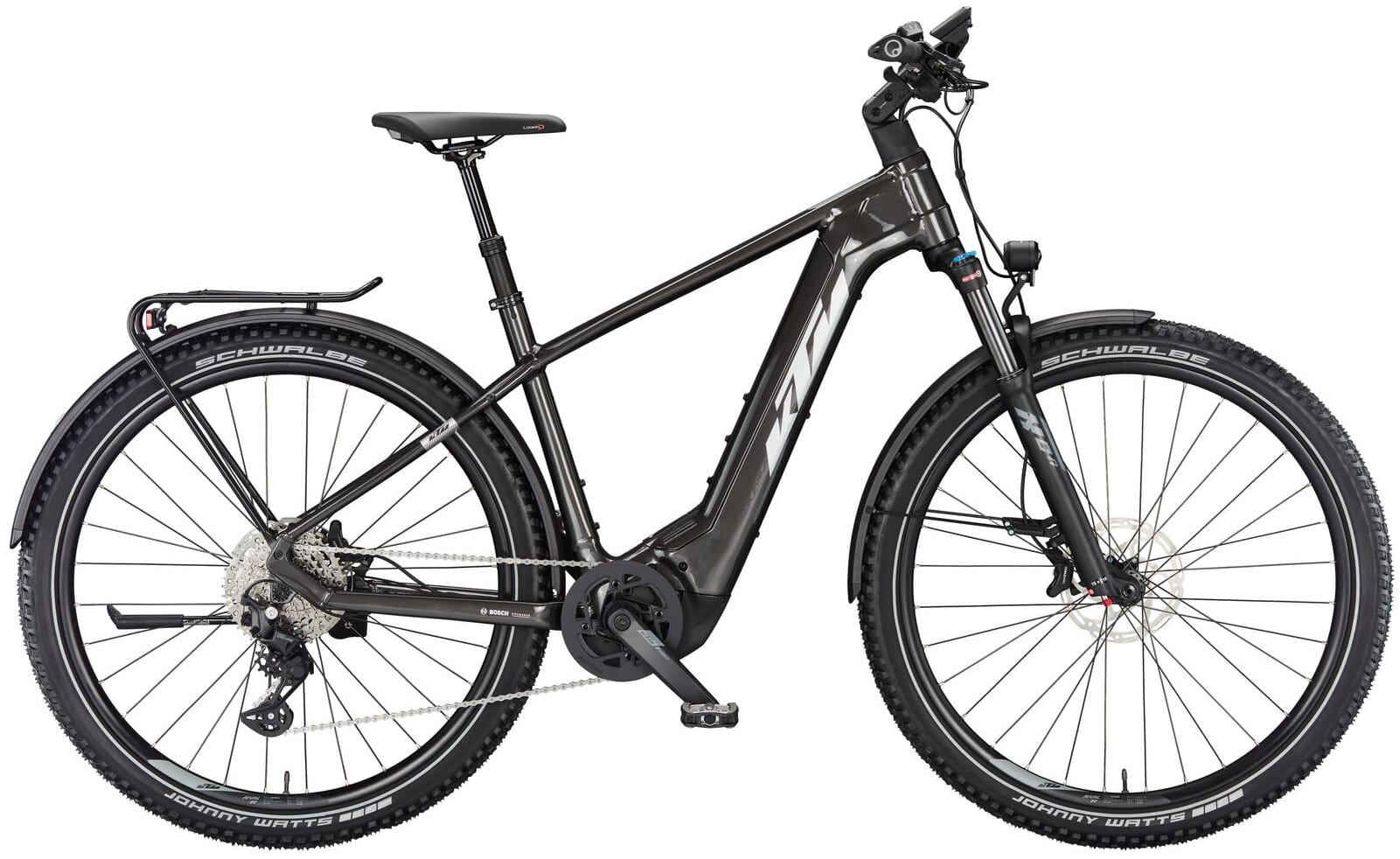

KTM Macina Team LFC 2024

KTM Macina Team LFC 2024

Prices incl. VAT plus shipping costs

  • 8237-001
  • 1230064103 / 023327103
  • 9008594471443

Frame Size:

The KTM Macina Team LFC offers everything that makes a sporty all-round e-bike. The E-MTB... more

The KTM Macina Team LFC offers everything that makes a sporty all-round e-bike. The E-MTB frame convinces with versatility, comfort and stability on the road, as well as off-road. For the challenges of everyday life, the Team LFC 2024 has a simple integrated luggage rack, practical mudguards and a powerful 150 lux LED lighting system from Litemove. The first-class overall package is rounded off by a 4-piston disc brake, Shimano Linkglide 10-speed gears and the proven Bosch Performance CX drive.  The large 750 Wh PowerTube battery delivers enough power for your versatile adventures with the KTM Team LFC.

Features of the KTM Macina Team LFC 2024

  • versatile E-MTB hardtail with full city features
  • Bosch Performance Line CX drive - 85 Nm
  • Kiox 300 display & PowerTube 750 Wh
  • Shimano Linkglide e-bike shifting group
  • Litemove SE-150 LED 150 Lux lighting system
  • Luggage rack, kickstand & mudguards

Ebike24 recommends: The KTM Macina Team LFC is versatility personified. This makes it the perfect compromise between a sporty hardtail and a practical everyday companion for all those who would like both.

E-Bike Types: E-Mountainbike (e-MTB), Hardtail E-MTB
Model year: 2023
Battery capacity: 700 Wh - 799 Wh
Drive system: Bosch drive
Manufacturer: KTM
Frame type: Mens
Derailleur/drive type: Derailleur - chain drive
Bosch System: Bosch Performance Line CX from 2022 Smart System
Frame: Macina MTB 29" Aluminum 6061 PT750Wh Bosch Gen.4 / M-2706
Fork: Suntour XCR 34 Air 29" LOR 120mm 15x110 taper
Battery: Bosch PowerTube 750 Wh Smart System horizontal
Tyres: Schwalbe Johnny Watts Perf. DD RaceGuard 60-622
Saddle: Selle Royal Lookin Athletic
Seat post: KTM Comp dropper internal
Carrier: Alumee light (snap-it 2.0)
Item: KTM Macina Team LFC 2024
Colour: Machine Grey (silver+blue)
Model year: 2024
Stem: KTM Line adjust. 0-60° internal
Display: Bosch Kiox 300
Side stand: KTM 28" adjustable
Wheels: front: KTM Line - Shimano MT410B CL 32H 110-15TA Ryde Rival30 32H 622x30C DT Champion 2.0 black | rear: KTM Line - Shimano MT400B CL 32H 148-12TA Ryde Rival30 32H 622x30C DT Alpine II 2.34 black
Mudguard: Racktime Alu 72mm
Spring travel: 120 mm
Grips: Ergon GP1 SD
Motor: Bosch Performance CX Gen.4 Smart System - 85 Nm
Headset: Acros AICR internal 1.1/8"-1.5" angle limit
Rear light: B&M Xeltec - integrated in the Fender
Front light: Litemove SE-150 LED 150Lux
Pedal: MTB-Pedal flat VPE-527 Aluminum
Wheel size: 29"
Handlebar: KTM Comp rizer15 700mm
Permissible total weight: 147 kg
Crank: KTM E-COMP ISIS 170mm Q16
Cassette: Shimano LG400-10 / 11-43
Rear derailleur: Shimano Deore M5130-10 LG shadow+
Chain: Shimano LG500
Shift lever: Shimano Deore M5130-10 display
Charger: Bosch Smart System Standard Charger - 4A
Disc brakes: Tektro TR-45 2.3mm CL 180 / 180
Control unit: Bosch LED Remote
Brake: Tektro HD-M535 4-Piston
GPS: No - Bosch ConnectModule Ready
