€2,499.00
% Regular price: €3,699.00 (32.44% saved)
Home delivery (Germany) 13/08/2026 - 17/08/2026

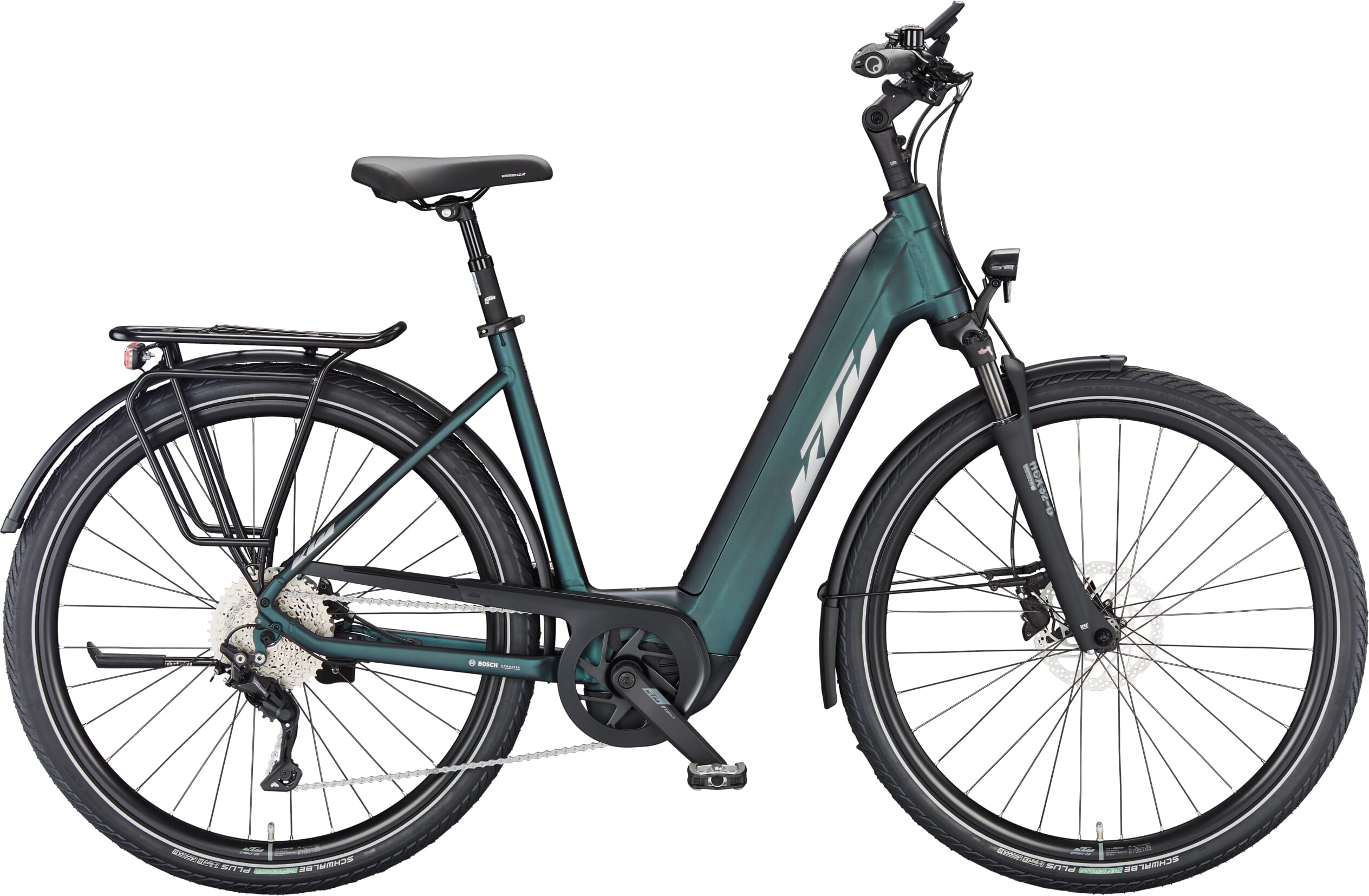

The KTM Macina Tour CX 510 is the ultimate trekking e-bike for every day. Equipped with the latest Bosch CX Smart System technology and perfect touring equipment, nothing stands in the way of extended tours in the countryside. A Suntour suspension fork, Shimano Deore gears and Schwalbe tyres ensure long-lasting riding fun. The Macina Tour CX 510 combines sportiness and comfort and is therefore the ideal companion for intensive trekking adventures.
Features of the KTM Macina Tour CX 510 - 2024:
- Macina Trekking frame made of aluminum
- Bosch CX Smart System drive 85 Nm
- Bosch Intuvia 100 Display + LED Remote
- Bosch 750 Wh Powertube battery
- Suntour NCX32 steel suspension fork with 63 mm travel
- Shimano Deore M4120 10-speed derailleur gears
- Busch and Müller lighting system
- KTM Racktime tour (snap-it 1.0) luggage rack
- Schwalbe Energizer Plus 50-622 tires
Ebike24 recommends: The KTM Macina Tour CX 510 convinces with high-quality components, which promise special long-distance comfort. Whether the daily ride to work or the weekend trip with panniers in nature, this touring e-bike is the perfect everyday companion for young and old.
| Battery: | Bosch PowerTube 500 Wh Smart System horizontal |
|---|---|
| Battery capacity: | 500 Wh or more |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line CX 2022 - 2025 Smart System |
| Brake: | Shimano MT200 / MT200 2-Piston |
| Carrier: | KTM tour (snap-it 1.0) |
| Cassette: | Shimano Deore M4100-10/ 11-42 |
| Chain: | KMC e10 EPT e-bike |
| Chainguard: | yes - KTM type 7 for Bosch Gen.4 |
| Charger: | Bosch Smart System Standard Charger - 4A |
| Colour: | Green Purple Flip matt (silver+green) |
| Control unit: | Bosch LED Remote |
| Crank: | KTM E-COMP ISIS 170mm Q16 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Shimano RT30 CL 180 / EM300 CL 160 |
| Display: | Bosch Intuvia 100 |
| Drive system: | Bosch drive |
| E-Bike Types: | Trekking E-Bike |
| Fork: | Suntour NCX32-D coil LO 63mm |
| Frame: | Macina Trekking Onroad Aluminum 6061 PT750Wh Bosch Gen.4 / T-2940 |
| Frame type: | Ladies / Trapeze, Mens, Step-through |
| Front light: | B&M Lumotec DOPP LED 35Lux |
| GPS: | No - Bosch ConnectModule Ready |
| Grips: | Ergon GP1 SD |
| Handlebar: | KTM Line rizer20 640mm |
| Headset: | Acros AICR internal 1.1/8"-1.5" angle limit |
| Item: | KTM Macina Tour CX 510 2024 |
| Manufacturer: | KTM |
| Model year: | 2024 |
| Motor: | Bosch Performance CX Gen.4 Smart System - 85 Nm |
| Mudguard: | SKS A55K 55mm black matt |
| Pedal: | Trekking-Pedal VP-616 anti-slip |
| Permissible total weight: | 145 kg |
| Rear derailleur: | Shimano Deore M4120-10 SGS shadow |
| Rear light: | B&M Toplight 2C LED |
| Saddle: | Selle Royal Essenza+ |
| Seat post: | KTM Line Elegance suspension 30.9/300 |
| Shift lever: | Shimano Deore M4100-10 display |
| Side stand: | KTM 28" adjustable |
| Spring travel: | 63 mm |
| Stem: | KTM Line UP3 adjust. 0-90° |
| Tyres: | Schwalbe Energizer Plus Perf. GreenGuard 50-622 |
| Wheel size: | 28" |
| Wheels: | front: KTM Line - Shimano Deore M6000 CL 32H 100-5QR Ambrosio Sport 25 700C 32H 622x25C DT Champion 2.0 black | rear: KTM Line - Shimano Deore M6000 CL 32H 135-5QR Ambrosio Sport 25 700C 32H 622x25C DT Alpine II 2.34 black |
