Prices incl. VAT plus shipping costs
- Order number: 5540-001
- Manufacturer Part Number: 021369106
- EAN 9008594438286

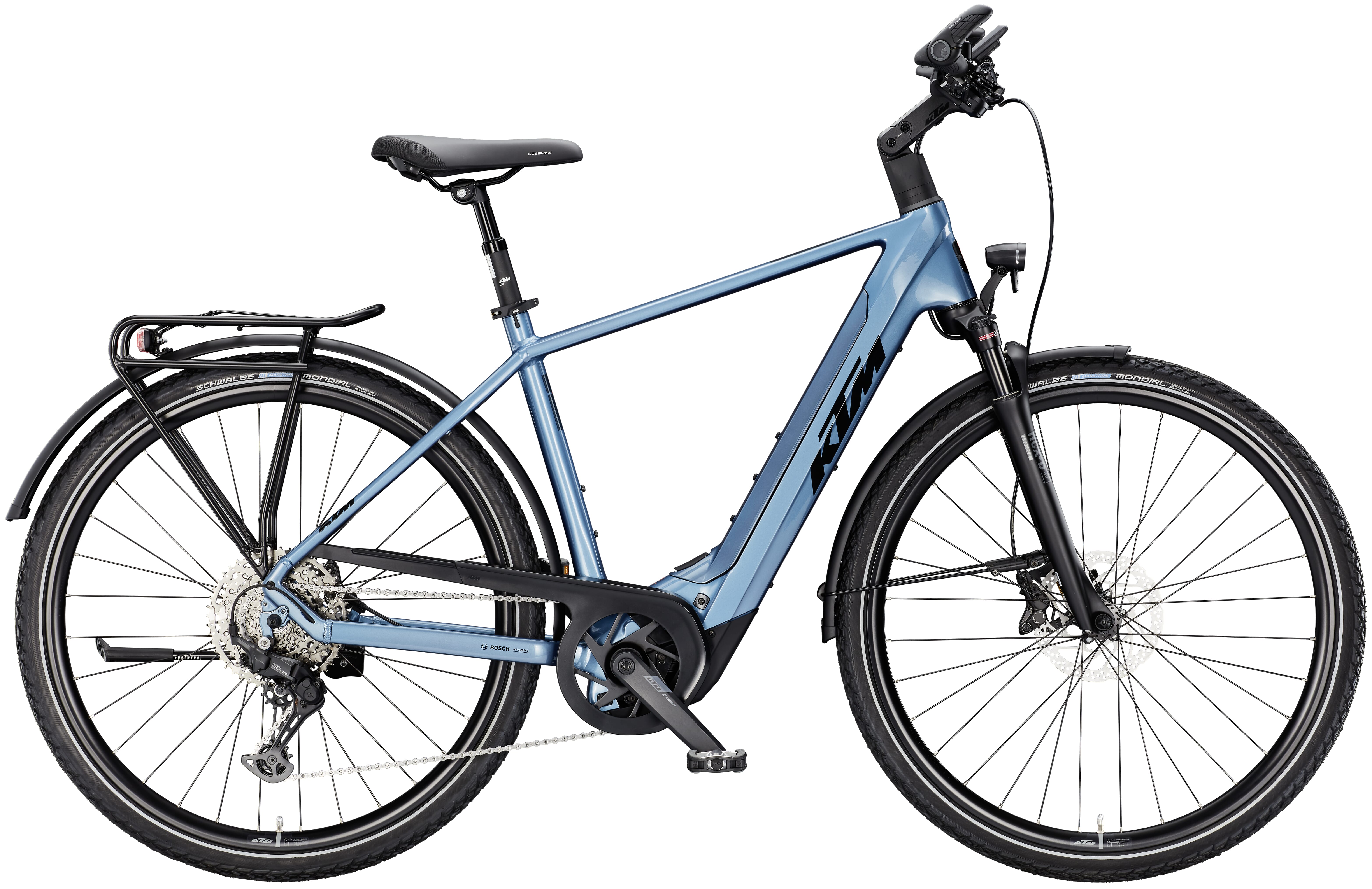

The KTM Macina Tour CX 610 is the perfect touring e-bike and the successor model to the 2020 Stiftung Warentest (Germany's product testing foundation) winner! The latest Bosch CX technology and high-quality components turn every city ride or tour into the countryside into a real e-bike experience. The CX 610 combines sportiness and comfort and guarantees extended riding pleasure.
Equipment highlights of the KTM Macina Tour CX 610 - 2021:
- Macina trekking frame made of aluminium
- Bosch Performance Line CX drive Gen.4, 85 Nm
- Bosch Intuvia Display + Bosch 625 Wh Powertube battery pack
- Suntour NCX-D steel suspension fork with 63 mm travel
- Shimano Deore 10-speed derailleur gears
- Schwalbe Energizer Plus 50-622 tyres
The KTM Macina Tour CX 610 - reliable from head to toe
The basic frame of the Macina Tour CX 610 is an aluminium trekking onroad frame. This not only impresses with its extraordinary durability, but also with a high degree of integration. The cable routing and battery are fully integrated into the frame for a clean and modern look. For additional comfort, a Suntour suspension seat post is installed, which guarantees pleasant long-distance comfort. The Macina Tour is available in women's, men's and low entry frame versions.
The Macina Tour CX is powered by a high-performance Bosch Performance Line CX mid-motor of the latest generation. Since it is positioned centrally, the Macina Tour has a perfectly balanced load distribution. Up to 1000 sensor measurements per second calculate speed, cadence and torque. As a result, the mid-mounted motor adapts perfectly to your riding style and gives you exactly the support you need.
The drive unit is powered by a removable and lockable 625 Wh Bosch Powertube battery. Depending on the rider's weight, the type of route and the selected riding mode, it can achieve a range of 80 - 160 km. You can easily control the KTM Macina Tour via the Bosch Intuvia display. By using a remote control on the handlebars, you can operate the Intuvia with your thumb. In addition, you can check important riding data such as speed, current battery charge level or trip kilometres.
With high-quality components - comfortable across hills and Valleys
A Shimano Deore 10-speed rear derailleur has been installed to ensure that the KTM Macina Tour CX 610 delivers smooth gear changes in the city as well as in the country. The 10-speed derailleur in combination with the Shimano M4100 cassette (11-42 teeth) guarantees the best shifting performance in every situation.
For sufficient safety and comfort on your tours, the KTM Macina Tour has been equipped in accordance with the German Road Traffic Licensing Regulations (StVZO). A light system from Busch & Müller ensures that you have a clear view even in the darkest of conditions and can be easily seen by other road users. A Busch & Müller Lumotec Myc with 50 lux shines at the front and a Toplight 2c at the rear.
A real trekking e-bike also needs an appropriate suspension fork that absorbs small shocks or bumps in the road. With the Suntour NCX-D steel suspension fork and its 63 mm travel, you get excellent traction on any surface. With the lockout function, you can lock the suspension fork if necessary to avoid bobbing too much on steep climbs.
The Schwalbe Energizer Plus tyre 50-622, specially developed for e-bikes, gives you the necessary grip on the road or gravel paths. The tyre features low rolling resistance and particularly good cornering grip. The additional puncture protection guarantees you a durable and serviceable tyre.
To protect you from dirt or splashing water, the KTM Macina Tour CX 610 has been fitted with SKS A55K trekking mudguards made of plastic in 55mm width. With the luggage rack including pannier holder, you can take enough luggage with you on your tours or easily transport your groceries home.
Ebike24 recommends this e-bike for: The KTM Macina Tour CX 610 offers an excellent mix of comfort and efficiency. The powerful Bosch technology takes you beyond the city limits, ruggedly into the countryside. Enjoy pure riding fun!
|Bosch System:||Bosch Performance Line CX - 2020|
|Battery capacity :||600 Wh - 699 Wh|
|Drive system:||Bosch drive|
|Frame type:||Ladies / Trapeze, Low-entry / Wave, Mens|
|E-Bike Types:||Trekking e-Bikes|
|Derailleur/drive type :||Derailleur - chain drive|
|Frame:||Macina Trekking Onroad Alloy6061; PT625Wh Bosch Gen.4 / T-0450|
|Fork:||Suntour NCX-D coil LO 63mm|
|Battery:||Bosch PowerTUBE 625Wh horizontal|
|Tyres:||Schwalbe Energizer Plus Performance GreenGuard 50-622|
|Brakes:||Shimano MT200 / MT200 2-Piston|
|Saddle:||Selle Royal Lookin+|
|Seat post:||Suntour SP17-NCX suspension 30.9/350|
|Carrier:||KTM Racktime tour (snap-it 1+2)|
|Stem:||KTM Line UP3 adjust. 0-90°|
|Display:||Bosch INTUVIA LCD Display with Remote|
|Side stand:||KTM 28" adjust|
|Wheels:||Front: KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ambrosio Sport Disc 32H 622x23C / DT Champion 2.0 black | Rear: KTM Line - Shimano Deore M6000 CL 32H 135-5QR / Ambrosio Sport Disc 32H 622x23C / DT Alpine II 2.34 black|
|Mudguard:||SKS A55K 55mm black matt|
|Chainring:||FSA Megatooth steel 42T|
|Grips:||Ergon GP30 SD with Barend|
|Motor:||Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm|
|Headset:||KTM Team eTrekking 1.1/8"-1.5" angle limit|
|Rear light:||B&M Toplight 2C LED|
|Front light:||B&M Lumotec MYC LED 50Lux|
|Pedal:||Trekking-Pedal VP-616 anti-slip|
|Handlebar:||KTM Line rizer20 640mm|
|Permissible total weight:||145 kg|
|Crank:||KTM COMP ISIS 170mm Q16|
|Cassette:||Shimano Deore M4100-10 / 11-42|
|Rear derailleur:||Shimano Deore M4120-10 SGS shadow|
|Chain:||KMC e10 EPT e-bike|
|Shift lever:||Shimano Deore M4100-10 display|
|Bike category:||E2 | City, Trekking Onroad/ Offroad, Mountainbike, Leisure|
|Charger:||Bosch STANDARD Charger 4A|
|Item weight:||ca. 26.2 kg|
|Disc brakes:||Shimano RT30 CL 180 / 160|
