Description

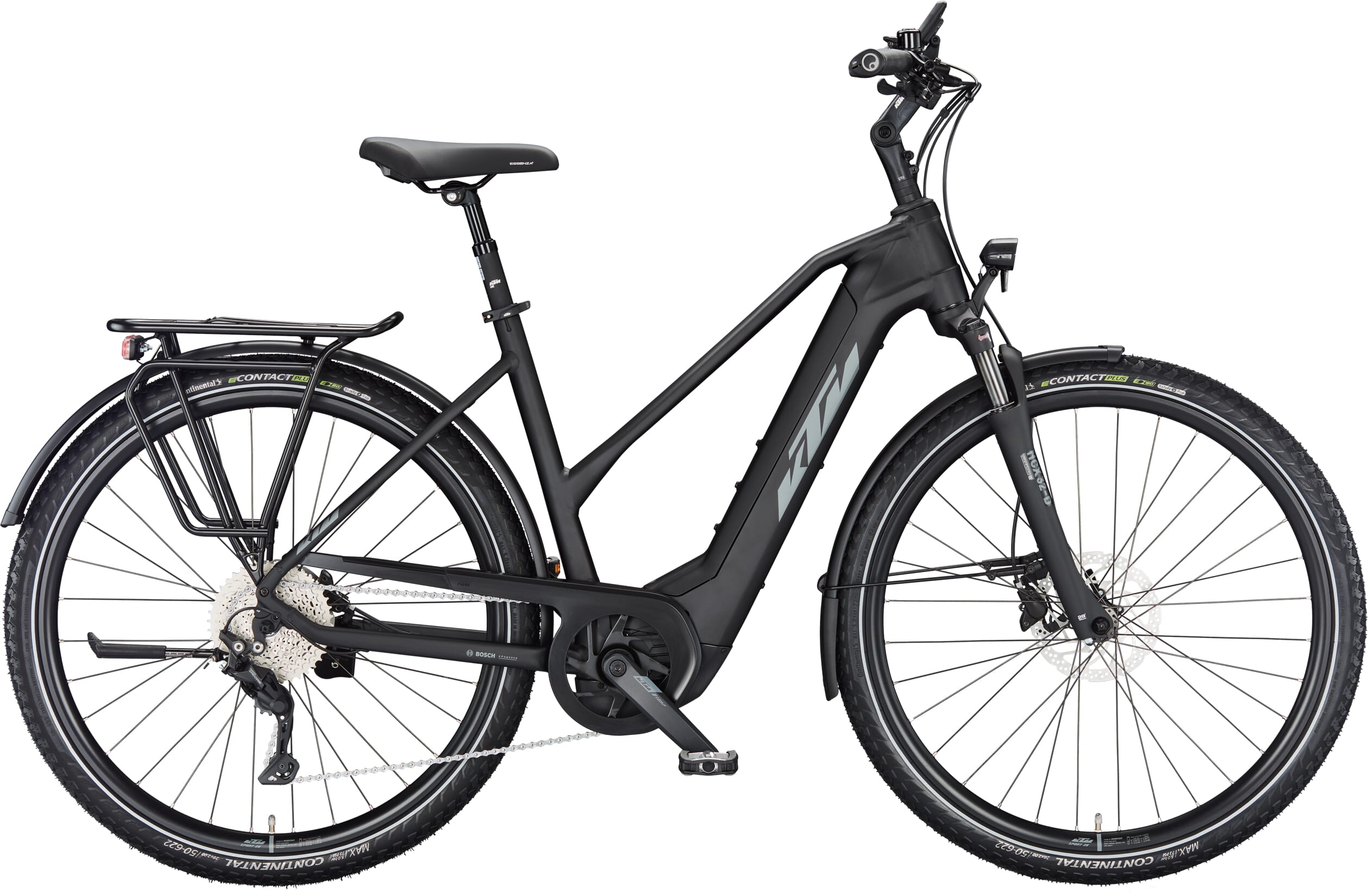

With the Macina Tour CX 610 from KTM, you can enjoy big tours in a relaxed manner and focus completely on riding fun. Not only is this an eye-catcher, but thanks to high-quality components and a powerful Bosch Performance CX motor (Smart System), it is ready for many an adventure. Equipped with reliable Shimano Deore gears and a soft SR Suntour suspension fork, this extra comfortable Macina is ideal for trips into the countryside. Therefore, the Macina Tour CX 610 is the perfect everyday companion for any age group.
FEATURES OF THE KTM MACINA TOUR CX 610 - 2024
- trekking frame made of hydroformed aluminum
- powerful Bosch Performance CX drive, 85 Nm
- powerful Bosch Powertube 625 Wh lithium-ion battery pack
- clear Bosch Intuvia display
- Suntour NCX32 suspension fork with 63 mm travel
- Shimano Deore M412 10-speed rear derailleur
- hydraulic Shimano MT200 disc brakes
- StVZO equipment (B&M lights, SKS mudguards, KTM rack)
Ebike24 recommends: the KTM Macina Tour CX 610 is the optimal pedelec if you want to count on a reliable partner both in inner-city traffic and on weekend excursions. High-quality components and powerful Bosch ePerformance ensure that every tour is a real experience.
Properties
| Battery: | Bosch PowerTube 625 Wh Smart System horizontal |
|---|---|
| Battery capacity: | 600 Wh - 699 Wh |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line CX 2022 - 2025 Smart System |
| Brake: | Shimano MT200 / MT200 2-Piston |
| Carrier: | KTM tour (snap-it 1.0) |
| Cassette: | Shimano Deore M4100-10/ 11-42 |
| Chain: | KMC e10 EPT e-bike |
| Chainguard: | yes - KTM type 7 for Bosch Gen.4 |
| Charger: | Bosch Smart System Standard Charger - 4A |
| Colour: | Black matt (grey+yellow) |
| Control unit: | Bosch LED Remote |
| Crank: | KTM E-COMP ISIS 170mm Q16 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Shimano RT30 CL 180 / EM300 CL 160 |
| Display: | Bosch Intuvia 100 |
| Drive system: | Bosch drive |
| E-Bike Types: | Trekking E-Bike |
| Fork: | Suntour NCX32-D coil LO 63mm |
| Frame: | Macina Trekking Onroad Aluminum 6061 PT750Wh Bosch Gen.4 / T-2940 |
| Frame type: | Ladies / Trapeze, Mens, Step-through |
| Front light: | B&M Lumotec DOPP LED 35Lux |
| GPS: | No - Bosch ConnectModule Ready |
| Grips: | Ergon GP1 SD |
| Handlebar: | KTM Line rizer20 640mm |
| Headset: | Acros AICR internal 1.1/8"-1.5" angle limit |
| Item: | KTM Macina Tour CX 610 2024 |
| Manufacturer: | KTM |
| Model year: | 2024 |
| Motor: | Bosch Performance CX Gen.4 Smart System - 85 Nm |
| Mudguard: | SKS A55K 55mm black matt |
| Pedal: | Trekking-Pedal VP-616 anti-slip |
| Permissible total weight: | 146 kg |
| Rear derailleur: | Shimano Deore M4120-10 SGS shadow |
| Rear light: | B&M Toplight 2C LED |
| Saddle: | Selle Royal Essenza+ |
| Seat post: | KTM Line Elegance suspension 30.9/300 |
| Shift lever: | Shimano Deore M4100-10 display |
| Side stand: | KTM 28" adjustable |
| Spring travel: | 63 mm |
| Stem: | KTM Line UP3 adjust. 0-90° |
| Tyres: | Continental eConntact Plus 50-622 |
| Wheel size: | 28" |
| Wheels: | front: KTM Line - Shimano Deore M6000 CL 32H 100-5QR Ambrosio Sport 25 700C 32H 622x25C DT Champion 2.0 black | rear: KTM Line - Shimano Deore M6000 CL 32H 135-5QR Ambrosio Sport 25 700C 32H 622x25C DT Alpine II 2.34 black |
