€4,999.00
On order, delivery date unknown
Description

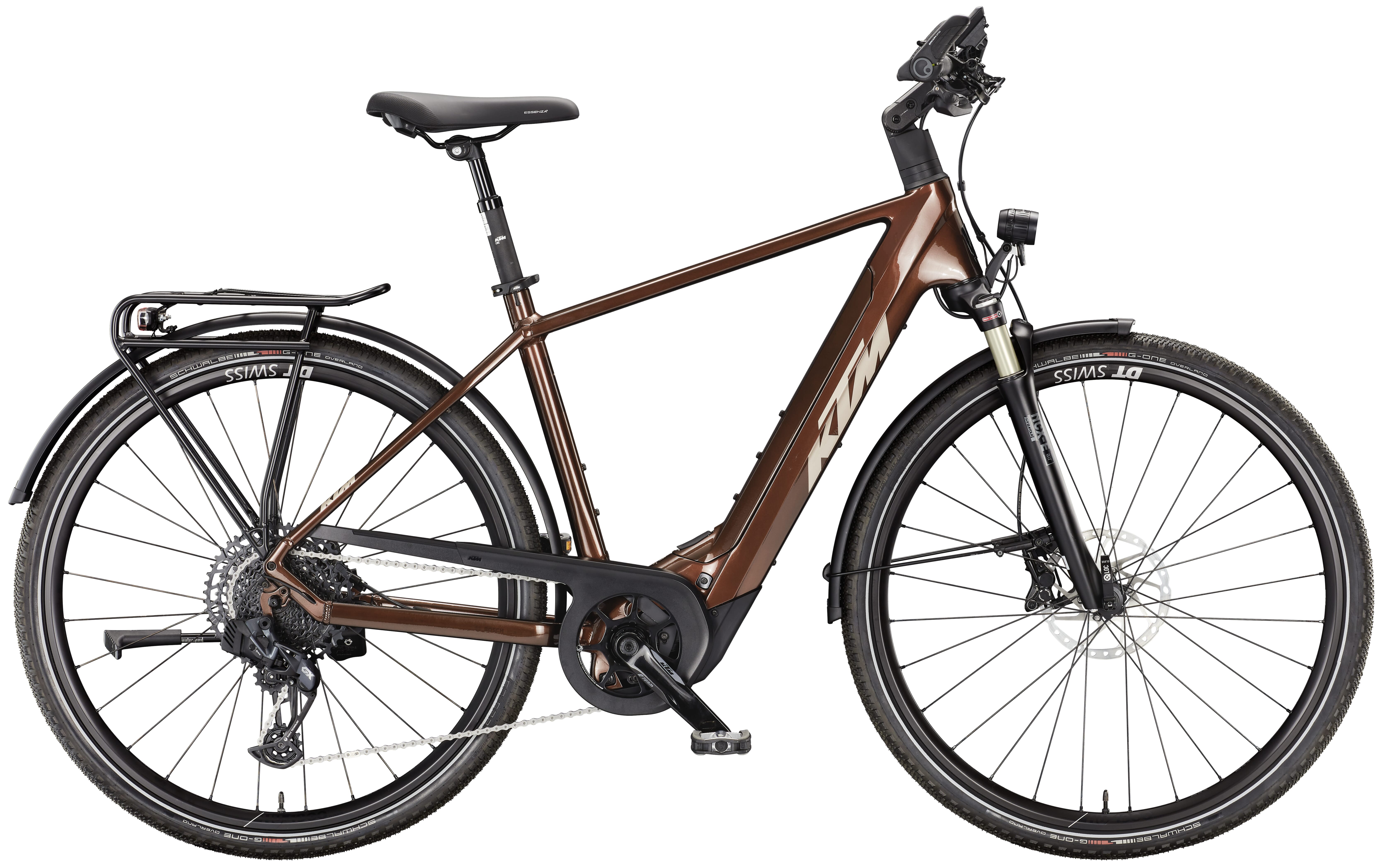

The KTM Macina Tour CX 810 - 2026 is a high-quality trekking e-bike that reliably accompanies you on every tour with power, comfort and well thought-out equipment - be it in everyday life, on long rides or on demanding weekend tours. The robust Macina Trekking Onroad Alloy 6061 PT800 frame and the Suntour NCX-E Air LO suspension fork with 63 mm travel ensure a pleasantly smooth ride, even on uneven roads or dirt tracks. At the heart of the electric bike is the powerful Bosch Performance CX motor, which, in combination with the Bosch PowerTube 800Wh battery, offers an impressive range. The system is controlled via the Bosch Kiox 300 display, which always provides all the important riding data and scores points for its intuitive operation.
Features of the KTM Macina Tour CX 810 - 2026
- High-quality trekking e-bike
- Bosch Performance CX motor with 100 Nm
- Bosch PowerTube 800Wh battery
- Bosch Kiox 300 display
- Suntour NCX-E Air LO 63mm 15QLC 1 1/8 fork
- B&M IQ-XM 120-170Lux HighBeam front light
eBike24 recommends: The KTM Macina Tour CX 810 is an ideal companion for all those who rely on reliable technology, strong performance and high riding comfort in everyday life and on tours.
Properties
| Battery: | Bosch PowerTUBE 800Wh horizontal |
|---|---|
| Battery capacity: | 800 Wh - 899 Wh |
| Battery option: | Dual Battery compatible |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line CX from 2025 Smart System |
| Brake: | Shimano MT402 (3-F) / MT420 4-Piston |
| Carrier: | KTM light snap-it 1.0 |
| Cassette: | SRAM NX Eagle PG-1230 / 11-50 |
| Chain: | SRAM NX Eagle 12s |
| Chainguard: | KTM type 9 for Bosch BDU38 |
| Chainring: | SRAM X-Sync 2 Eagle 38T Direct Mount |
| Charger: | Bosch STANDARD Charger 4A |
| Colour: | Terra (Grey) |
| Crank: | KTM E-TEAM ISIS 170mm 016 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Front: Shimano RT64 CL 180 | Rear: Shimano EM600 CL 160 magnet |
| Display: | Bosch KIOX 300 TFT display |
| Drive system: | Bosch drive |
| Fork: | Suntour NCX-E Air LO 63mm 15QLC 1 1/8 |
| Frame: | Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38/T5940 |
| Frame type: | Mens |
| Front light: | B&M IQ-XM 120-170Lux HighBeam |
| Gearshift stages: | 11-speed |
| Grips: | Ergon GP30 |
| Handlebar: | KTM TEAM low rizer 640mm |
| Headset: | Acros AICR internal 1.5"-1.5" |
| Item: | KTM Macina Tour CX 810 - 2026 |
| Manufacturer: | KTM |
| Model year: | 2026 |
| Motor: | Bosch PERFORMANCE CX BDU3840 |
| Mudguard: | SKS A55K PET Trek 28" rear |
| Pedal: | Trekking pedal VP-616 anti-slip |
| Rear derailleur: | SRAM GX Eagle AXS 12speed |
| Rear light: | B&M Dart brex |
| Saddle: | Selle Royal Essenza |
| Saddle clamp: | KTM Line JD-SC99 - 34.9mm |
| Seat post: | KTM Line Elegance suspension 30.9/300 |
| Shift lever: | SRAM GX Eagle AXS Controller |
| Side stand: | KTM 28" adjustable MY2025 |
| Stem: | KTM Line adjust. 0-60° ICR |
| Tyres: | Front: Schwalbe G-One Overland Evo SuperGround 50-622 | Rear: Schwalbe G-One Overland Evo SuperGround 50-622 |
| Wheels: | Front: DT HU 1900 CL 100/15TA|622x25TC TLR | DT HU 1900 CL 135/5QR|622x25TC SS TLR |
