€4,999.00
Home delivery (Germany) 17/03/2026 - 19/03/2026
Description

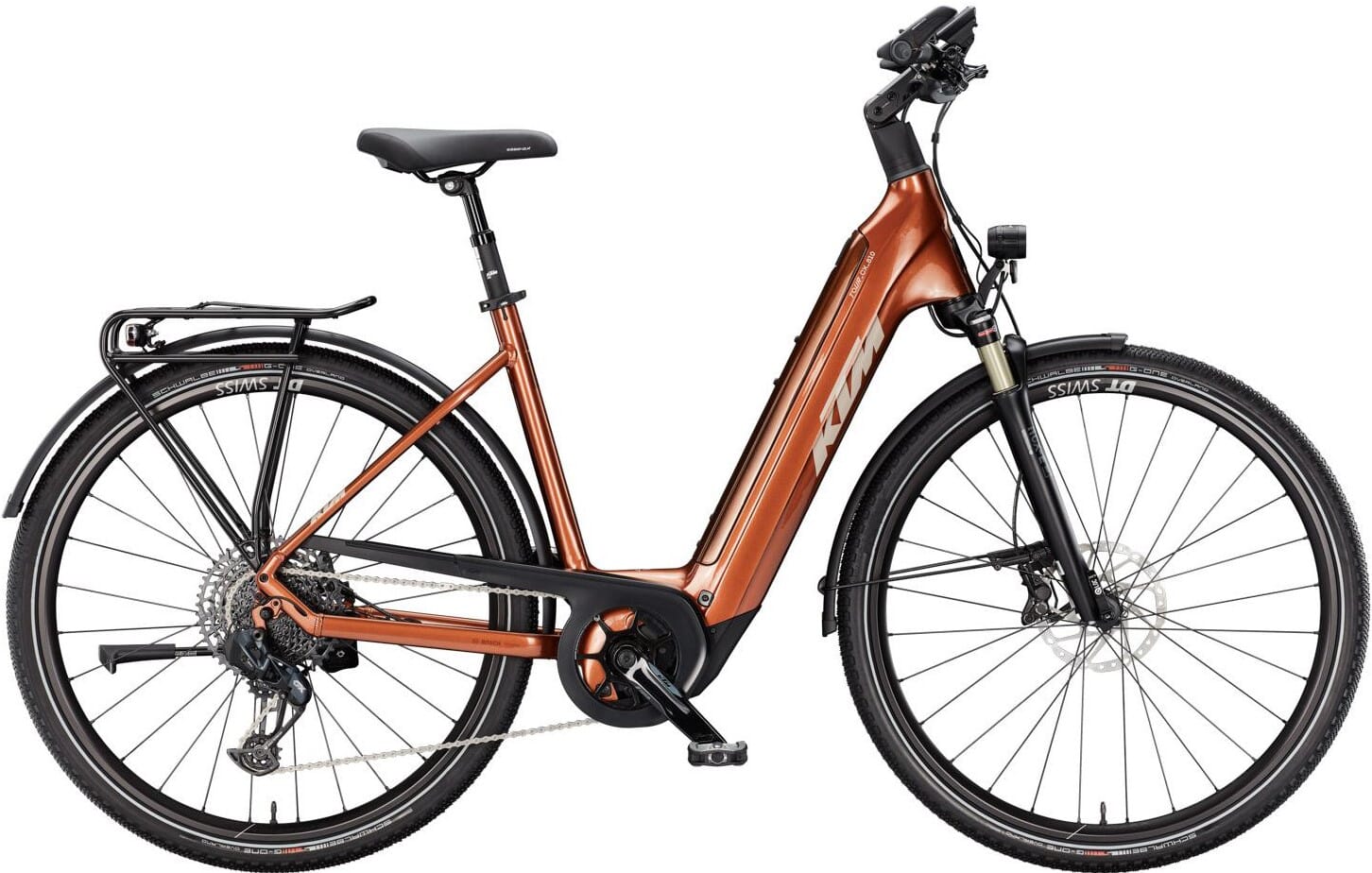

With the KTM Macina Tour CX 810 you are ready to discover the world. The trekking eBike impresses with every amount of touring equipment and riding comfort. This is ensured by the suspension fork, the suspension seat post and the electronic 12-speed SRAM AXS gears. The Schwalbe G-One Overland tyres and the Busch and Müller lighting system are also perfect for trips into the countryside. The Dart Brex rear light has an integrated brake and emergency light, among other features. The Tour CX 810 leaves nothing to be desired when it comes to the drive. The 5th generation Bosch Performance Line CX motor is at work here. With 85 Nm of torque, you are well equipped at all times. And thanks to the 800 Wh PowerTube battery, you can start several tours without recharging.
Features of the KTM Macina Tour CX 810 2025
- High-quality trekking eBike
- Bosch Perf. CX Gen.5 motor - 85 Nm
- Bosch PowerTube battery - 800 Wh removable
- three frame variants - men's, women's, step-through
- electric SRAM GX AXS gears
- Shimano MT4 disc brakes
eBike24 recommends: The KTM Macina Tour CX 810 is the first choice for all eBike touring enthusiasts looking for riding comfort and high-quality equipment.
Properties
| Battery: | Bosch PowerTUBE 800Wh horizontal |
|---|---|
| Battery capacity: | 800 Wh - 899 Wh, Dual Battery compatible |
| Battery option: | Dual Battery compatible |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line CX from 2025 Smart System |
| Brake: | Shimano MT402 (3-F) / MT420 4-piston |
| Carrier: | KTM light (Snap-it 1.0) |
| Cassette: | SRAM NX Eagle PG-1230 / 11-50 |
| Chain: | SRAM NX Eagle 12s |
| Charger: | Bosch Standard Charger 4A |
| Colour: | TERRA |
| Control unit: | Bosch LED Remote |
| Crank: | KTM E-Team ISIS 170mm Q16 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Shimano RT64 CL 180 / EM600 CL 160 magnet |
| Display: | Bosch KIOX 300 TFT display |
| Drive system: | Bosch drive |
| Fork: | Suntour NCX-E Air LO 63mm 15QLC 1 1/8 |
| Frame: | Macina Trekking Onroad Alloy 6061 |
| Frame type: | Ladies / Trapeze, Mens, Step-through |
| Front light: | B&M IQ-XM 120-170Lux HighBeam |
| Grips: | Ergon GP30 |
| Handlebar: | KTM Team low rizer 640mm |
| Item: | KTM Macina Tour CX 810 - 2025 |
| Manufacturer: | KTM |
| Model year: | 2025 |
| Motor: | Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm |
| Pedal: | Trekking pedal VP-616 anti-slip |
| Rear derailleur: | SRAM GX Eagle AXS 12speed |
| Rear light: | B&M Dart brex |
| Saddle: | Selle Royal Essenza Man |
| Seat post: | KTM Line Elegance suspension 30.9/300 |
| Shift lever: | SRAM GX Eagle AXS Controller |
| Side stand: | KTM 28" bike stand, adjustable |
| Spring travel: | Front: 63mm |
| Stem: | KTM Line adjust. 0-60° ICR |
| Tyres: | Schwalbe G-One Overland Evo SuperGround 50-622 |
| Weight: | 25.5 kg |
| Wheel size: | 28" |
| Wheels: | DT Swiss HU 1900 |
