€4,199.00
On order, delivery date unknown
Description

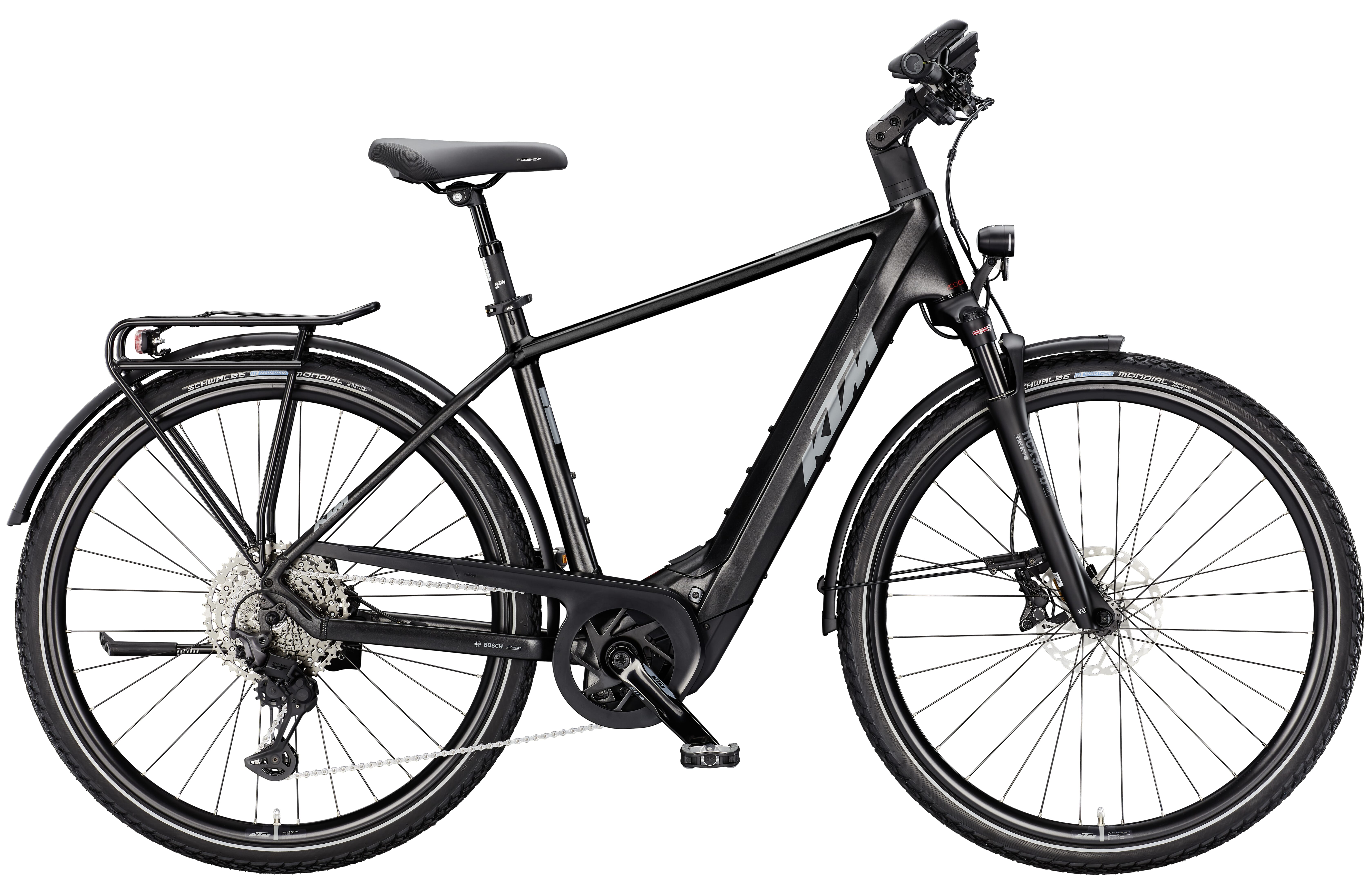

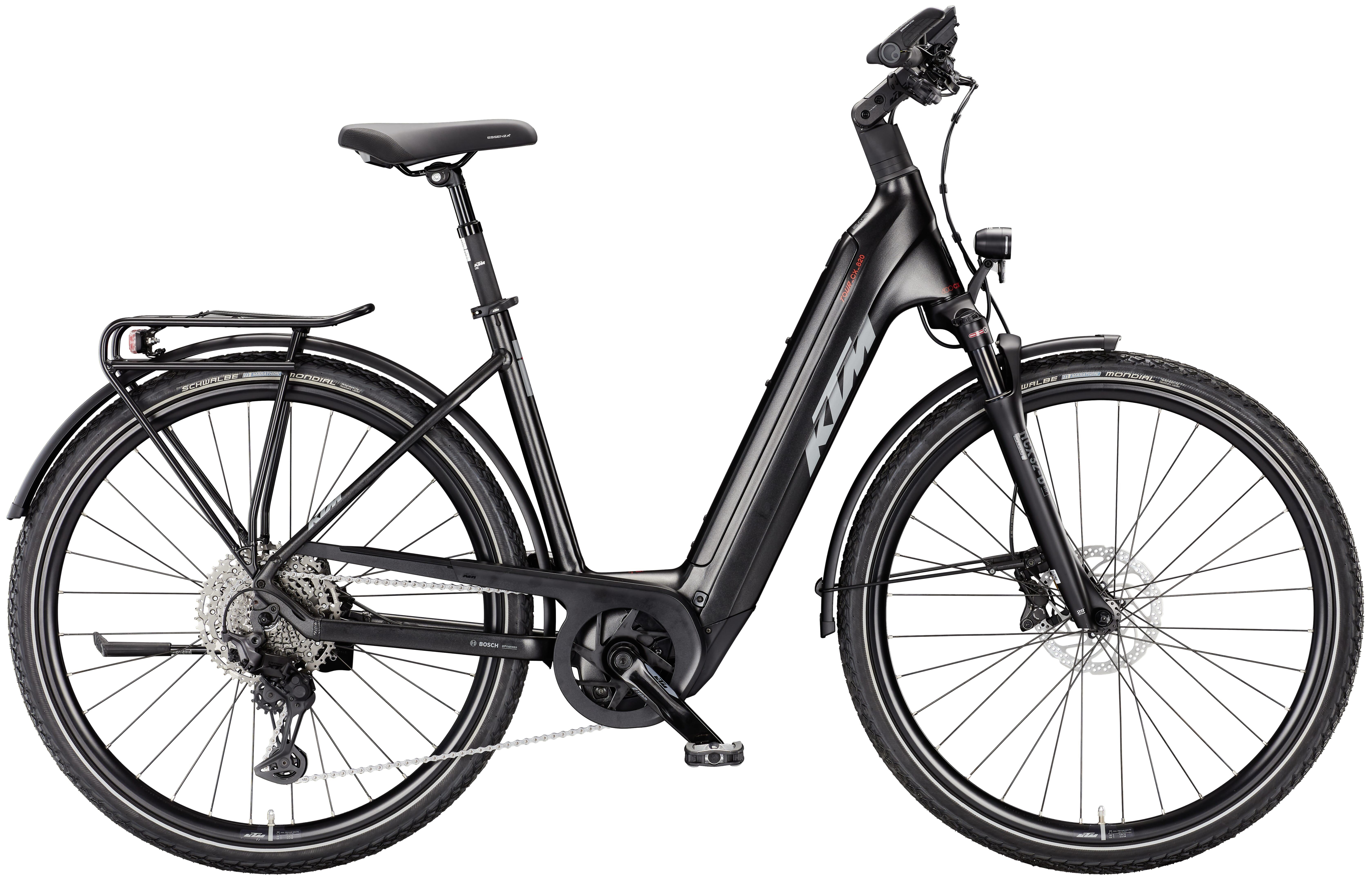

The KTM Macina Tour CX 820 - 2026 is a high-quality premium trekking e-bike for demanding riders who expect maximum performance, maximum comfort and state-of-the-art technology. The centrepiece of the model is the stable yet elegant Macina Trekking Onroad frame, which was specially developed for the Bosch Performance CX motor . The drive is one of the most powerful in its class and supports you with dynamic propulsion on any route thanks to sensitive sensor technology. The Bosch PowerTube battery with 800 Wh ensures a long range - ideal for extended tours and daily commutes. The system is controlled via the Bosch Kiox 300 display, which provides clear information and intuitive operation. The powerful B&M IQ-XS front light with up to 150 lux HighBeam function ensures optimum visibility and safety on the road, while the reliable B&M Toplight 2C rear light significantly increases your visibility in the dark and in poor light conditions.
Features of the KTM Macina Tour CX 820 - 2026
- High-quality trekking electric bike
- Bosch Performance CX motor with 100 Nm
- Bosch PowerTube 800 Wh battery
- Bosch Kiox 300 display
- B&M IQ-XS front light
- Suntour NCX32-D Air LO 63mm 1 1/8 fork
eBike24 recommends: The KTM Macina Tour CX 820 is the ideal eBike for anyone looking for a powerful, comfortable and high-quality solution for city and touring.
Properties
| : | Front: Ryde Rival Sport 32H 622x25C | Rear: Ryde Rival Sport 32H 622x25C |
|---|---|
| Battery: | Bosch PowerTUBE 800Wh horizontal |
| Battery capacity: | 800 Wh - 899 Wh |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line CX from 2025 Smart System |
| Brake: | Shimano MT402 (3-F) / MT420 4-Piston |
| Carrier: | KTM light snap-it 1.0 |
| Cassette: | Shimano LG400-11 / 11-50 |
| Chain: | KMC e11 Sport EPT eBike |
| Chainguard: | KTM type 9 for Bosch BDU38 |
| Chainring: | FSA steel 42T Direct Mount |
| Charger: | Bosch STANDARD Charger 4A |
| Colour: | Diamond Black Matt (Grey + Burnt Orange) |
| Crank: | KTM E-TEAM ISIS 170mm 016 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Front: Shimano RT30 CL 180 | Rear: Shimano EM300 CL 160 magnet |
| Display: | Bosch KIOX 300 TFT display |
| Drive system: | Bosch drive |
| E-Bike Types: | Cross E-Bike, Trekking E-Bike |
| Fork: | Suntour NCX32-D Air LO 63mm 1 1/8 |
| Frame: | Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38/T5940 |
| Frame type: | Ladies / Trapeze, Mens, Step-through |
| Front hub: | Shimano Deore M5100 CL 32H 100-5QR |
| Front light: | B&M IQ-XS 100-150Lux HighBeam |
| Gearshift stages: | 11-speed |
| Grips: | Ergon GP1 SD |
| Handlebar: | KTM Line low rizer 640mm |
| Headset: | Acros AICR internal 1.5"-1.5" |
| Item: | KTM Macina Tour CX 820 - 2026 |
| Manufacturer: | KTM |
| Model year: | 2026 |
| Motor: | Bosch PERFORMANCE CX BDU3840 |
| Mudguard: | SKS A55K PET Trek 28" rear |
| Pedal: | Trekking pedal VP-616 anti-slip |
| Rear derailleur: | Shimano Deore XT M8130-11 LG shadow+ |
| Rear hub: | Shimano Deore M5100 CL 32H 135-5QR |
| Rear light: | B&M Toplight 2C |
| Saddle: | Selle Royal Essenza |
| Saddle clamp: | KTM Line JD-SC99 - 34.9mm |
| Seat post: | KTM Line Elegance suspension 30.9/300 |
| Shift lever: | Shimano Deore XT M8130-11 LG |
| Side stand: | KTM 28" adjustable |
| Spokes: | Front: DT Champion 2.0 black | Rear: DT Alpine II 2.34 black |
| Stem: | KTM Line adjust. 0-60° ICR |
| Tyres: | Front: Schwalbe Marathon Mondial Perf. RaceGuard 47-622 Reflex | Rear: Schwalbe Marathon Mondial Perf. RaceGuard 47-622 Reflex |
