€4,899.00
On order, delivery date unknown
Description

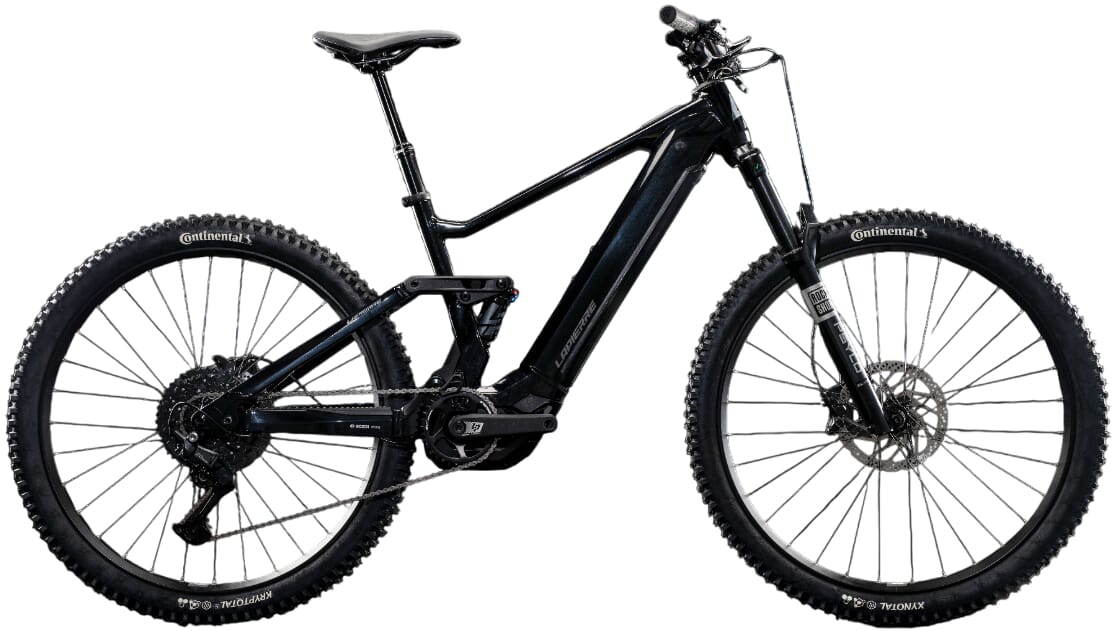

The Lapierre Overvolt TR 4.6 - 2026 is a reliable full-suspension e-MTB, designed to handle challenging trails and long rides with ease. It is equipped with the powerful Bosch Performance Line CX Smart System Motor, providing up to 100 Nm of torque to support you reliably on steep terrain and extended tours. Power is supplied by the integrated Bosch PowerTube 600Wh battery, which offers sufficient range and can be expanded if needed with the Bosch PowerMore 250Wh Range Extender.
Comfort on the trail and uneven terrain is ensured by the combination of the Lapierre Trunnion shock absorber and the RockShox Psylo Silver R suspension fork, which absorb large impacts efficiently.
All key ride data such as range, speed, and battery level can be viewed on the Bosch Kiox 300 Display, controlled via the handlebar-mounted Bosch Mini Remote Dropbar, which allows you to select the support level and switch between display views. The electric bike itself is switched on and off using the Bosch System Controller mounted on the top tube.
Features of the Lapierre Overvolt TR 4.6 - 2026
- Full-suspension E-MTB with Bosch Smart System
- Bosch Performance Line CX Motor - 100 Nm
- Bosch PowerTube 600 Wh battery (removable)
- Bosch Kiox 300 Display
- Bosch System Controller & Mini Remote
- RockShox Psylo Silver R suspension fork 140 mm
- Shimano CUES CS-LG300-10 HG cassette
eBike24 recommends: The Lapierre Overvolt TR 4.6, with its full suspension, is perfect for trail use. It is ideal for e-bikers seeking a reliable E-MTB with high-quality Bosch components.
Properties
| Battery: | Bosch PowerTube 600Wh horizontal |
|---|---|
| Battery capacity: | 600 Wh - 699 Wh |
| Battery option: | Range Extender ready |
| Battery position: | Intube battery / frame integrated |
| Bosch E-Bike System: | Bosch Smart System |
| Bosch System: | Bosch Performance Line CX from 2025 Smart System |
| Brake lever: | Shimano BL-M4100 |
| Brakes: | Front: Shimano, hydraulic disc brake, M4100 4 pistons, 203 mm | Rear: Shimano, hydraulic disc brake, M4100 2 pistons, 203 mm |
| Cassette: | Shimano CUES CS-LG300-10 HG, 11-48T |
| Chain: | Shimano CUES LG500 9/10/11s |
| Chainring: | E13 Helix Core steel chainring 55CL 34T |
| Charger: | Bosch Charger 4A fast charger |
| Colour: | Black Glossy |
| Control unit: | Bosch System Controller & Mini Remote Dropbar |
| Crank set: | Samox EC40-F13-ISIS 160 mm |
| Damper: | Lapierre Shock 185x50 mm Trunnion/15x8 mm |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Shimano SM-RT30 | 203 mm, Centrelock |
| Display: | Bosch Kiox 300 |
| Drive system: | Bosch drive |
| E-Bike Types: | E-Mountainbike (E-MTB), Fully E-MTB |
| EAN: | 11593-001: 3660423388566 | 11593-002: 3660423388573 | 11593-003: 3660423388580 | 11593-004: 3660423388597 |
| Gearshift stages: | 10-speed |
| Grips: | S & M: Lapierre grips small diameter | L & XL: Lapierre grips large diameter |
| Handlebar: | Lapierre Flat-Bar Thirty One Aluminium 6061DB | Width: 760 mm |
| Handlebar diameter: | 31.8 mm |
| Headset: | Acros, partially integrated, Integrated ZS56/ZS56 Block Lock |
| Item: | Lapierre Overvolt TR 4.6 - 2026 |
| Maker's ref. no.: | 11593-001: LOLTA390 | 11593-002: LOLTA430 | 11593-003: LOLTA460 | 11593-004: LOLTA490 |
| Manufacturer: | Lapierre |
| Model year: | 2026 |
| Motor: | Bosch Performance Line CX Smart System BDU384Y | up to 100 Nm |
| Note: | The model is supplied with 85 Nm and can be extended to up to 100 Nm via the Bosch Flow app. |
| Rear derailleur: | Shimano CUES U6000 10/11s Shadow+ |
| Rims: | Ryde Disc30 32H, 30-622 Black Anodised |
| Rise: | S & M: 15 mm | L & XL: 30 mm |
| Saddle: | Selle Royal Vivo |
| Saddle clamp: | 31.6 mm |
| Seat post: | JD Dropperpost YSP18 Aluminium + Shimano Lever | S & M: 130 mm, L: 150 mm, XL: 170 mm |
| Shift lever: | Left: Shimano Triggershift CUES U6000 10s | Right: Shimano Triggershift CUES SL-U6000-10R |
| Stem: | Lapierre Thirty One Alloy 0° | Diameter: 31.8 mm |
| Suspension fork: | Rockshox Psylo Silver R 15x110 29" 140 mm |
| Tyres: | Front: Continental Kryptotal F Enduro Soft, 60-622 | Rear: Continental, Xynotal R Enduro Soft, 60-622 |
| Wheel size: | 29" |
| hub: | Front: Shimano TC500, boost 15x110, 32H Centrelock | Rear: Shimano TC500, boost 12x148, 32H Centrelock, HG driver |
| maximum load: | 120 kg (driver + luggage) |
