€99.00
On order, delivery date unknown
Lupine C14: The world's first rear light integrated into the saddle clamp! The unique integration makes the rear light an integral part of the bike, visually appealing and providing extra protection against theft. Powerful 45 lumens luminosity at a low weight of 35g and with approval for all e-bikes up to 25km/h.
Features of the Lupine C14 e-bike rear light
- 45 lumens with reduced glare effect
- 14x COB LED
- 0,8 W power
- 6 V or 12 V system compatible
- 240° beam angle
- 35g light
- Waterproof and shockproof according to IP68
- Available with diameters of 31.8 mm, 34.9 mm, 35.6 mm and 36.4 mm

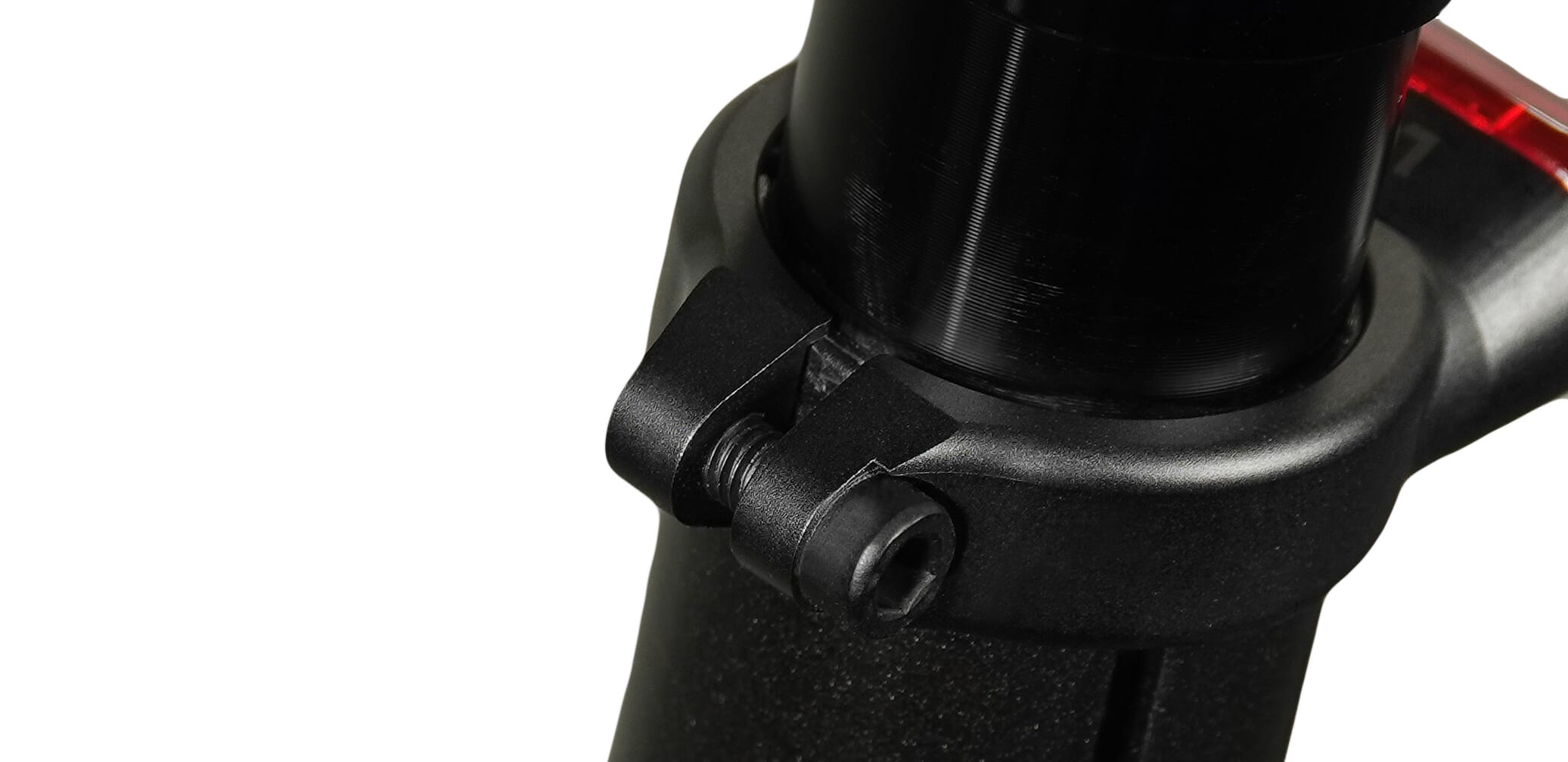

Clamp
The black anodised CNC-milled clamp is available in the standard diameters of 31.8 mm, 34.9 mm, 35.6 mm and 36.4 mm and reliably clamps the seat post in the seat tube with up to 7 Nm.
Optics
The optics made of robust polycarbonate are impact-resistant and waterproof according to protection class IP68. With the latest COB technology, powerful Fresnel lenses and 14 specially arranged LEDs in a sophisticated lens system, the C14 creates a previously unachieved homogeneous and high light characteristic with all-round 240° visibility and reduced glare at the same time. The power of the 14 COB LEDs is 0.8 W at an operating voltage of 6 V or 12 V.
Compatibility
The rear light is connected directly to Bosch, Shimano, Brose or Yamaha motors via a cable. Self-adhesive clips enable a clean solution for installation and are included in the scope of delivery. The light is activated directly via the on-board computer or via an additional switch directly on the housing.
Switch off separately
Activated directly via the on-board computer or via an additional switch directly on the housing. If you are riding in the forest or in a group this switch allows you to switch the rear light on or off independently of the front light.
| Cable length: | 80 cm |
|---|---|
| Colour: | black |
| Compatibility: | Recommended for: Bosch/Brose/Shimano/Yamaha |
| Consumption: | 0.8 W |
| Diameter: | 31.8mm | 34.9mm | 35.6mm | 36.4mm |
| Item: | Lupine C14 e-bike rear light with seat clamp |
| Item weight: | 35 g (manufacturer's specification) |
| Lens type: | Fresnel lenses |
| Light mounting position: | Frame |
| Light output: | 45 lumens |
| Light sources: | 14 x COB LEDs |
| Maker's ref. no.: | d795-318 |
| Manufacturer: | Lupine |
| Material: | Aluminium 6061- T6, CNC-milled |
| Max. power consumption: | up to 3 W |
| Power source: | E-Bike Battery |
| Scope of delivery: | 1 x Lupine C 14 e-bike rear light incl. 3 clips for cable routing |
| Specifications: | Operation via e-bike control unit or on the rear light via button | beam angle 240° | waterproof and impact-resistant (IP68) |
| StVZO approval: | for e-bikes up to 25 km/h (K-number) |
| Supply voltage : | 6 V, 12 V |
| Voltage input: | 6 - 12 Volt DC |
