€262.00
Home delivery (Germany) 12/05/2026 - 15/05/2026
Description
LUPINE SL Nano - small light with big impact!

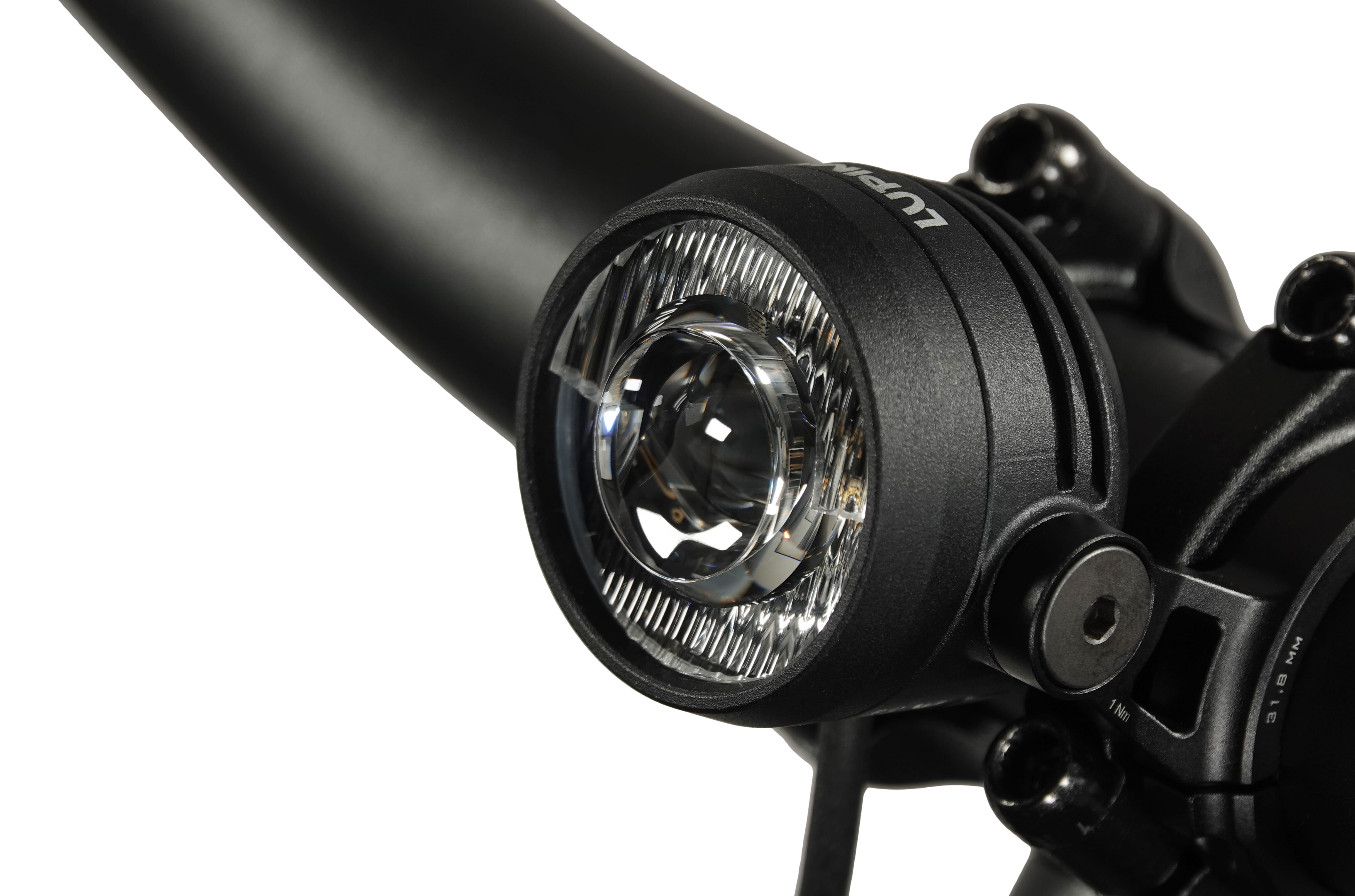

The LUPINE SL Nano e-bike headlight may seem unassuming at first due to its minimalist appearance, but its sleek design integrates perfectly into your bike’s cockpit. When switched on, it reveals its true power. The headlight delivers an exceptionally even, unmatched beam pattern in its class thanks to sophisticated lens technology and a polycarbonate optic with freeform surfaces and Fresnel elements.
Features of the LUPINE SL Nano
- High-quality e-bike headlight
- Extremely bright and uniform illumination
- 600 lumen dipped beam - max. 8 W
- Optional 900 lumen high beam - max. 14 W
- Operating voltage: 6 - 13.5 V
With lots of technology and well thought out
The values are impressive, considering the size of just 30mm in length and 41mm in width: low beam with 600 lumens and high beam (depending on model) with 900 lumens - of course compliant to road safety regulations. It also features daytime running lights .
The SL-Nano draws its energy from the e-bike's battery. The connection cable has a specific connection for Shimano Steps motors. For Bosch, Brose or Yamaha motors, the matching connection cable must be ordered as well. The workmanship is convincing in all areas. The CNC-machined aluminium housing with protection class IP68/IK09 is resistant to impacts and even short-term submersion.
Available in different versions

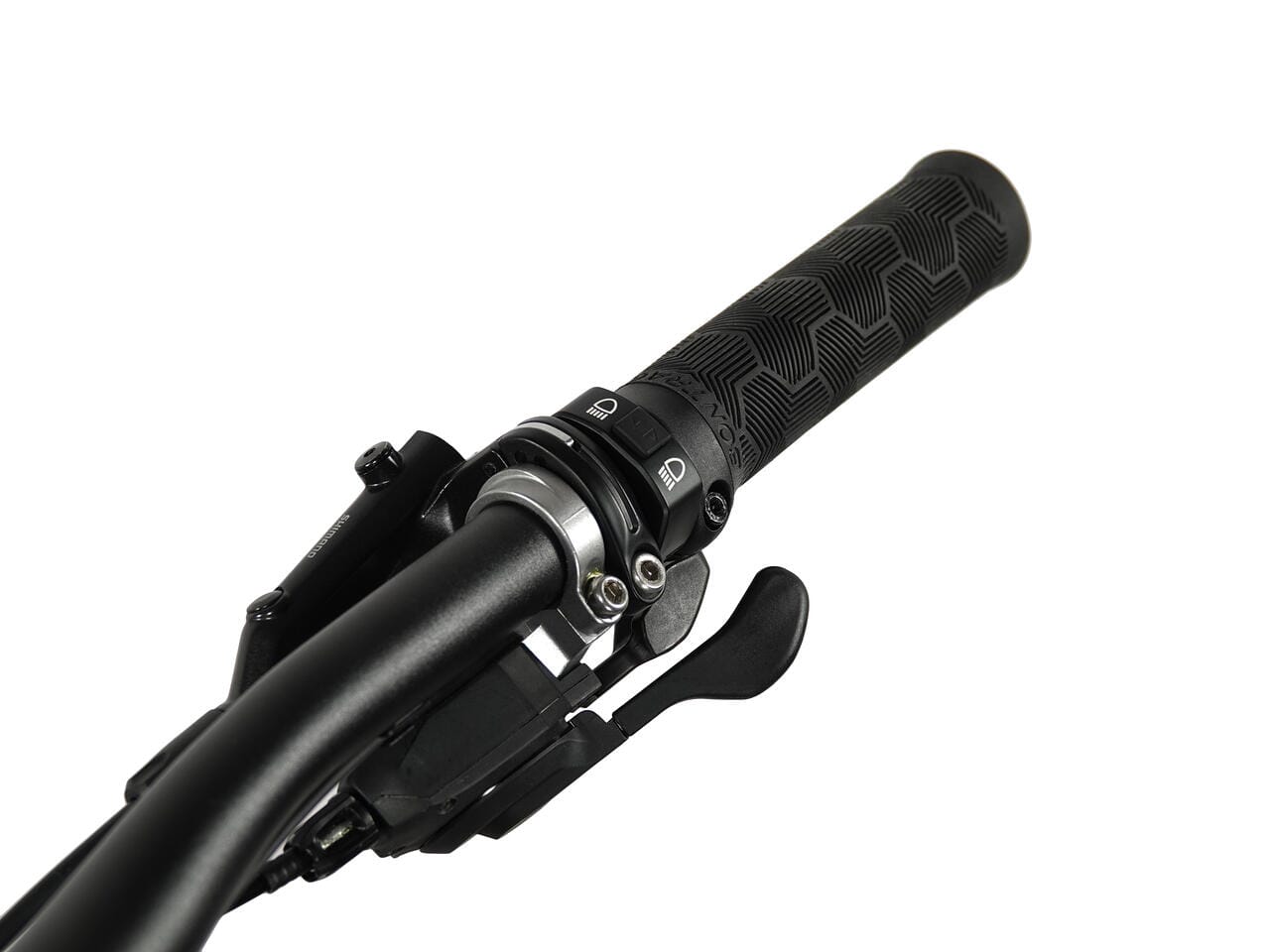

Once you have chosen the right diameter for your handlebar, you can choose 1 of 3 options. Namely, the variation with a cable remote control & high beam, with Bluetooth remote control & high beam or without high beam.
Properties
| Colour: | Black |
|---|---|
| Compatibility: | Shimano | Bosch | Brose | Yamaha | etc. |
| Connection: | Strand - open ends |
| Daytime running lights: | Yes - 2W |
| Drive system: | BionX drive, Bosch drive, Brose drive, Fazua drive, Giant drive, Mahle Drive, Panasonic drive, Shimano drive, TQ drive, Yamaha drive |
| High beam: | High beam |
| High beam light output: | 14W |
| Item: | LUPINE SL Nano eBike headlight with high beam |
| Item weight: | Approx. 52g - manufacturer's specification |
| Lens type: | Fresnel - Freeform Lens |
| Light intensity: | Low beam 600 lumen | High beam 900 lumen |
| Light mounting position: | Handlebar |
| Light output dim light: | 8W |
| Light sources: | 2x Osram Compact PL |
| Manufacturer: | Lupine |
| Material: | 6061-T6 aluminium CNC-milled |
| Max. power consumption: | > 12 W, up to 9 W |
| Measurements: | 41 x 30mm (ØxL) |
| Power source: | E-Bike Battery |
| Scope of delivery: | 1 x Lupine SL Nano | Connection cable without specific connection | Holder (31.5 or 35 mm optional) |
| Specifications: | Protection class IP68/IK09 |
| StVZO approval: | Yes (~K1797) |
| Supply voltage : | 6 V, 12 V, > 12 V |
| Voltage input: | 6 - 13,5V (DC) |
