Description

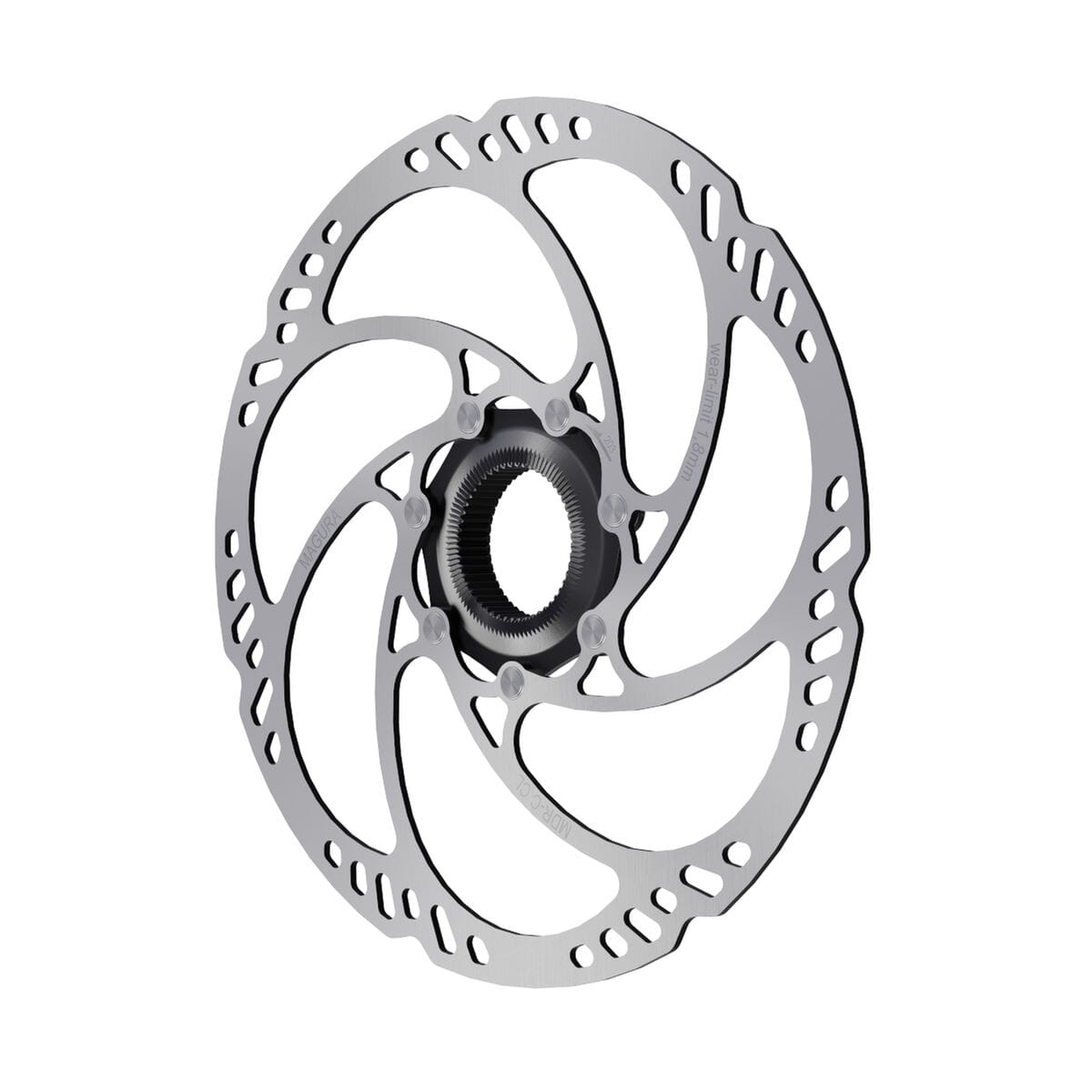

The MAGURA MDR-C CL brake disc with centrelock mount is part of the MAGURA e-bike optimised components and therefore ideally suited for your e-bike - whether mountain, trekking or city bike. The additional connecting element makes the brake disc particularly stiff and vibration-resistant and thus also extremely quiet. It is compatible with all brakes of the MT series. The aluminium spider saves weight.
The brake disc is available in 160, 180 and 203mm diameters and for quick release and thru axle. For the latter, the difference is the lockring with internal teeth for quick releases and external teeth for thru axles.
Features of the MAGURA MDR-C CL brake disc
- Optimised for eBikes
- centre lock
- 2-part
- Low noise
- Version for thru axle or quick release
Which adapter for which disc size?
| Brake disc | Ø 140 mm | Ø 160 mm | Ø 180 mm | Ø 203 mm | Ø 220 mm |
| Fork | |||||
| IS | QM 43 | QM 12 | QM 5 | ||
| PM 6" | direct | QM 40 | QM 42 | ||
| PM 7" | direct | QM 44 | QM 45 | ||
| PM 8" | direct | QM 46 | |||
| Rear frame | |||||
| IS | QM 12 | QM 41 | QM 9 | ||
| PM 5" | direct | QM 40 | QM 45 | ||
| PM 6" | direct | QM 40 | QM 42 | ||
| PM 7" | direct | QM 44 | QM 45 | ||
| PM 8" | direct | QM 46 |
Properties
| Brake disc diameter: | 160mm | 180mm | 203mm |
|---|---|
| Brake disc mount: | Centre Lock |
| Colour: | Silver | black (Spider) |
| Compatibility: | All brakes of the MAGURA MT series |
| Design: | 2-part |
| Item: | MAGURA MDR-C centrelock brake disc |
| Item weight: | 160mm - approx. 175g | 180mm - approx. 190g | 203mm - approx. 225g (manufacturer's specification) |
| Manufacturer: | Magura |
| Material: | Brake disc - steel | Spider - aluminium |
| Mounting side: | Front | Rear |
| Scope of delivery: | 1 Brake disc incl. lock ring |
| Specifications: | Available for thru axle and quick release |
