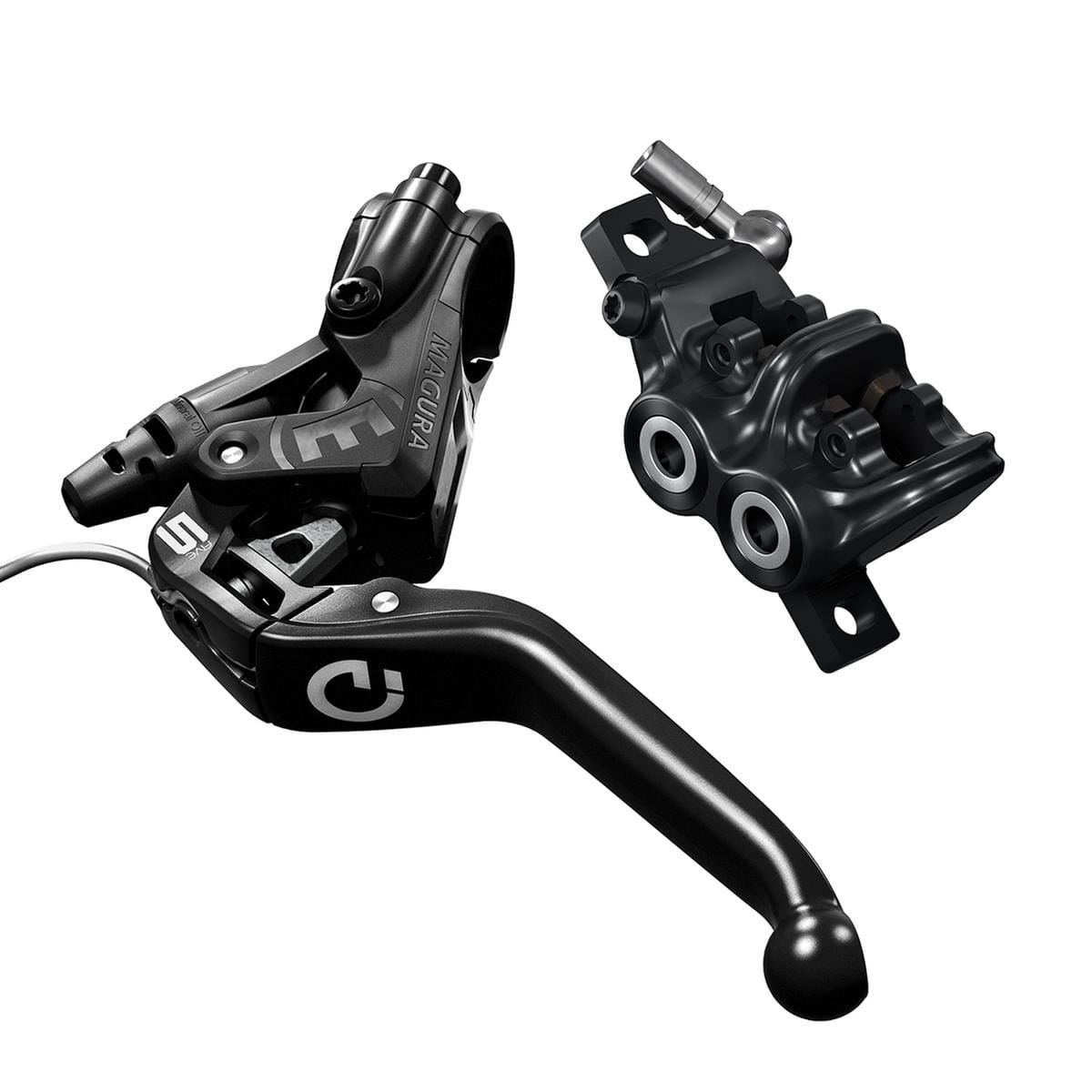

Magura MT5e disc brake - HIGO closer, NO | HIGO opener, NC | 3-finger lever with ball head

99.00€   RRP 139.90€   (29.24% Saved)

Prices incl. VAT plus shipping costs

  • 4051-001
  • 2700984
  • 4055184013632

Version:

Equipped with the genes of the downhill world cup proven MT7, the MT5e provides maximum braking... more

Equipped with the genes of the downhill world cup proven MT7, the MT5e provides maximum braking power and a high level of stability. It is thus specially optimised for the higher requirements (more weight at higher speeds) of an eBike and the ideal choice for S-pedelecs up to 45km/h. In combination with the new MDR-P or MDR-C brake discs, it finally unfolds its full effect in terms of braking performance and durability and thus creates a big plus in safety. The new brake discs shine with higher lateral stiffness and heat resistance with reduced vibration. Optionally, the shift levers can be mounted directly on the brake via Shift Mix clamps for a tidy cockpit. The adjustable lever width (Reach Adjustment) allows you to find your individual setting.

The brake is available both as a version with HIGO NO contact and with NC contact. The brake lever sends a signal to the motor so that it is switched off during braking (cut off).

Features

  • Motor cut-off
  • Optimised for eBikes
  • 4 pistons, hydraulic
  • Carbotecture grip housing
  • Grip width adjustment
  • 275g
  • ShiftMix compatible
  • flip-flop grip (can be used left and right)

Range of use

  • Pedelecs up to 45 km/h
  • eMobility
  • Downhill, Enduro
  • all mountain
  • Touring & Trekking
  • City
  • Cargobikes

Technologies

Carbotecture®
A mixture of high-tech polymers and carbon or glass fibres is transformed into a plastic granulate in several complex processes. During the processing from this granulate to the finished component, the carbon fibres are optimally aligned to the load requirements. With this Carboflow process, any desired shape can be created from the granulate in an injection moulding process. Compared to the classic lightweight material aluminium, our Carbotecture® offers significant advantages: With the identical tensile and breaking strength of aluminium, Carbotecture® is 50 % lighter, so it weighs only half!

Easy Bleed Technology - quick and easy bleeding

Banjo Fitting - swivelling line connection

Triple Arch Design - for optimum caliper stiffness

Recommended brake discs: MAGURA MDR-P and MAGURA MDR-C

Which MAGURA adapter do I need?

Brake Disc Ø 140 mm Ø 160 mm Ø 180 mm Ø 203 mm Ø 220 mm
Fork
IS   QM 43 QM 12 QM 5
PM 6"   direct QM 40 QM 42
PM 7"     direct QM 44 QM45
PM 8"       direct
Rear end
IS   QM 12 QM 41 QM 9
PM 5" direct QM 40 QM 45
PM 6"   direct QM 40 QM 42
PM 7"     direct QM 44 QM45
PM 8"       direct



Specifications
Manufacturer: Magura
Weight: 275 g (manufacturer's specification)
Scope of delivery: 1 x MT5 eSTOP brake filled and bled incl. 2 x pin, 2 x olive, 2xbrake caliper bolt, 2 x washers, Torx 25 tool, conduit plug, user manual and sticker
Colour: black / silver
Specifications: HIGO NO contact for motor cut-off | Lever width adjustment with 3mm hexagon socket
Maker's ref. no.: 2700984
Field of application: eBikes up to 45 km/h
Mounting: Postmount
Cable length: 150 mm
Mounting side: Flip-flop (both sides) | front/rear
brake lever: Housing: carbotecture, brake lever: aluminium - 3-finger with ball head
Brake caliper: Aluminium, 1-piece
Brake pads: MAGURA 9.P Performance
Brake fluid: Mineral oil (Magura Royal Blood)
Cable/Length: MAGURA Disc Tube / 2.200mm
Cable connection: Banjo
Manfacturer Website: https://www.magura.com/en/EUR
