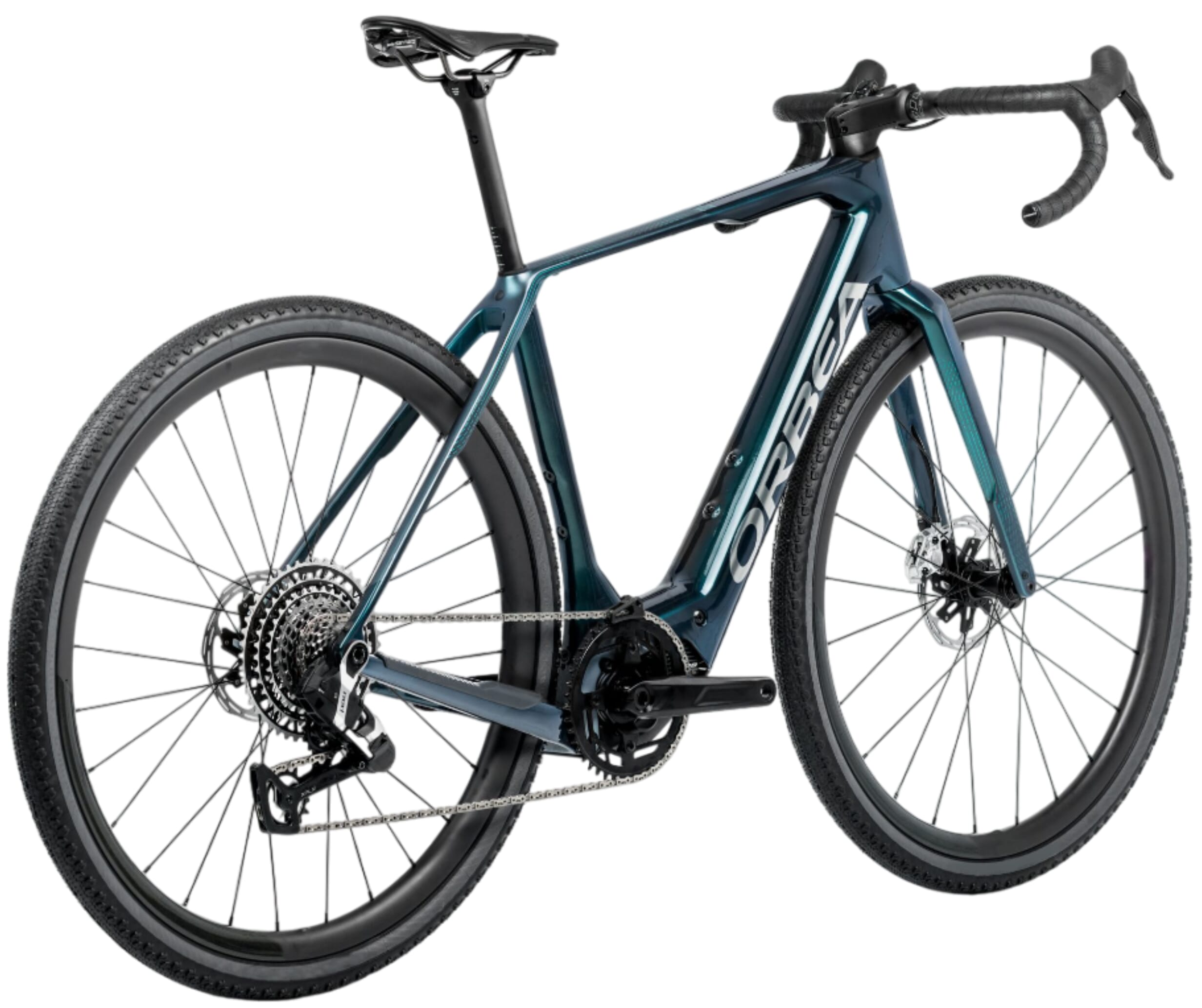

Preview: Orbea Denna M10i - 2025 Escape Green Gloss View 3

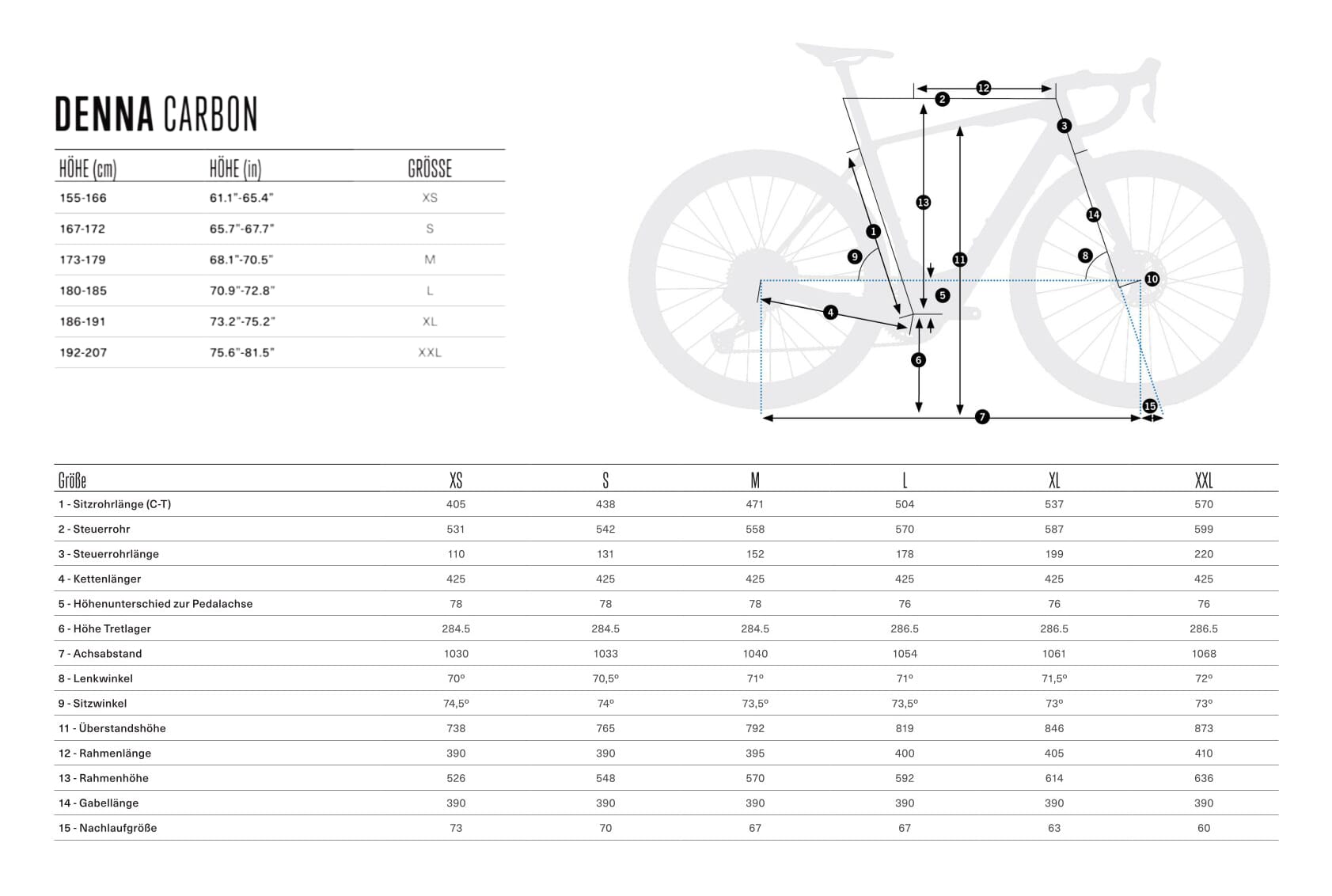

Preview: Orbea Denna M10i - 2025 Size chart

Preview: Orbea Denna M10i - 2025 Nickel Matt

Preview: Orbea Denna M10i - 2025 Nickel Matt View 2

Preview: Orbea Denna M10i - 2025 Nickel Matt View 3

Orbea Denna M10i - 2025 Escape Green Gloss

Orbea Denna M10i - 2025 Escape Green Gloss View 2

Orbea Denna M10i - 2025 Escape Green Gloss View 3

Orbea Denna M10i - 2025 Nickel Matt View 2

Orbea Denna M10i - 2025 Nickel Matt View 3

9,999.00€

Prices incl. VAT plus shipping costs

Item number: 11208-001
Manufacturer Part Number: S32102RE

Close menu

The Orbea Denna M10i 2025 represents the ideal combination of performance, comfort and gravel-specific support. The Shimano EP801 motor plays a decisive role in this. It provides powerful support on climbs, while its light weight ensures maximum speed on flat terrain. The Orbea RS Gen2 Internal 420 Wh battery is located in the down tube. This provides the Orbea Denna M10i with the necessary power and accompanies you reliably on all tours. Depending on the riding mode, riding times of approx. 2 to 6 hours are possible. The range can also be extended with the Orbea RS Range Extender Gen2 210 Wh (not included). The system is controlled via the Shimano SW-EN600-L control unit. This is inconspicuously attached to the OC Road Performance carbon handlebar and is quick and easy to reach while riding. You can use the control unit to set your desired assistance level, activate the light and always keep an eye on the battery status via a small LED. For more ride information, you can retrofit the Shimano Steps SC-EN600 display (not included). Thanks to the Pirelli P ZERO™ Race X SmartEVO TLR tyres, the Orbea Denna M10i 2025 can be ridden on both unpaved surfaces and firm asphalt roads. The tyres with maximum grip, together with the lightweight carbon frame, make every ride a comfortable experience.

eBike24 recommends: The Denna M10i 2025 is a practical gravel eBike that impresses with its performance, clever geometry and good handling. It is ideal for eBikers who want to ride fast and often on different terrains.

Features of the Orbea Denna M10i - 2025

Gravel eBike with carbon frame
Shimano EP801 motor
Orbea Internal 420 Wh Gen2 battery
Shimano SW-EN600-L control unit
OC Road Performance carbon handlebars
Pirelli P ZERO™ Race X SmartEVO TLR tyres
Compatible with RS Range Extender Gen2 210Wh

Specifications

E-Bike Types:	Gravel E-Bike, Road E-Bike
Model year:	2025
Battery capacity:	400 Wh - 499 Wh
Drive system:	Shimano drive
Derailleur/drive type:	Derailleur - chain drive
Shimano System:	Shimano Steps EP8
Gearshift stages:	12-speed
Manufacturer:	Orbea
Battery position:	Intube battery / frame integrated
Frame:	Orbea Denna Carbon \| internal cable routing
Fork:	Orbea Denna OMR ICR Carbon \| 12x100mm thru axle, M12xP1 thread \| 1-1/8" - 1.5" tapered head tube compatible
Battery:	Orbea Internal 420 Wh Gen2
Tyres:	Pirelli P ZERO™ Race X SmartEVO TLR \| 700x30C
Saddle:	Selle San Marco Shortfit 2.0 Start Up Off Road Xilite
Seat post:	OC Performance XP10 Carbon 27.2mm \| without setback
Item:	Orbea Denna M10i - 2025
Colour:	Escape Green Gloss - Foggy Matt \| Nickel Matt - Carbon Raw Gloss
Stem:	OC Road Performance RP10, -8°
Wheels:	Oquo Road Performance RP45TEAM
Maker's ref. no.:	11208-001: S32102RE \| 11208-002: S32103RE \| 11208-003: S32105RE \| 11208-004: S32107RE \| 11208-005: S32109RE \| 11208-006: S32110RE \| 11208-007: S32102RC \| 11208-008: S32103RC \| 11208-009: S32105RC \| 11208-010: S32107RC \| 11208-011: S32109RC \| 11208-012: S32110RC
Accessories:	compatible with Orbea RS Range Extender Gen2 210 Wh & Shimano Steps SC-EN600 display (both not included!)
Variants:	Orbea Denna M10i - 2025 Escape Green Gloss XS-XXL \| Orbea Denna M10i - 2025 Nickel Matt XS-XXL
Motor:	Shimano EP801
Headset:	FSA 1-1/2" integrated aluminium cap
Rear hub:	Orbea thru axle 12x142mm \| M12xP1 thread
Handlebar:	OC Road Performance RP11 Di2 Carbon \| Reach: 80mm, Drop: 125mm
Crank:	Alloy EP8 42t
Cassette:	Shimano CS-M8100 12-speed, 10-51 teeth
Rear derailleur:	Shimano XT Di2 M8150 12s SGS Shadow Plus
Chain:	Shimano M6100
Charger:	Orbea RS Smart Charger Gen2 4A-2A
Brake lever:	Shimano R9270
Size:	XS, S, M, L, XL, XXL
Handlebar clamp:	31.8 mm
Control unit:	Shimano SW-EN600-L
Brake:	Shimano R9270 hydraulic disc brake
