€57.95
Currently not available
Description

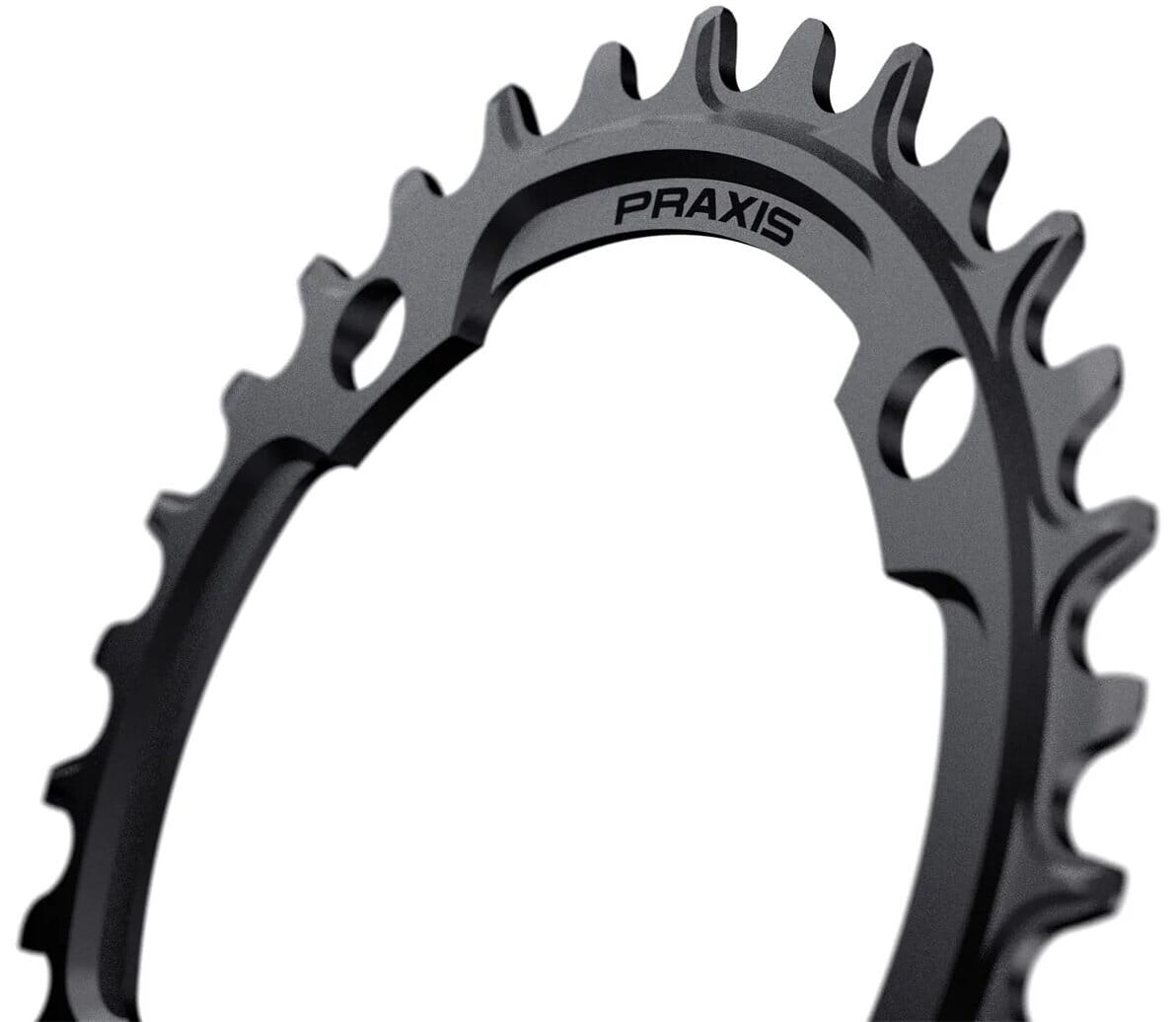

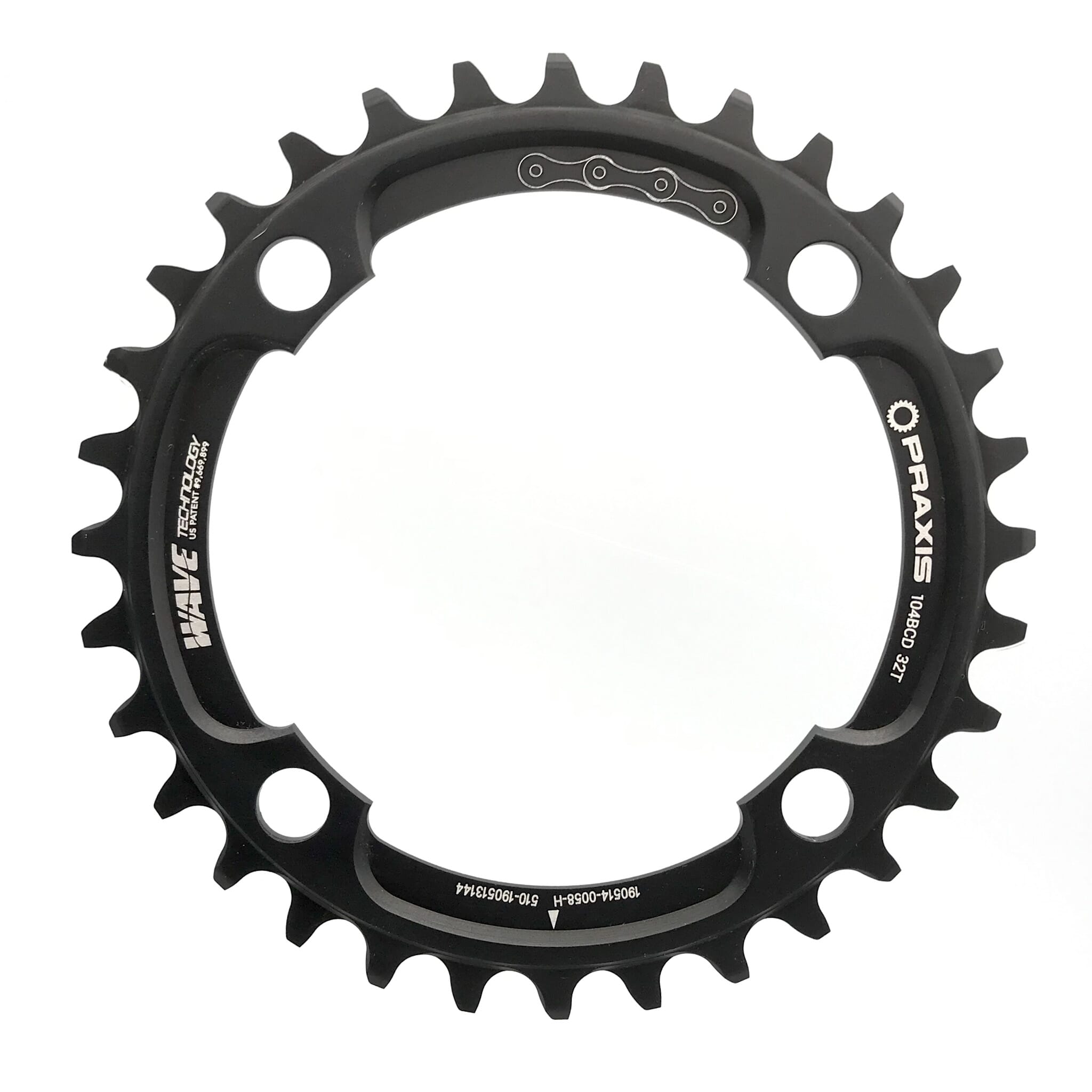

The Praxis Works DM MTB chainring is robust enough to be used on 1x drivetrains on downhill, enduro or eBike bikes, but at the same time light enough to be used on XC bikes. Cold-forged from hard anodised 7075 T6 aluminium, it can also withstand massive drivetrain forces - resulting in a long service life.
With the Wave™ Tech tooth profile, the teeth are offset alternately to the left and right in contrast to Narrow-Wide (wide and narrow tooth), so the chain is actively guided and held on the chainring even on rough impacts. In addition, mud and dirt are effectively removed through open areas. Praxis Works developed Wave™ Tech based on a friction analysis in the drivetrain. Friction is now minimised and the load on the chain is distributed over larger areas. The result: less wear on the chainring and chain!
Features
- Wave™ Tech tooth profile
- compatible with 1x10/11/12-speed drivetrains
- 7075 T6 aluminium
- Cold Forged
- Hard anodised
- 30 to 36 teeth
- 104mm bolt circle
Mounting instructions
Only the 30-tooth chainring version has integrated threads for mounting. Only 4 M8 x 7.5mm chainring bolts are required for mounting. The length of the bolt may vary slightly depending on the material thickness of the spider.
Technologies
Wave™ Tech
Cold Forging
Praxis Works' proprietary cold forging process (one-shot forging) allows chainrings to be manufactured more precisely and customised than with the CNC milling process. It produces harder surfaces and therefore more durable and robust chainrings.
Properties
| Bolt circle diameter: | 104 mm |
|---|---|
| Chainring mount: | 4-arm 104 mm bolt circle |
| Colour: | Black matt |
| Compatibility: | Spider with 104mm bolt circle |
| Drive: | 1 x 10/11/12-speed drives |
| Field of application: | MTB |eMTB |
| Item: | Praxis Works Wave™ Tech MTB chainring 104mm bolt circle |
| Maker's ref. no.: | 30-2001 | 32-2001 | 34-2001 | 36-2001 |
| Manufacturer: | Praxis Works |
| Manufacturer: | Praxis Works |
| Material: | 7075 T6 aluminium, cold forged, hard anodised |
| Number of teeth: | 30 | 32 | 34 | 36 |
| Scope of delivery: | 1 x Praxis Works chainring |
| Specifications: | Wave™ Tech | 104 BCD | Aluminium | MTB |
