€3,899.00
On order, delivery date unknown
Description

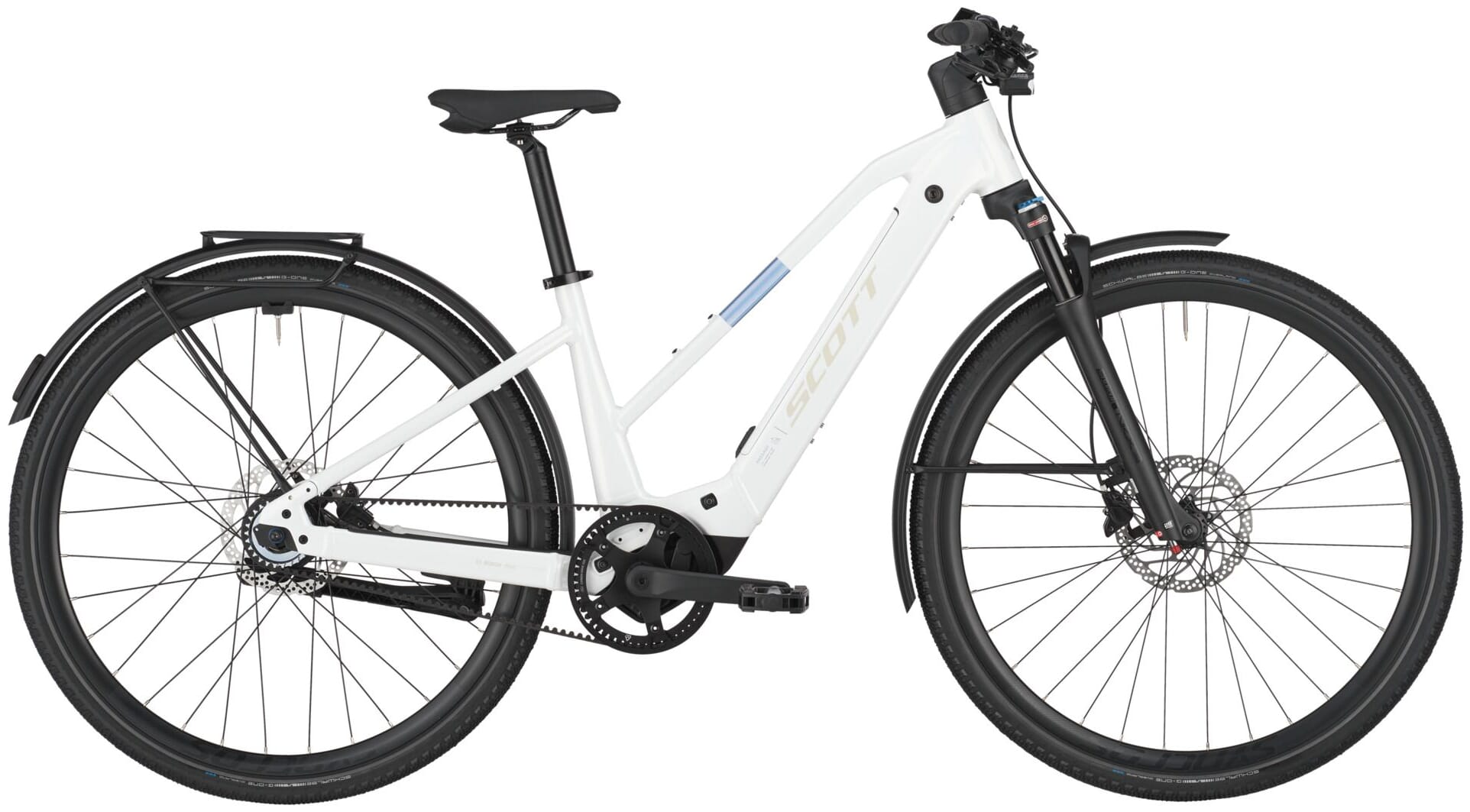

The Scott Passage 10 Belt 2025 is the ideal companion for the city. Whether shopping or touring the city - the urban Scott eBike gets you to your destination quickly and easily. The Scott Passage is equipped with the lightweight Bosch Performance Line SX motor and the Bosch CompactTube 400Wh battery. Both components provide you with powerful and reliable support on every ride. Furthermore, the weight of the Scott Passage 10 Belt is only approx. 21.7kg. This makes it easy to carry the city eBike up and down stairs. The Bosch Smart System is controlled via the handlebar-mounted Bosch Purion 200, which combines the display and control unit in a single unit. While riding, you can read data such as speed, battery status and assistance level here. The rear wheel is also fitted with the Hebie Alumee mudguard 791, and this combination of mudguard and rack system is complemented by the Racktime Alumee Micro Rack .
Features of the Scott Passage 10 Belt - 2025
- City eBike with Bosch Smart System
- Bosch Performance Line SX
- Bosch CompactTube 400Wh
- Bosch Purion 200 control unit & display
- SR Suntour NRX32-E Air fork
- 29" aluminium frame
- 128kg permissible total weight
Properties
| Battery: | Bosch CompactTube 400Wh Smart System |
|---|---|
| Battery capacity: | 400 Wh - 499 Wh |
| Battery position: | Intube battery / frame integrated |
| Bosch E-Bike System: | Bosch Smart System |
| Bosch System: | Bosch Performance Line SX from 2024 Smart System |
| Brakes: | Shimano BR-MT200 Disc |
| Carrier: | Racktime Micro Rack | Snapit 2.0 compatible |
| Chain: | Gates CDC 125T |
| Charger: | Bosch 2A Charger for Smart System |
| Colour: | Midnight Grey | Bianco White |
| Derailleur/drive type: | Hub gear - belt drive |
| Disc brakes: | Front: SM-RT30 CL 180mm | Rear: SM-RT30 CL 160mm |
| Display: | Bosch Purion 200 display & control unit |
| Drive system: | Bosch drive |
| E-Bike Types: | Urban & City E-Bike |
| EAN: | 10875-001: 7616185215707 | 10875-002: 7616185215738 | 10875-003: 7616185215714 | 10875-004: 7616185215721 | 10875-005: 7616185215752 | 10875-006: 7616185215769 | 10875-007: 7616185215776 |
| Fork: | SR Suntour NRX32-E Air |
| Frame: | 29" aluminium frame |
| Frame type: | Ladies / Trapeze, Mens |
| Front light: | Lezyne Fusion E550SM |
| Handlebar: | Syncros Welded Alloy Combo 680mm |
| Item: | Scott Passage 10 Belt - 2025 |
| Maker's ref. no.: | 10875-001: 4234497948006 | 10875-002: 4234497948012 | 10875-003: 4234497948008 | 10875-004: 4234497948010 | 10875-005: 4234507978006 | 10875-006: 4234507978008 | 10875-007: 4234507978010 |
| Manufacturer: | Scott |
| Model year: | 2025 |
| Motor: | Bosch Performance Line SX Smart System |
| Mudguard: | Hebie Alumee mudguard 791 |
| Permissible total weight: | 128 kg (includes Fahrer, equipment & luggage) |
| Rear light: | Supernova TL3Z |
| Saddle: | Syncros Capilano |
| Seat post: | Syncros M3.0 / 31.6 |
| Shift lever: | Shimano Alfine SL-S503 Rapid Fire Plus |
| Side stand: | Hebie kickstand |
| Size: | Men: S, M, L, XL | Women: S, M, L |
| Spring travel: | 75 mm |
| Support: | up to 25 km/h |
| Tyres: | Schwalbe G-One Overland 365 Performance | 45-622 |
| Weight: | approx. 21.7 kg |
