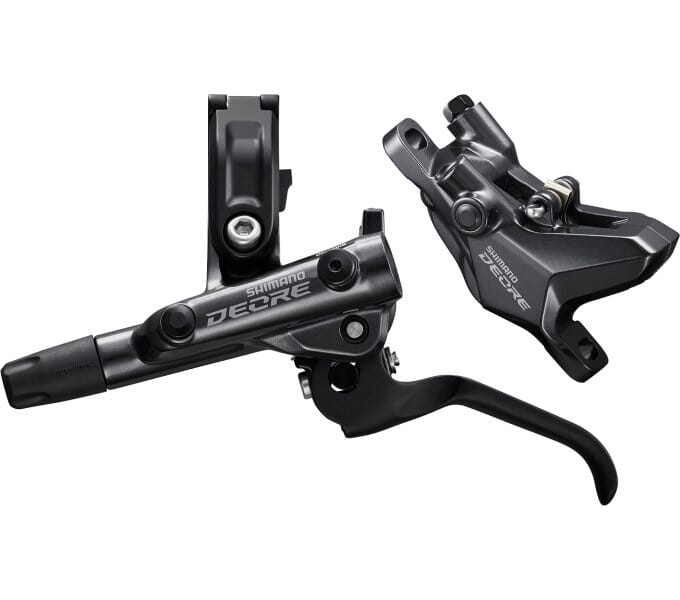

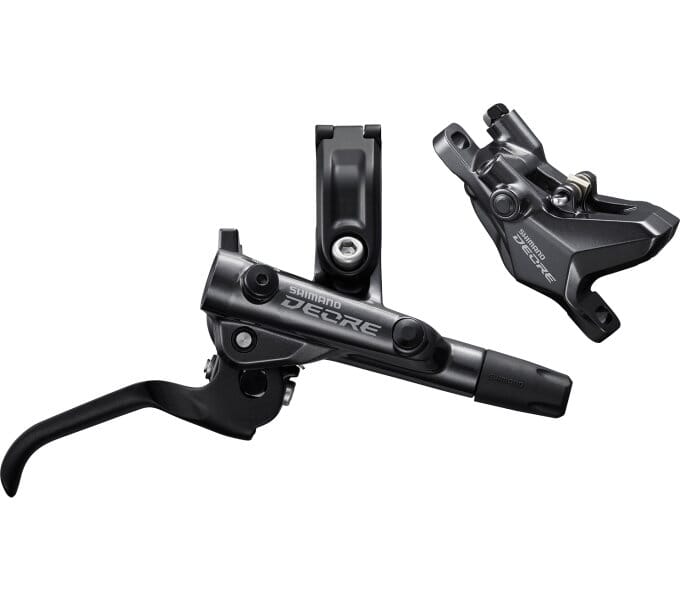

SHIMANO DEORE M6100 disc brake front wheel | rear wheel | I-Spec EV

The SHIMANO DEORE M6100 disc brake, consisting of an ergonomic BL-M6100 brake lever and BR-M6100 brake calliper, already offers exceptional performance in the entry-level range. Equipped with various technologies from the high-end sector, this disc brake shines with reliable braking performance in all conditions.

The ergonomic 2-finger brake lever with Servo Wave Action technology and grip width adjustment, in conjunction with the 2-piston brake calliper with fast piston return, generates optimum response behaviour so that the rider intuitively has everything under control.

Features of the M6100 disc brake

• Solid performance for trail bikes
• ServoWave Action
• IceTechnologies
• I-Spec EV
• One Way Bleeding
• Grip width adjustment

Technologies

SERVOWAVE Action
The SERVOWAVE brake lever takes up a lot of braking distance at the start of its movement so that the pads can be guided to the brake disc with minimal lever travel. Once the brake pad is applied, the force transmission factor increases rapidly. The larger part of the lever travel is therefore still available to increase the braking force and provide more targeted modulation.

I-SPEC EV
This mounting system offers the best possible accessibility and ergonomics of the shift lever as well as a tidy cockpit. It is mounted directly on the I-SPEC EV-compatible brake lever. The lateral adjustment range is 14 mm. The angle of the shifter can be adjusted by 60°. A second contact point between the brake lever and handlebar provides additional stiffness in the brake lever and thus increases the braking effect.

ONE WAY BLEEDING was developed to quickly and easily prevent air from entering the hydraulic system. We have optimised the path of the brake fluid throughout the system to prevent air bubbles from becoming trapped in the system. The one-way flow of the mineral oil, together with the funnel for filling, enables clean, problem-free bleeding.

ICE TECHNOLOGIES
Fading, which can occur in the brake disc and pad when braking continuously on long descents, impairs braking performance. SHIMANO has introduced ICE TECHNOLOGIES brake discs and ICE TECHNOLOGIES brake pads to create a cooling technology for consistently high braking performance. The brake disc with its 3-layer sandwich structure made of stainless steel, aluminium and stainless steel offers better heat dissipation. The brake pads also feature cooling fins. The design of the disc in conjunction with the cooling fins results in a longer service life of the pad, less braking noise, less fading and a lower weight.
