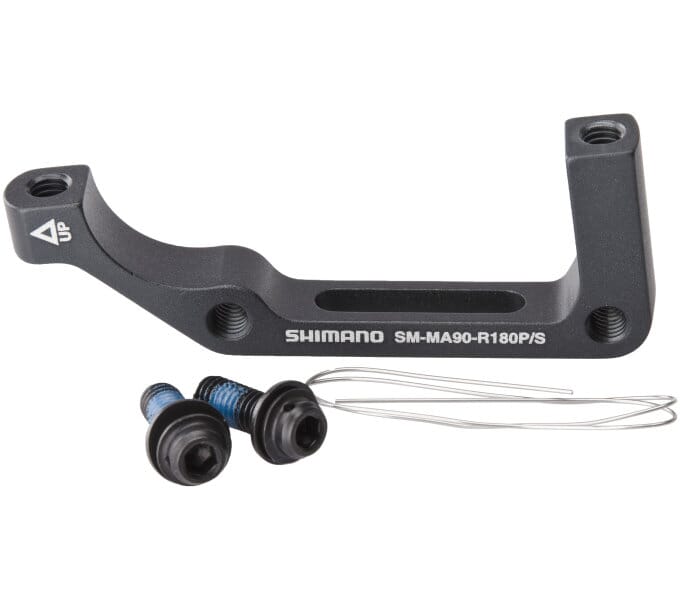

SHIMANO XTR Disc Brake Adapter IS

9.90€ RRP 14.95€ (33.78% Saved)

Item number: 5020
Manufacturer Part Number: I-SMMA90R180PS
EAN: 4524667430520

Delivery time to Germany 1-2 business days

The Shimano XTR disc brake adapter is used to mount larger brake rotors on frames and forks with an IS2000 mount. It allows the use of 200 mm brake rotors on forks with an IS 6" mount as well as 180 mm brake rotors on the rear triangle with an IS 5" mount.

The basis is the respective standard brake rotor size of the IS2000 standard:

Fork IS 6": 160 mm standard rotor size
Rear triangle IS 5": 140 mm standard rotor size

The XTR adapter increases the specified standard brake rotor size by +40 mm. This enables an upgrade from 160 mm to 200 mm brake rotors at the fork and from 140 mm to 180 mm brake rotors at the rear. The brake caliper is correctly positioned for the larger brake rotor via a Post Mount interface.

Features of the Shimano XTR disc brake adapter

for mounting larger brake rotors
made from aluminium
steel mounting bolts
front extension: +40 mm
rear extension: +40 mm
fork mount: IS 6" (IS2000)
rear mount: IS 5" (IS2000)
brake mount: Post Mount
colour: black

Brake rotor	Ø 140 mm	Ø 160 mm	Ø 180 mm	Ø 203 mm	Ø 220 mm
Fork
IS		I-SMMA90F160PS
PM 6"		direct	I-SMMA90F180PPC	I-SMMAF203PPA
PM 7"			direct	I-SMMA90F203PPM
PM 8"				direct
Rear triangle
IS	I-SMMA90R140PS	I-SMMA90R160PS	I-SMMA90R180PS
PM 5"	direct	I-SMMA90F180PPC
PM 6"		direct	I-SMMA90F180PPC	I-SMMAF203PPA
PM 7"			direct	I-SMMA90F203PPM
PM 8"				direct

Specifications

Manufacturer:	Shimano
Item:	SHIMANO XTR Disc Brake Adapter IS - Postmount 180mm Brake Disc
Scope of delivery:	1 x adapter incl. screws and safety wire
Compatibility:	Rear triangle \| IS on 180mm brake disc \| Shimano XTR brakes
Specifications:	IS to PM \| + 40mm
Maker's ref. no.:	I-SMMA90R180PS
EAN:	4524667430520
