€949.00
% €1,049.00 (9.53% saved)
Home delivery (Germany) 20/03/2026 - 24/03/2026
Description

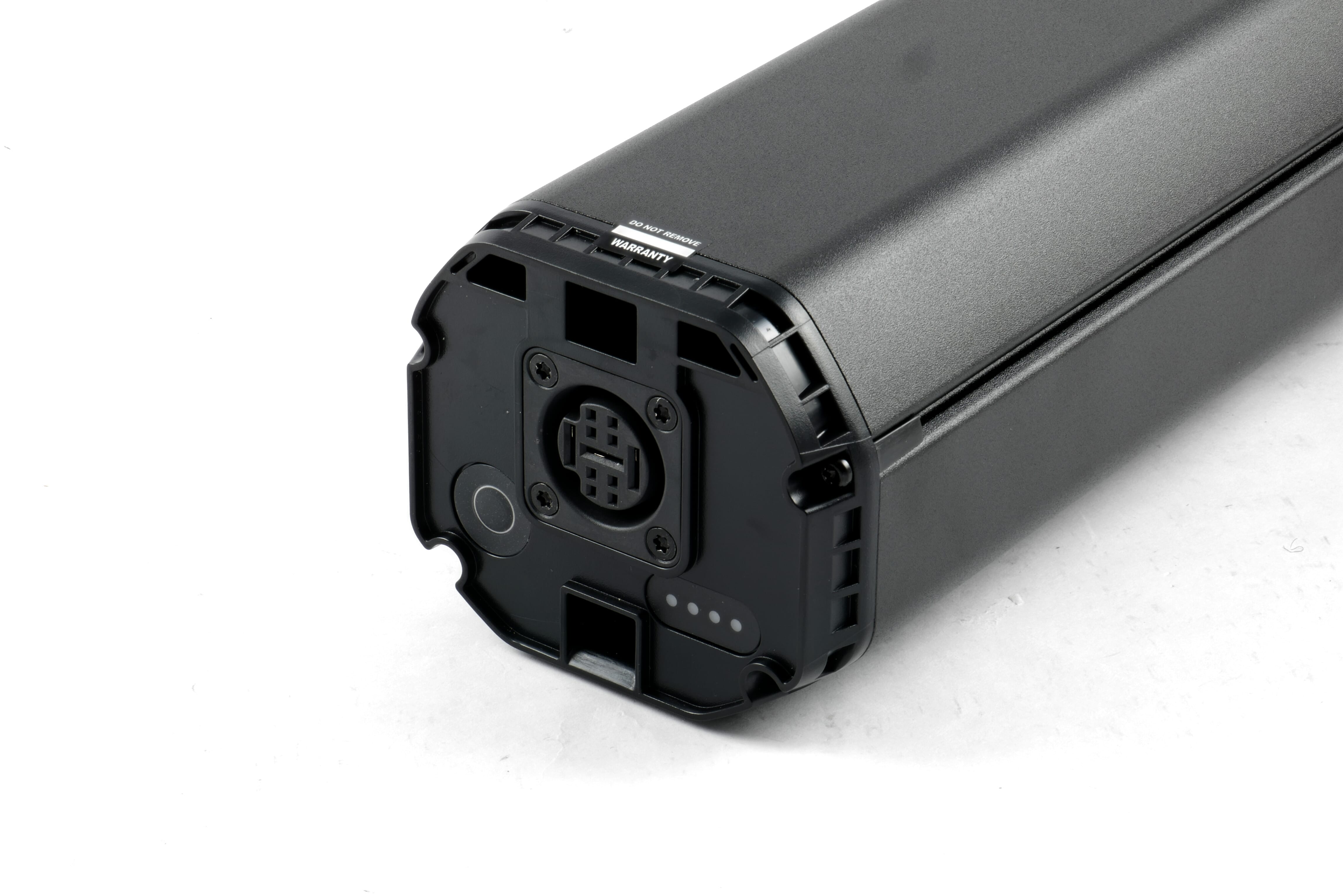

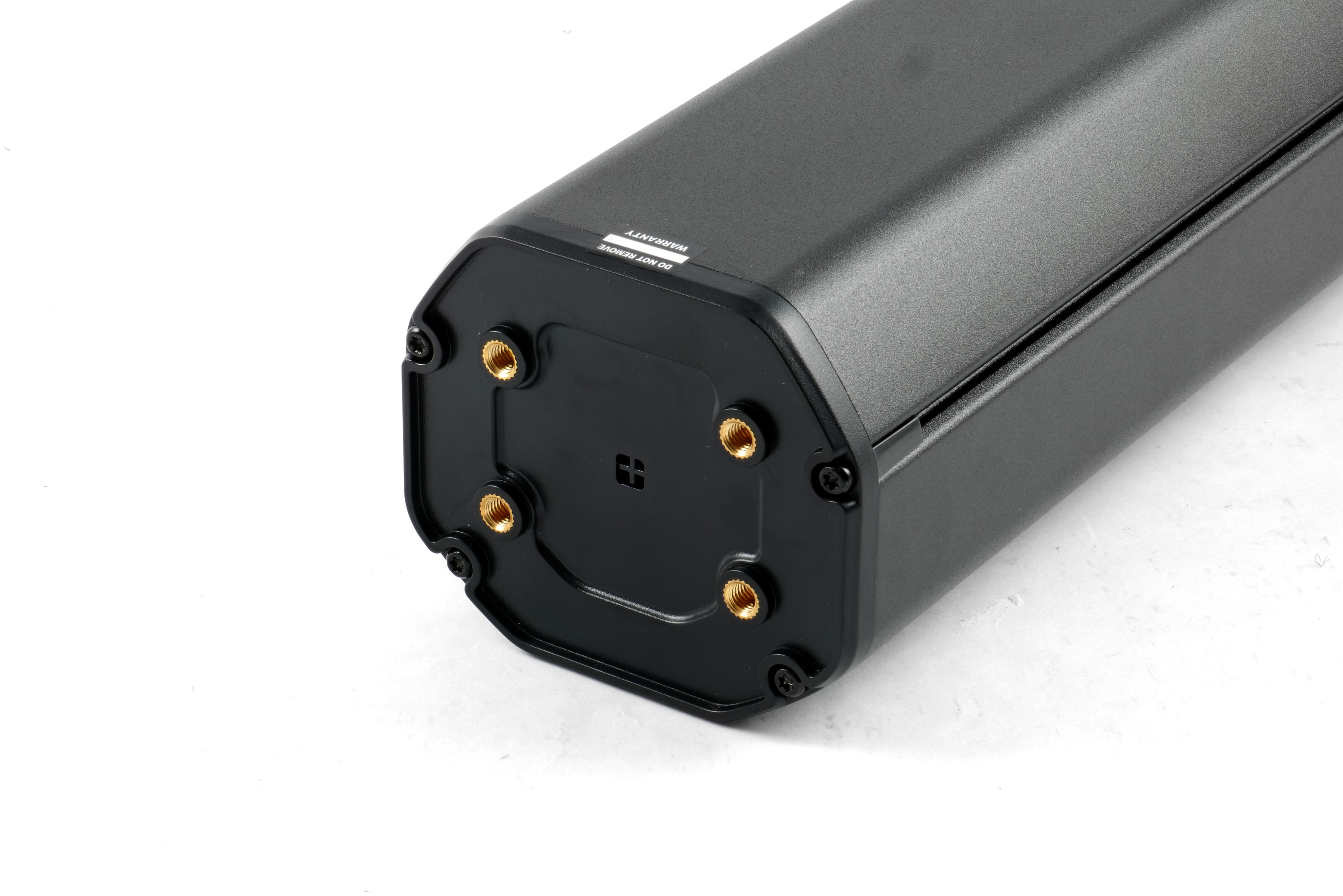

The Shimano STEPS BT-EN817 offers 712 Wh of capacity, providing long range and reliable power for your e-bike system. It integrates seamlessly into the downtube with the corresponding Shimano battery holder BM-EN810-A, keeping it well protected from external influences. Additionally, it has an IPX5 protection rating. After an extended ride, charging is done via the Shimano EC-EN814 4A Charger, which charges the intube battery to approximately 80% in 3.4 hours and 100% in around 5.2 hours. It is also possible to charge the Shimano STEPS battery through the frame without removing it, provided your e-bike is equipped with either the Shimano EW-CP111 or EW-CP110 charging port. The 712 Wh battery is compatible with Shimano systems EP5, EP6, and EP8.

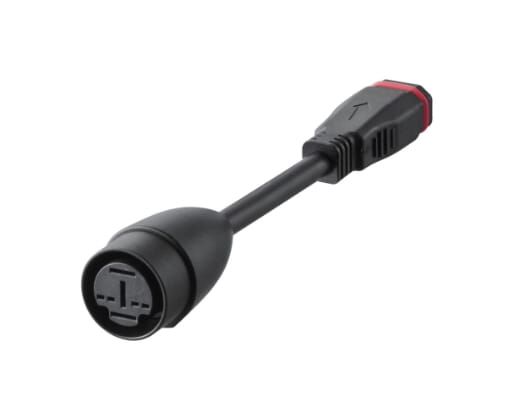

Note: At the EW-CP110 charging port, the EC-EN814 charger can only be used in combination with the SM-BTE81 charging adapter, which is sold separately.
Features of the Shimano STEPS BT-EN817
- Intube battery with 712 Wh (36.3 V / 19.6 Ah)
- Compatible with Shimano EC-EN814 4A charger
- For Shimano systems EP5, EP6 & EP8
- Frame charging possible via charging port
- 2nd Generation Battery Management
Properties
| Battery capacity: | 700 Wh - 799 Wh |
|---|---|
| Battery position: | Intube battery / frame integrated |
| Capacity: | 712 Wh (36.3 V / 19.6 Ah) |
| Charger: | compatible with the Shimano EC-EN814 4A charger |
| Charging time: | Charging time with 4A-Charger EC-EN814: 100% in approx. 5.2 hours; 80% in approx. 3.4 hours |
| Colour: | black |
| Drive system: | Shimano drive |
| EAN: | 4550170967055 |
| Item: | Shimano STEPS BT-EN817 Intube Battery 712 Wh |
| Item weight: | approx. 4 kg |
| Maker's ref. no.: | IBTEN817B |
| Manufacturer: | Shimano |
| Note: | The EC-EN814 charger can only be used on the EW-CP110 charging port in combination with the SM-BTE81 charging adapter. This is available separately. |
| Safety class: | Protection class IPX5 |
| Scope of delivery: | 1x Shimano STEPS BT-EN817 Intube Battery 712 Wh |
| Shimano System: | Shimano Steps EP5, Shimano Steps EP6, Shimano Steps EP8 |
