Description

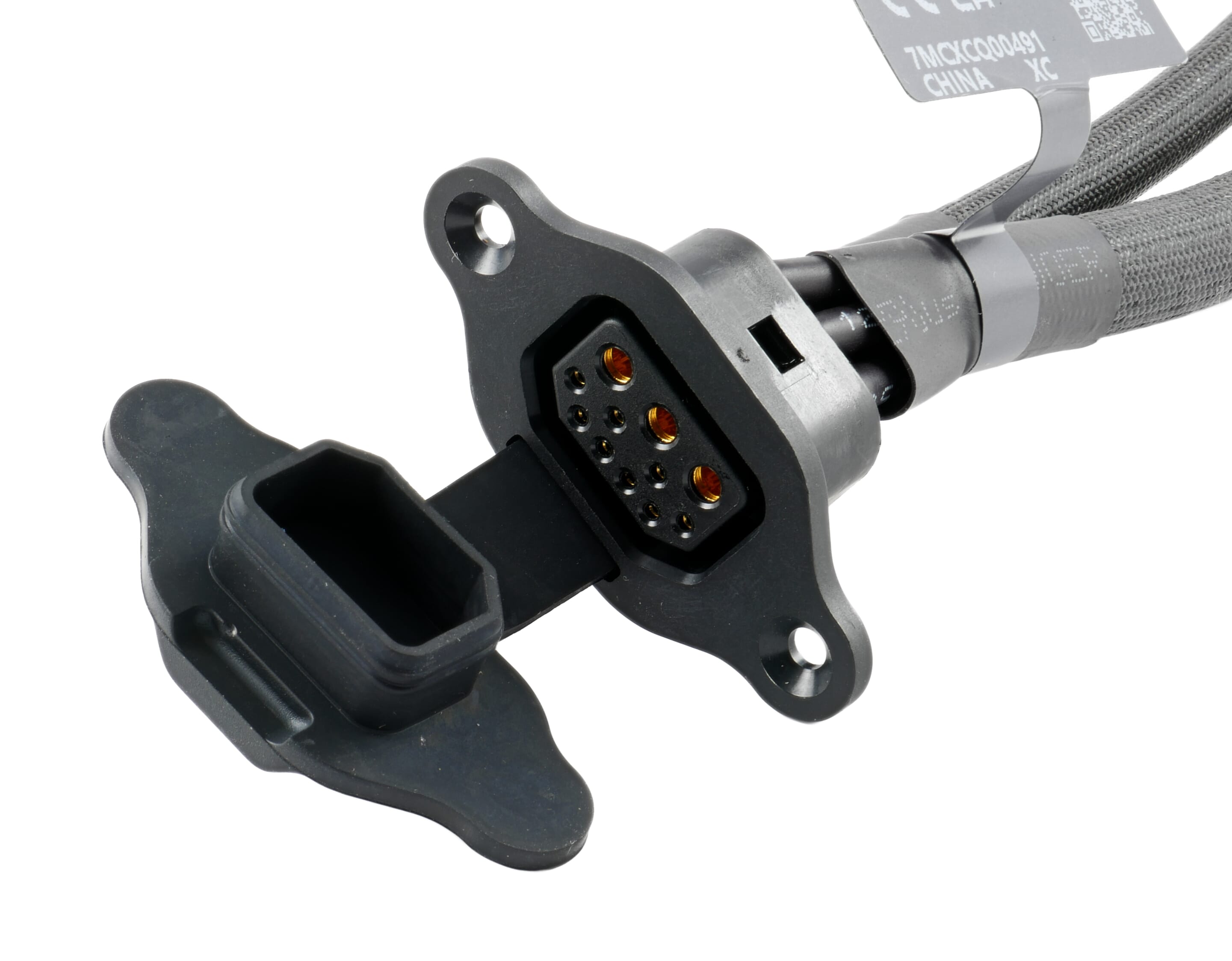

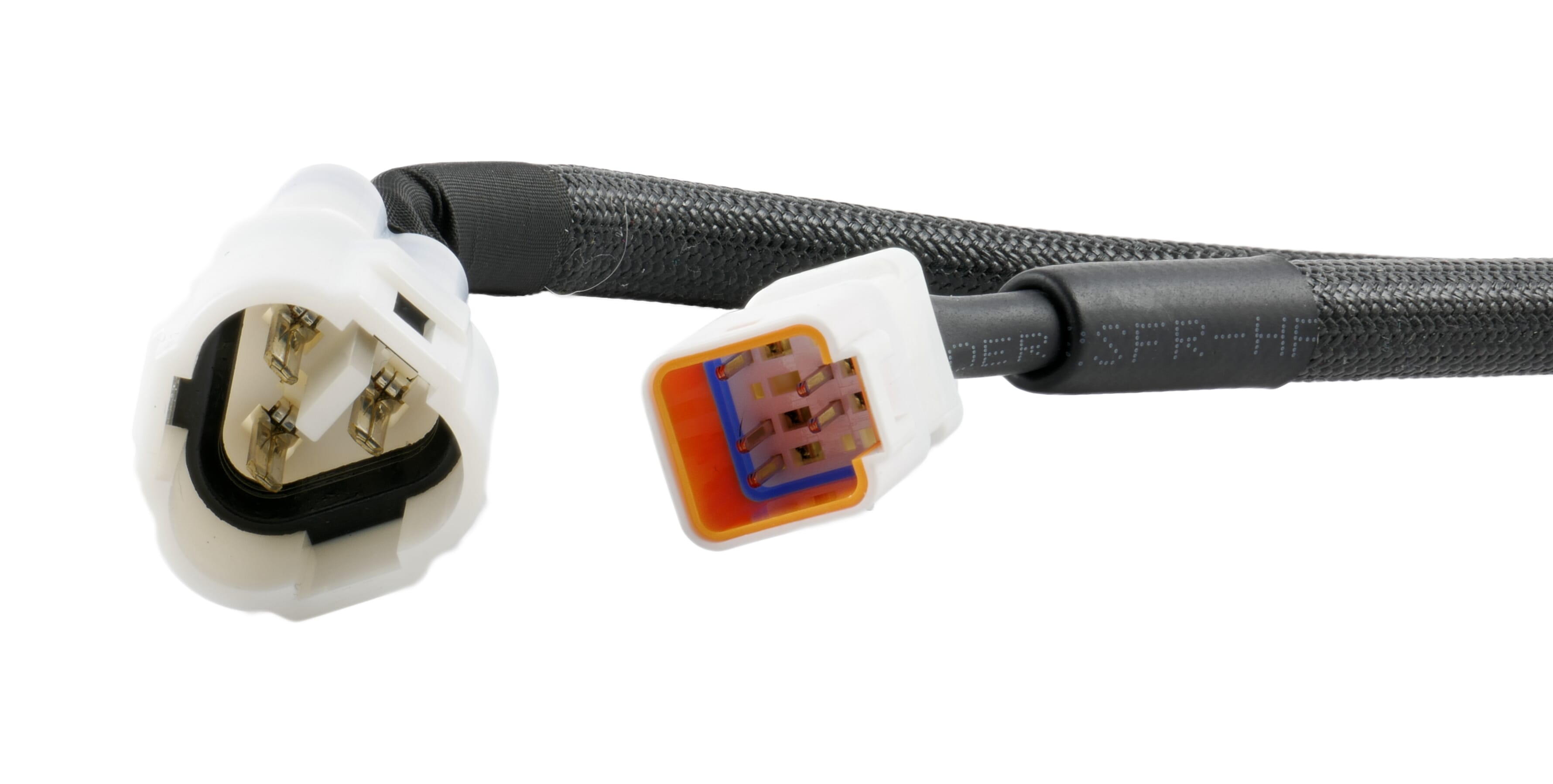

The Shimano STEPS Charging Port EW-CP110 allows the Shimano STEPS BT-EN817 Intube Battery to be charged via the e-bike frame without removing the battery. This means that the 712 Wh battery does not need to be taken out of the down tube and the charger can be connected quickly and easily. Charging is carried out using the Shimano STEPS EC-EN814 4A Charger. When used with the EW-CP110 charging port, the charger can only be connected in combination with the charging adapter SM-BTE81. The adapter is not included in the scope of delivery and is available separately.
Features of the Shimano STEPS Charging Port EW-CP110
- Charging port for Shimano Intube Battery BT-EN817
- Enables charging without battery removal
- Frame-mounted installation

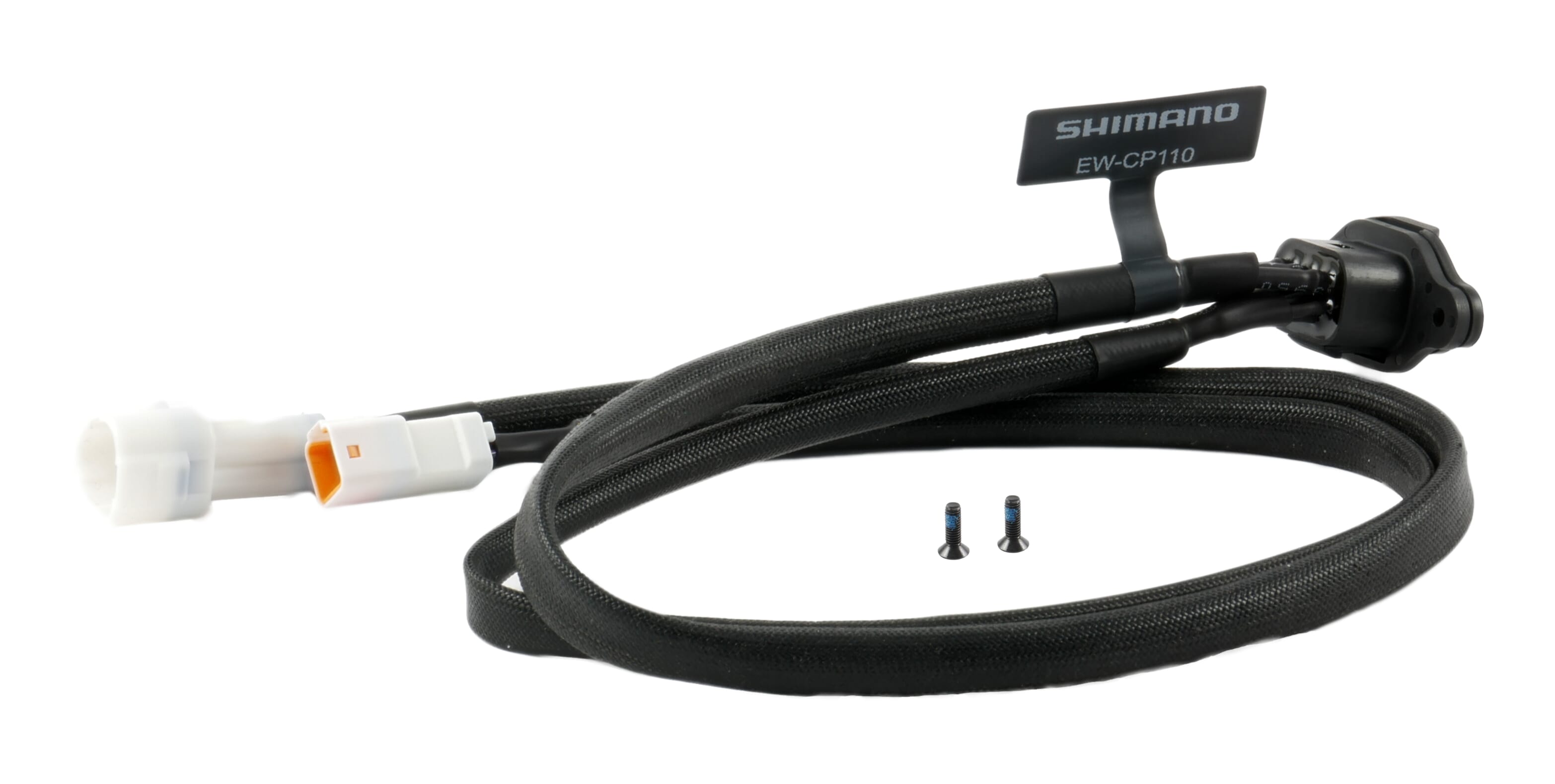

- Available with 200 mm or 550 mm cable length
- 2nd Generation Battery Management
Properties
| Battery: | compatible with the Shimano STEPS BT-EN817 Intube battery 712 Wh |
|---|---|
| Battery capacity: | 700 Wh - 799 Wh |
| Battery position: | Intube battery / frame integrated |
| Cable length: | 200 mm & 550 mm |
| Charger: | compatible with the Shimano STEPS EC-EN814 charger 4A |
| Colour: | black |
| Compatibility: | Shimano battery holder BM-EN817 |
| Item: | Shimano STEPS Charging Port EW-CP110 for Intube Battery BT-EN817 |
| Manufacturer: | Shimano |
| Mounting: | Mounting with 2-hole mounting on the e-bike frame |
| Note: | The EC-EN814 charger can only be used on the EW-CP110 charging port in combination with the SM-BTE81 charging adapter. This is available separately. |
| Scope of delivery: | 1x Shimano STEPS Charging Port EW-CP110 |
| Shimano System: | Shimano Steps EP5, Shimano Steps EP6, Shimano Steps EP8 |
