Description
With the Sigma EOX FL 170 HB, you get a powerful e-bike headlight that provides reliable illumination with a light output of up to 850 lumens and a light range of up to 160 metres. Equipped with NICHIA LEDs, it offers both a bright 120 lux low beam and a powerful 170 lux high beam. This can be conveniently activated using the high beam button supplied, which can be attached to the right or left of the handlebar using a 22.2 mm bracket. The headlight is switched on and off via the display installed on the e-bike or its control unit. For added convenience, an ambient light sensor is integrated, which automatically activates the 20 lux daytime running light. The Sigma EOX FL 170 HB can be mounted either as a handlebar mount (35.0 & 31.5 mm) or as a front plate mount on a stem faceplate. The required accessories for both options are included in the scope of delivery. The front light also has a USB-C connection. This allows you to conveniently charge external devices such as your smartphone with a suitable cable such as the EBIKE24 USB-C charging cable.
Note: The Sigma EOX FL 170 HB is compatible with many e-bike systems such as Bosch, Giant, Yamaha and TQ. A detailed list of all manufacturers and suitable motors can be found in the Sigma light compatibility. In addition, the headlight may only be used on eBikes up to 25 km/h. It is not approved for use on S-pedelecs.
Features of the Sigma EOX FL 170 HB e-bike headlight

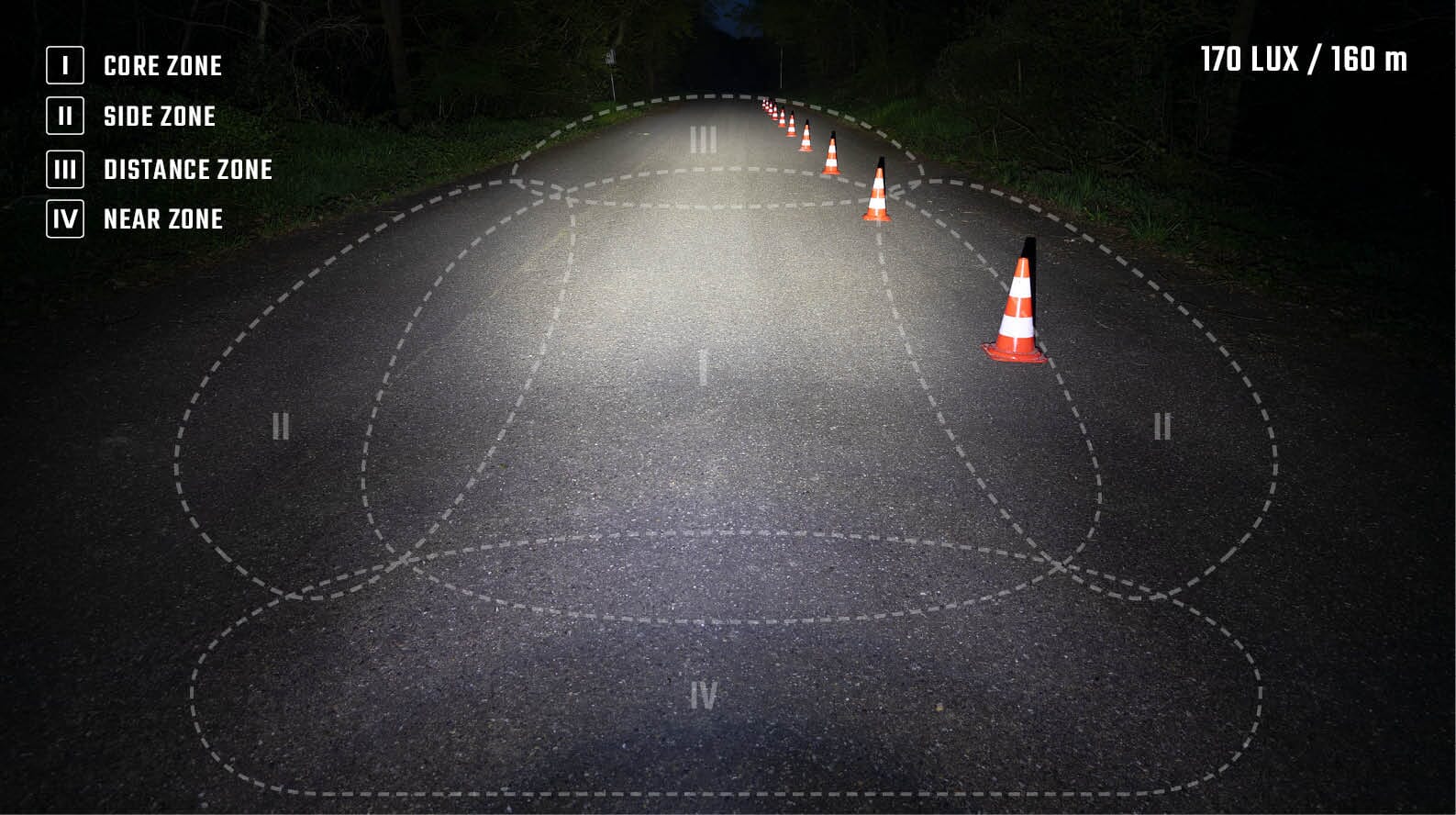

- High beam with 170 lux & 160 m light range
- Low beam with 120 lux & 120 m light range
- Automatic 20 lux daytime running light

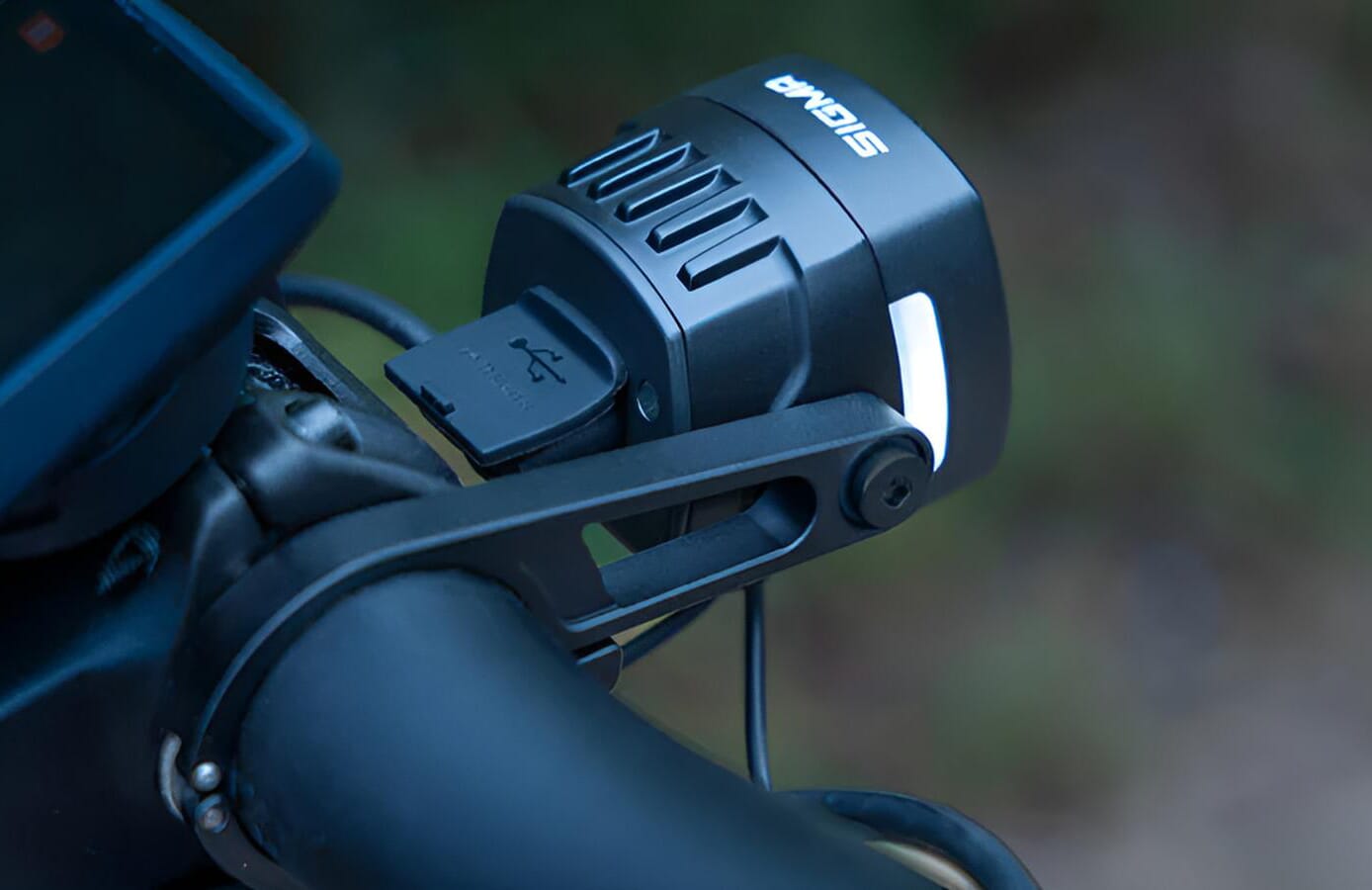

- Handlebar & front plate mounting
- High beam switch included in scope of delivery
- IP67 protection class (dust & waterproof)

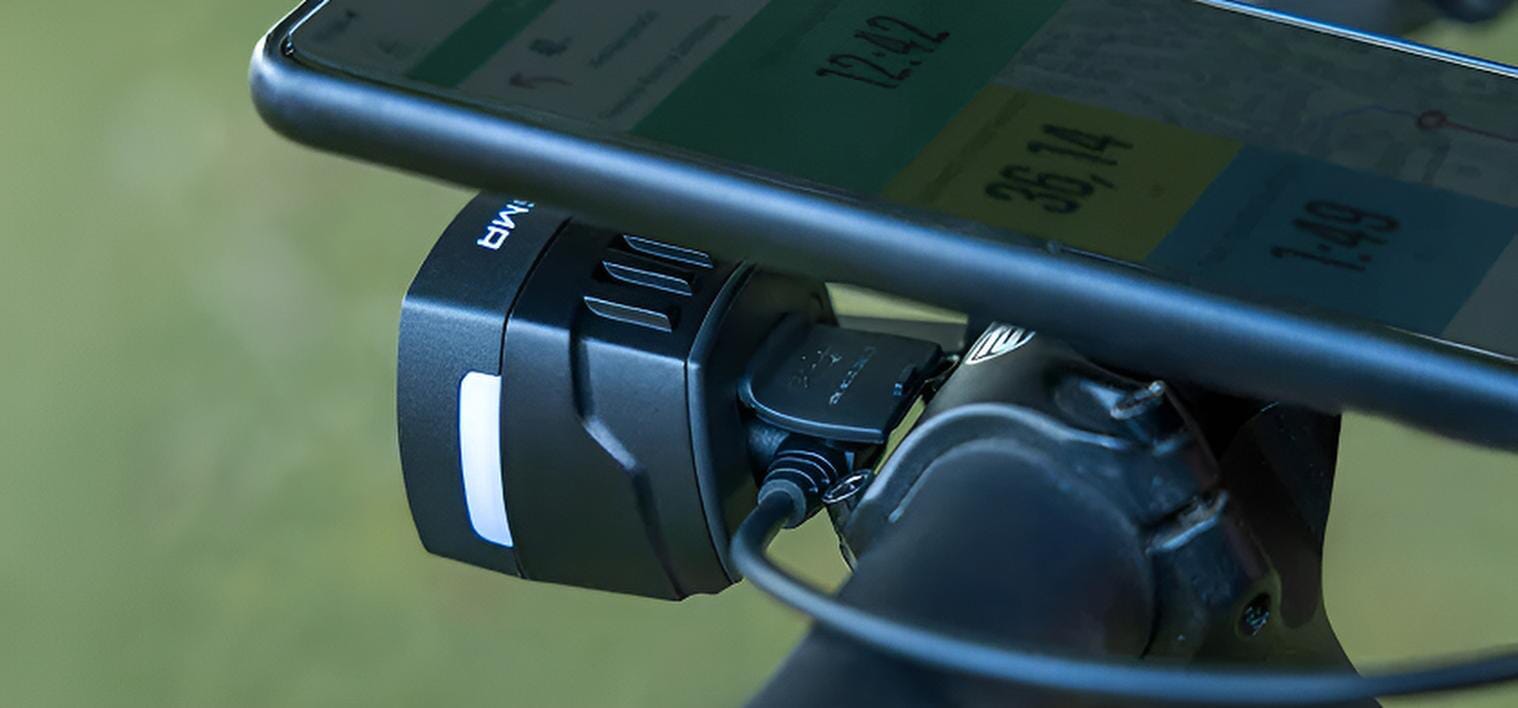

- with USB-C charging port (5V / 2A)
Properties
| Colour: | black |
|---|---|
| Compatibility: | Compatible with many eBike systems (e.g. Bosch, Giant, Yamaha & TQ) |
| Control button: | The headlight is switched on and off via the display installed on the eBike or via its control unit (if available). |
| Control unit: | The high beam can be activated using the high beam button (included in the scope of delivery). |
| Daytime running lights: | 20 Lux |
| EAN: | 4016224473205 |
| Equipment: | High beam, low beam, automatic daytime running light, ambient light sensor & USB-C charging port (5V / 2A) |
| Handlebar clamp: | Headlight bracket: 35 mm or 31.5 mm (with spacer ring) | High beam button: 22.2 mm |
| Headlights: | Lighting range: up to 160 m | Illuminant: NICHIA LED |
| High beam light output: | 170 lux (160 m light range) |
| Item: | Sigma EOX FL 170 HB eBike headlight |
| Item weight: | 99 g (without holder) / 124 g (incl. holder) |
| Light level: | 850 lumen |
| Light mounting position: | Handlebar |
| Light output dim light: | 120 lux (120 m light range) |
| Maker's ref. no.: | 47320 |
| Manufacturer: | Sigma |
| Measurements: | Length: 54 mm | Width: 51 mm | Height: 51 mm |
| Mounting: | Handlebar mounting or front panel mounting |
| Nominal capacity: | 12 W |
| Note: | The headlight may only be used on eBikes up to 25 km/h. It is not authorised for use on S-pedelecs. |
| Operating voltage: | 12-16 V |
| Power source: | E-Bike Battery |
| Safety class: | IP67 protection class (dust & waterproof) |
| Scope of delivery: | 1x Sigma EOX FL 170 HB, 1x high beam button, 1x handlebar mount 35 mm, 1x faceplate adapter, 1x mounting screw, 1x spacer ring 31.5 mm, 2x cable connectors, 1x front reflector incl. mounting material, 1x quick start guide |
| Supply voltage : | > 12 V |
