€4,299.00
On order, delivery date unknown
Description

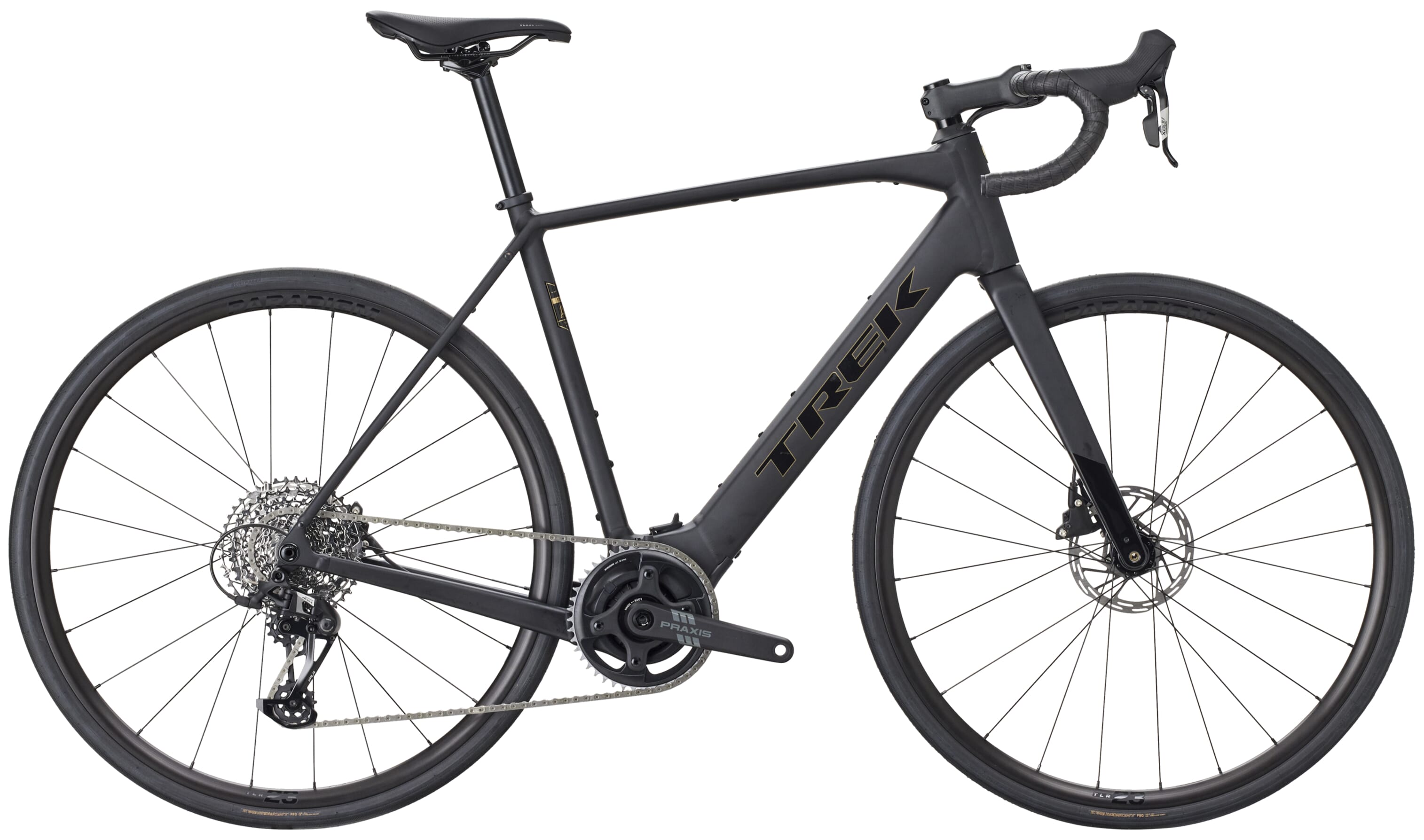

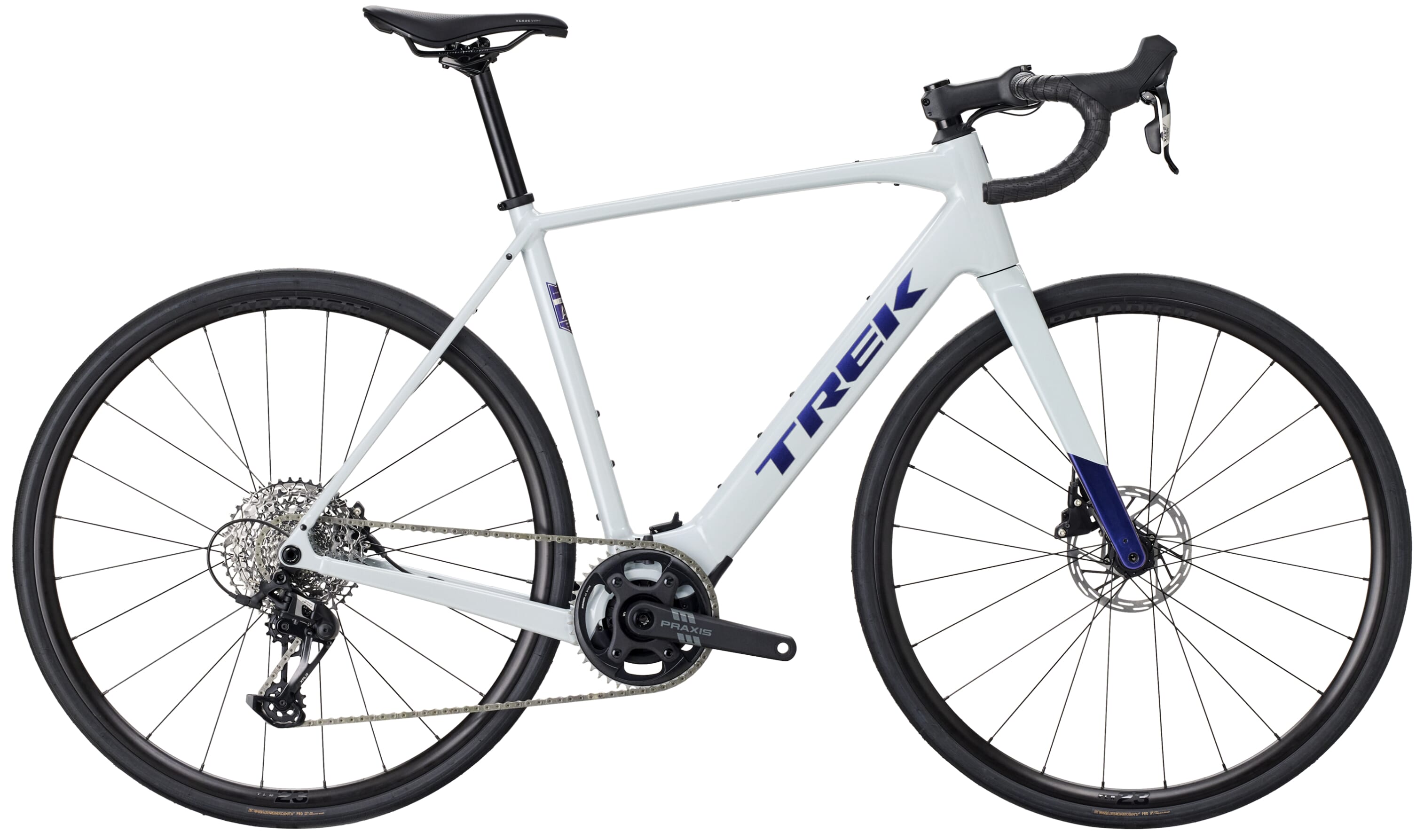

The Trek Domane+ ALR 5 2026 is a slimline e-road bike that is ideal for touring at high speeds thanks to its high-quality components and light weight. You are powered by the TQ HPR60 motor. With a torque of 60 Nm, it provides intelligent and controlled support, creating a natural riding sensation. At the same time, the TQ HPR 360 Wh battery integrated in the down tube provides the necessary power. Just like the drive, the gears and brakes are also designed for very sporty road bike performance. While the SRAM Apex XPLR rear derailleur enables smooth gear changes, the SRAM Apex D1 disc brake ensures safety. Both components are operated via the Sram Apex shift/brake lever. This is easy to reach on the handlebars, making shifting and braking particularly fast. You can also keep an eye on all the important riding data via the TQ HPR V02 display.
Features of the Trek Domane+ ALR 5 - 2026
- E-road bike with TQ system
- TQ HPR60 motor 60 Nm
- TQ HPR 360 Wh battery
- TQ HPR V02 display
- SRAM Apex shift/brake lever
- SRAM Apex D1 disc brake
- SRAM Apex XPLR rear derailleur
Properties
| : | Bontrager Paradigm 23, tubeless-ready, 24-hole, 23 mm inner width, Presta valve |
|---|---|
| Battery: | TQ HPR 360 Wh |
| Battery capacity: | 300 Wh - 399 Wh |
| Battery position: | Intube battery / frame integrated |
| Brake: | SRAM Apex D1 hydraulic disc, flat mount |
| Brake lever: | SRAM Apex, 12 speed |
| Cassette: | SRAM XPLR PG-1231, 11-44 T, 12-speed |
| Chain: | SRAM Apex, 12-speed |
| Charger: | TQ charger, 4 A |
| Colour: | Plasma Grey Pearl | Matte Dark Star |
| Crank: | Praxis Aluminium | S & XS: 165 mm crank arm length | M & ML: 170 mm crank arm length | L & XL: 172.5 mm crank arm length |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | SRAM Paceline, centre lock disc mount, rounded, 160 mm |
| Display: | TQ HPR V02 Display |
| Drive system: | TQ drive |
| E-Bike Types: | Gravel E-Bike, Road E-Bike |
| Fork: | Domane+, carbon, tapered carbon steerer tube, mudguard eyelets, flat mount disc brake mount, 12 x 100 mm thru axle |
| Frame: | 300 Series Alpha Aluminium |
| Front hub: | Bontrager, aluminium, sealed bearing, Center Lock disc mount, 100 x 12 mm thru axle |
| Gearshift stages: | 12-speed |
| Handlebar: | Bontrager Comp, aluminium, 31.8 mm clamp diameter, 80 mm reach, 121 mm drop | XS: 36 cm upper bar width, 40 cm lower bar width | S: 38 cm upper bar width, 42 cm lower bar width | M & ML: 40 cm upper bar width, 44 cm lower bar width | L & XL: 42 cm upper bar width, 46 cm lower bar width |
| Item: | Trek Domane+ ALR 5 - 2026 |
| Manufacturer: | Trek |
| Maximum system weight: | 125 kg (bike, rider & load) |
| Model year: | 2026 |
| Motor: | TQ HPR60, 60 Nm, 300 W max. continuous rated power, 350 W maximum power |
| Rear derailleur: | SRAM Apex XPLR, max. 44 t. on the largest sprocket |
| Rear hub: | Bontrager, aluminium, sealed bearing, Center Lock disc mount, 11-speed freehub from Shimano, 142 x 12 mm thru axle |
| Saddle: | Verse Short Comp, steel stays, 145 mm width |
| Seat post: | Bontrager, aluminium, 27.2 mm, 12 mm offset, 330 mm length |
| Shift lever: | SRAM Apex, 12-speed |
| Stem: | Bontrager Elite, 31.8 mm clamp diameter, Blendr-compatible, 7 degrees | XS: 70 mm length | S: 80 mm length | M: 90 mm length | ML & L: 100 mm length | XL: 110 mm length |
| Tyres: | Bontrager Kwaremont Pro GR, tubeless-ready, foldable bead core, dual compound rubber, 120 TPI, 700 x 32 mm |
| Weight: | 14.39 kg (with TLR tyre sealant, without tubes) |
