€4,299.00
Home delivery (Germany) 17/09/2026 - 21/09/2026

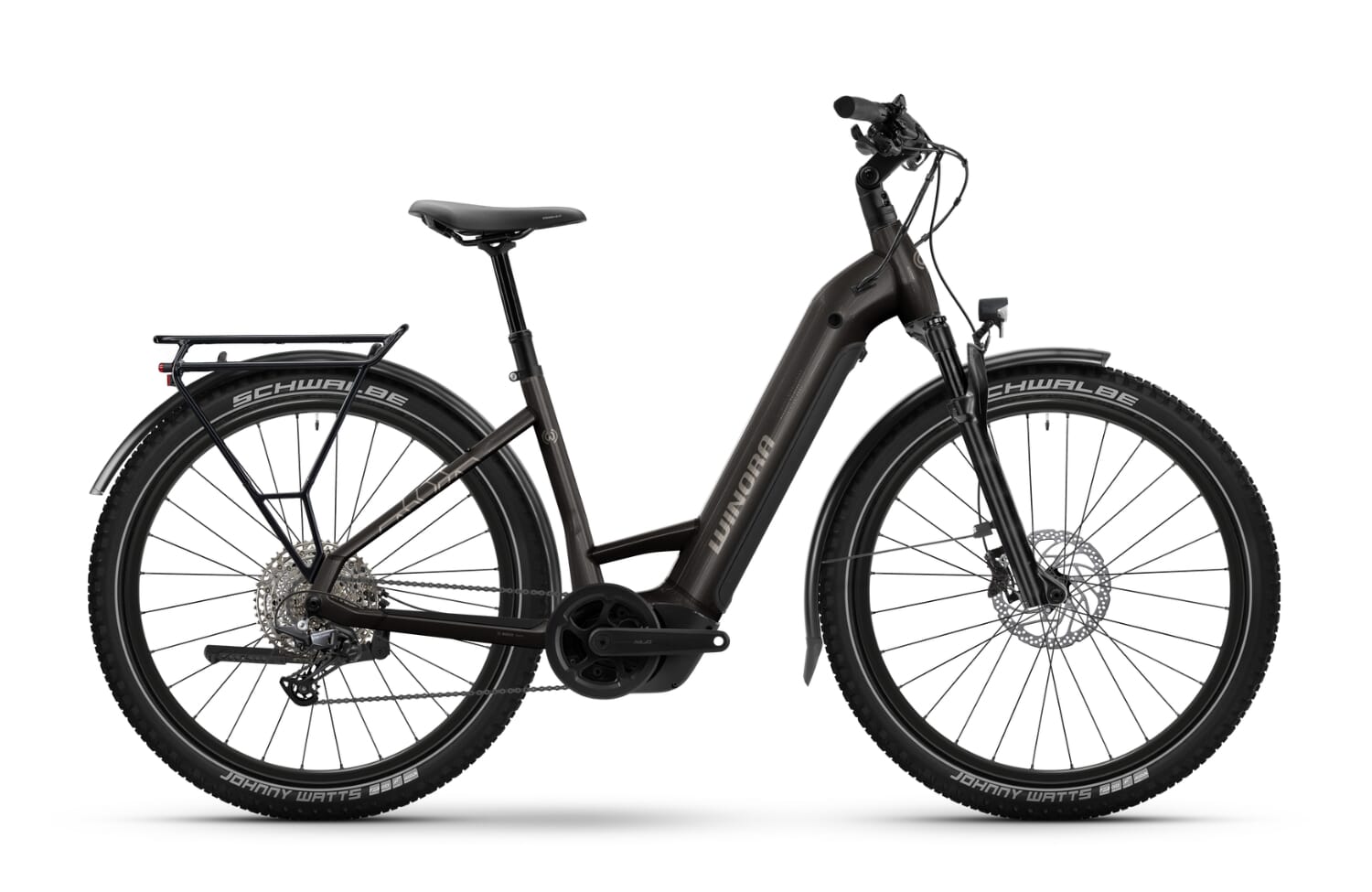

The WINORA Yucatan X12 Pro takes your e‑bike adventures to a whole new level. True to the motto "Experience more, sweat less", this premium trekking e‑bike has been developed for riders seeking maximum comfort, confident all-terrain capability and state-of-the-art drive technology in a sporty package. The Bosch Performance Line PX motor delivers powerful and dynamic support with 85 Nm of torque and a peak output of 600 watts. It is paired with the fully integrated Bosch PowerTube 800 Wh battery, providing ample range for even the longest day rides without the need for recharging. The large Bosch Kiox 500 display keeps all key ride data, routes and battery status clearly visible at all times. Even in poor weather or after dark, you can ride with confidence. The powerful Herrmans MR10 headlight illuminates the road ahead with a bright 80 lux output.
Features of the Winora Yucatan X12 Pro – 2027
- 27.5" trekking bike with aluminium frame
- Bosch Performance Line PX motor, 85 Nm
- Bosch PowerTube 800 Wh battery
- Bosch Kiox 500 display
- SR Suntour SF26 MOBIE34-D Boost 2CR DS suspension fork, 100 mm travel
- Shimano Deore RD-M6100-SGS Shadow+ 12-speed drivetrain
- Fully equipped for touring (lighting system, rear rack, mudguards, etc.)
Comfort and control on any terrain
The Winora Yucatan X12 Pro is not built exclusively for paved roads. When your route takes you onto light off-road terrain, the bike's chassis comes into its own. The responsive 100 mm suspension fork effortlessly absorbs roots, gravel tracks and uneven surfaces. A real highlight in this category is the integrated dropper seatpost, which provides maximum freedom of movement and added confidence when mounting, dismounting and tackling steep descents. This setup is complemented by powerful disc brakes that deliver reliable stopping performance in all weather conditions, even when carrying a full load.
| : | Schürmann YAK Disc 25-584 32H 8.5 mm valve |
|---|---|
| Battery: | Bosch PowerTube 800Wh |
| Battery capacity: | 800 Wh - 899 Wh |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line PX from 2025 Smart System |
| Brake lever: | Shimano Deore BL-MT401 |
| Brakes: | Front: Shimano Deore BR-MT420, 4-piston, resin pads, 180 mm | Rear: Shimano BR-MT420, 4-piston, resin pads, 203 mm |
| Carrier: | Winora System luggage carrier, HD, MIK |
| Chain: | Shimano Deore CN-M6100 12-speed |
| Chainring: | Miranda Spiderless Chainring BDU38, 38 teeth |
| Charger: | Bosch Charger 2A 220–240 V |
| Colour: | Choc Chai, glossy |
| Crank: | XLC Crius ISIS Cranks 170 mm |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Front: Shimano SM-RT30 180 mm, Centre Lock | Rear: Shimano SM-RT30 203 mm, Centre Lock |
| Display: | Bosch Kiox 500 |
| Drive system: | Bosch drive |
| Dynamo: | via the system battery |
| E-Bike Types: | Cross E-Bike, Trekking E-Bike, Urban & City E-Bike |
| Fork: | SR Suntour SF26 MOBIE34-D Boost 2CR DS, 100mm |
| Frame: | Winora Aluminium 6061, 27.5" |
| Frame type: | Step-through |
| Front hub: | XLC HF-M55 Boost 15x110 mm, 32H, Centre Lock |
| Gear shift: | Shimano Deore RD-M6100-SGS 12s, Shadow+, 12-speed |
| Grips: | XLC GR-S50 Sport Comfort Grip |
| Handlebar: | JD MTB502A, diameter 31.8 mm, rise: 25 mm, backsweep 15°, 720 mm |
| Headlights: | Herrmans MR10, 6–12 V, 80 lux |
| Headset: | Cane Creek Viscoset ZS44 + FEIMIN FP-H858U, semi-integrated |
| Manufacturer: | Winora |
| Model year: | 2027 |
| Motor: | Bosch Performance Line PX, 600W, 25km/h, 85Nm |
| Mudguard: | Curana Apollo 70, extra matt black |
| Permissible total weight: | 150 kg |
| Rear hub: | XLC HR-M55 Boost 12x148 mm, 32H, Centre Lock, MS |
| Rear light: | Spanninga Aerline 2.0 XE Brakelight, 6–48 V |
| Saddle: | Selle Royal Essenza+ |
| Seat post: | XLC Dropper SP-T21, diameter 34.9 mm, travel: 125 mm, length: 399 mm |
| Shift lever: | Shimano Deore SL-M6100-12R, Rapidfire+ |
| Stand: | Ursus Mooi 18 Rear Stand, adjustable |
| Stem: | XLC ST99A-1, diameter 31.8 mm, length: 80 mm, adjustable |
| Tyres: | Schwalbe Johnny Watts, 60-584, reflective stripes |
