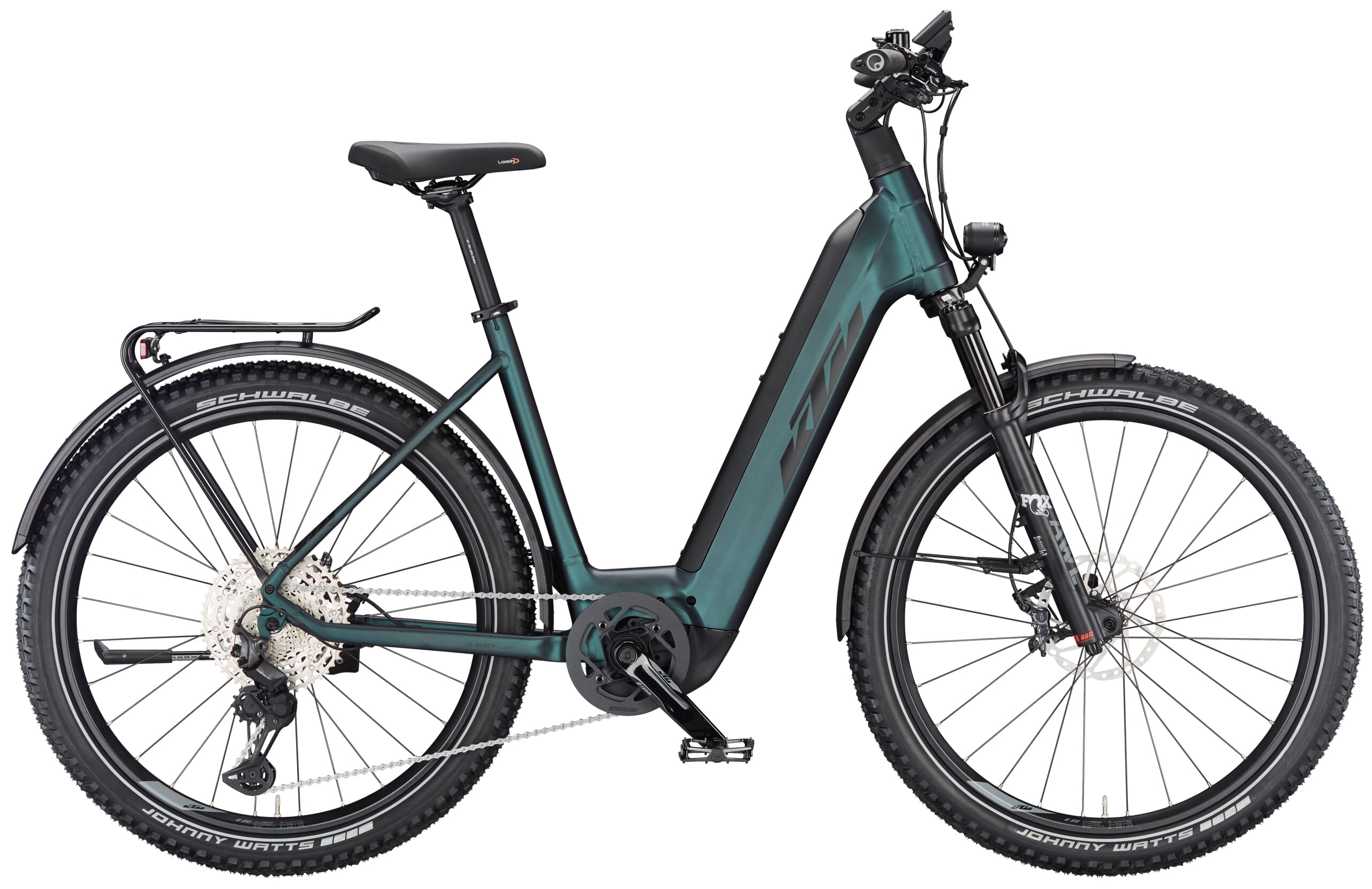

KTM Macina Aera 771 LFC 2024

KTM Macina Aera 771 LFC 2024

Prices incl. VAT plus shipping costs

  • 8257-001
  • 1230085503 / 023342503
  • 9008594471733

Frame Size:

The KTM Macina Aera 771 LFC combines two worlds - comfort and off-road action. This becomes... more

The KTM Macina Aera 771 LFC combines two worlds - comfort and off-road action. This becomes especially clear with the combination of a low-entry frame and Fox suspension fork or SUV tires. This combines the advantages of a mountain bike and the comfort of a city bike. Thanks to the air suspension fork with 100 mm travel, profiled Schwalbe Johnny Watts tires and Litemove lighting system, the Macina Aera 771 LFC, like an SUV, makes its way through town and across country.


  • 27.5 inch Macina MTB low entry frame aluminum frame
  • Bosch Performance CX Smart System drive, 85 Nm
  • Bosch Powertube 750 Wh battery + Kiox 300 display
  • Shimano Deore XT M8130 11-speed gears
  • Fox 34 Float air suspension fork 100 mm travel
  • Alumee luggage rack, Litmove lighting system, Ergon grips and much more.
  • Schwalbe Johnny Watts Performance tires 27.5 "

Powerful motor makes everything possible

This bike is supported by the new Bosch Smart System drive with a whopping 85 Nm of torque and 750 Wh battery capacity. Whether the shopping tour through the city center, the detour over gravel roads or the leisurely trip into the countryside, with this bike you are ready for any adventure.

Ebike24 recommends: The KTM Macina Aera 771 LFC is a comfortable all-rounder that can show off its strengths both in the city and off-road. Together with high-quality MTB components, this stylish low-entry bike ensures pure riding fun and holds plenty of adventure in store for its rider.

E-Bike Types: E-Mountainbike (e-MTB), SUV E-Bike, Trekking e-Bikes
Model year: 2023
Battery capacity: 700 Wh - 799 Wh
Drive system: Bosch drive
Manufacturer: KTM
Frame type: Low-entry / Wave
Derailleur/drive type: Derailleur - chain drive
Bosch System: Bosch Performance Line CX from 2022 Smart System
Battery position: Intube battery / frame integrated
Frame: Macina Trekking Onroad Aluminum 6061 PT750Wh Bosch Gen.4 / T-2940
Fork: FOX 34 Float AWL 27.5" e-bike 100mm 15x110
Battery: Bosch PowerTube 750 Wh Smart System horizontal
Tyres: Schwalbe Johnny Watts Perf. Folding 65-584 DD
Saddle: Selle Royal Lookin+
Seat post: KTM Team 30.9/300
Carrier: Alumee light (snap-it 2.0)
Item: KTM Macina Aera 771 LFC 2024
Colour: Green Purple Flip matt (black+orange)
Model year: 2024
Stem: KTM Line adjust. 0-60° internal
Display: Bosch Kiox 300
Side stand: KTM 28" adjustable
Wheels: front: KTM Line - DT Swiss 370 CL R28 110/15 SS LN18 Straight Pull Ambrosio E30 Trail 28H 584x30TC DT Champion 2.0 black ST | rear: KTM Line - DT Swiss 370 CL R28 135/5 Straight Pull Ambrosio E30 Trail 28H 584x30TC DT Champion 2.0 black ST
Mudguard: Racktime Alu 72mm
Spring travel: 100 mm
Grips: Ergon GP1 SD
Motor: Bosch Performance CX Gen.4 Smart System - 85 Nm
Headset: Acros AICR internal 1.1/8"-1.5" angle limit
Rear light: B&M Xeltec integrated in the Fender
Front light: Litemove AE-130 LED 90-130 Lux High Beam
Pedal: MTB-Pedal flat VPE-527 Aluminum
Wheel size: 27.5"
Handlebar: KTM Team rizer15 680mm
Permissible total weight: 146 kg
Crank: KTM E-TEAM ISIS 170mm Q16
Cassette: Shimano LG400-11 / 11-50
Rear derailleur: Shimano Deore XT M8130-11 LG shadow+
Chain: KMC e11 Sport EPT e-bike
Shift lever: Shimano Deore XT M8130-11 LG
Charger: Bosch Smart System Standard Charger - 4A
Disc brakes: Shimano RT64 CL 180 / EM600 CL 180
Control unit: Bosch LED Remote
Brake: Shimano Deore XT T8100 / M8120 4-Piston
GPS: Yes - Bosch ConnectModule GPS Tracker
