Yamaha display unit incl. control unit, PW-X 2017

From 189.90€   RRP 229.95€   (17.42% Saved)

Prices incl. VAT plus shipping costs

  • 4147-001
  • X0P-83500-00
  • 4055149191412


The new " Yamaha LCD-X Display " is much more compact, robust and user-friendly compared to its... more

The new "Yamaha LCD-X Display" is much more compact, robust and user-friendly compared to its predecessor the Yamaha PW-LCD on-board computer. Thanks to the robust and resistant housing and display holder, the display is framed and protected from strong shocks.

The continuous connection cable to the engine has a total length of about 120cm. The cable between the display and the remote control has about 25cm.

The new handlebar control unit has been optimized for operation with cycling gloves. In addition, the Yamaha PW-X display can also be used in the cold season without any problems.

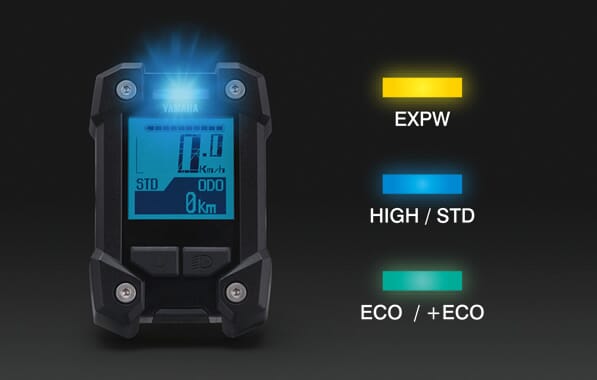

Another innovation of the Yamaha PW-X display is the color display. The up to 5 different support levels (5th level - EXPW only on PW-X) are displayed in the colors green (Eco+, Eco), blue (Standard, High) and yellow (EXPW) on the upper, bright strip of the display. This allows the rider to see from the angle of view which support level they are in.

If the LED display should be too glaring and thus annoying when driving in the dark, this display can be switched off very easily and separately in the menu.

The Yamaha display PW-X 2017 is only compatible with Yamaha PW-X and PW-SE drive systems. Only on the PW-X motor the EXPW mode (max. 80Nm, max. 120UPM) is selectable. On the PW-SE motor can only be switched to High mode (max. 70Nm, max. 110UPM).

Matching the Yamaha display PW-X 2017 we offer in our store the Yamaha display holder PW-X and the MH protective cover.

type LCD display with backlight
Display LCD with dot matrix
Drive PW-X, PWseries SE
Connectivity Bluetooth
Functions current speed (km/h), average speed, maximum speed, total kilometers, battery capacity, clock, stopwatch, tachometer, odometer, approach aid, current support power (bar graph)
Support levels 5 (Eco+, Eco, Standard, High, EXPW [only on PW-X])
Operation &Uml;ber handlebar remote control with starting aid
Remote control function Assist +/-, starting assist, info, lighting
Connectors Charge plug output USB Micro-A to connect smartphones or navigation devices


Manufacturer: Yamaha
Scope of delivery: 1x display unit, 1x control unit + 1 x button cell
Colour: black
Compatibility: E-bikes/ebikes with PW-X, PW-SE drive system
Bluetooth: yes
Display size: 1.8 "LCD
