- Item number: 4326-001
- Manufacturer Part Number: 01556
- EAN: 4717480166145

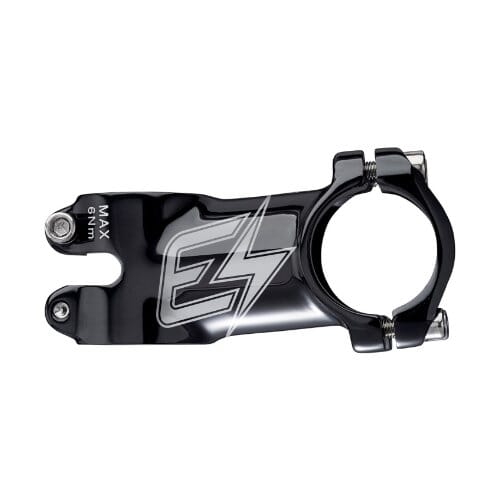

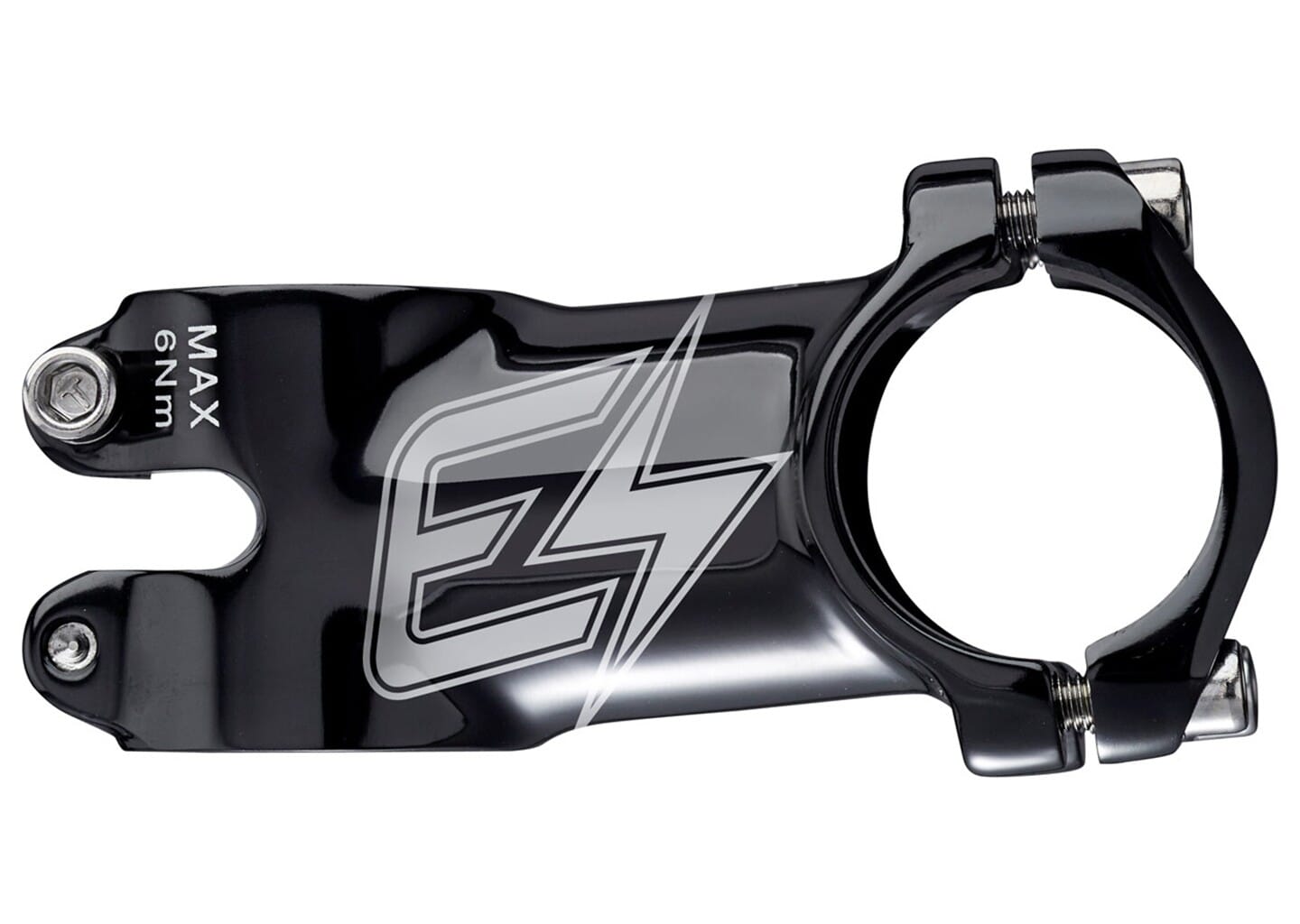

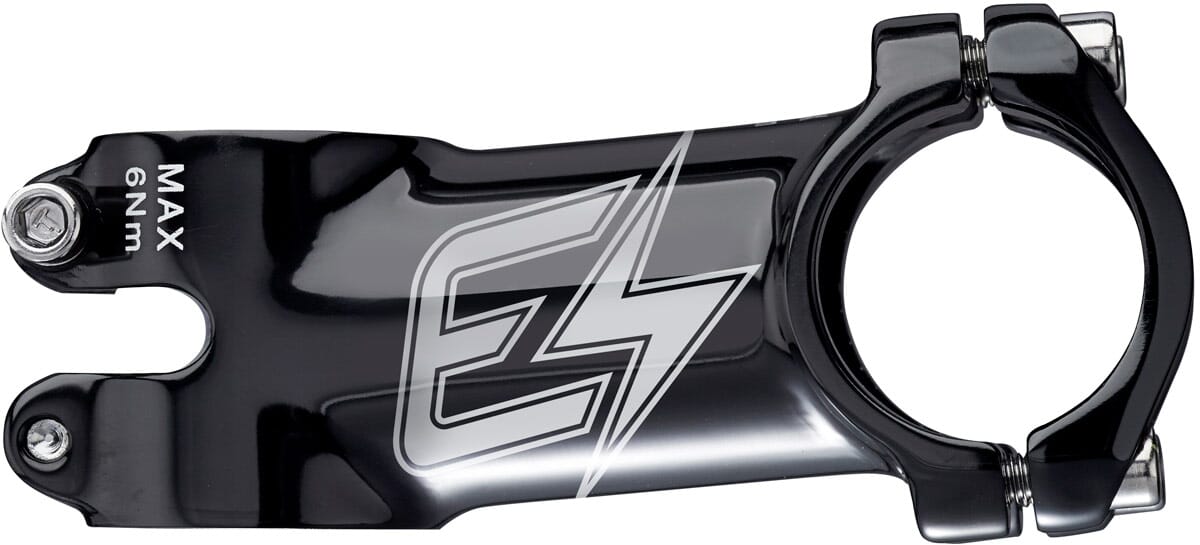

The Ahead E-XC handlebar stem was explicitly developed for cross, enduro and all-mountain use. The aluminium handlebar stem not only impresses with its sporty design, but also convinces with its workmanship and quality. Furthermore, the Ahead E-XC has a four-screw handlebar clamp with a diameter of 31.8 mm and a clamping height of 37 mm. With its low weight, the stem from Reverse is a flyweight compared to other stems.
Features of the Reverse Ahead E-XC
- Handlebar clamping - Ø 31.8 mm
- Angle - 6
- Height - 37 mm
- Clamp width - 40 mm
- -Ø Head tube - 1 1/8"
- Aluminium 6061 T6
- Length - 60 / 70 / 80 / 90 / 100 mm
- ASTM classification category 3 (standard)
- EFBE E-MTB Tri Test (EPAC MTB-XC) certified
Few developments have had a similar impact on mountain biking as the e-bike. The e-bike has taken an entire industry in completely new directions!
However, new demands are being placed not only on the bicycle frames, but also on the components used. Increasingly higher loads have to be absorbed by the components, because the frequency of rides on an e-bike is significantly higher than without a motor. After-work laps that were completed once in the pre-e-bike era are now ridden three times with motor assistance. That's why the cockpits of modern e-bikes have to be able to withstand more than they used to!
With the development of the E-series stems, Reverse has reacted precisely to this development! The E-XC stem is a real all-rounder, available in many different lengths to meet the individual ergonomic needs of the rider.
If you want to make the seating position on your e-bike more ergonomic without compromising on safety and quality, this cold-forged stem is the right choice for you.
The stems of the E-XC series have been tested and certified according to the "EFBE EPAC MTB-XC Tri-Test" and can be mounted on all e-bikes without hesitation.
|Weight:||98g (60mm),108g (70mm), 110g (80mm), 113g (90mm), 114g (100mm) | +/- 5 % weight tolerance|
|Item:||Reverse Ahead stem E-XC black matt 31.8 mm 60 mm, 1 1/8|
|Colour:||black / grey|
|Maker's ref. no.:||01556 (60mm), 01558 (70mm), 01559 (80mm), 01560 (90mm), 01561 (100mm)|
|Material:||Aluminium 2014-T6, 3D forged|
|Length:||01556 (60mm), 01558 (70mm), 01559 (80mm), 01560 (90mm), 01561 (100mm)|
|ASTM classification :||categorie 3 (Standard)|
|Handlebar clamp:||Ø 31.8 mm|
|Clamp width:||40 mm|
|Diameter head tube:||1 1/8"|
|Stack height:||37 mm|
