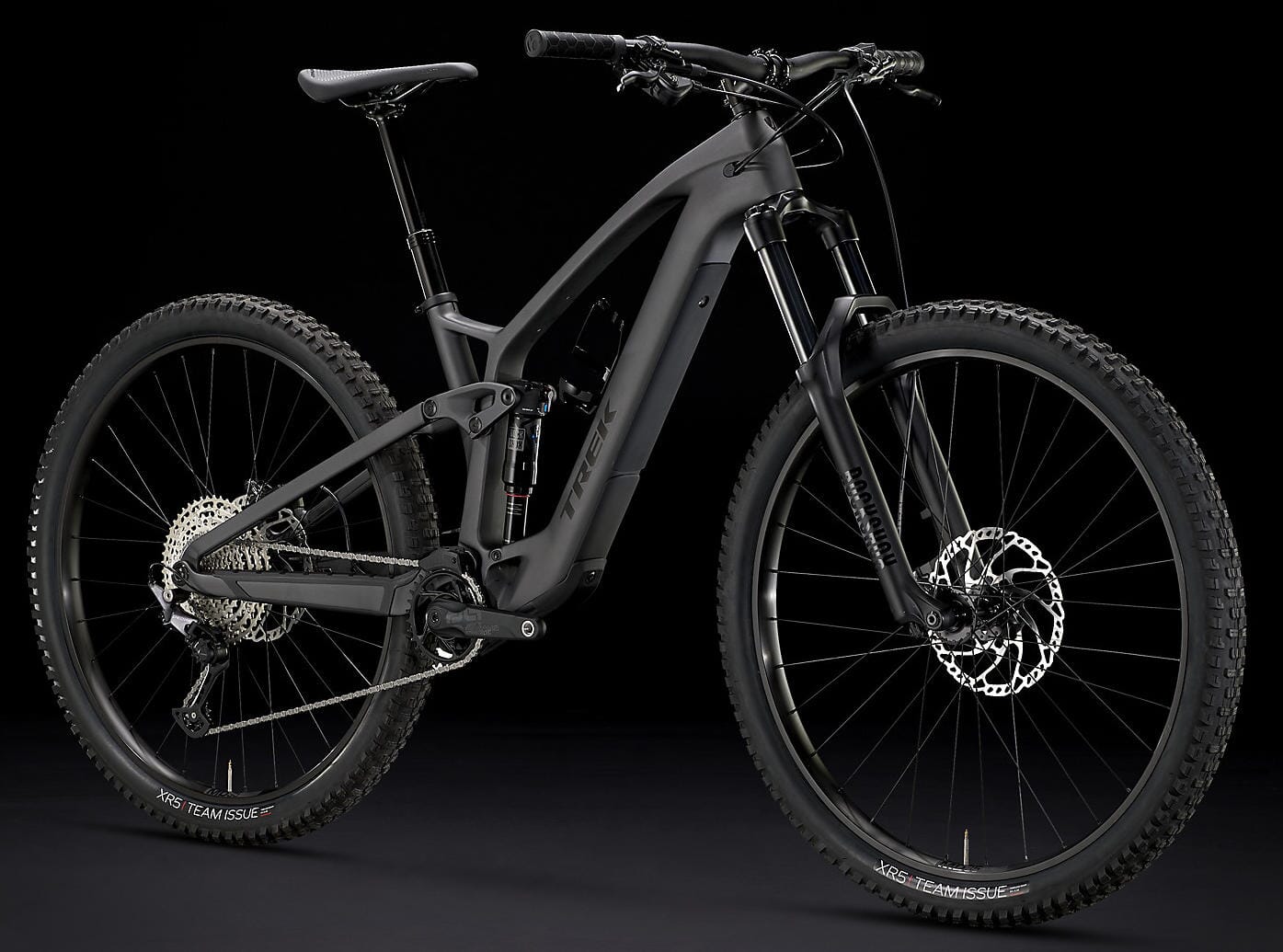

The Trek Fuel EXe 9.5 looks and rides like a traditional mountain bike! Thanks to a 29-inch carbon frame and the new compact TQ HPR50 drive, the Fuel EXe has an extremely low overall weight and guarantees agile handling. The powerful RockShox suspension in combination with the Shimano Deore shifting prepares you for even the most challenging terrain. A perfect blend of high-quality components and powerful drive technology, make the Fuel EXe a real trail machine, which promises long-lasting eMTB adventures.
Features of the Trek Fuel EXe 9.5 - 2023
OCLV Mountain Carbon frame for 29 inch wheels
RockShox Lyrik Select+, DebonAir suspension fork 150 mm travel
RockShox Super Deluxe Select+ AirWiz shock, 140 mm travel
TQ-HPR50, 300 watts, 50 Nm

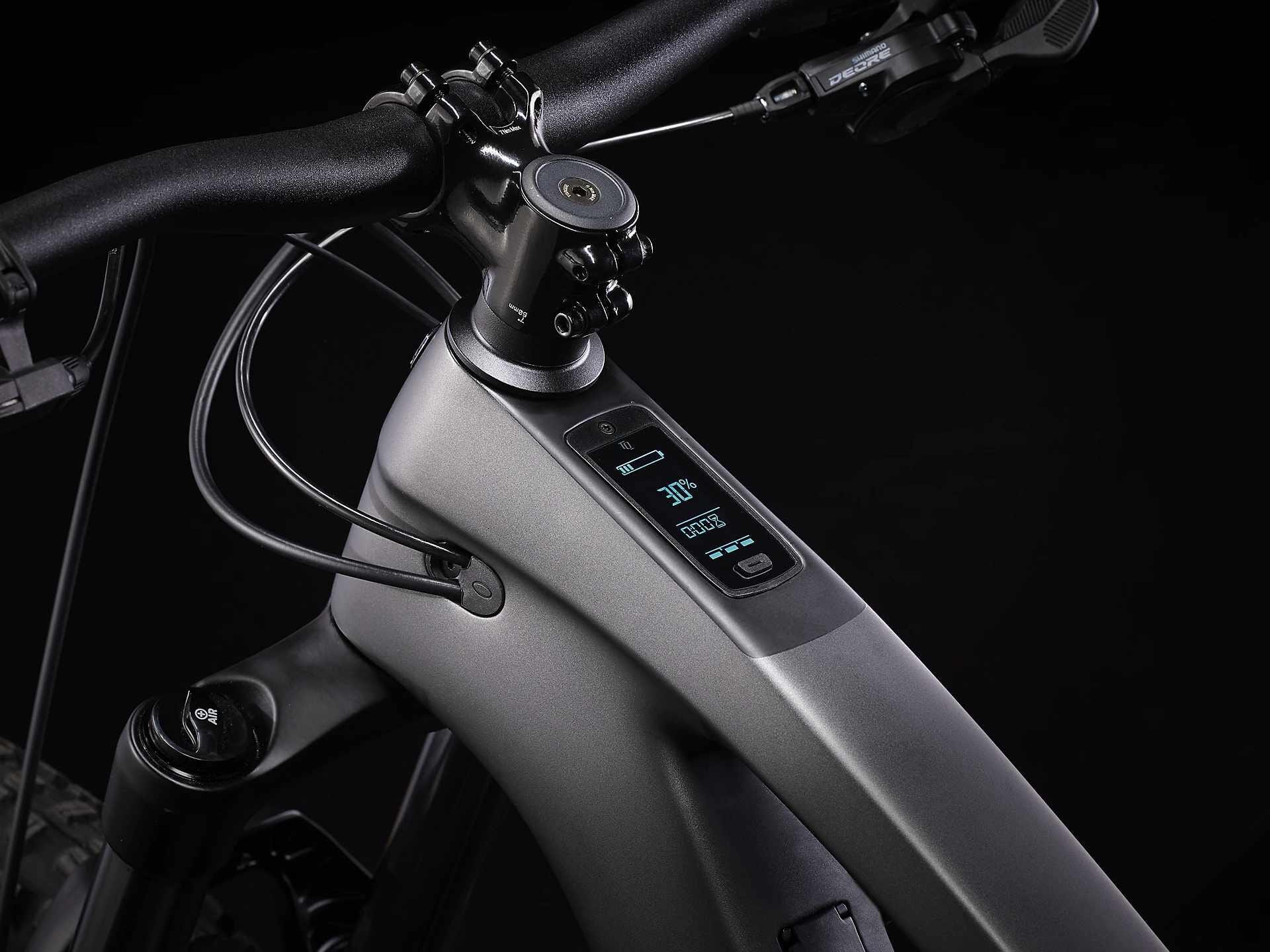

TQ LED display with Bluetooth & ANT+ connectivity
TQ 360 Wh battery
Shimano XT M8100 rear derailleur
Shimano XT M8100, 10-51 T., 12-speed cassette
Bontrager SE5 Team Issue, tubeless ready 29 x 2.50 tires
eBike24 recommends: The Trek Fuel EXe 9.5 is the perfect choice for advanced mountain bikers who focus on agility and aggressiveness. An extremely powerful e-bike, which comes with a top price-performance ratio.
Specifications
E-Bike Types:
E-Mountainbike (e-MTB), Fully e-MTB, Light E-MTB
Battery capacity:
200 Wh - 299 Wh, 300 Wh - 399 Wh
Manufacturer:
Trek
Frame type:
Mens
Derailleur/drive type:
Derailleur - chain drive
Drive system:
TQ drive
TQ System:
TQ-HPR50
Frame:
OCLV Mountain Carbon, removable battery, internal cable routing, aluminum bell crank, seat tube diameter 34.9 mm, mount for upper chain guide, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel.
Bontrager SE5 Team Issue, Tubeless Ready, Aramid bead core, 120 TPI, 29 x 2.50e
Brakes:
Hydraulic 4-piston disc brake Tektro HD-M745
Saddle:
Bontrager Arvada, steel struts, 138 mm width
Seat post:
Size: S
TranzX JD-YSI-22PLQ, 100 mm stroke, internal cable guide, 34.9 mm, 346 mm length
Size: M
TranzX JD-YSI-22PLQ, 150 mm stroke, internal cable guide, 34.9 mm, 454 mm length
Size: L, XL
TranzX JD-YSI-22PLQ, 170 mm stroke, internal cable guide, 34.9 mm, 497 mm length
Weight:
M - 19.93 kg / 43.94 lbs (with TLR tire sealant, without tubes)
Display:
TQ LED-Display with Bluetooth & ANT+-connectivity
Damper:
RockShox Deluxe Select+ RT, 205 x 60 mm
Grips:
Bontrager XR Trail Comp, Nylon grip
Motor:
TQ-HPR50, 300 Watt, 50 Nm
Handlebar:
Bontrager Rhythm Comp, Aluminium, 31,8 mm, 15 mm Rise, 750 mm width
Crank:
E*thirteen E*spec Plus, 34 T., 165 mm crank arm lenght
