- Item number: 7480-001
- Manufacturer Part Number: EB1290000A
- EAN: 4054289005030
The Bosch PowerTube 750 Mounting Base serves as a retaining connection between the frame and battery in your e-bike. The PowerTube Frame Base is either screwed onto the Bosch mounting rail or directly onto the e-bike. All necessary parts and screws are included in this mounting kit. When choosing the right mount, be sure to pay attention to the correct orientation & mounting type of your battery.
Features of the Bosch mounting base PowerTube 750Wh
- Original Bosch spare part
- For mounting your PowerTube 750 in the frame
- For horizontal or vertical mounting
- For slide-in or insert mounting
Variants & scope of delivery for the PowerTube Frame Base mounting kit
- Bosch mounting base for vertical PowerTubes for sliding into the closed down tube (axial) | Scope of delivery: 1x Frame Base vertical, 2x screw M5x9

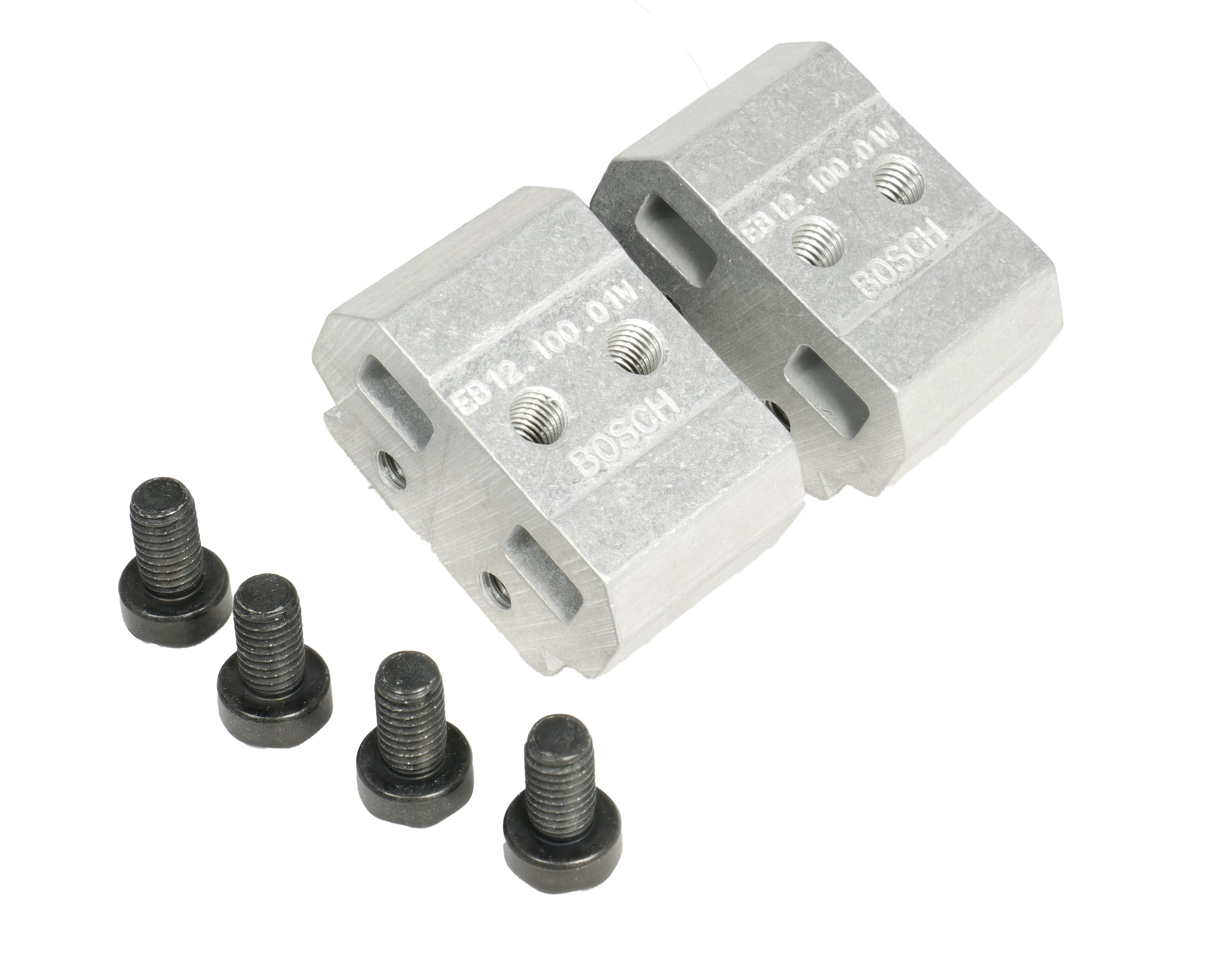

- Bosch mounting base for vertical PowerTubes for insertion into the opened down tube (pivot) | Scope of delivery: 2x frame base vertical, 4x screw M5x9

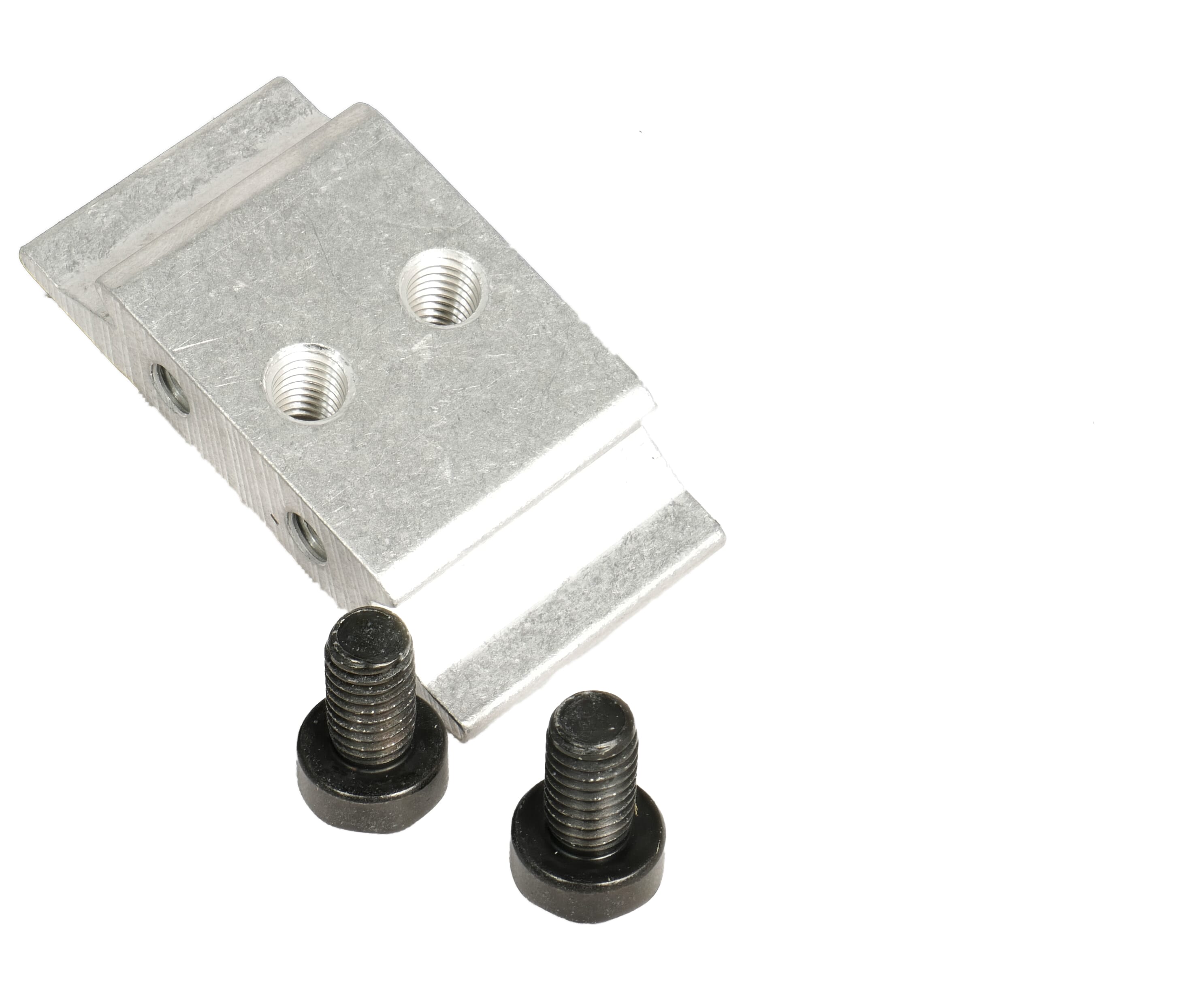

- Bosch mounting base for horizontal PowerTubes for sliding into the closed down tube (axial) | Scope of delivery: 1x Frame Base horizontal, 2x screw M5x9

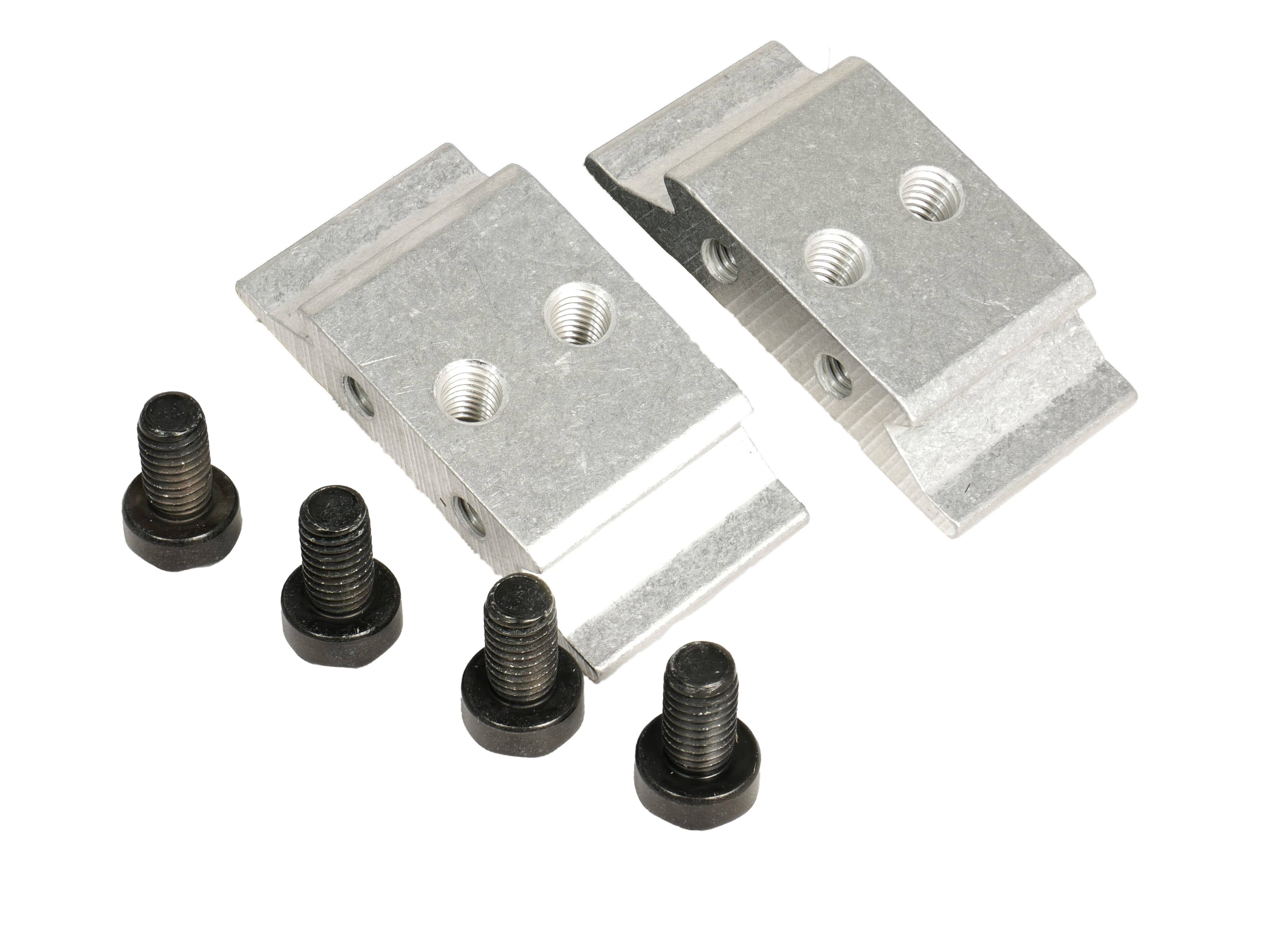

- Bosch mounting base for horizontal PowerTubes for insertion into the opened down tube (pivot) | Scope of delivery: 2x Frame Base horizontal, 4x screw M5x9
Note: The mounting bases are for the fixed battery mount on your e-bike. For the mount attached to the battery, there is the Bosch mounting kit for PowerTube 750Wh holder.
If you have any questions regarding compatibilty or availability, do not hesitate to contact us.
|Bosch System:||Bosch Performance Line CX Gen4 Smart System (BES3)|
|Drive system:||Bosch drive|
|Item:||Bosch Mounting Base PowerTube 750|
|Scope of delivery:||1x Bosch mounting base PowerTube 750 incl. screws|
|Compatibility:||only for Bosch Smart System & PowerTube 750Wh|
|Mounting:||For mounting directly on the frame or on Bosch PowerTube mounting rail|
