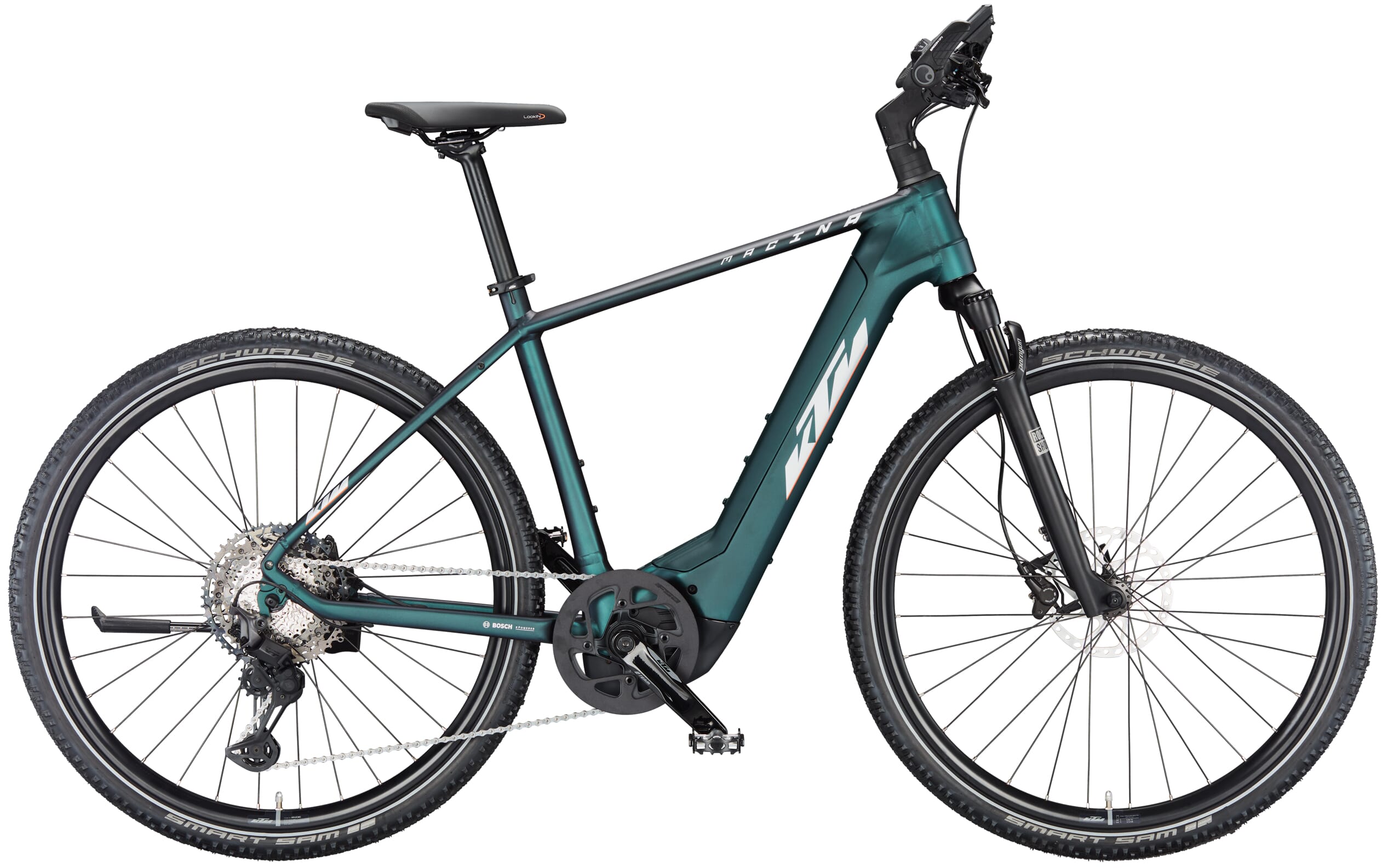

KTM Macina Cross 710 2024

4,299.00€   RRP 4,499.00€   (4.45% Saved)

Prices incl. VAT plus shipping costs

  • 8262-001
  • 1230100106 / 023350106
  • 9008594472020

Frame type:

Frame Size:

The Macina Cross 710 from KTM is a trekking bike that brings full off-road potential with it.... more

The Macina Cross 710 from KTM is a trekking bike that brings full off-road potential with it. Whether you're riding in the urban jungle or in the secluded countryside, you'll always be well on your way with this e-bike.


  • stable trekking offroad aluminum frame
  • powerful Bosch Performance CX Smart System drive, 85 Nm
  • Bosch Powertube battery with 750 lasts even the longest tours
  • clear Kiox 300 display
  • smooth RockShox Paragon Gold air suspension fork
  • Shimano Deore XT M8130 11-speed gears with a wide range of ratios
  • hydraulic Shimano brakes provide the necessary safety in every situation
  • grippy Schwalbe Smart Sam tires are suitable for virtually any surface

Only the best of everything

The combination of the latest Bosch Smart System technology, a powerful 750 Wh battery and the Bosch Kiox 300 display ensure long-lasting riding fun. The installed high-end components guarantee optimal shifting and braking performance and provide the extra safety. The Schwalbe Smart Sam tires, with their distinctive off-road tread and compact center bridge provide pleasant, low-vibration rolling behavior and particularly long durability.

Ebike24 recommends: The KTM Macina Cross 710 convinces with high-quality components that are reliable and allow use on virtually any terrain. A reliable partner for everyday use and beyond.

E-Bike Types: Cross e-Bikes, Trekking e-Bikes
Model year: 2023
Battery capacity: 700 Wh - 799 Wh
Drive system: Bosch drive
Manufacturer: KTM
Frame type: Ladies / Trapeze, Mens
Derailleur/drive type: Derailleur - chain drive
Bosch System: Bosch Performance Line CX from 2022 Smart System
Frame: Macina Trekking Offroad Aluminum 6061 PT750Wh Bosch Gen.4 / T-2930
Fork: RockShox Paragon Gold RL Air 65mm taper
Battery: Bosch PowerTube 750 Wh Smart System horizontal
Tyres: Schwalbe Smart Sam Perf. 47-622
Saddle: Selle Royal Lookin Athletic
Seat post: KTM Team 30.9/350
Item: KTM Macina Cross 710 2023
Colour: Green Purple Flip matt (silver+orange)
Model year: 2023
Stem: KTM Line 20° internal
Display: Bosch Kiox 300
Side stand: KTM 28" adjustable
Wheels: front: KTM Line - Shimano Deore M6000 CL 32H 100-5QR Ryde Rival Sport 32H 622x25C DT Champion 2.0 black | rear: KTM Line - Shimano UR600 CL 32H 135-5QR Ryde Rival Sport 32H 622x25C DT Alpine II 2.34 black
Spring travel: 65 mm
Grips: Ergon GP30 SD with Barend
Motor: Bosch Performance CX Gen.4 Smart System - 85 Nm
Headset: Acros AICR internal 1.1/8"-1.5" angle limit
Pedal: MTB-Pedal VP-195E Aluminum
Wheel size: 28"
Handlebar: KTM Team low rizer 640mm
Crank: KTM E-TEAM ISIS 170mm Q16
Cassette: Shimano LG400-11 / 11-50
Rear derailleur: Shimano Deore XT M8130-11 LG shadow+
Chain: KMC e11 Sport EPT e-bike
Shift lever: Shimano Deore XT M8130-11 LG
Charger: Bosch Smart System Standard Charger - 4A
Disc brakes: Shimano RT64 CL 180 / EM600 CL 160
Control unit: Bosch LED Remote
Brake: Shimano MT402 (3-F) / MT420 4-Piston
GPS: No - Bosch ConnectModule Ready
