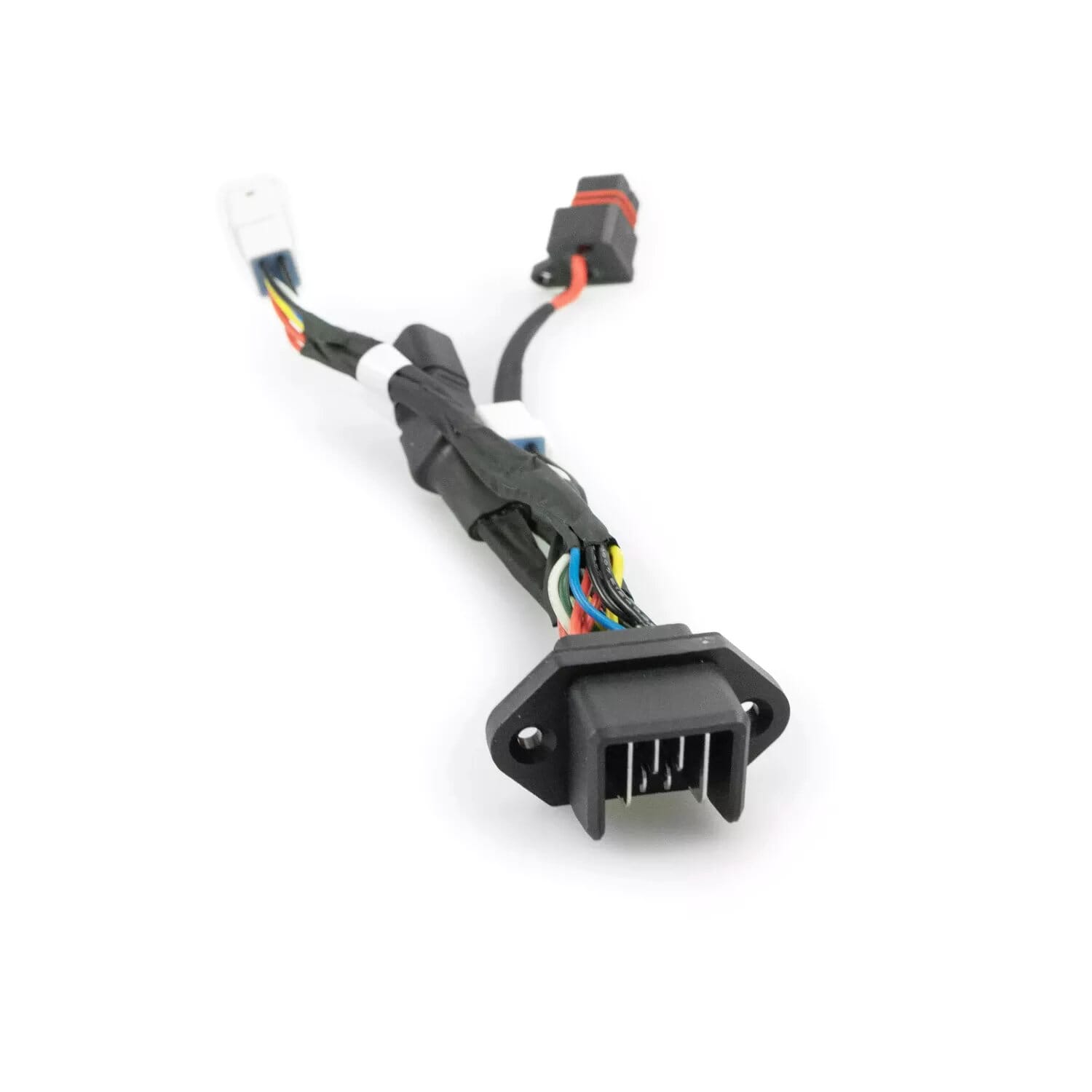

With the Pinion battery harness for range extenders, you not only connect the motor, display and charging port to the battery, but also couple your connection for the range extender. The main motor cable has a total of 5 connectors for this purpose. The Pinion battery cable is available in two versions: one with a short charging port cable and range extender connection and one with longer connection cables.
Features of the Pinion motor wiring harness for range extenders
Main power cable for eBike system
1x FIT battery terminal (battery)
1x JST JWPF 8-pin male (charging socket)
1x JST JWPF 6-pin female (display)
1x Pinion power plug (motor)
1x WW power plug male (range extender)
Note: Please use the simple Pinion MGU battery harness on eBikes with Pinion drive without the option of connecting an additional battery. If you are unsure, please contact our customer service.
Specifications
Manufacturer:
FIT E-Bike System, Pinion
FIT E-Bike System Integration:
FIT 2.0
Drive system:
Pinion Drive
Pinion Drive System:
Pinion E1.12 MGU
Item:
Pinion MGU battery harness for range extender
Scope of delivery:
1x Pinion MGU battery harness for range extender
Colour:
black
Compatibility:
eBikes with Pinion MGU drive with range extender option
Maker's ref. no.:
Short wiring harness: 501033 | long wiring harness: 501426
Cable length:
short cable harness: to motor - 200 m, to charging port - 160 mm, to display cable - 70 mm, to range extender 120 mm | long cable harness: to motor - 1,100 m, to charging port - 740 mm, to display cable - 800 mm, to range extender 380 mm
