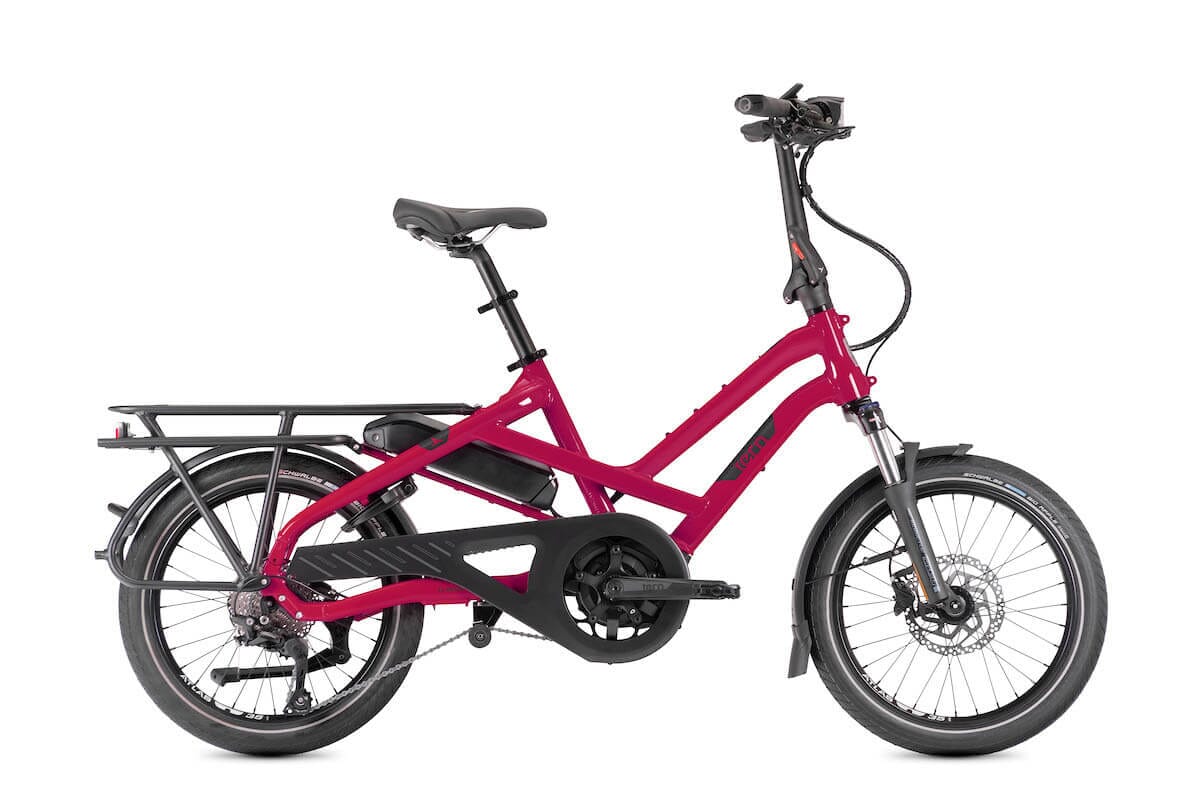

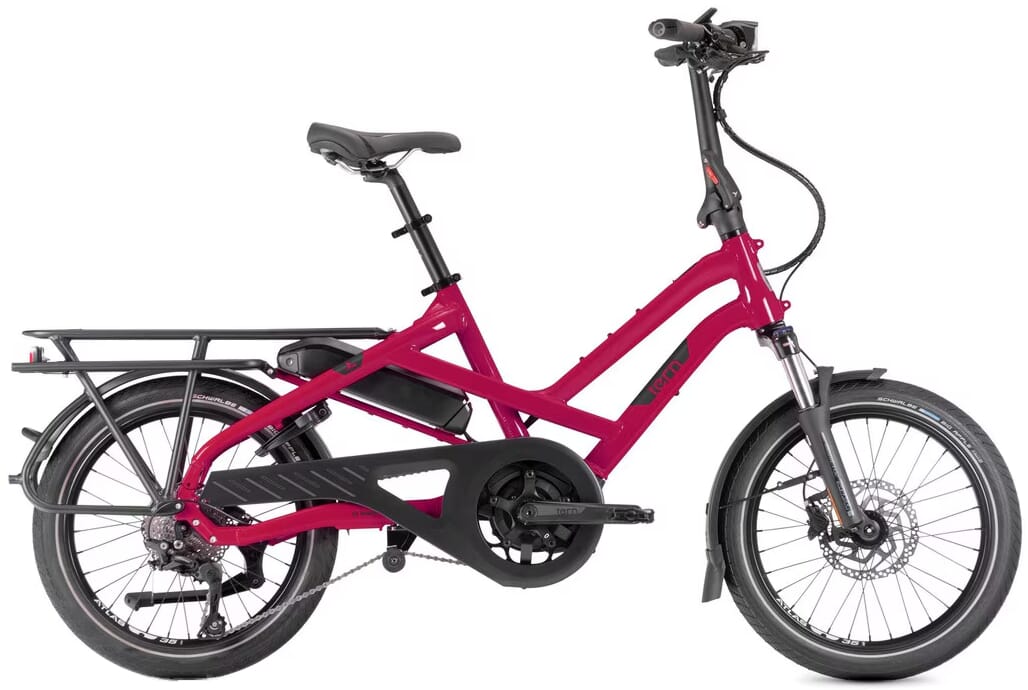

Capacities of a cargo bike and the easy handling of a compact eBike at the same time - that is what new TERN HSD P10 promises. Slightly shorter than a normal bike, it can still carry a total load of up to 180 kg and is one of the safest eBikes on the market thanks to high-quality equipment and countless laboratory tests.
Features of the Tern HSD P10
- 4th generation Bosch Performance Line drive with Smart System
- up to 75 Nm torque
- supports the pedal force by up to 340%
- detachable, intuitive Intuvia 100 display
- 1x10-speed Shimano Deore derailleur with Rapidfire shifter
- 545Wh battery for up to 121 km range
- Approved load limit at 180 kg
- Smart System functions controllable via Bosch eBike Flow app
Full control
Thanks to the Bosch eBike Flow app, you have full control over all Smart System functions - from software updates "over-the-air" to eBike Lock, the selection of individual drive modes, the display of a wide range of information about the bike and communication with your specialist dealer.
Plenty of power - for practically everyone
The built-in Bosch PowerPack 545 battery can take you up to 121 km in optimal conditions, and thanks to the seat post and adjustable cockpit, riders from 150 to 195 cm tall can ride the HSD P10.
Ready for any feat of strength
The built-in Atlas luggage rack can carry a strong 80 kg and thus even an average adult. The frame and fork are EFBE-certified and can even shoulder a total weight of an incredible 180 kg.
E-Bike Types: | Compact & Folding E-Bikes |
Battery capacity: | 500 Wh or more |
Manufacturer: | Tern |
Derailleur/drive type: | Derailleur - chain drive |
Bosch System: | Bosch Performance Line from 2023 Smart System |
Frame: | Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE tri-test approved: 170 kg |
Fork: | Suntour custom made for Tern, 1.5" conical chromoly steerer, 32 mm stanchions, thru axle, EFBE tested to 170 kg |
Battery: | Bosch PowerPack 545 Wh |
Tyres: | Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 e-bike certification |
Brakes: | Magura MT4, hydraulic disc, 180 mm (front) 160 mm (rear) |
Saddle: | Tern Upright by Velo |
Seat post: | Tern Telescope, 34.9/30.9 mm, 2014-AL |
Carrier: | Atlas H Rack, Atlas Rack Mount, 6-point mounting |
Weight: | 24.6 kg |
Range: | 545 Wh: 51-121 km |
Display: | Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock |
Grips: | Ergon |
Rims: | Tern Atlas H, width 35 mm |
Motor: | Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US) |
Rear light: | Herrmans H-Trace, for eBike |
Front light: | Tern Valo Direct, 190 lumens |
Pedal: | Urban with non-slip surface |
Handlebar: | Tern, 6061-AL, Tern Andros adapted |
Crank: | Tern HSD custom |
Cassette: | Shimano 11-36T, 10 speed |
Chain: | KMC 10 speed, for eBike, EPT |
Shift lever: | Shimano Deore, 1 x 10 speed, trigger |
Charger: | 220V, 4A |
