Tern Orox S12 29" - 2024

6,799.00€

Prices incl. VAT plus shipping costs

  • 10049-001
  • 810067162937

Frame Size:

colour:

A cargo bike for off-road use? The Tern Orox S12 29" makes it possible. The Orox combines the... more

A cargo bike for off-road use? The Tern Orox S12 29" makes it possible. The Orox combines the usual versatility of Tern eBikes with unrivalled off-road capability. A new outdoor adventure awaits you around every bend. The 29" version of the Tern Orox offers a maximum total load of up to 210 kilograms and 180 kg for off-road use. Schwalbe Johnny Watts tyres specially developed for Tern, the Bosch Performance Line CX motor, Shimano Deore XT 12-speed gears and Magura MT5 4-piston brakes will take you wherever you want to go. Of course, the Orox S12 29-inch E-MTB cargo bike is also compatible with all kinds of practical Tern accessories - from child seats to panniers.

Features of the Tern Orox S12 29-inch e-MTB cargo bike

  • All-terrain e-cargo bike
  • Bosch Perf. CX 85 Nm motor
  • 800 Wh PowerPack battery + DualBattery option
  • Bosch ConnectModule GPS tracker pre-installed
  • Max. permissible total weight 210 kg
  • Shimano Deore XT 12-speed gears

eBike24 recommends: The Tern Orox S12 29" is perfect for families looking for an outdoor experience off the beaten track.

Specifications
E-Bike Types: Cargo E-Bikes, E-Mountainbike (e-MTB), Hardtail E-MTB, SUV E-Bike
Model year: 2024
Battery capacity: 800 Wh - 899 Wh, Dual Battery compatible
Drive system: Bosch drive
Manufacturer: Tern
Frame type: Unisex
Derailleur/drive type: Derailleur - chain drive
e-bike load capacity: more than 150 kg
Bosch System: Bosch Performance Line CX from 2022 Smart System
Battery option: Dual Battery compatible
Battery position: Down tube battery / semi-integrated, Seat tube battery / semi-integrated
Frame: Tern Orox - Aluminium
Fork: Atlas X

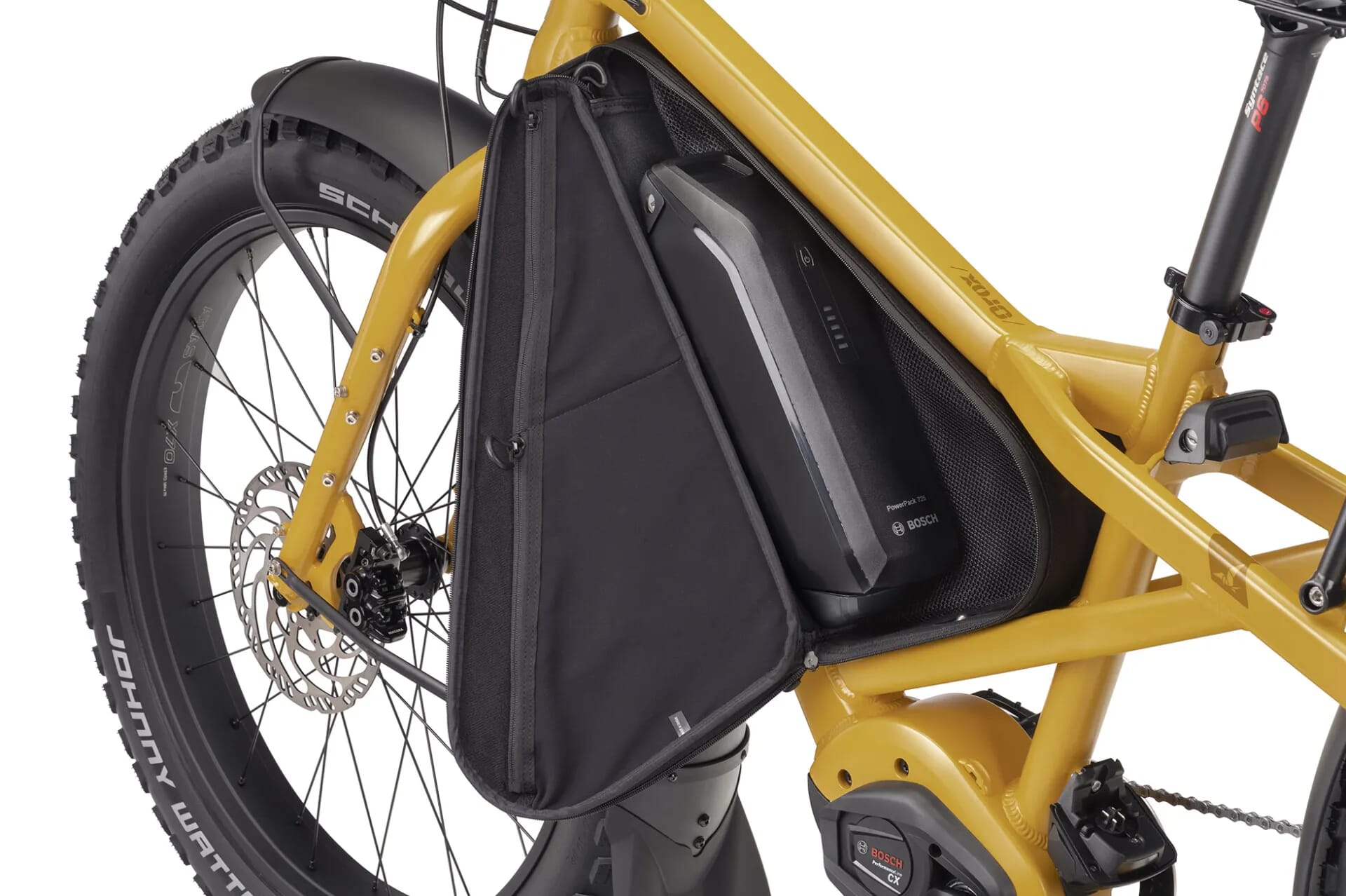

Battery: Bosch PowerPack 800 Wh
Tyres: Schwalbe Johnny Watts 29" x 2.6"
Saddle: Ergon SM, E-Mountain Sport
Seat post: Syntace P6 AL7050, 34.9 mm

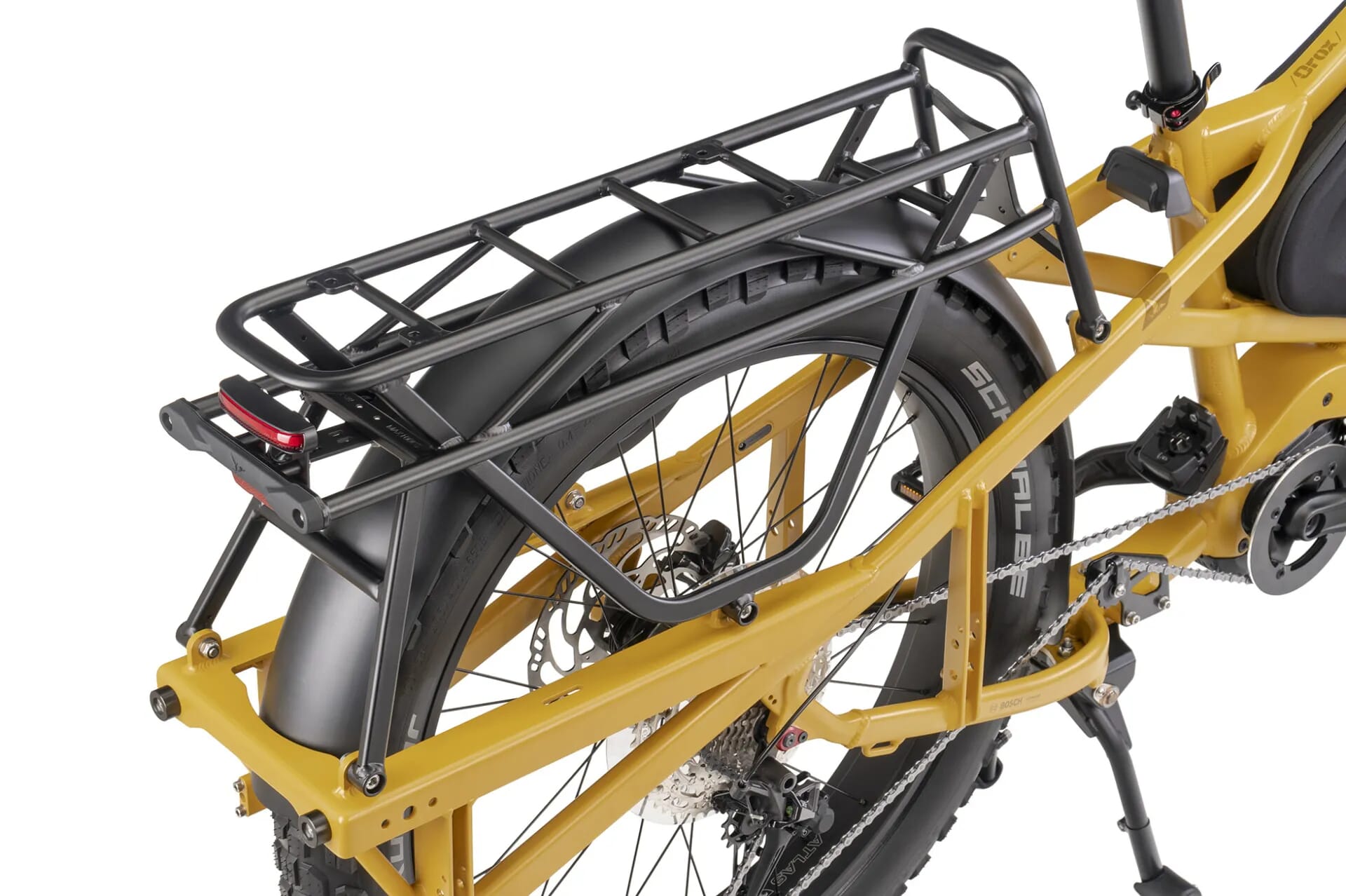

Carrier: Atlas X loadable up to 100 kg
Weight: Size M: approx. 34.4 kg
Item: Tern Orox S12 29" - 2024
Colour: satin highland yellow | satin pine green
Stem: Level Nine, 45 mm (M), 65 mm (L)

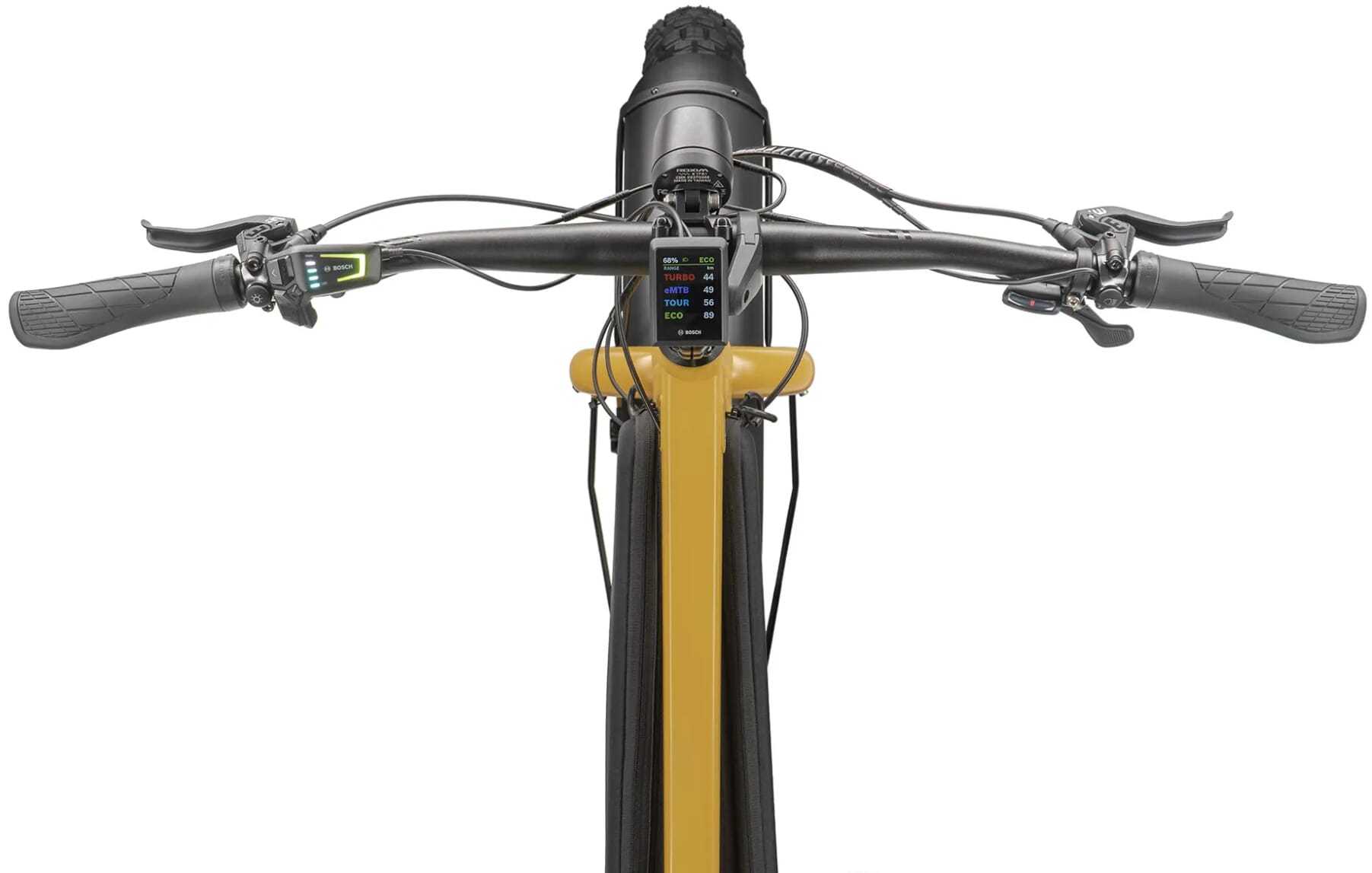

Display: Bosch Kiox 300
Mudguard: Aluminium heavy duty mudguards
Saddle clamp: 34.9 mm
Grips: Ergon
Rims: Tern Atlas X
Motor: Bosch Performance Line CX Smart System - 85 Nm
Rear light: LED rear light with brake light
Front light: Ignis Headlight, Ultra wide 700 Lumen
Pedal: MTB pedals
Front hub: Tern Atlas X, Boost Thru-Axle with integrated Tern tool
Rear hub: Tern Atlas X, Boost Thru-Axle, Syntace X-12 standard
Wheel size: 29"
Handlebar: Level Nine, AL-7050, 800 mm
Permissible total weight: 210 kg / 180 kg for off-road use
Crank: Tern Orox
Cassette: Shimano 10-51T
Rear derailleur: Shimano Deore XT Shadow+ 12-speed
Chain: KMC 12 spd eBike chain
Shift lever: Shimano Deore
Charger: Bosch Standard Charger 4A
Stand: Atlas Kickstand XL
Brake lever: Magura MT5
StVZO approval: Yes
Battery capacity: 800 Wh with DualBattery up to 1,600 Wh
Disc brakes: 203 mm
Control unit: Bosch LED Remote
Brake: Magura MT5 4-piston disc brake
GPS: yes - Bosch ConnectModule
Bosch E-Bike System: Bosch Smart System
