Haibike AllTrail 3 - 2023

4,299.00€

Prices incl. VAT plus shipping costs

  • 7873-001
  • 45300330
  • 4054624143694

colour:

Frame Size:

With the 2023 Haibike AllTrail 3 , you can roll over the trails in complete relaxation, because... more

With the 2023 Haibike AllTrail 3, you can roll over the trails in complete relaxation, because this full-suspension E-MTB offers sporty handling as well as powerful Yamaha PW-S2 drive power. A frame geometry specially tuned for off-road (29 inch wheel in the front/ 27.5 inch wheel in the rear) ensures the perfect riding position for your trails.

FEATURES OF THE HAIBIKE ALLtrail 3 - 2023

  • Aluminium frame with 29"/27.5" wheels
  • Yamaha PW-S2 drive system with 75 Nm
  • 750 Wh Intube battery and Yamaha Side Switch Display
  • SR Suntour XCR34 air suspension fork with 140mm travel
  • Shimano Deore 10-speed gears
  • Shimano MT401 disc brakes, 203mm discs
  • Schwalbe Nobby Nic, 60-622 / 65-584 tyres

E24 recommends this eBike for: Whether it's crossing the Alps, the home trail on your local mountain or an extended cross-country tour, with the AllTrail 3 you are equipped for any surface!

Specifications
E-Bike Types: E-Mountainbike (e-MTB), Fully e-MTB
Battery capacity: 700 Wh - 799 Wh, Dual Battery compatible
Drive system: Yamaha drive
Manufacturer: Haibike
Frame type: Mens
Derailleur/drive type: Derailleur - chain drive
Battery option: Dual Battery compatible
Yamaha System: Yamaha PW-S2
Frame: aluminum, thru axle M12 (1.75) x 148 mm, disc brake post mount
Fork: SR Suntour XCR34 Air LO-R Boost, air, aluminum shaft 1 1/8 - 1 1/2'' tapered, thru axle Boost
Battery: 750 Wh Intube battery
Tyres: front: Schwalbe Nobby Nic Performance, 60-622 |rear: Schwalbe Nobby Nic Performance, 65-584
Saddle: Selle Royal Vivo
Seat post: Haibike components TheSeatpost, 31.6 mm, aluminum
Item: Haibike AllTrail 3 - 2023

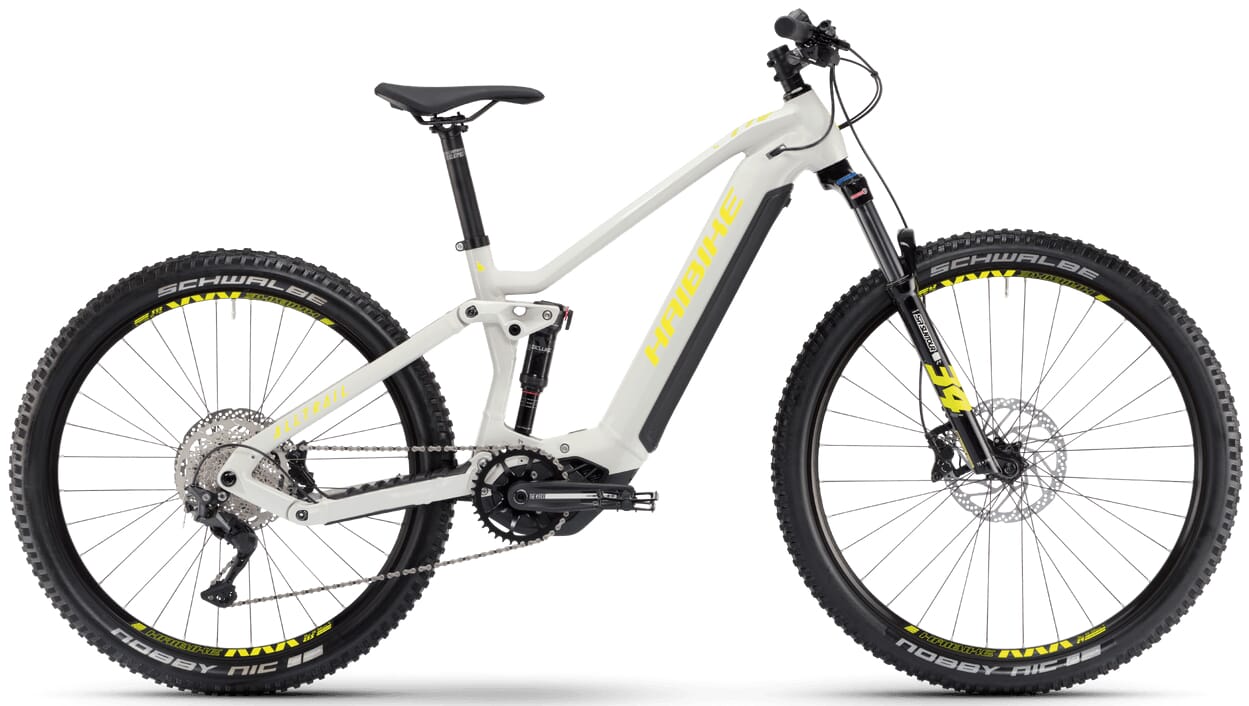

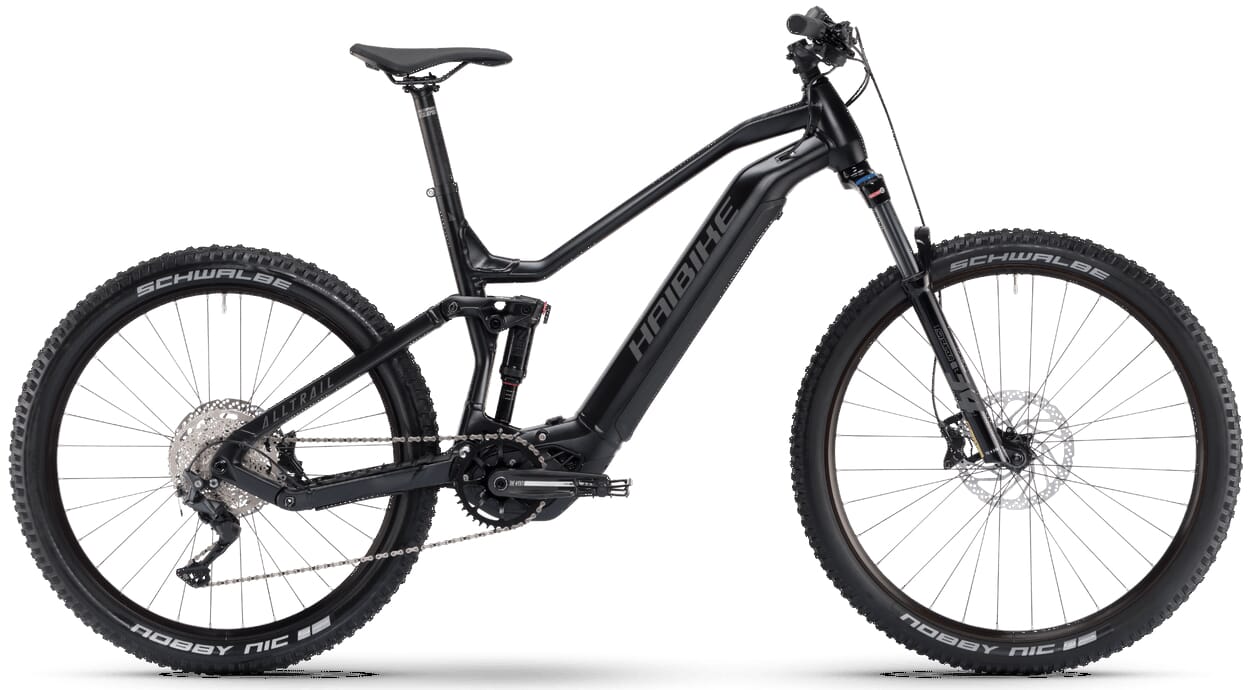

Colour: black ink/ titanium | light warm gray/ neon yellow
Model year: 2023
Stem: aluminum, a-head
Display: Yamaha Side Switch
Damper: RockShox Deluxe Select Plus, air
Spring travel: 140 mm
Grips: Haibike MTB grips
Headset: Acros BlockLock
Pedal: Freeride pedal aluminum, with reflector
Front hub: Shimano MT400-B
Rear hub: Shimano MT400-B
Wheel size: 29" / 27,5 - mixed
Handlebar: Haibike components TheBar 780 mm
Permissible total weight: 120 kg
Cassette: Shimano M4100, 11-46 teeth
Rear derailleur: Shimano Deore M5120, 10-speed
Chain: KMC e10S
Shift lever: Shimano Deore M6100, trigger shifter
Charger: 4A fast charger
Brake lever: Shimano MT401
Disc brakes: 203mm
Control unit: Yamaha Side Switch
Brake: Shimano MT420
