€7,399.00
% €7,899.00 (6.33% saved)
Home delivery (Germany) 26/03/2026 - 30/03/2026
Description

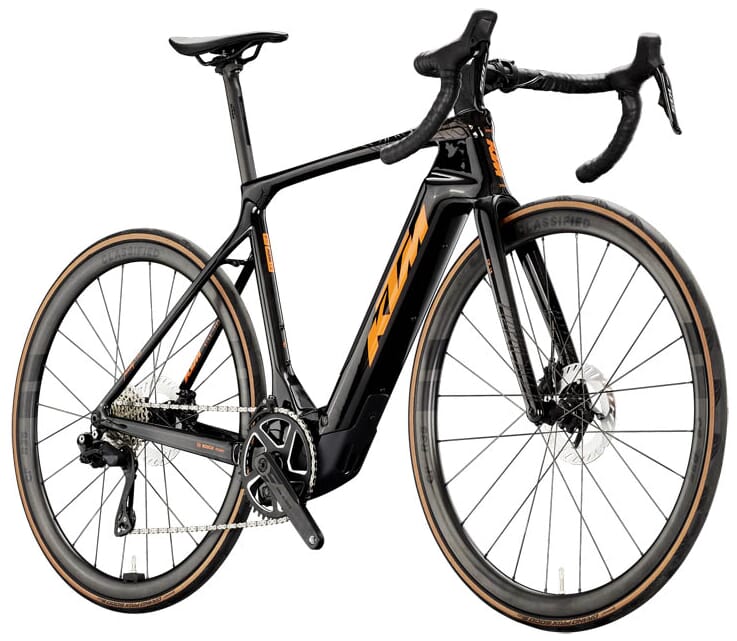

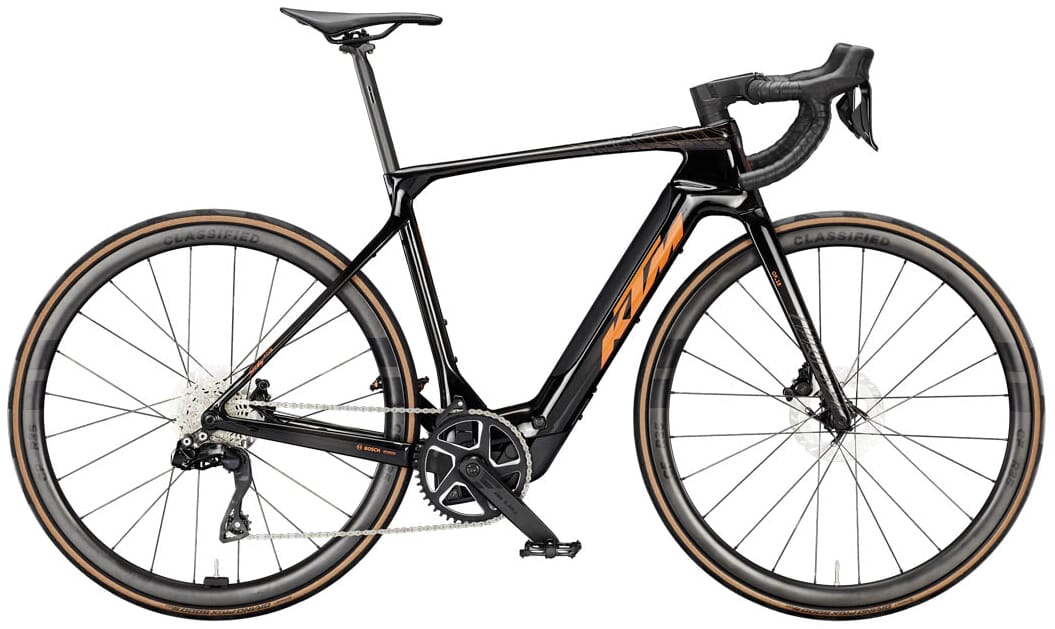

The KTM Macina Revelator SX Prime combines the worlds of road cycling and e-biking in a new dimension. KTM has merged powerful Bosch drive technology with high-performance road bike engineering. The result is an e-road bike with minimal weight for maximum speed and an extra dose of power for the steepest climbs. This is made possible by the compact Bosch Performance Line SX motor with a 400 Wh Intube battery and streamlined control elements. The premium carbon frame, finely crafted, ultimately transforms the KTM Macina Revelator into a fully-fledged racing machine.
Features of the KTM Macina Revelator SX Prime
- High-quality e-road bike
- Premium carbon Frame
- Bosch Performance Line SX motor – 55 Nm
- 400 Wh CompactTube battery
- Range Extender ready
- Minimal weight of under 14 kg
- Electronic Shimano 105 Di1 12-speed rear derailleur
eBike24 recommends: The KTM Macina Revelator SX Prime is the perfect choice for road cycling enthusiasts looking to expand their training options.
Properties
| Battery: | Bosch CompactTube 400Wh SMART SYSTEM |
|---|---|
| Battery capacity: | 400 Wh - 499 Wh, Dual Battery compatible |
| Battery option: | Dual Battery compatible |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line SX from 2024 Smart System |
| Brake: | Shimano 105 R7170 hydraulic |
| Cassette: | Classified 12S 11-32T |
| Chain: | Shimano M8100-12 |
| Chainring: | KTM aluminium 46T Direct Mount |
| Charger: | Bosch STANDARD Charger 4A SMART SYSTEM |
| Crank: | KTM E-RACE ISIS 170mm Q2 |
| Derailleur/drive type: | Derailleur - chain drive |
| Disc brakes: | Shimano CL800 CL 160 / 160 Freeza |
| Display: | Bosch Mini Remote Dropbar SMART SYSTEM |
| Drive system: | Bosch drive |
| E-Bike Types: | Road E-Bike |
| Fork: | Revelator Premium Carbon F15 |
| Frame: | Macina Revelator Premium Carbon UDH CPT 400Wh Bosch BDU31 / R-4310 |
| Frame type: | Mens |
| Grips: | KTM tape |
| Handlebar: | KTM Team II Road |
| Manufacturer: | KTM |
| Model year: | 2024 |
| Motor: | Bosch PERFORMANCE SX SMART SYSTEM - 25km/h / 55Nm |
| Pedal: | Wellgo C324DU |
| Permissible total weight: | 109 kg |
| Rear derailleur: | Shimano 105 Di2 R7150-12 shadow |
| Saddle: | FIZIK Antares Vento SAlloy |
| Seat post: | KTM Prime II Carbon 27.2/350 |
| Shift lever: | Shimano 105 Di2 R7170 |
| Tyres: | Continental G-Prix 5000 TL 28-622 |
| Weight: | 13.3 kg |
| Wheels: | Classified CF R35 29 CL |
