Description

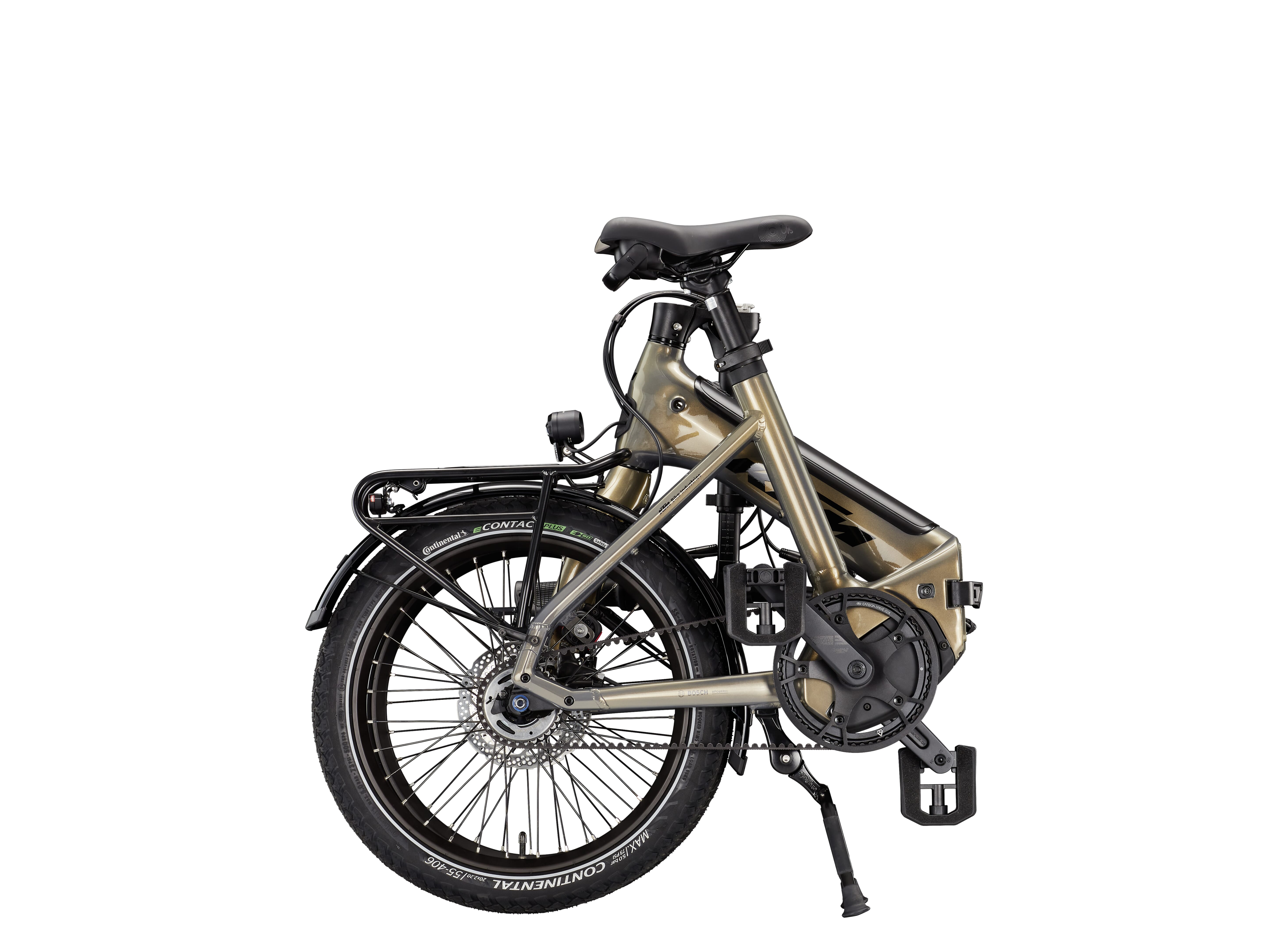

The KTM Macina Fold - 2026 is a compact, powerful and fully equipped city e-bike for anyone who wants to combine urban mobility with maximum flexibility. This high-quality folding bike combines innovative technology, low-maintenance components and a clever folding concept that makes everyday life noticeably easier. The stable Macina Fold 20" aluminium frame with integrated folding mechanism forms the basis for an electric bike that can be stowed away or transported in no time at all to save space - ideal for commuters, campers or city dwellers. The Bosch Performance PX motor in combination with the Bosch PowerTube 500Wh battery provides a powerful drive.
Features of the KTM Macina Fold - 2026
- KTM Macina Fold 20" aluminium frame
- Bosch Performance PX motor with 85 Nm
- Bosch PowerTube 500Wh battery
- Bosch LED Remote
- Shimano MT200 / MT200 2-piston brake
- Macina Fold 20" Alloy fork
Comfort and safety features of the KTM Macina Fold
The folding pedals from Ergotec, the folding KTM Banzai stem and the compact 20" wheels with Ryde DISC30 rims make the Macina Fold particularly suitable for everyday use and easy to transport. The Continental E-Contact Plus tyres with reflective strips ensure comfort, grip and visibility on all urban routes. The clever equipment package is complemented by hydraulic Shimano MT200 disc brakes - for controlled and safe braking behaviour in all weather conditions.
eBike24 recommends: The KTM Macina Fold is a powerful, compact e-bike with intelligent folding technology - the perfect solution for anyone who doesn't want to compromise on comfort, quality and maximum flexibility in urban areas.
Properties
| : | Front: Ryde DISC30 32H 406x30TC | Rear: Ryde DISC30 32H 406x30TC |
|---|---|
| Battery: | Bosch PowerTUBE 500Wh horizontal |
| Battery capacity: | 500 Wh or more |
| Battery position: | Intube battery / frame integrated |
| Bosch System: | Bosch Performance Line PX from 2025 Smart System |
| Brake: | Shimano MT200 / MT200 2-Piston |
| Carrier: | KTM Banzei snap-it 2.0/monkeyload rack clip |
| Cassette: | Gates rear-sprocket 30T |
| Chain: | Gates drive-belt 118T CDX |
| Chainring: | Gates CDX Fin Line Spider 55T |
| Charger: | Bosch STANDARD Charger 4A |
| Colour: | Olive Pearl (Black) |
| Crank: | KTM E-COMP2 ISIS 160mm 08 |
| Disc brakes: | Front: Shimano RT30 CL 160 | Rear: Shimano EM300 CL 160 magnet |
| Drive system: | Bosch drive |
| E-Bike Types: | Urban & City E-Bike |
| Fork: | Macina Fold 20" Alloy |
| Frame: | Macina Fold 20" Alloy 6061/T6300 |
| Front hub: | Shimano Deore M6000 CL 32H 100-5QR |
| Front light: | Litemove SEC-110 110Lux down |
| Grips: | Ergon GP1 short |
| Handlebar: | KTM Banzei 25.4 560mm |
| Headset: | KTM Banzei 1.1/8" |
| Item: | KTM Macina Fold - 2026 |
| Manufacturer: | KTM |
| Model year: | 2026 |
| Motor: | Bosch PERFORMANCE PX BDU3470 |
| Mudguard: | SKS B60 CAB City 20" |
| Pedal: | Ergotec EP-F folding pedal |
| Permissible total weight: | 125 kg |
| Rear hub: | Shimano Nexus 5 Disc CL 32H 135-10 |
| Rear light: | AXA Juno |
| Saddle: | Selle Royal Orbis |
| Saddle clamp: | Alloy Seat Post clamp Banzei |
| Seat post: | KTM Banzai 34/400 |
| Shift lever: | Shimano Nexus 5 Revoshifter |
| Side stand: | Atran Velo two-legged centre stand |
| Spokes: | Front: DT Champion 2.0 black | Rear: DT Alpine II 2.34 black |
| Stem: | KTM Banzei 12° folding |
| Tyres: | Front: Continental E-Contact Plus 55-406 Reflex | Rear: Continental E-Contact Plus 55-406 Reflex |
