€58.90
% €67.90 (13.25% saved)
No longer available
Description

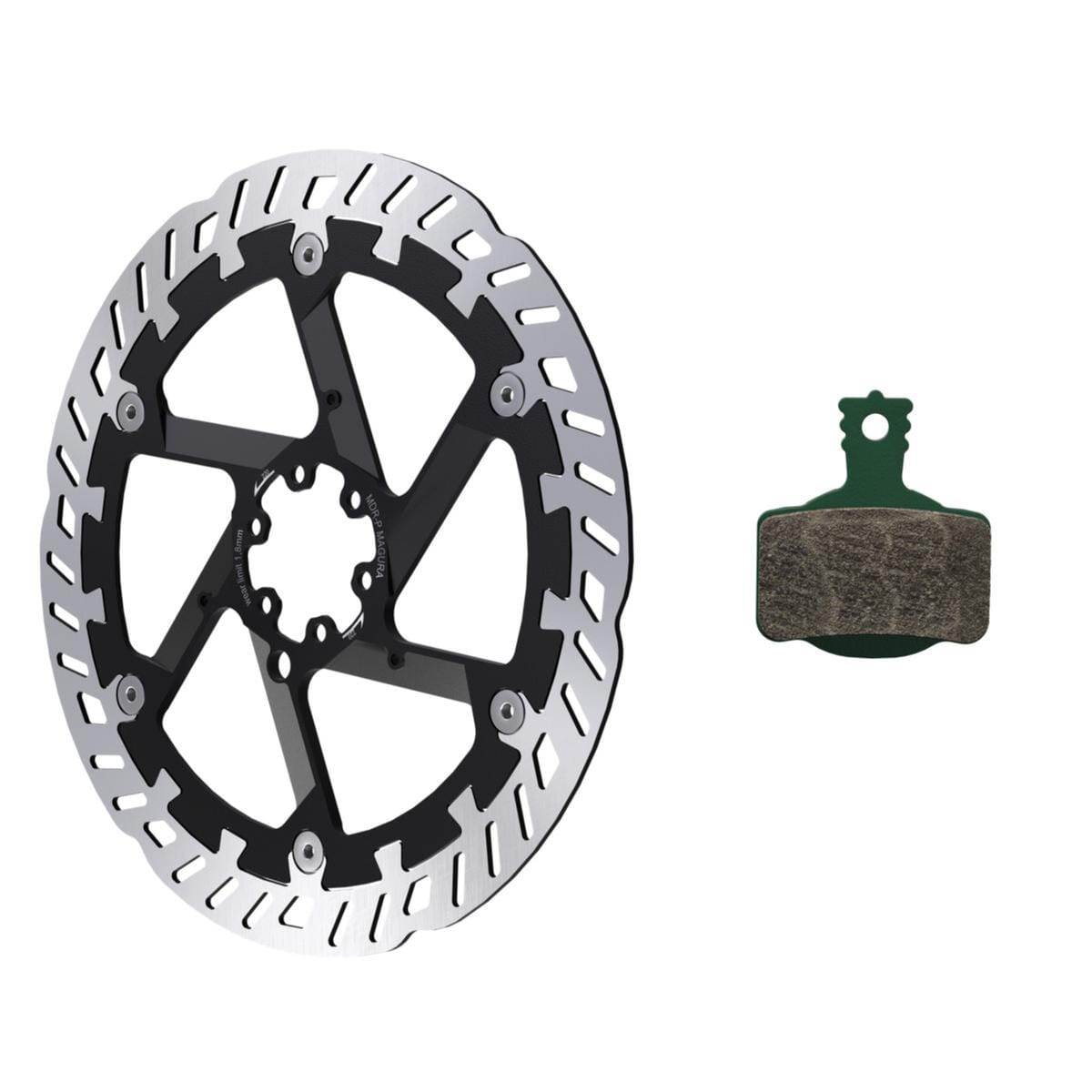

The MAGURA MDR-P brake disc was specially developed for higher braking loads in the eBike and Gravity range. The patented MAGURA Dovetail Interlink technology is a particularly impressive feature of the brake disc. The special interlocking of the outer and inner ring is of great importance. When the outer ring expands due to heat, the inner ring provides additional support. Thus, the torque is transmitted over the entire surface instead of only over the rivets. Ultimately, this ensures increased stiffness of the brake disc and particularly direct heat dissipation under continuous load.
The brake disc is compatible with the complete Magura MT series.
Note: The 6-hole brake discs are not compatible with Centerlock adapters!
The newly developed MAGURA sports pad is designed exactly for the requirements of eBikes. With the new pad compound, a high braking force, less wear and a short braking time have been realised.
The MAGURA brake pad 7.S is compatible with 2-piston MT disc brakes.
Note: Please check whether there is a manufacturer's approval for the corresponding brake disc size for your fork or frame. This applies in particular to the Ø 220mm brake disc.
Which MAGURA adapter do I need?
| Disc | Ø 140 mm | Ø 160 mm | Ø 180 mm | Ø 203 mm | Ø 220 mm |
| Fork | |||||
| IS | QM 43 | QM 12 | QM 5 | ||
| PM 6" | direct | QM 40 | QM 42 | ||
| PM 7" | direct | QM 44 | QM45 | ||
| PM 8" | direct | ||||
| Rear wheel | |||||
| IS | QM 12 | QM 41 | QM 9 | ||
| PM 5" | direct | QM 40 | QM 45 | ||
| PM 6" | direct | QM 40 | QM 42 | ||
| PM 7" | direct | QM 44 | QM45 | ||
| PM 8" | direct |
Properties
| Brake disc diameter: | 220 mm |
|---|---|
| Brake disc mount: | 6-hole |
| Compatibility: | 2-piston MAGURA MT brakes |
| Item: | MAGURA MT eSTOP Optimised Kit MDR-P 220 - 7.S Pad |
| Item number: | 3000 |
| Maker's ref. no.: | 2702031 |
| Manufacturer: | Magura |
| Material: | Spider: aluminium, brake disc: steel |
| Model year: | 2020 |
| Scope of delivery: | 1 MAGURA MDR-P brake disc Ø 220, 6-hole Brake disc bolts 1 set of brake pads (4 single pads MAGURA 8.S, Sport) |
