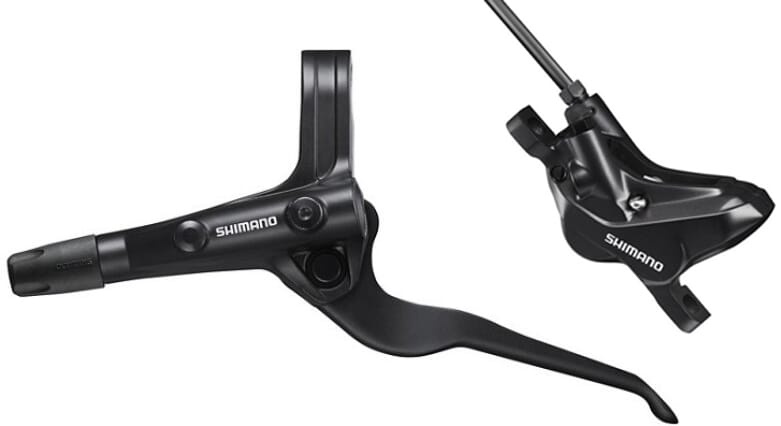

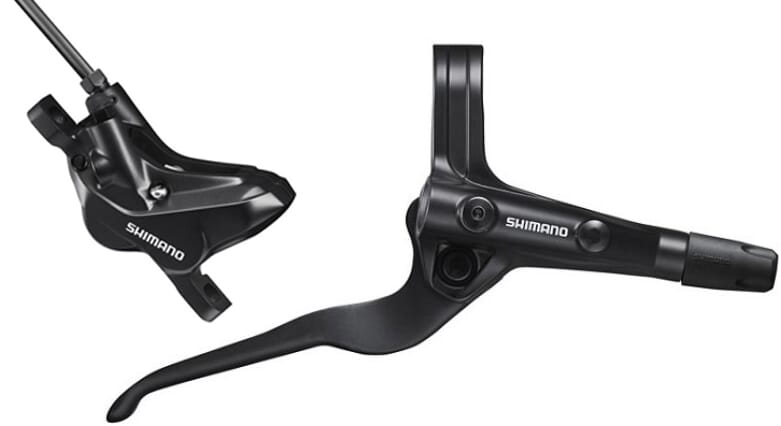

SHIMANO MT402-3/MT420 4-piston disc brake VR| HR

From 55.90€   RRP 105.95€   (47.24% Saved)

Prices incl. VAT plus shipping costs

  • 5044-001
  • EMT4023AEJLFPRA100
  • 4550170875206


The SHIMANO BL-MT402-3/BR-MT420 is a reliable and robust 4-piston disc brake at an... more

The SHIMANO BL-MT402-3/BR-MT420 is a reliable and robust 4-piston disc brake at an affordable price. Without group binding, it has features that guarantee a high level of braking performance. There are no limits to the use of this brake, from Cross Country to Enduro to Gravity and heavy eBikes. It also cuts a fine figure on trekking bikes.

The brake shines with 20% more braking power and at the same time 150% higher wear resistance compared to the 2-piston version BR-MT400. The brake lever with its slim design is equipped with a 3 finger brake lever, which is adapted to smaller hands. The lever is attached to the handlebar with a clamp.


  • Brake power through 4-piston
  • Ergonomic 3-finger brake lever
  • Fastening by clamp
  • Lever width adjustment
  • OneWay Bleeding


The disc brake system with double-diameter caliper design and counter-rotating pistons has different size pistons at the front and rear. The system incorporates a power transmission system in which the brake disc is pushed by the smaller piston at the entrance to the brake disc mount and also by the stronger, larger piston at the rear. This prevents the brake disc from vibrating and significantly reduces noise.
The four-piston caliper increases the contact area with the brake disc while its Size remains compact. The position of the pads is precisely tuned to stabilise the pressure. Moreover, in combination with the SERVOWAVE brake lever, an incredible 50% more braking power is achieved than with the previous model. The advanced disc braking system can be adapted to the braking habits of the driver and produces a consistent, excellently dosed braking force.

ONE WAY BLEEDING was developed to quickly and easily prevent air from entering the hydraulic system. We have optimised the brake fluid line path throughout the system to prevent air bubbles from becoming trapped in the system. The one-way flow of the mineral oil, together with the funnel for filling, allows for clean, trouble-free bleeding.

Manufacturer: Shimano
Item: SHIMANO MT402-3/MT420 4-piston disc brake VR | HR
Scope of delivery: 1x brake BL-MT402-3A/BR-MT420, filled and vented incl. connection material
Manufacturer: SHIMANO
Colour: Black
Maker's ref. no.: EMT4023AEKLFPRA100 | EMT4023AEKRRXRA170
Field of application: MTB | Trekking
Mounting: Postmount brake caliper
Brake lever: BL-MT402-3A - 3 fingers | Aluminium
Mounting side: Front | rear
brake lever: Aluminium
Brake caliper: Aluminium 2-piece
Brake pads: D03S Resin | D02S Metal
Brake fluid: SHIMANO mineral oil
Cable/Length: SM-BH90-SS | 1,000 mm | 1,700 mm
Cable connection: Straight
Lever-width adjustment: Yes, with tool
Functionality: Hydraulic
EAN: 4550170530563 | 4550170530594
Ventilation: One Way Bleeding
Material brake piston: Resin (plastic)
Servo Wave: No
Free travel setting: No
