Yamaha low voltage plug connector for Haibike SDURO and XDURO light cable

Yamaha
Preview: Yamaha low-voltage plug connector for Haibike SDURO and XDURO light cable 1 Preview: Yamaha low-voltage plug connector for Haibike SDURO and XDURO light cable 2 Preview: Yamaha low-voltage plug connector for Haibike SDURO and XDURO light cable 3
Yamaha low-voltage plug connector for Haibike SDURO and XDURO light cable 1
Yamaha low-voltage plug connector for Haibike SDURO and XDURO light cable 2
Yamaha low-voltage plug connector for Haibike SDURO and XDURO light cable 3

4.90€

Prices incl. VAT plus shipping costs

  • Item number: 4144
  • Manufacturer Part Number: 02R-JWPF-VSLE-S
  • EAN: 2050001028952

Delivery time to Germany 1-3 business days

Description Reviews 0
Close menu

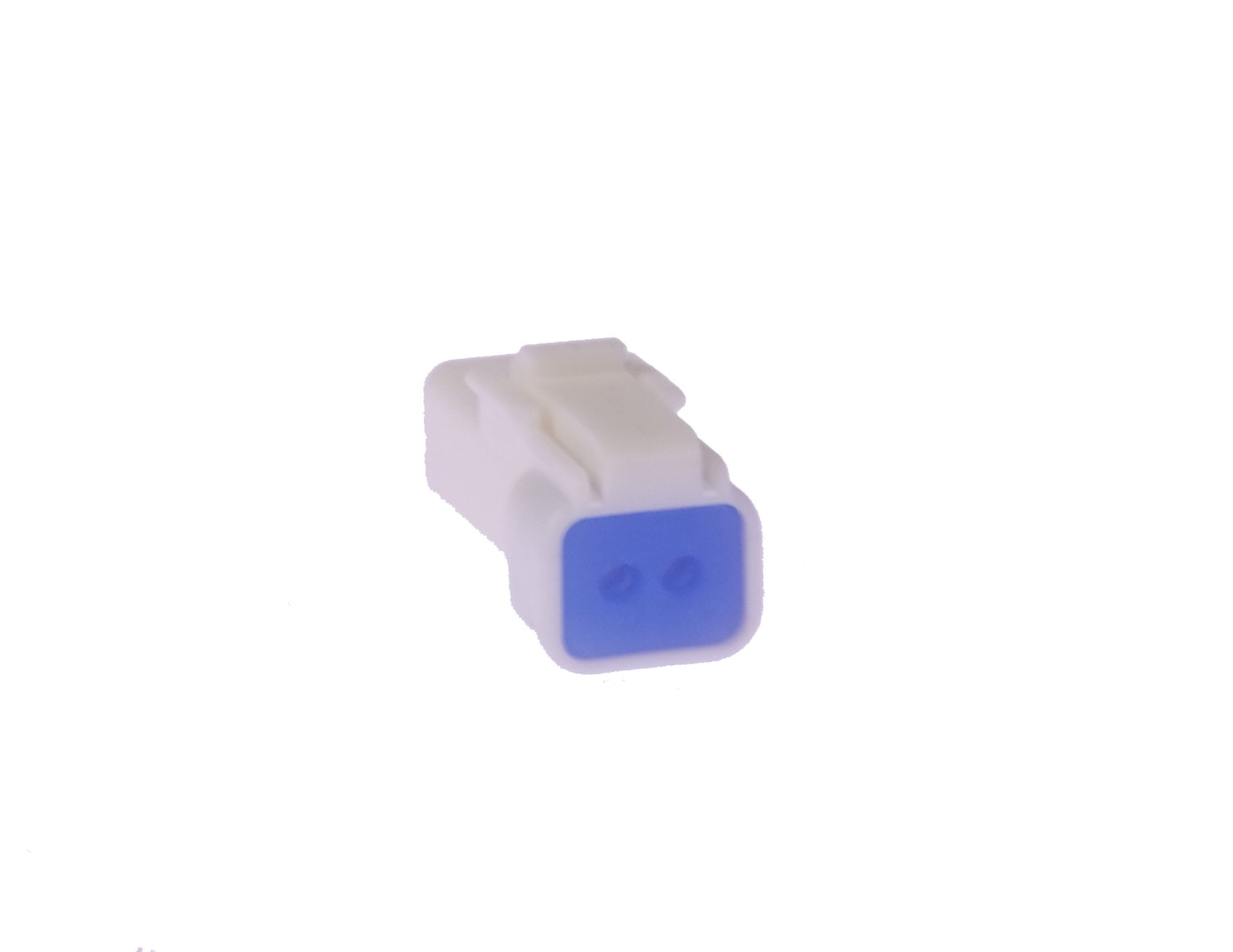

The plug is used to connect the light cable (front or rear light) and the Yamaha Y-cable. The snap-in bar on the housing allows an audible click when plugged. The housing and the crimp contact is a 2-point contact system.

  Housing Crimp contact
Manufacturer part no. 02R-JWPF-VSLE-S BWPR-001T-P0.25
EAN 2050001028952 2050001028983
Design Socket, straight Socket, straight
Rated current 3 A 3 A
Profile 0.13 - 0.33 sq. mm 0.13 - 0.33 sq. mm
Material Polyamide Phosphor bronze
Color nature silver
L x W x H 16.5 x 6.7 x 5.5 mm 15.2 mm
Contact finish   Tinned
Brand JST JST

If you have any questions regarding compatibilty or availability, do not hesitate to contact us.

Specifications
Manufacturer: Yamaha
Item: Yamaha low-voltage plug connector for Haibike SDURO and XDURO light cable
Scope of delivery: 1 x housing for pin contacts + 2 x pin contacts
Manufacturer: JST
