Prices incl. VAT plus shipping costs
- Item number: 3543
- Manufacturer Part Number: U-MINI2LDM-BLK
- EAN: 4260224791290
Delivery time to Germany 6-7 business days

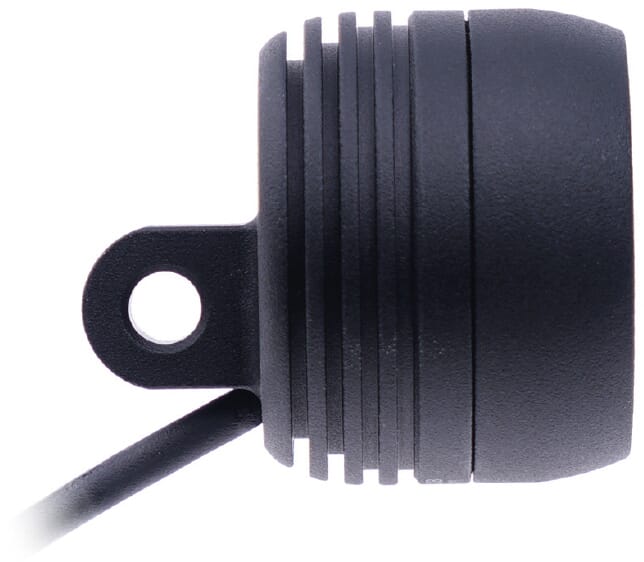

Supernova Mini 2 LDM - The classic in the 2nd generation with 235 lumens
The Mini 2 headlamp is another example of Supernova's continuous development - in this case the latest electronics in a record-breaking small housing which can be perfectly and elegantly integrated into the cockpit thanks to the new Low Direct Mount. Now voltages from 5 to 21 volts can be processed, which makes the headlight compatible with most drives. A special highlight is the soft-start function, which means that the headlamp can also be operated with those drives that react sensitively to high starting currents. At the same time, this improves the service life and brightness stability of the LED bulb. That is why Supernova gives a 5-year guarantee on the Mini 2. The front light does not have a switch. Instead, it is conveniently operated via the control unit of the e-bike.
The Mini 2 is equipped with an Automotive Power LED as well as a Terraflux 4 lens, which gives you the necessary attention in road traffic even in adverse conditions. At night, this combination guarantees optimal, uniform illumination in front of the bike, but also excellent illumination of the surroundings.
Note: Please order the matching bracket and connection cable (manufacturer-dependent) separately!
Features of the Supernova Mini 2 LDM:
- 235 lumens
- Automotive Power LED
- Terraflux 4 lens
- Input voltage - 5 V -21 V
- 6061 aluminium
- approx. 55 g (without bracket)
- Integrated daytime running light
- Low direct mount bracket for optimised mounting position
- Soft start function
- operation on the e-bike
- 35.5 x 41 x 41 mm
- StVZO (German Road Traffic Licensing Regulations) approval
- 5 years warranty
Terraflux lens and daytime running light
The Terraflux lens is a milestone in optical development. No other lens of this size produces such bright and uniform illumination on the road and at the same time has such good ambient illumination above the cut-off line. With the Terraflux lens, you are noticed in traffic and yet do not dazzle oncoming traffic. Thanks to sophisticated light control, the Terraflux lens directs 90% of the light to where it is needed most: onto the road. There it forms a broad and even carpet of light that reaches from the front wheel far into the distance. The permanent daytime running light calculated into the lens ensures very good visibility of the driver in traffic during the day. At night, this light component is used for excellent ambient illumination and warns of low-hanging branches on the trail.
"The German-made Terraflux lenses and M99 Matrix reflectors are the products of years of research and development - true masterpieces of engineering! The quality of a headlamp stands or falls with the quality of its optical elements. That's why we invest a lot in perfecting these key components. Our developers meticulously evaluate thousands of computer simulations to create optical systems with the best possible light pattern. Only high-purity materials are used in manufacturing and the final quality is controlled with microscopic precision."
Tested beyond the norm
"With us, you can be sure that you will reach your destination safely. Our light systems will not let you down, whether in everyday life or in extraordinary situations. To do this, we go beyond the standard tests that are common in the cycling industry and simulate even the most adverse conditions, so that no matter how, where or when, you can always count on your Supernova product. Every year we develop more demanding and tougher tests to make our products even more robust. The bottom line is that our lighting systems are not only powerful, efficient and high quality."
"The issue of sustainability is one of the most important pillars of our company. Protecting the environment is very close to our hearts. Our core values are based on this and are an integral part of everything we do. We strive to make today's earth and that of our children a better and cleaner place. By trying to encourage people to cycle and by making it more attractive and safer through our products, we want to promote sustainability and contribute to a better future. Our goal is to inspire our colleagues, friends, customers and business partners to follow our example. It is also important to be creative and realise every optimisation. Every contribution counts!"
Note: You can find a complete compatibility list for the popular drives here.
|Bosch System:||Bosch Active Line 2014 - 2017, Bosch Active Line Plus 2018 - 2023, Bosch Cargo Line 2020 - 2022, Bosch Cargo Line Speed from 2020, Bosch Performance Line 2014 - 2018, Bosch Performance Line 2018 - 2023, Bosch Performance Line CX 2016 - 20019, Bosch Performance Line CX 2020 - 2022, Bosch Performance Line Speed 2014 - 2020|
|Flyon / TQ System:||FlyOn HP120S 48 Volt|
|Yamaha System:||Yamaha PW-Sport, Yamaha PW-ST, Yamaha PW-TE, Yamaha PW-X, Yamaha PW-X2|
|Power source:||eBike battery|
|Impulse / Xion System:||Impulse 2.0, Impulse Evo, Impulse Evo Next, Impulse Evo RS, Xion HR Motor|
|Shimano System:||Shimano E8000, Shimano Steps E5000, Shimano Steps E6100, Shimano Steps E7000 (E-MTB)|
|Continental System:||Continental 48 V Prime, Continental 48 V Revolution|
|Supply voltage :||6 Volts, up to 12 Volts|
|Light mounting position:||Fork, Handlebar|
|Drive system:||BionX drive, Bosch drive, Brose drive, Continental drive, FlyOn drive, Giant drive, Impulse drive, Shimano drive, Xion drive, Yamaha drive|
|Giant SyncDrive System:||Giant SyncDrive Pro, Giant SyncDrive Sport|
|Item:||Supernova MINI 2 LDM E-25 - K1371|
|Scope of delivery:||1 x Supernova MINI 2 LDM - E-25 (without holder) incl. connection cable 1450 mm|
|Measurements:||LxWxH - 35.5 x 41 x 41 mm|
|Voltage input:||5-21 Volt DC|
|Specifications:||Low beam, integrated daytime running light, soft start, low direct mount bracket|
|Maker's ref. no.:||U-MINI2-LDM-BLK|
|Light output:||235 Lumen|
|Item weight:||55g without holder (manufacturer's specification)|
|Light sources:||1 x Automotive Power LED|
|Lens type:||Terraflux 4|
|StVZO approval:||for Pedelecs up to 25 km/h (K-Number)|
