Tern Orox R14 - 2024


Prices incl. VAT plus shipping costs

  • 10057-001
  • 810067162906

Frame Size:

The Tern Orox R14 is the perfect eBike for all globetrotters, cycle touring enthusiasts and... more

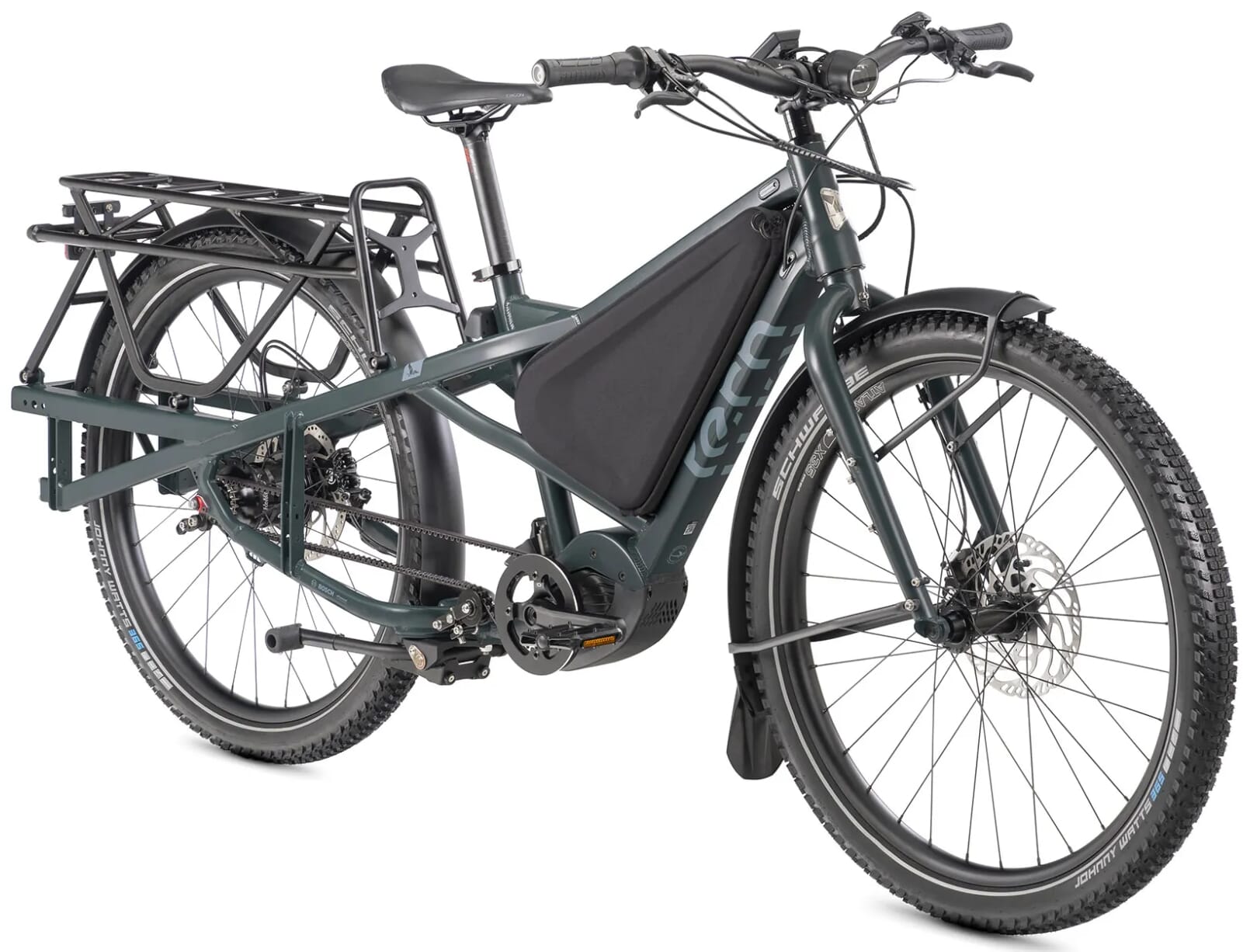

The Tern Orox R14 is the perfect eBike for all globetrotters, cycle touring enthusiasts and outdoor fans. No route is too far or too remote not to discover with the Orox. The unique frame is as robust as an e-mountainbike and carries as much luggage as an e-cargo bike. Countless mounting options and suitable accessories make it possible to transport equipment, children or even bicycles. The Bosch Performance Line CX motor with its 85 Nm has enough power for even the steepest of climbs. With power from up to two PowerPack 800 Wh batteries, adventures can never be long enough. The Tern Orox R14 is rounded off with a virtually maintenance-free combination of Gates CDX belt and Rohloff hub gears.

Features of the Tern Orox R14 E-MTB cargo bike

  • Outstanding E-cargo bike with MTB qualities
  • Bosch Performance CX motor - 85 Nm
  • Bosch PowerPack 800 Wh - expandable by up to 800 Wh
  • 210 kg permissible total weight

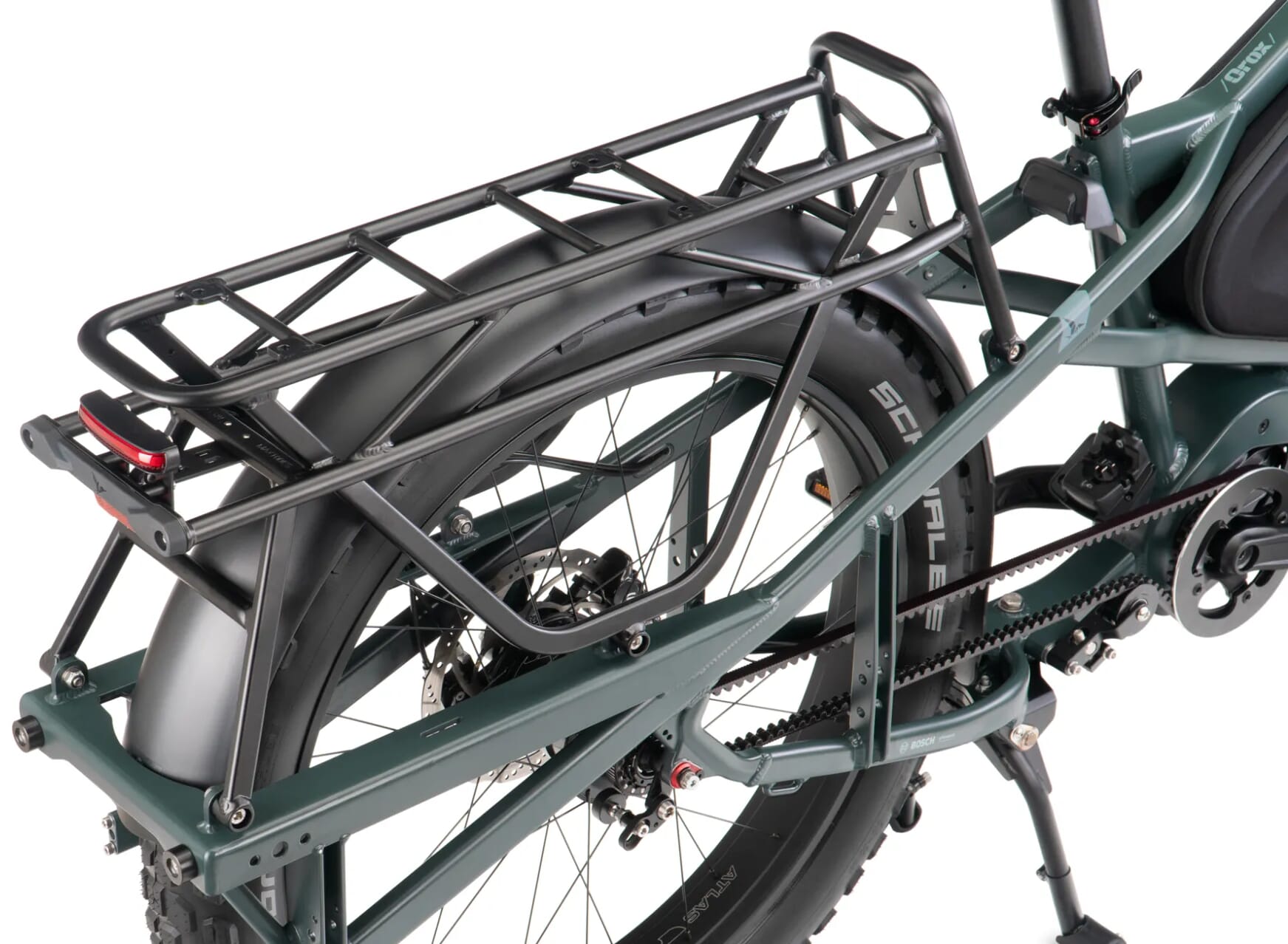

  • Gates CDX belt drive
  • Rohloff Speedhub 14-speed hub gears

eBike24 recommends: If you are looking for uncompromising reliability and versatility for everyday use, world travel and adventure, there is no better answer than the Tern Orox R14.

E-Bike Types: Cargo E-Bikes, E-Mountainbike (e-MTB), Hardtail E-MTB, SUV E-Bike
Model year: 2024
Battery capacity: 800 Wh - 899 Wh, Dual Battery compatible
Drive system: Bosch drive
Manufacturer: Tern
Frame type: Unisex
Derailleur/drive type: Hub gear - belt drive
e-bike load capacity: more than 150 kg
Bosch System: Bosch Performance Line CX from 2022 Smart System
Battery option: Dual Battery compatible

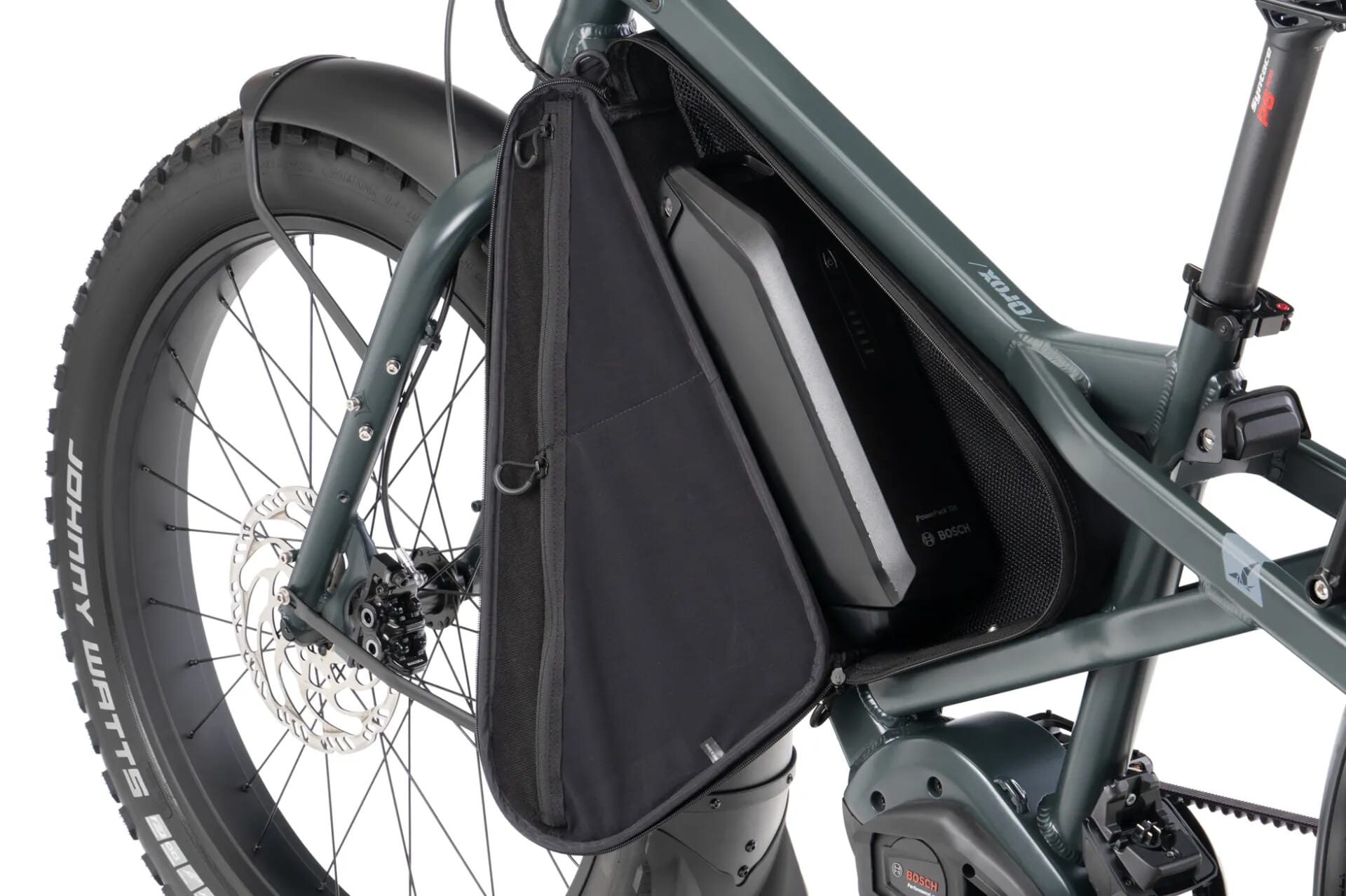

Battery position: Down tube battery / semi-integrated, Seat tube battery / semi-integrated
Frame: Tern Orox - Aluminium
Fork: Atlas X
Battery: Bosch PowerPack 800 Wh
Tyres: Schwalbe Johnny Watts 29" x 2.6"
Saddle: Ergon SM, E-Mountain Sport
Seat post: Syntace P6 AL7050, 34.9 mm
Carrier: Atlas X loadable up to 100 kg
Weight: Size M: approx. 31 kg
Item: Tern Orox R14 - 2024
Colour: satin granite
Stem: Level Nine, 45 mm (M), 65 mm (L)

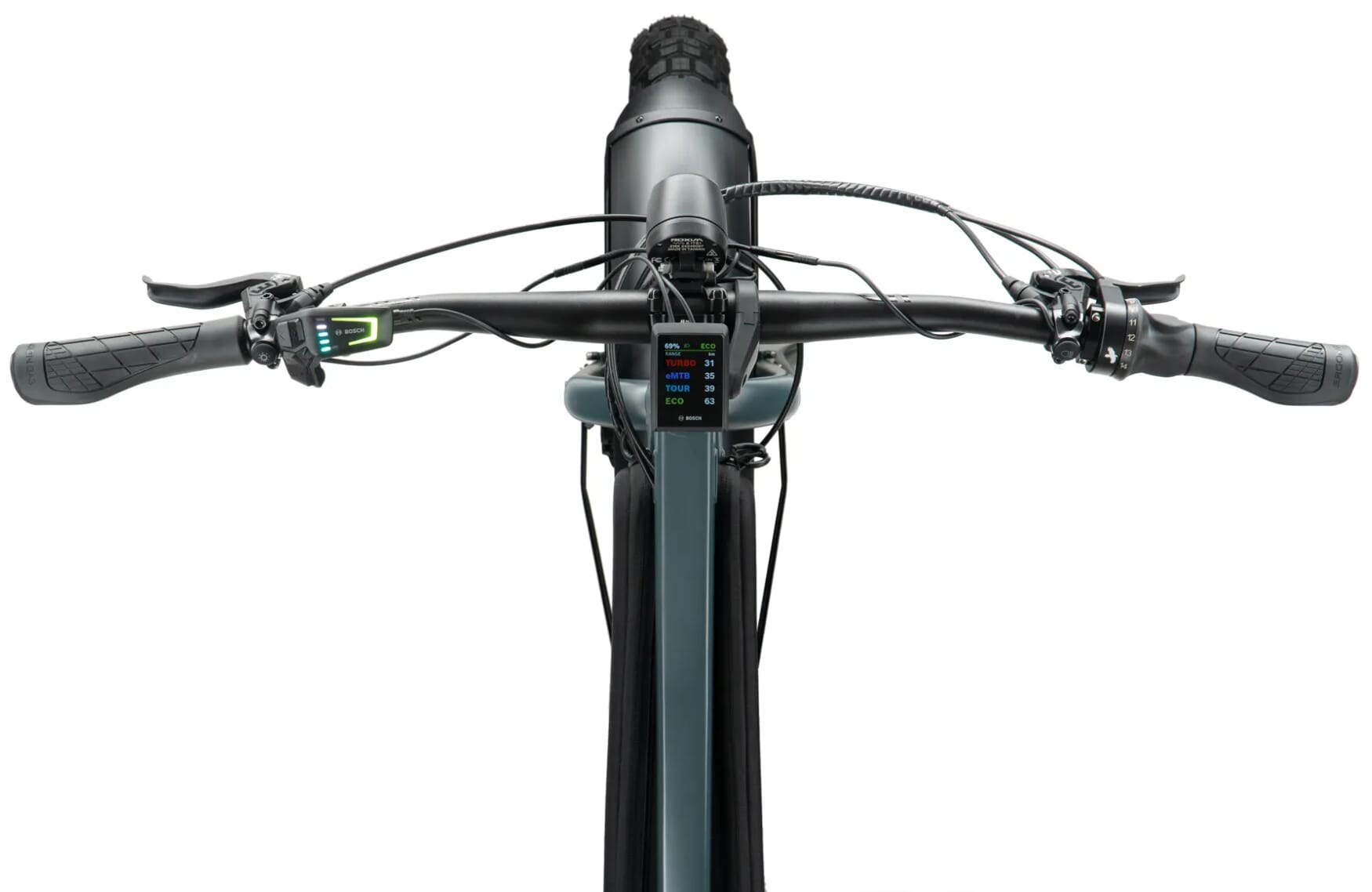

Display: Bosch Kiox 300
Mudguard: Aluminium heavy duty mudguards
Saddle clamp: 34.9 mm
Grips: Ergon
Rims: Tern Atlas X
Motor: Bosch Performance Line CX Smart System - 85 Nm
Rear light: LED rear light with brake light
Front light: Ignis Headlight, Ultra wide 700 Lumen
Pedal: MTB pedals
Front hub: Tern Atlas X, Boost Thru-Axle with integrated Tern tool

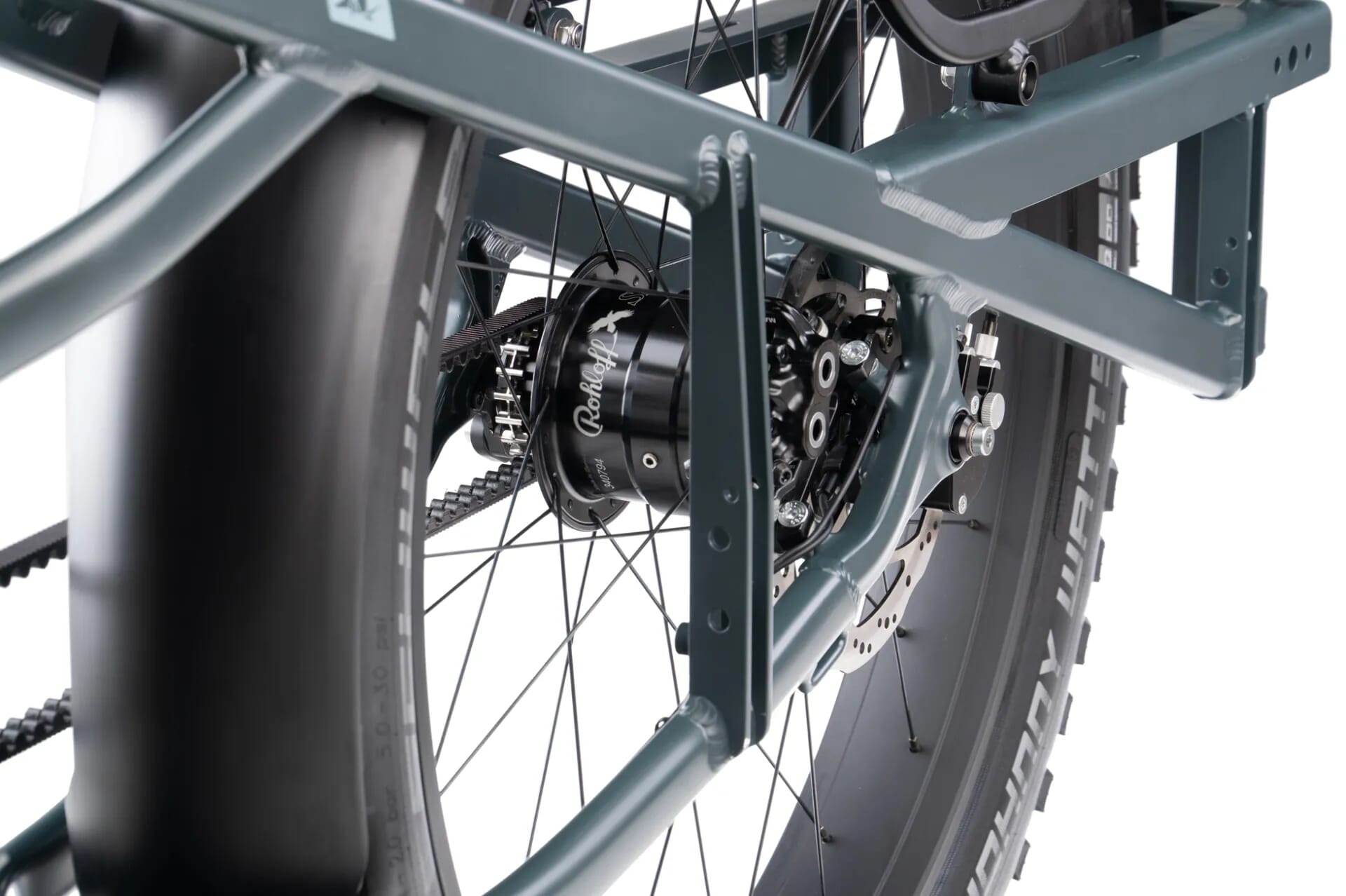

Rear hub: Rohloff Speedhub 14
Wheel size: 29"
Handlebar: Level Nine, AL-7050, 800 mm
Permissible total weight: 210 kg / 180 kg for off-road use
Crank: Tern Orox
Cassette: Gates CDX
Rear derailleur: Rohloff Speedhub 14
Chain: Gates CDX belt
Shift lever: Rohloff Twist
Charger: Bosch Standard Charger 4A
Stand: Atlas Kickstand XL
Brake lever: Magura MT5
StVZO approval: Yes
Battery capacity: 800 Wh with DualBattery up to 1,600 Wh
Disc brakes: 203 mm
Control unit: Bosch LED Remote
Brake: Magura MT5 4-piston disc brake
GPS: yes - Bosch ConnectModule
Bosch E-Bike System: Bosch Smart System
